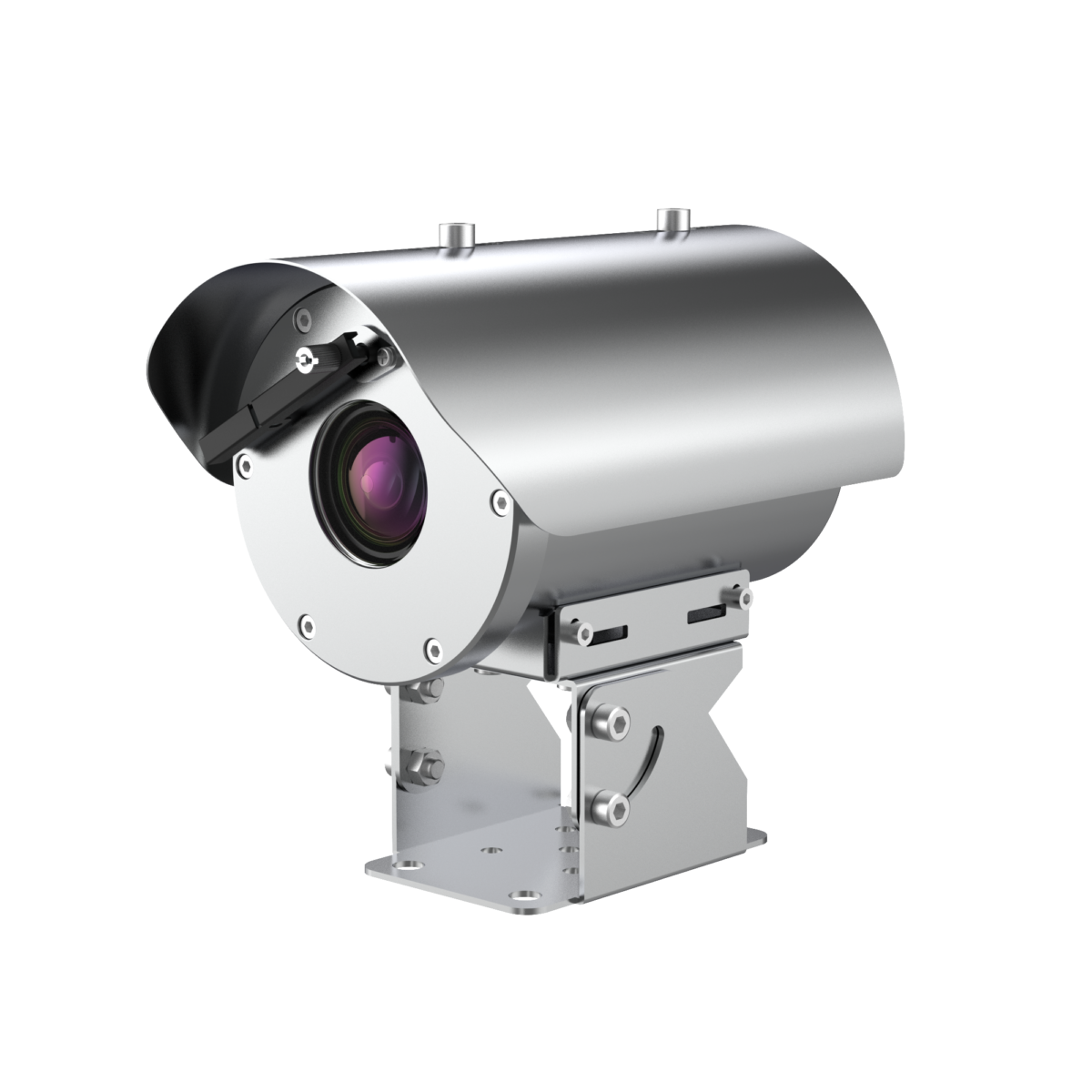

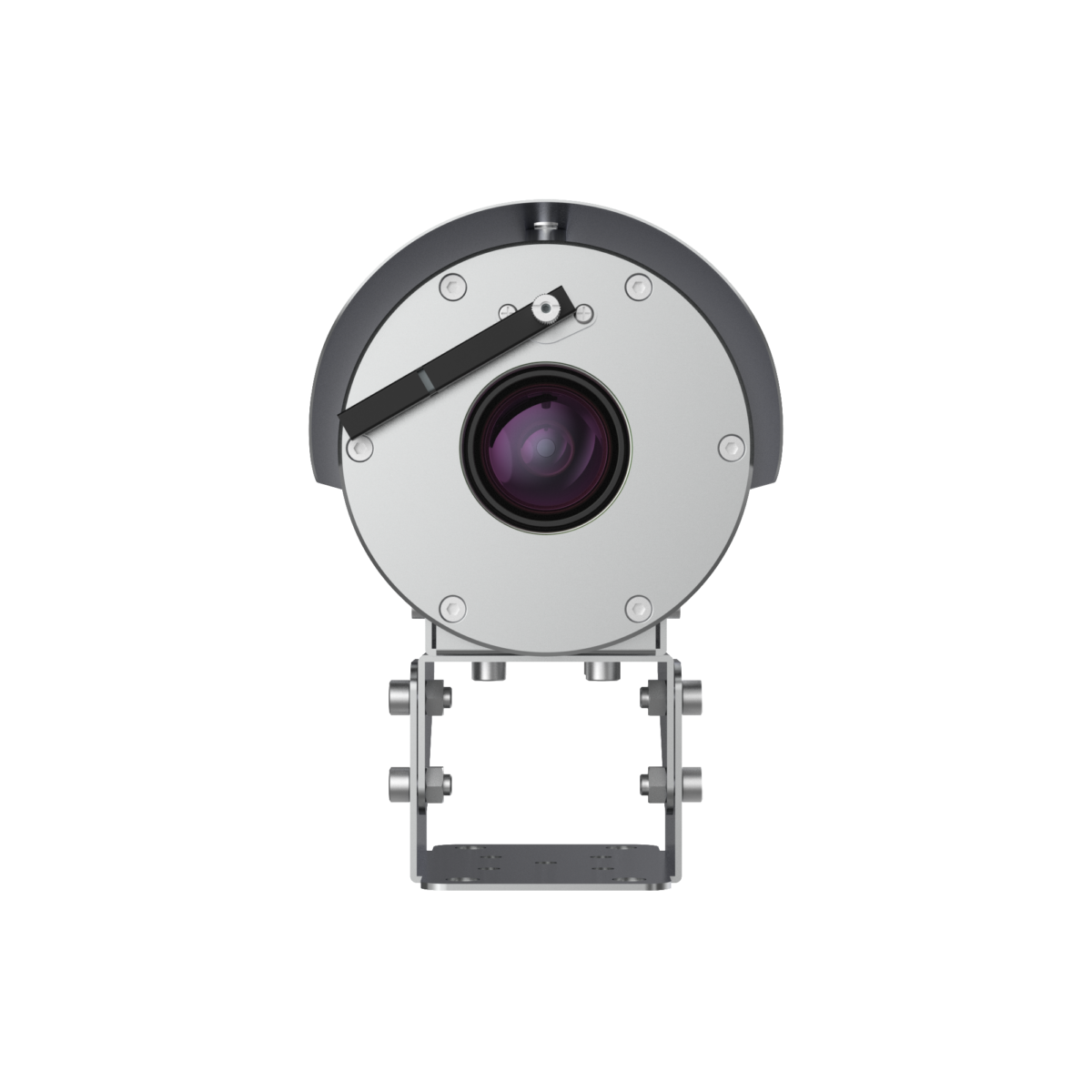

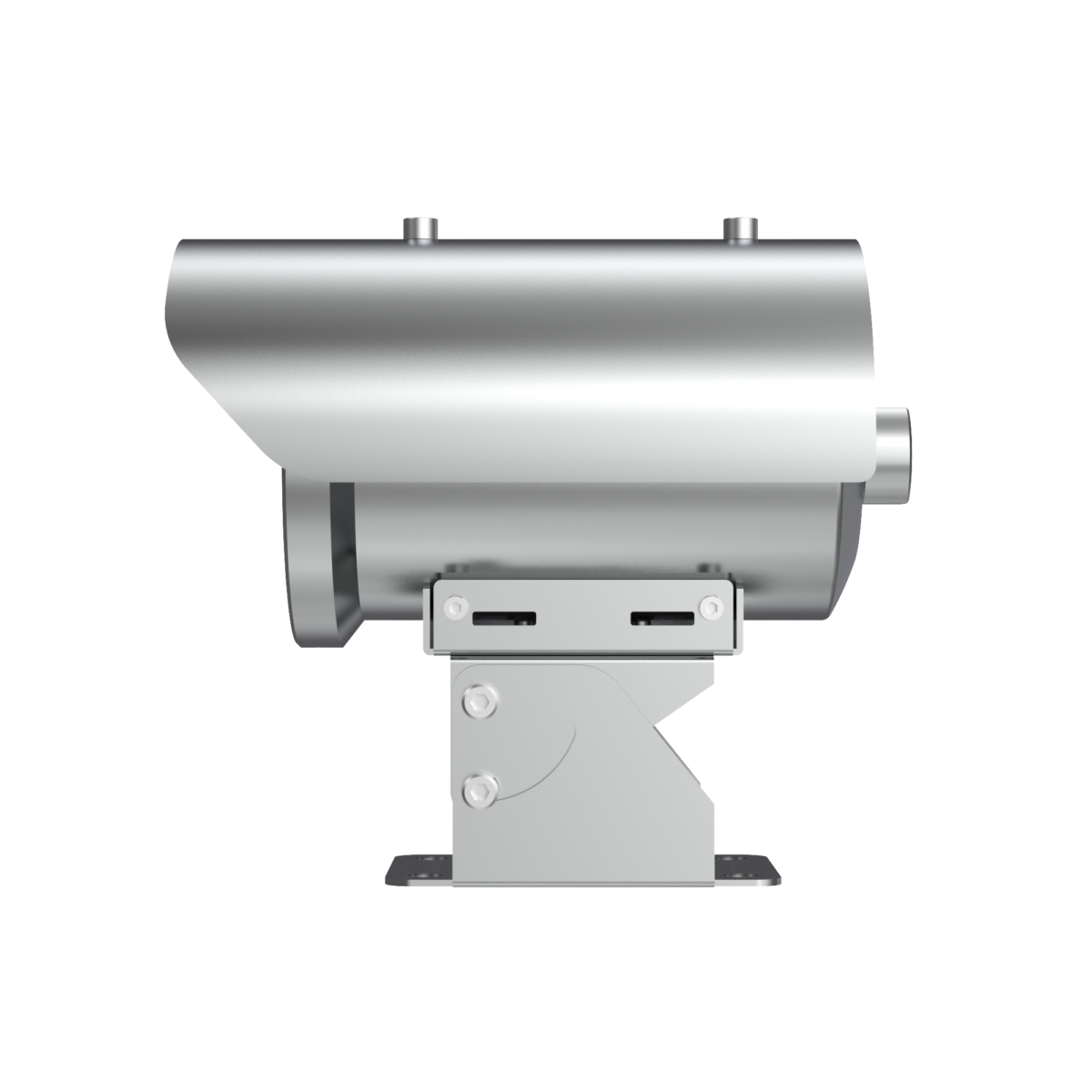

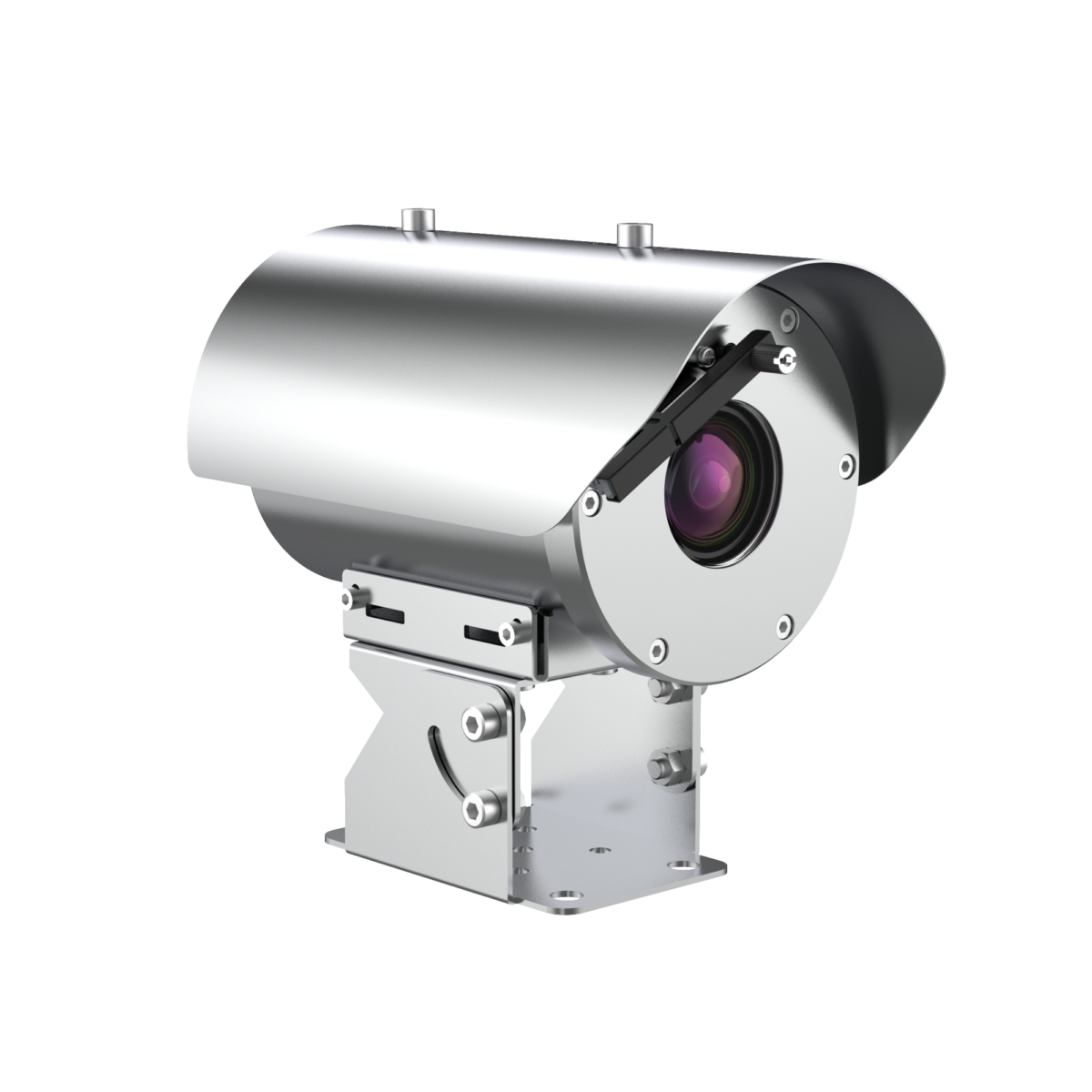

TNO-6321E
2MP Explosion-proof Camera
• H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) field of view
• Color: 0.05Lux (1/30sec, F1.6), B/W: 0.005 Lux (1/30sec, F1.6)
• H.264, H.265, MJPEG codec, WiseStreamⅡ
• Day & Night (ICR), WDR (120dB)
• Face detection, Tampering, Virtual line support
• Explosion-proof certificate : CE2460, EX II 2 GD, Ex d IIC T6 Gb IP67 Ex tb IIIC T80°C Db
• Stainless 316L, Built-in Wiper
• IP67, IK10
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Explosion proof cameras for hazardous environments
Heavy industrial facilities such as gas pipelines, petrochemical plants or oil refineries are potentially explosive because of flammable gases and dusts emitted. Therefore, it is important that a video surveillance system used in heavy industrial facilities is not the cause of explosions whilst still delivering high quality images. Wisenet T series explosion proof camera satisfy both requirements by the powerful network cameras and stainless steel housing enclosure surrounding it.
Stainless steel 316L enclosure to prevent explosions
T series explosion proof cameras are designed to be safely operated in hazardous areas with the special enclosure made of stainless steel 316L housing. The ATEX certified enclosure has the ability to contain any internal explosions or prevent sparks from escaping the device which may lead to a disaster.
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" CMOS | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)\nMJPEG: Max. 30fps/25fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.05Lux (1/30sec, F1.6) \nB/W: 0.005 Lux (1/30sec, F1.6) | |
| Lens | ||
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm(32X) zoom | |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) | |
| Angular Field of View | H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) | |
| Min. Object Distance | Wide 1.5m, Tele 2m | |
| Focus Control | One shot AF | |
| Lens Type | DC auto iris | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1~1/12,000sec) | |
| Video Rotation | Flip, Mirror | |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Alarm input | |
| Alarm Events | File upload via FTP and e-mail \nNotification via e-mail \nNAS recording at event triggers\nAlarm output\nZoom Preset | |
| Water Removal | Support (with Wiper) | |
| Network | ||
| Ethernet | RJ-45 (10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR\nMJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast\nMultiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | |
| Security | HTTPS(SSL) login authentication\nDigest login authentication\nIP address filtering\nUser access log\n802.1X authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G/T\nSUNAPI(HTTP API)\nWisenet open platform | |
| General | ||
| Webpage Language | English, Korean, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian | |
| Memory | 1024MB RAM, 256MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / Less than 90% RH\n* Start up should be done at above -30°C | |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F ~ +140°F) / Less than 90% RH | |
| Certification | IP67, IK10\nCE2460, EX II 2 GD, Ex d IIC T6 Gb IP67\nEx tb IIIC T80°C Db | |
| Input Voltage | 24VAC | |
| Power Consumption | 24VAC: Max 28W | |
| Mechanical | ||
| Color / Material | Metalic Silver / Stainless 316L | |
| Product Dimensions / Weight | Ø162 x 244mm(Ø6.38 x 9.61"), 7Kg(15.43 lb) | |
