Network Cameras NEW

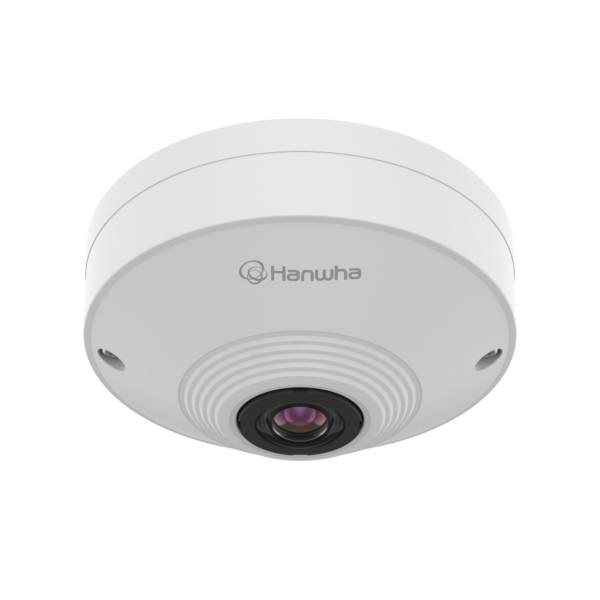

QNF-C9010

12MP AI IR Fisheye Camera

Key Features
• 1/1.6" 12MP CMOS
• 1.76mm fixed stereo graphic type lens
• Color: 0.02Lux(F1.8, 1/30sec), BW: 0.001Lux(F1.8, 1/30sec)
• Digital Rotation
• Resolution/Framerate
- Original view: Max. 20fps@3008x3008
- Double panorama: Max. 20fps@3584x1792
- Single panorama: Max. 20fps@3584x896
- Quad view: Max. 20fps@3584x2688
- Q1/Q2/Q3/Q4(4:3): Max. 20fps@1792x1344
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine
- Object detection (Person/Vehicle)
- Color Attribute, BestShot
- Motion detection, Virtual line (Crossing/Direction),
Virtual area (Loitering/Intrusion/Enter/Exit)
• PoE: Max 7.3W
Contact Sales Datasheet

["camera","network","fisheye"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/1.6" 12MP CMOS
Resolution Overview : 3008x3008, 2560x2560, 1920x1920, 1504x1504, 1280x1280, 800x800, 640x640, 480x480
Double panorama: 3584x1792, 1920x960, 1280x640, 1024x512, 640x320
Single panorama: 3584x896, 1920x480, 1280x320, 1024x256, 640x160
Quad view: 3584x2688, 2048x1536, 1792x1344, 1024x768, 768x576, 512x384
Q1/Q2/Q3/Q4(4:3): 1792x1344, 1024x768, 768x576, 512x384
Max. Framerate Original view: Max.20fps@3008x3008,
Double panorama: Max.20fps@3584x1792
Single panorama: Max.20fps@3584x896
Quad view: Max.20fps@3584x2688
Q1/Q2/Q3/Q4(4:3): Max.20fps@1792x1344
MJPEG: Max.5fps
Min. Illumination Color: 0.02Lux (F1.8, 1/30sec)
BW: 0.001Lux (F1.8, 1/30sec)
Video Out USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 1.76mm fixed focal
Max. Aperture Ratio F1.8
Angular Field of View H: 185° / V: 185° / D: 185°
Min. Object Distance 0.5m(1.64ft)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range Digital Rotation
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ, WiseNRⅡ(Based on AI engine)
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point quadrangle zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Classified object type: Person/Vehicle
Attributes: Person(Upper/lower clothes color), Vehicle(color)
Support BestShot

Analytics events based on AI engine
- Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit/Appear/Disappear)

Analytics events
- Defocus detection, Tampering

* Some of the video analytics only works with people and vehicle detection
Business Intelligence Based on AI engine: People counting, Queue management, Heatmap
Alarm Triggers Analytics, Network disconnect
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP/SFTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- MQTT: publication
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 5 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Hanwha Vision Open Platform
Security
OS / Firmware Protect Secure boot, Signed firmware, Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Simplified Chinese, Traditional Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 2GB RAM, 1GB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C~+40°C(+14°F ~ +104°F) / 0~90% RH
Storage Temperature / Humidity -50°C~+60°C(-58°F ~ +140°F) / 0~90% RH
Certification IP42
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: Max 7.3W, typical 4.3W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003

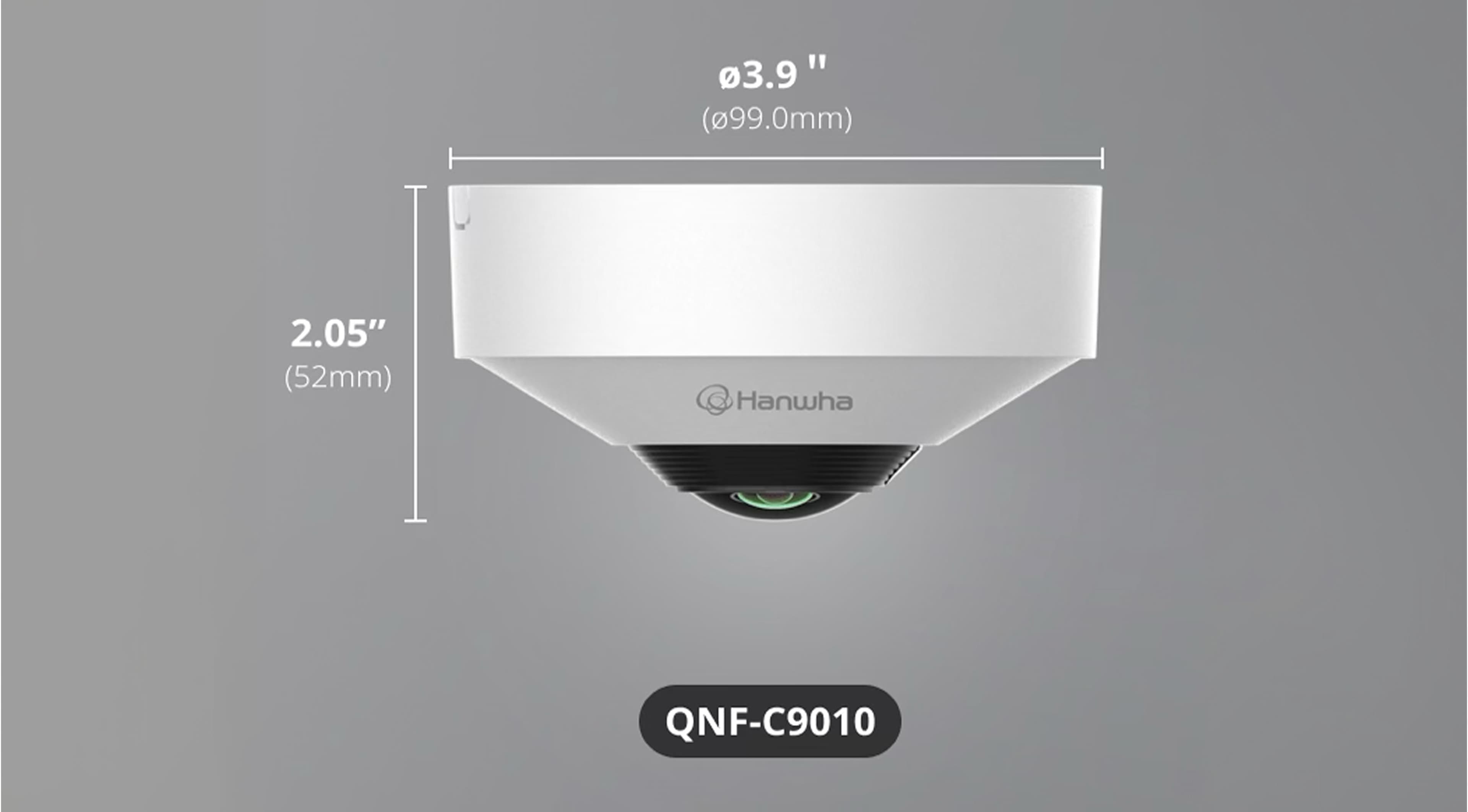

Product Dimensions / Weight ø99x52mm(ø3.9x2.05"), 360g(0.79lb)
Hanging Mount (Dome) SBP-099HMW
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP42
Compatible Models
Hanging Adaptor SBP-099HMW
Ceiling Mount (Assy) SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
Ceiling Mount (Single Unit) SBP-140CMB/180CMB/180CMS, SBP-150CMP/300CMP/900CMP, SBP-C15P, SBP-C15H
Wall Mount SBP-125WMW1, SBP-250WMW, SBP-400WMW, SBP-300WMW/300WMW1
Wall Mount Adaptor SBP-115PFA, SBP-300BW1
Pole Mount SBD-140PMB, SBP-300PMW2
In-ceiling Mount SHD-1128FPW
Corner Mount SBD-140KMB, SBP-156KMW, SBP-300KMW1
Parapet Mount SBP-300LMW, SBP-156LMW1
Tilt Mount SBV-099TMW
Cabinet SBP-300NBW
Gang Plate SBD-110GP1
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 36.9m(121.03ft)
Observe (63PPM/ 19PPF) 14.8m(48.42ft)
Recognize (125PPM/ 38PPF) 7.4m(24.21ft)
Identify (250PPM/ 76PPF) 3.7m(12.10ft)
