Network Cameras

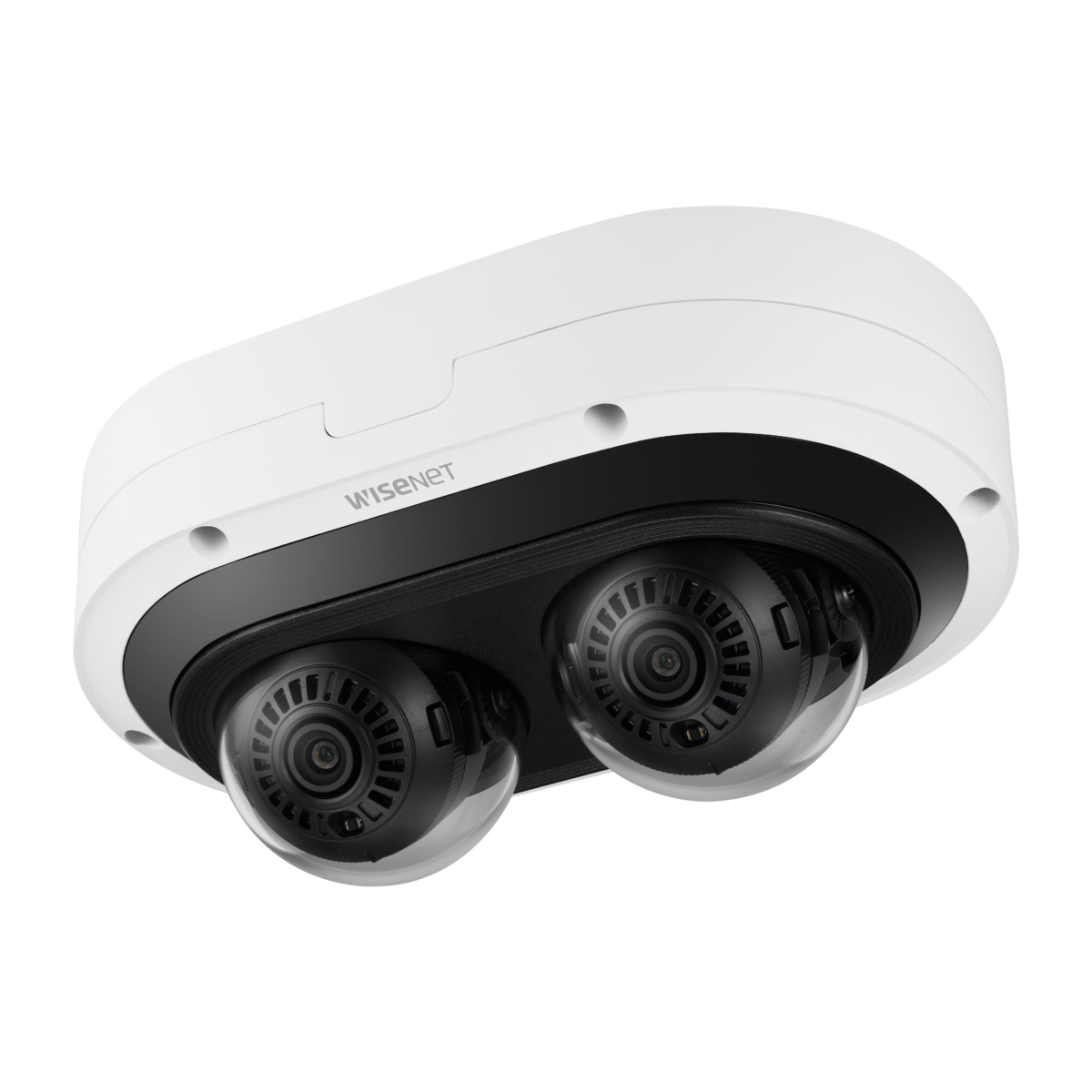

PNM-12082RVD

6MP x 2CH Multi-directional Camera

Key Features
• WiseNR, WiseStreamⅡ, extremeWDR (120dB)
• Maximum 3328x1872 resolution
• Maximum 15fps@6M
• Color: 0.16lux (F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
• 3.54~6.69mm motorized varifocal, 78° tilt angle
• IR viewable length: IR 25m (82ft) based on scene
• TPM 2.0 (FIPS 140-2 certified)
• IP66, IP67, IK10, NEMA4X
Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" CMOS x 2CH
Resolution 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768,
800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: 6MP Max.15fps
MJPEG: Max.15fps
Min. Illumination Color: 0.16lux(F1.67, 1/30sec, 30IRE)
BW: 0.016lux(F1.67, 1/30sec, 30IRE), 0lux(IR LED on)
Video Out USB: micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 3.54~6.69mm(1.9x) motorized varifocal
Max. Aperture Ratio F1.67(Wide)~F2.64(Tele)
Angular Field of View H: 96˚(Wide)~47˚(Tele)
V: 51˚(Wide)~26˚(Tele)
D: 113˚(Wide)~54˚(Tele)
Min. Object Distance 1.5m(4.92ft)
Focus Control Simple focus
Lens Type Fixed IRIS
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0~355° / 0~78° / 0~180°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR(120dB)
Digital Noise Reduction WiseNR, SSNRⅤ
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Off / Max gain / Manual
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view (90°/270°) (Hallway view can only be applied to both channels simultaneously)
Analytics Analytics events*
- Defocus detection, Motion detection, Tampering, Virtual line(Crossing/Direction), Virtual area(Loitering/Enter/Exit)

* Support Audio detection, Sound classification via optional SPM-4210 I/O box
Alarm I/O * Support Alarm via optional SPM-4210 I/O box
Alarm Triggers Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- Alarm output via optional SPM-4210 I/O box
Audio In * Audio in via optional SPM-4210 I/O box
Audio Out * Audio out via optional SPM-4210 I/O box
IR Viewable Length 15m (49ft)
25m(82ft) based on scene
Network
Ethernet Metal shielded RJ-45 (10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP,
ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security TPM 2.0 (FIPS 140-2 level 2)
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Device Certificate(Hanwha Techwin Root CA, pre-installed)
Secure by default certificate
Secure OS/Boot/Storage, Verify firmware forgery
Application Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)
Open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge Storage Micro SD/SDHC/SDXC 1slot Max. 512GB
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing)
* Start up should be above at -35˚C
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 95% RH(Non-condensing)
Certification IP66/IP67, NEMA4X, IK10
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption PoE+: Max 18.3W, typical 13.5W
Mechanical
Color / Material White / Aluminum
Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67") / 1330g
Compatible Conduit hole / Gangbox 1/2" (M20)
single, double, 4" octagon, 4" square
Hanging Mount (Dome) SBP-215HMW
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66/67, IEC/EN 62262 IK10
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 59.9m(196.62ft) / Tele: 153.1m(502.22ft)
Observe (63PPM/ 19PPF) Wide: 24.0m(78.65ft) / Tele: 61.2m(200.89ft)
Recognize (125PPM/ 38PPF) Wide: 12.0m(39.32ft) / Tele: 30.6m(100.44ft)
Identify (250PPM/ 76PPF) Wide: 6.0m(19.66ft) / Tele: 15.3m(50.22ft)
