Network Cameras Discontinued

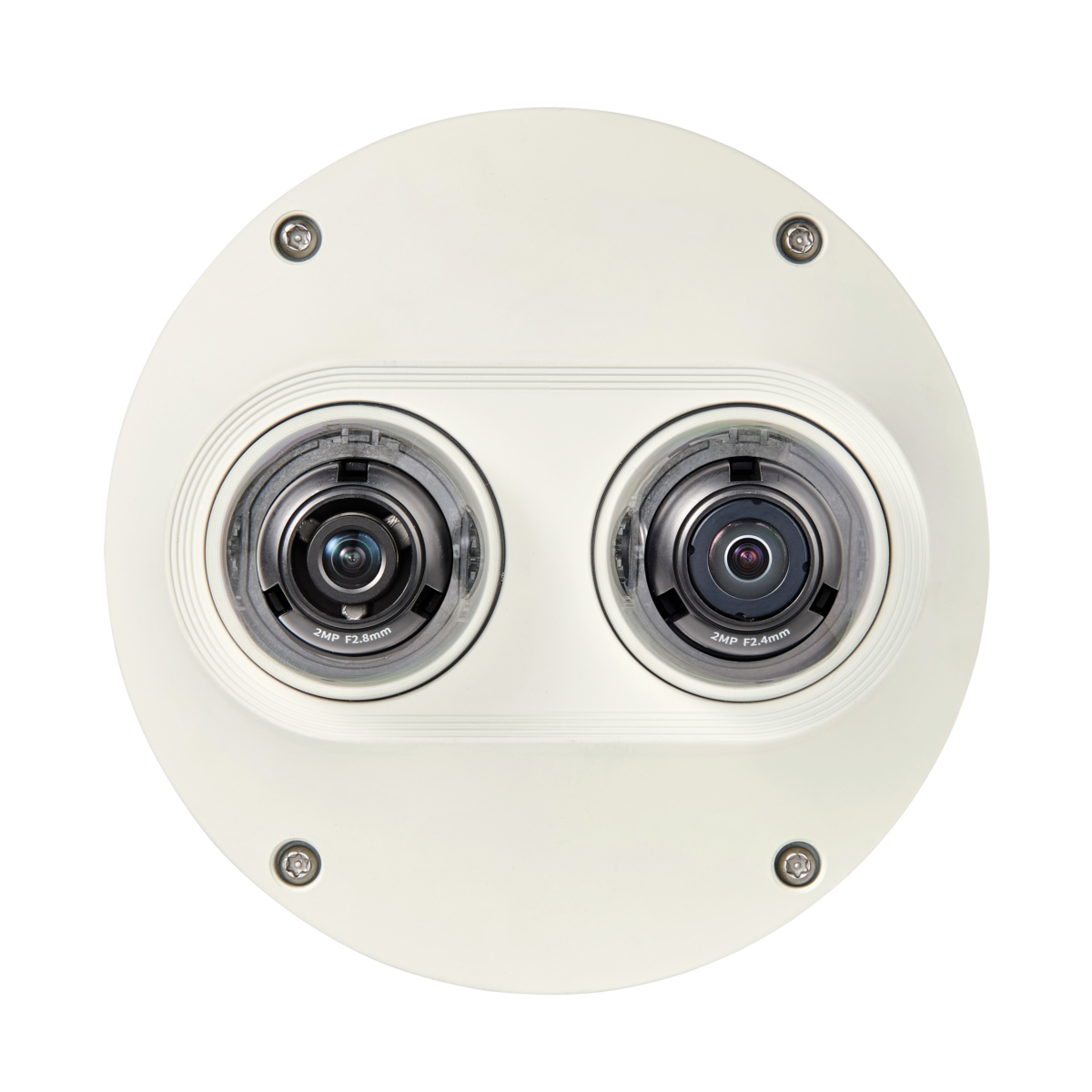

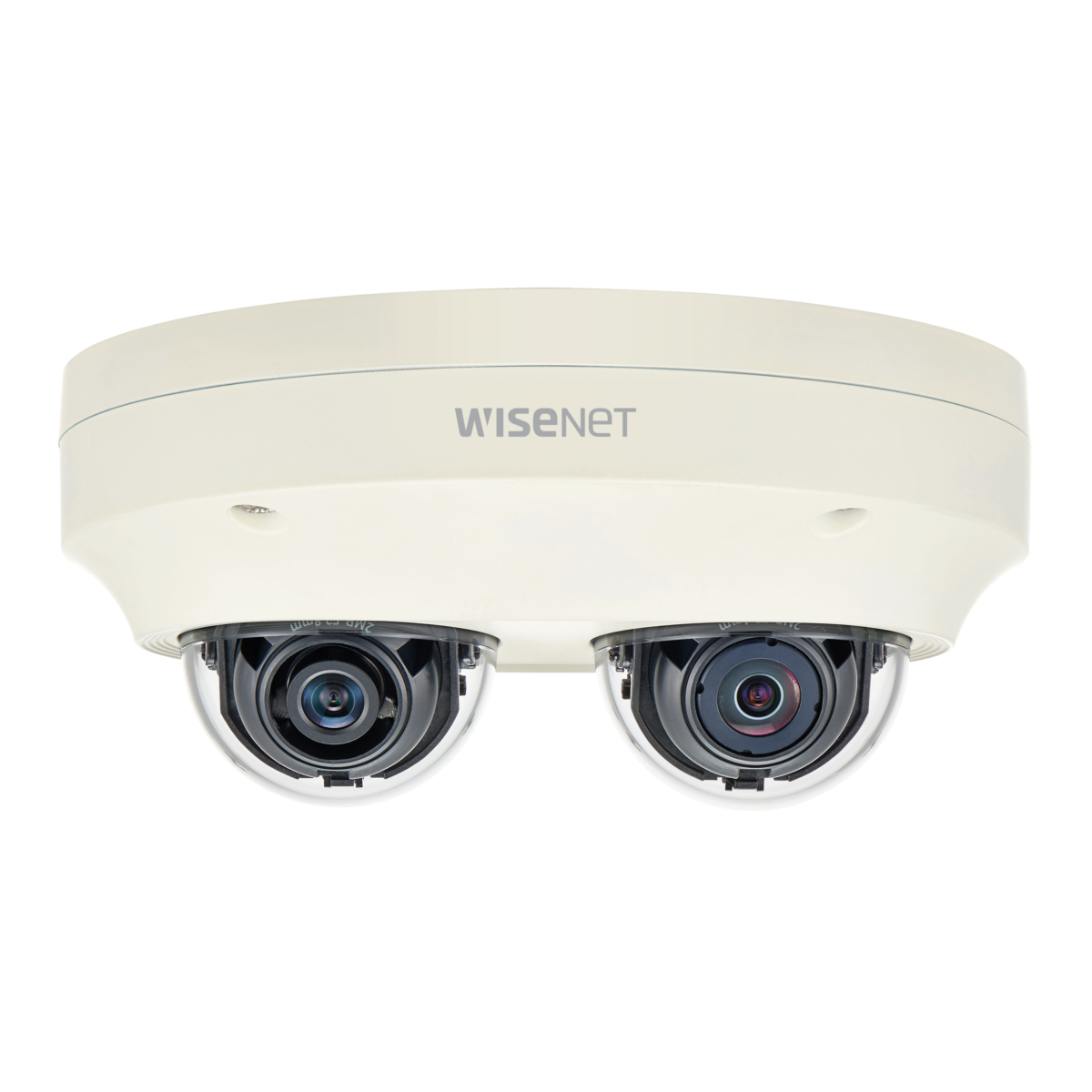

PNM-7000VD

2MP x 2CH Multi-directional Camera

Key Features
• 2ea x 1920 x 1080 resolution
• Max. 60fps@2M (H.265 / H.264)
• H.265, H.264, MJPEG codec supported
• Day & Night, WDR (150dB)
• Loitering, Directional detection, Fog detection
• Motion detection, Tampering, WiseStreamII Support
• SD/SDHC/SDXC memory 2 slots (each camera)
Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Product Specification

Video
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
Lens

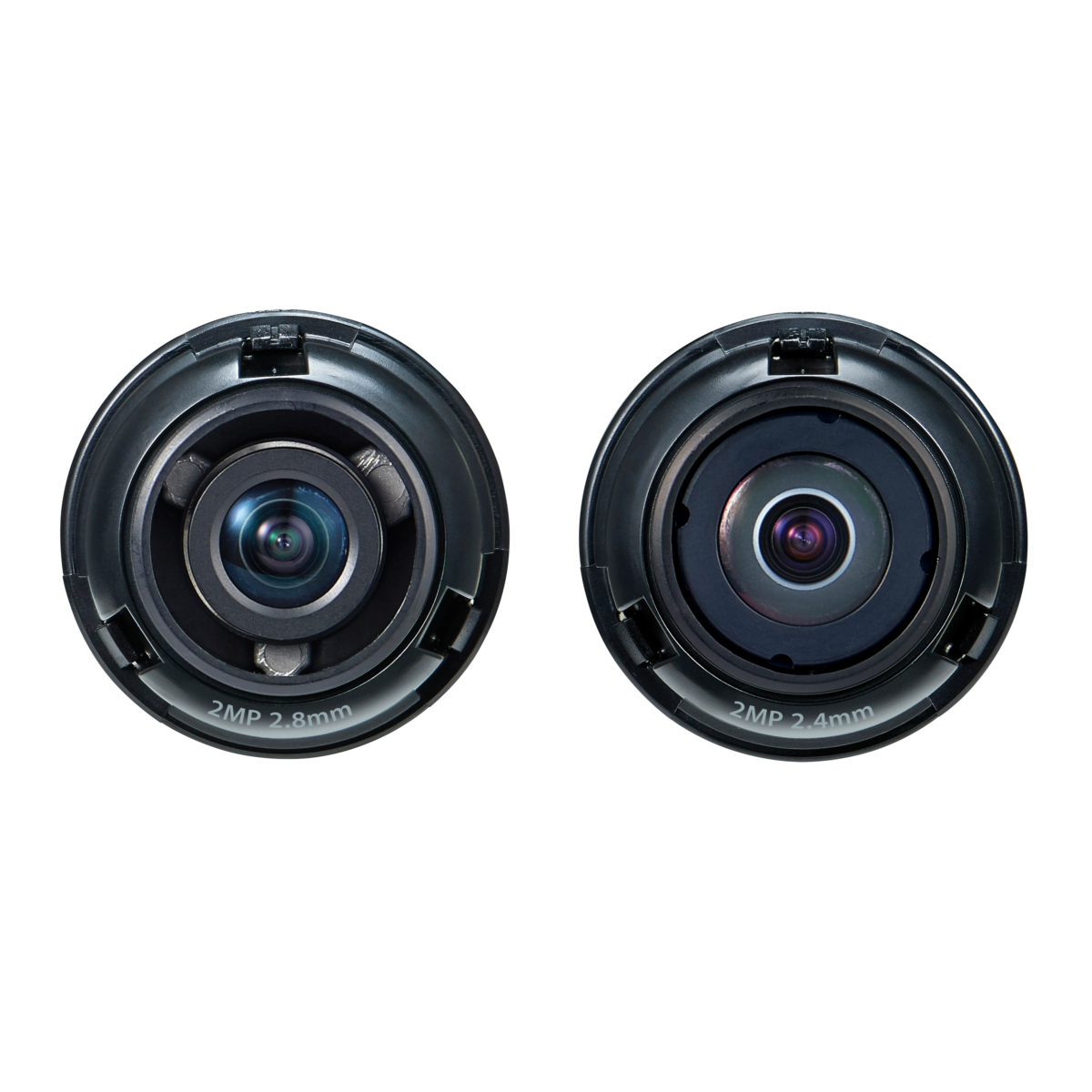

Optional Lens SLA-2M2400D(2MP 2.4mm)
SLA-2M2800D(2MP 2.8mm)
SLA-2M3600D(2MP 3.6mm)

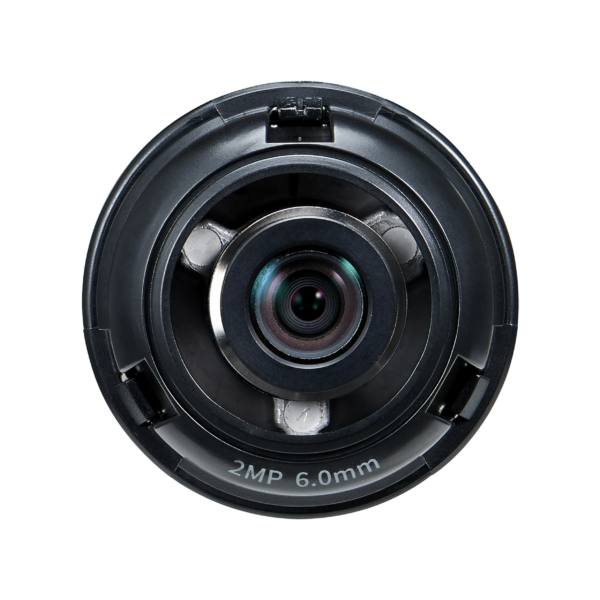

SLA-2M6000D(2MP 6.0mm)
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(Electrical)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
Alarm Triggers Analytics, Network disconnect
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC recording at event triggers
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S
SUNAPI(HTTP API)
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 2slot 256GB(Each CH)
Memory 2GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage PoE+(IEEE802.3af, Class3)
Power Consumption Max 12.95W
Mechanical
Color / Material Ivory / Aluminum
Product Dimensions / Weight Ø160mmx73mm, 840g

Compatible lenses

Video SLA-2M3600D SLA-2M2400D SLA-2M2800D SLA-2M6000D
Imaging Device 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS 1/2.8" 2MP CMOS
Effective Pixels 1945(H)x1109(V) 1945(H)x1109(V) 1945(H)x1109(V) 1945(H)x1109(V)
Min. Illumination Color: 0.055Lux(F2.0, 1/30sec)
B/W: 0.055Lux(F2.0, 1/30sec)		 Color: 0.055Lux(F2.0, 1/30sec)
B/W: 0.055Lux(F2.0, 1/30sec)		 Color: 0.055Lux(F2.0, 1/30sec)
B/W: 0.055Lux(F2.0, 1/30sec)		 Color: 0.055Lux(F2.0, 1/30sec)
B/W: 0.055Lux(F2.0, 1/30sec)
Lens
Focal Length (Zoom Ratio) 3.6mm fixed focal 2.4mm fixed focal 2.8mm fixed focal 6.0mm fixed focal
Max. Aperture Ratio F2.0 F2.0 F2.0 F2.0
Angular Field of View H:94.8°, V:49.3°, D:114.3° H:135.4°, V:71.2°, D:161.6° H:107.4°, V:62.2°, D:122.0° H:50.4°, V:28.8°, D:58.1°
Focus Control Fixed Fixed Fixed Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range -176°~+176° / 0°~54° / -90°~+90° -176°~+176° / 0°~30° / -90°~+90° -176°~+176° / 0°~50° / -90°~+90° -176°~+176° / 0°~65° / -90°~+90°
Mechanical
Color / Material Black / Plastic Black / Plastic Black / Plastic Black / Plastic
Product dimensions / weight Ø35.5x27.9mm, 27g Ø35.5x27.9mm, 30g Ø35.5x27.9mm, 27g Ø35.5x27.9mm, 27g
Datasheet

Product Demo

Lens replacement type Multi-directional camera demo_PNM-7000VD
