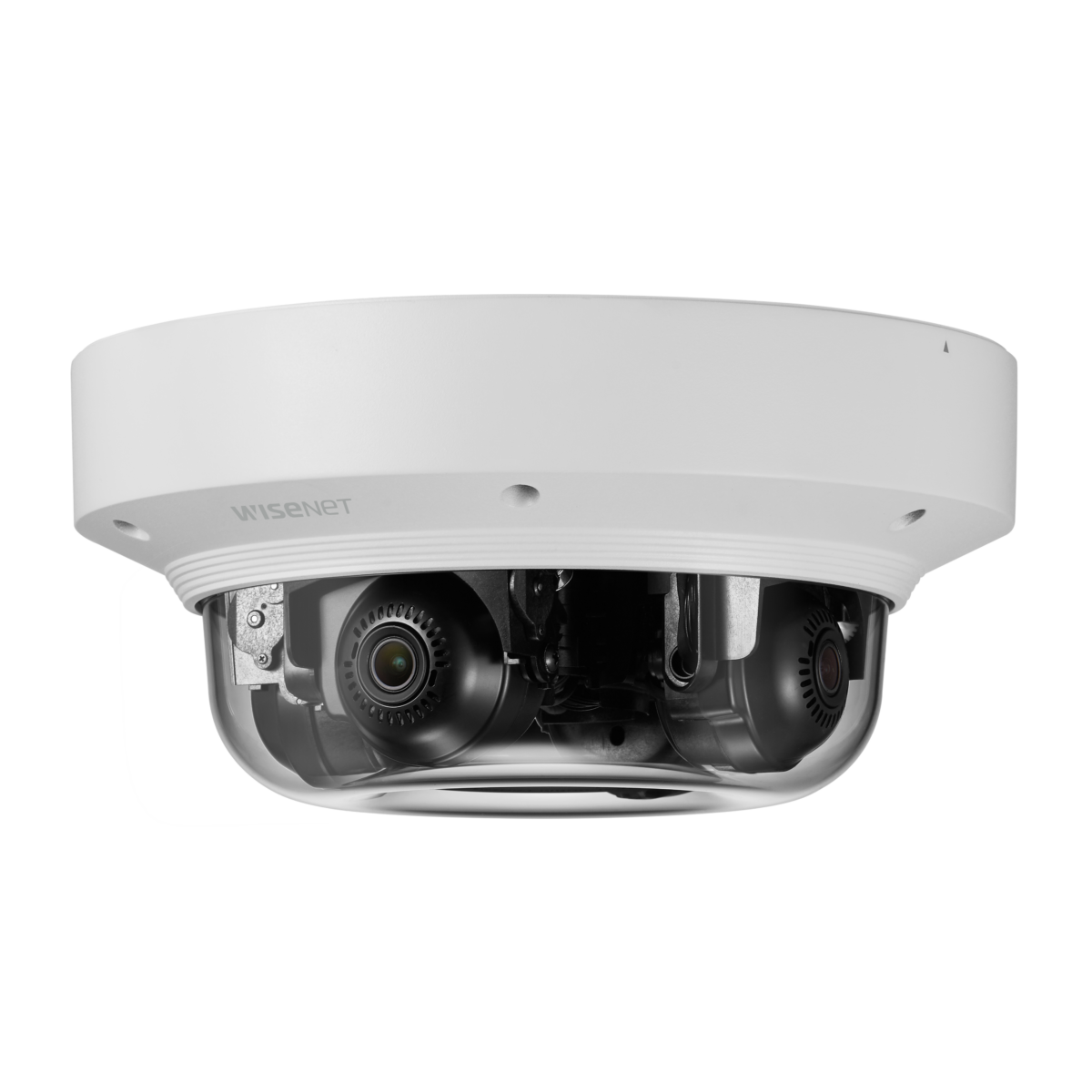

PNM-9084QZ1

2MP x 4CH PTRZ Multi-directional Camera

Key Features
• Motorized PTRZ support
• Maximum 60fps@2MP(H.265, H.264)
• 3~6mm(2x) motorized varifocal lens
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X
Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Remote motorized PTRZ control for easy installation
The PNM-9084QZ1 has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-9084RQZ1 and PNM-9085RQZ1 support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting.
More compact and lighter camera
PNM-9084QZ1 became compact and lighter for easier installation. It’s cost-efficient four channel PTRZ camera.



Product Specification

Video
Imaging Device 1/2.8" CMOS x 4CH
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.04lux(F2.2, 1/30sec)
BW: 0.004lux(F2.2, 1/30sec)
Lens
Focal Length (Zoom Ratio) 3~6mm(2x) motorized varifocal
Max. Aperture Ratio F2.2(Wide)-F3.1(Tele)
Angular Field of View H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type Fixed iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles)
0~360˚ / 0~73˚ / 0~90˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point polygonal zones
- Color: Grey, Green, Red, Blue, Black, White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC at event triggers
Alarm output
Handover
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(each CH)
Memory 5GB RAM, 1280MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F) / Less than 90% RH
*Start up should be above at -35˚C
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage HPoE
Power Consumption Max. 33W, Typical 20W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø251x116.5mm / 3Kg
Compatible Conduit hole / Gangbox 3/4"
Hanging Mount (Dome) SBP-276HMW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)
Observe (63PPM/ 19PPF) Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)
Recognize (125PPM/ 38PPF) Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)
Identify (250PPM/ 76PPF) Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)
