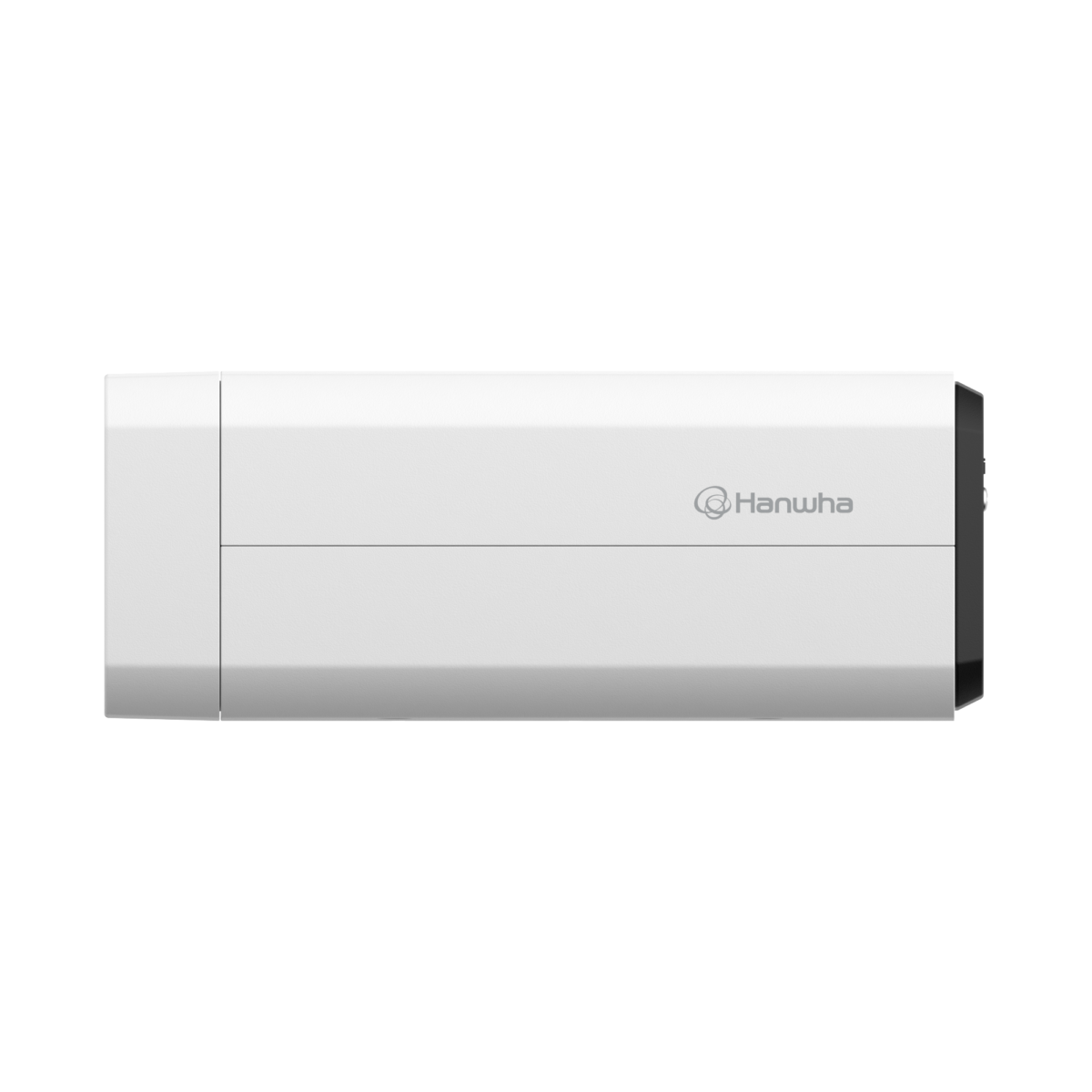

TNM-C3622TDR
Bi-Spectrum AI Thermal Camera
• AI based Object classification with visible channel only (person)
• Remote Temperature Monitoring within -20 ~ 130°C range
• 6 of quadrangle ROI areas for temperature monitoring
• Compact and Light-weight for Indoor purpose
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Radiometric Thermal camera
Radiometric thermal cameras provide visual monitoring of an object’s heat signature using various color palettes. They also measure the temperature data. These capabilities allow users to monitor potential problems caused by heat in objects of interest, enabling preventive action before issues escalate. This technology finds application in various vertical sectors, including monitoring electric vehicle (EV) charger stations for overheating issues.
Enhanced monitoring with thermal imaging
AI-based radiometric thermal cameras are ideal for monitoring critical areas. They see through darkness and fog and even detect heat signatures. This lets you monitor both what’s happening on the surface and potential problems like overheating equipment before they become serious issues. AI function is available on the visible channel only.
The best choice for indoor use

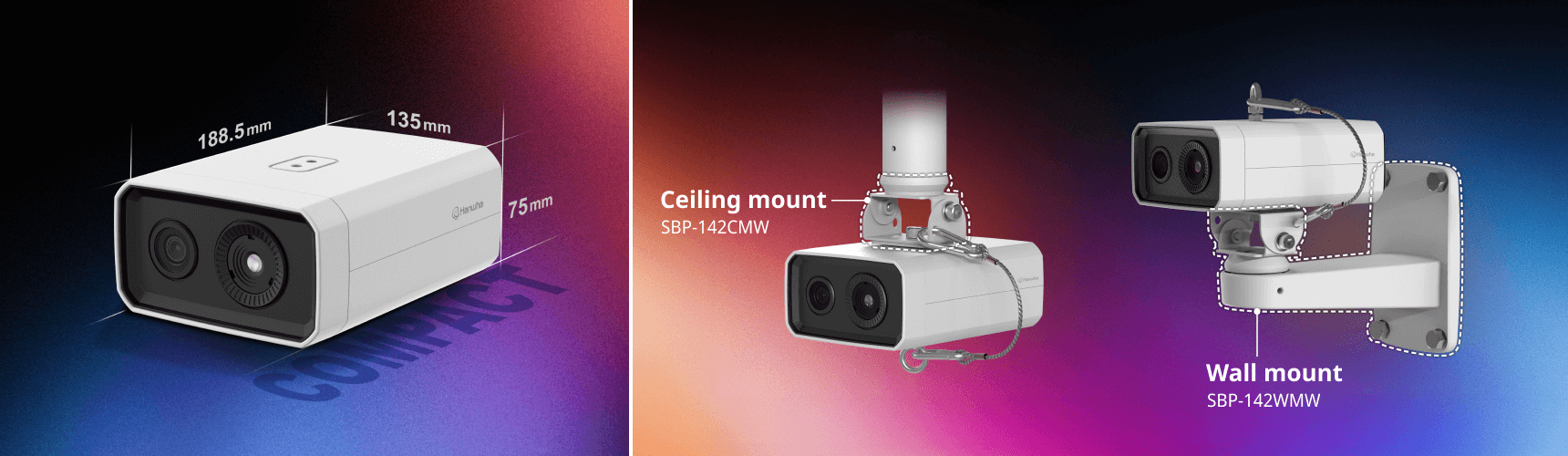

This compact AI radiometric thermal cameras are ideal for discreet and space-saving security monitoring indoors. These cameras offer easy installation with ceiling and wall mount options.
Product Specification
| Video | Thermal | Visible |
|---|---|---|
| Imaging Device | Uncooled micro bolometer (320x240) | 1/2.8" 2MP CMOS |
| Resolution | 1280x960, 640x480, 320x240(Original) | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264/MJPEG: Max. 8fps |
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | ＜50mK | |
| Pixel Size | 12㎛ | |
| Min. Illumination |
Color: 0.05 lux(F1.6, 1/30sec) B/W: 0.005 lux(F1.6, 1/30sec) |
|
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB : Micro USB Type B, 1280x720 for installation |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 4.7mm fixed focal | 4mm fixed focal |
| Max. Aperture Ratio | F1.0 | F1.6 |
| Angular Field of View |
H: 50.0˚, V: 36.4˚, D: 65.3˚ (iFoV: 2.553 mRad ) |
H: 87.6, V: 46.4°, D: 104.5° |
| Min. Object Distance | 1m(3.28ft) | |
| Focus Control | Fixed | Fixed |
| Operational | ||
| Camera Title | Displayed up to 17 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | extremeWDR(150dB) | |
| Digital Noise Reduction | SSNR V | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 24ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) | |
| Video Rotation | Flip, Mirror | |
| Analytics | Directional detection, Motion detection, Enter/Exit, Virtual line, Temperature detection |
Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection AI based Object detection (person/face, visible channel only) |
| Alarm I/O | Input 1ea / Output 2ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription | |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset - MQTT: publication |
|
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Color Palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom | |
| Radiometry | ||
| Temperature Detect Range | -20~+130°C(-4˚F~+266˚F) | |
| Temperature Accuracy |
±5˚C(≤100˚C), ±20%(>100˚C) * This temperature accuracy is based on testing the minimum object distance (MoD) at room temperature as a reference value. |
|
| Temperature Detection | 6 Quadrangle ROI zones, whole FoV area | |
| Additional | Hybrid palettes, Spot temperature reading | |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100BASE-T), RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Smart Codec | WiseStreamⅡ | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 6 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF Profile S/T/M SUNAPI(HTTP API) |
|
| Security | ||
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware | |
| User authentication | Digest Authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file | |
| Audit | Access / System / Event Log management | |
| Device ID | Device Certificate(Hanwha Private Root CA) | |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt | |
| Security Certificate | TPM with FIPS 140-2 level 2 | |
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB | |
| Memory | 4608MB RAM, 512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -10°C~+55°C(+14°F~+131°F) / Less than 95% RH | |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / Less than 95% RH | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE+: Max. 17.0W, typical 12.5W 12VDC: Max. 14.5W, typical 11.0W |
|
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | 135(W)x75(H)x188.5(D)mm, (5.31x2.95x7.42"), 1.7kg(3.77lb) | |
| Ceiling Mount (Assy) | SBP-142CMW | |
| Wall Mount | SBP-142WMW | |
| Certifications & Standards | ||
| EMC | EN 55032:2015/A11:2020 CLASS A EN 50130-4:2011/A1:2014 CLASS A EN 61000-3-2:2014 CLASS A EN 61000-3-3:2013 CLASS A 47 CFR Part 15, Subpart B ANSI C63.4 2014 CLASS A IC Regulation ICES 003 : 2016 ANSI C63.4 2014 CLASS A VCCI CISPR 32: 2016 CLASS A |
|
| Safety | UL/CSA 62368-1 KC 62368-1 |
|
| Environment | IEC/EN 63000 | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | 80.1m(262.8ft) | |
| Observe (63PPM/ 19PPF) | 32.0m(105.1ft) | |
| Recognize (125PPM/ 38PPF) | 16.0m(52.6ft) | |
| Identify (250PPM/ 76PPF) | 8.0m(26.3ft) | |
