Network Cameras

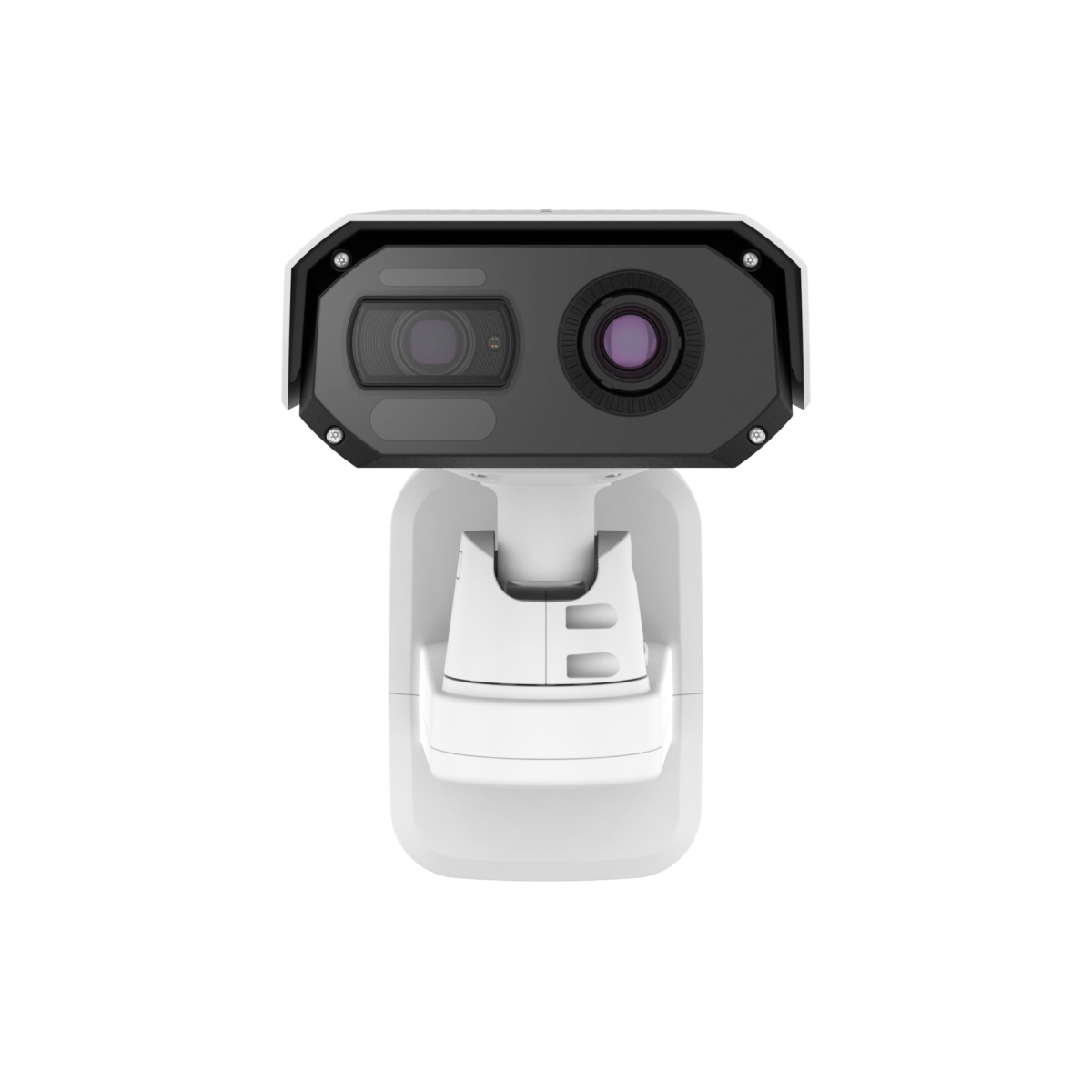

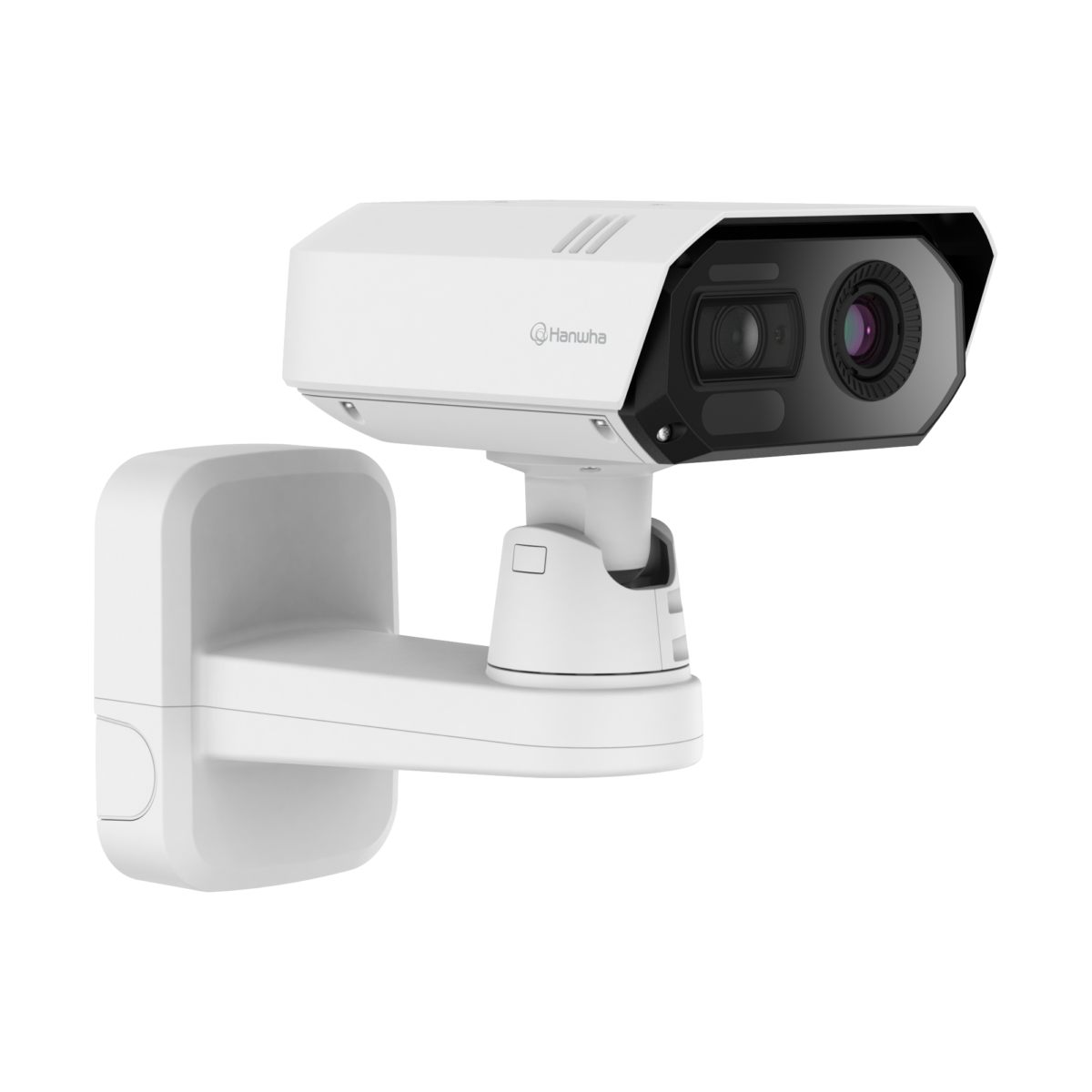

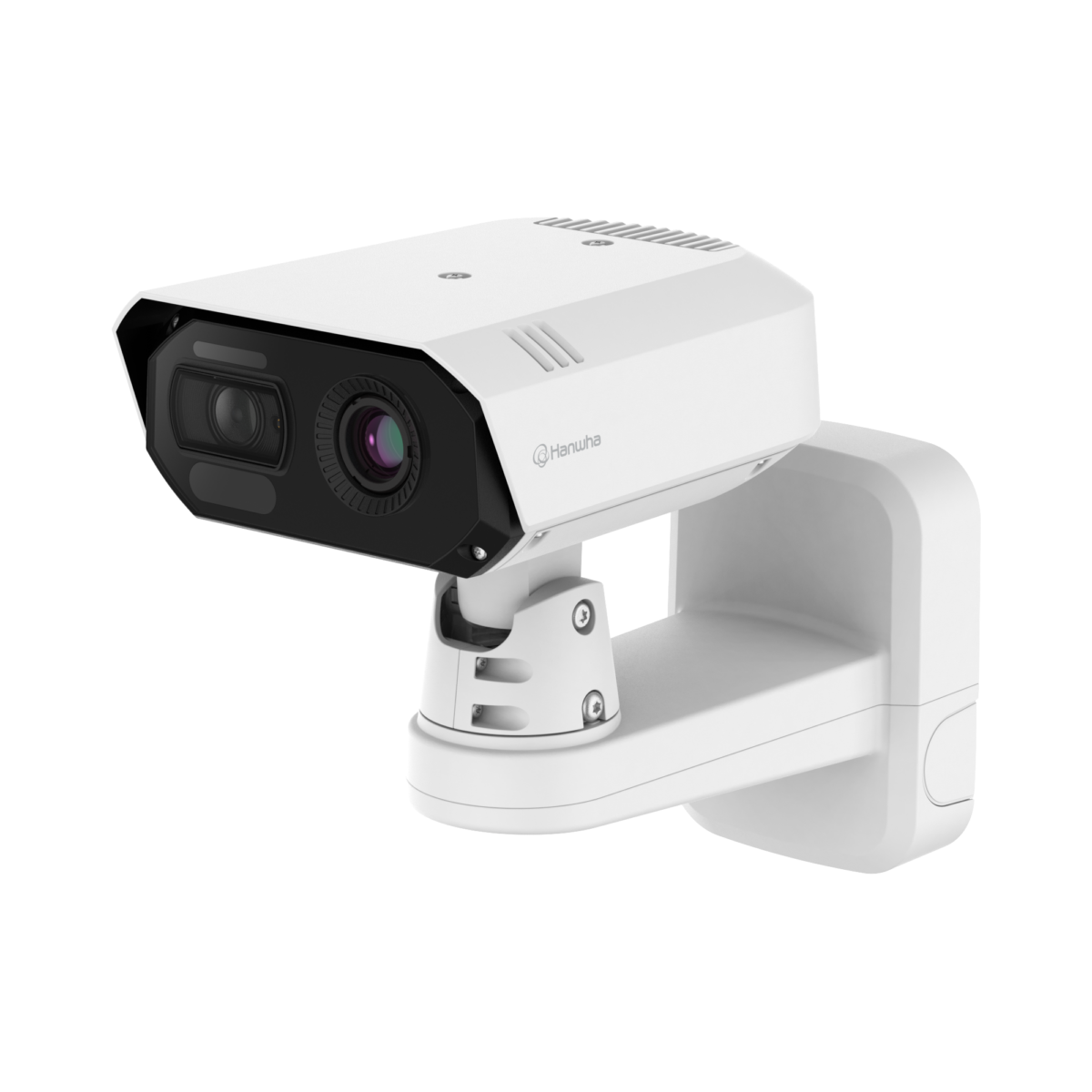

TNM-C4940TDR

Bi-spectrum AI IR Thermal Camera

Key Features
• Radiometry AI Bi-Spectrum for Outdoor environment
• Bi-spectrum monitoring with 8MP visible & VGA thermal
• AI based Object classification with Both Channels (person/vehicle)
• Remote Temperature Monitoring within -20 ~ 130°C range
• 10 of polygonal ROI areas for temperature monitoring
• Improved All-in-One installation solution (wall&pole)
Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Radiometric Thermal camera​

Radiometric thermal cameras provide visual monitoring of an object’s heat signature using various color palettes. They also measure the temperature data. These capabilities allow users to monitor potential problems caused by heat in objects of interest, enabling preventive action before issues escalate. This technology finds application in various vertical sectors, including monitoring electric vehicle (EV) charger stations for overheating issues.

AI-enabled Visible and Thermal Imaging for Advanced Monitoring

AI-based radiometric thermal cameras offer superior monitoring with simultaneous visible and thermal imaging, powered by AI for intelligent analysis on both channels. This combination allows for regular inspections, early detection of heat-related issues, and enhanced security.

Thermal Imaging with AI Boosts Monitoring Accuracy

This feature significantly enhances monitoring accuracy by enabling detection through thermal imaging even in scenarios where visible cameras struggle.

Product Specification

Video Thermal Visible
Imaging Device Uncooled micro bolometer 1/1.8" 8MP CMOS
Resolution 640x480 (can be scaled up to 1280x960)
1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 		3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768,
800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate H.265/H.264: Max. 30fps/25fps
(Both Channel AI ON - Max. 15fps)
MJPEG: Max. 3fps 		H.265/H.264: Max. 30fps/25fps
(Both Channel AI ON - Max. 15fps)
MJPEG: Max. 1fps
NETD ＜60mK
Pixel Size 12㎛
Min. Illumination Color: 0.06Lux(F1.3, 1/30sec)
BW: 0.004Lux(F1.3, 1/30sec), 0Lux(IR LED on)
Video Out USB : Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 9.1mm fixed focal 4.4~9.3mm(2.2x) motorized varifocal
Max. Aperture Ratio F1.0 F1.3(Wide)~F2.15(Tele)
Angular Field of View H: 50.0°, V: 37.0°, D: 63.8°
(iFoV: 1.319 mRad ) 		H:112.1°(Wide)~47.5°(Tele) /
V:58.0°(Wide)~26.6°(Tele) /
D:137.5°(Wide)~54.6°(Tele)
Min. Object Distance 3.5m(11.48ft) Wide: 1.75m(5.74ft) / Tele: 5.21m(17.09ft)
Focus Control Fixed Simple foucs
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range -170° ~ +170° / -40° ~ 50° / -　
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range WDR(120dB)
Digital Noise Reduction SSNR V, WiseNR II
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, rectangle zones
- Color: Gray/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker(1/5~1/12,000sec)
Auto prefer shutter control(Based on AI engine)
Analytics Classified object type: Person/Vehicle

Support BestShot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit)
Analytics events
- Motion detection, Temperature detection 		Classified object type: Person/Face/Vehicle/License plate
Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle)
Support BestShot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit)
Analytics events
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)

* Some of the video analytics only works with people and vehicle detection
Alarm I/O 4 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, MQTT subscription
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- MQTT: publication
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type 30m (98.42ft)
Color Palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Radiometry
Temperature Detect Range -20°C~130°C(-4°F~266°F)
Temperature Accuracy ±5°C(≤100°C), ±20%(>100°C)
* This temperature accuracy is based on testing the minimum object distance (MoD) at room temperature as a reference value.
Temperature Detection 10 Polygonal ROI zones, whole FoV area
Additional Hybrid palettes, Spot temperature reading
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec WiseStreamⅡ Manual(5ea area), WiseStreamⅢ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/T/M
SUNAPI(HTTP API)
Wisenet open platform (visible channel only)
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authentication
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file
Audit Access / System / Event Log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt
Security Certificate TPM with FIPS 140-2 level 2
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slots 512GB
Memory 4608MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C to +60°C(-58°F to +140°F)
* Start up should be done at above -30°C
0~95% RH(non-condensing)
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~90% RH
Certification IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption PoE+ : Max 25.5W, Typ 16.0W
12VDC : Max 21.5W, Typ 14.0W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight 353.4(W)x287.5(H)x191.2(D)mm(13.92x11.32x7.53"), 4.53kg(9.99lb)
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
Safety UL/CSA 62368-1
KC 62368-1
Environment IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10
NEMA 250 type 4X, NEMA TS-2
