Network Cameras

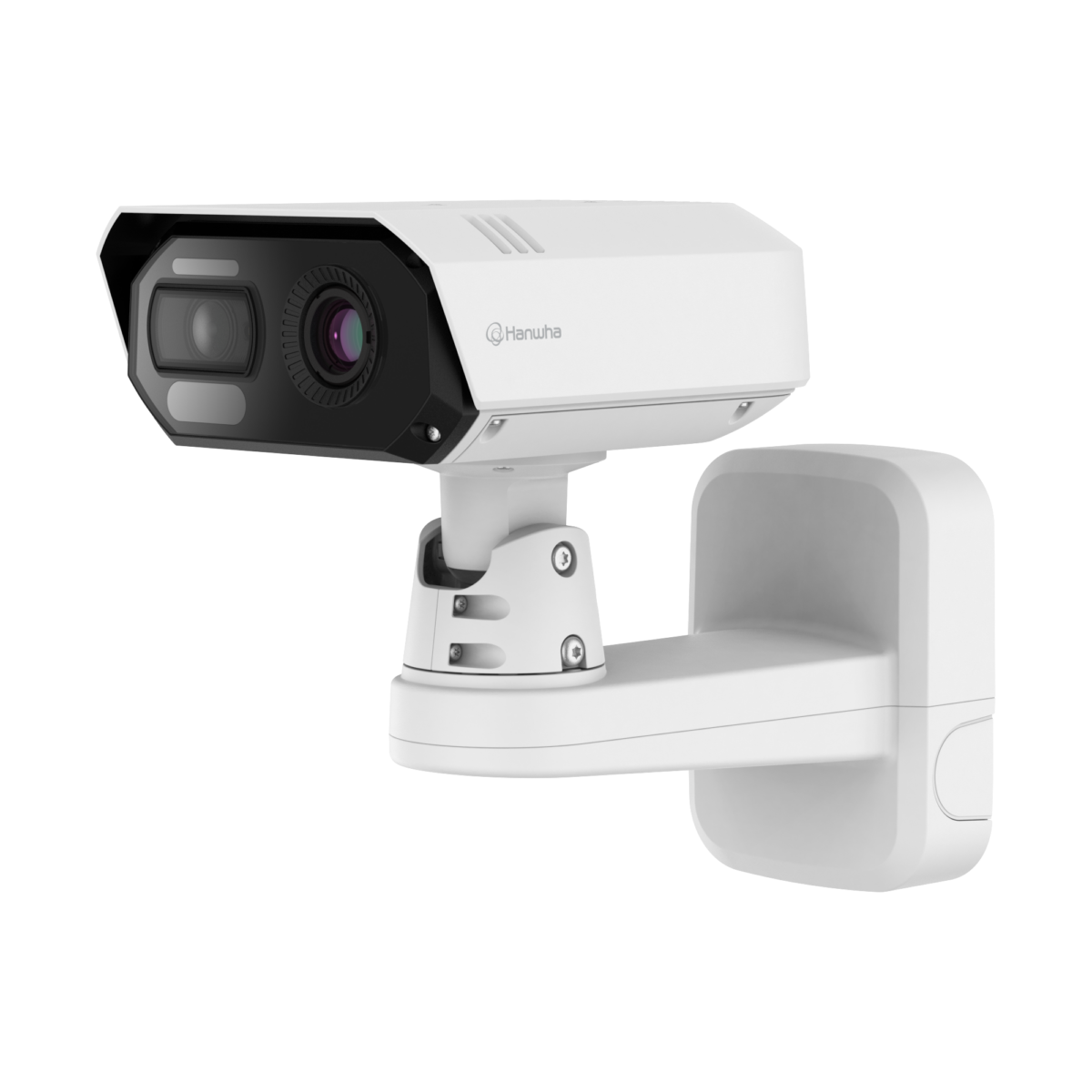

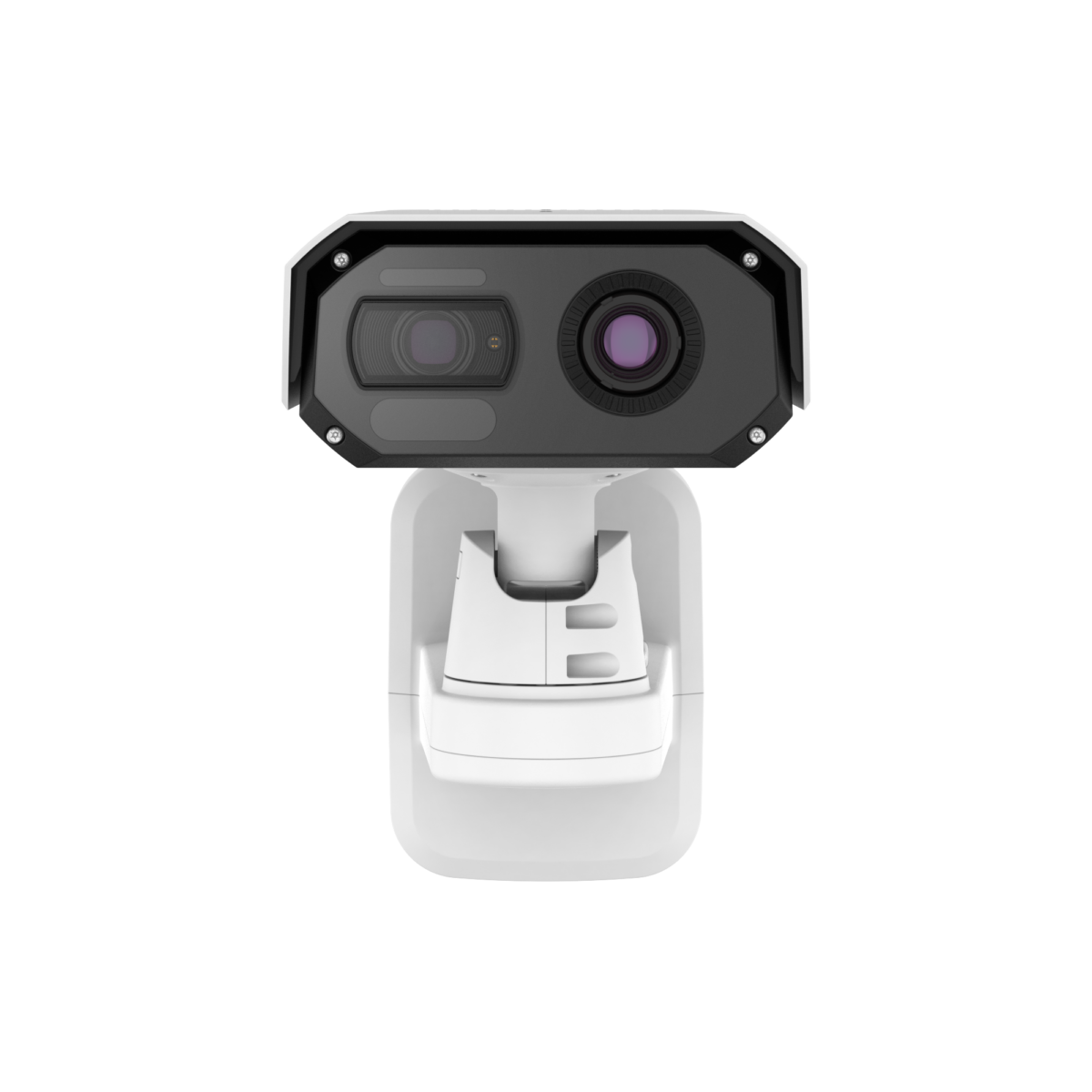

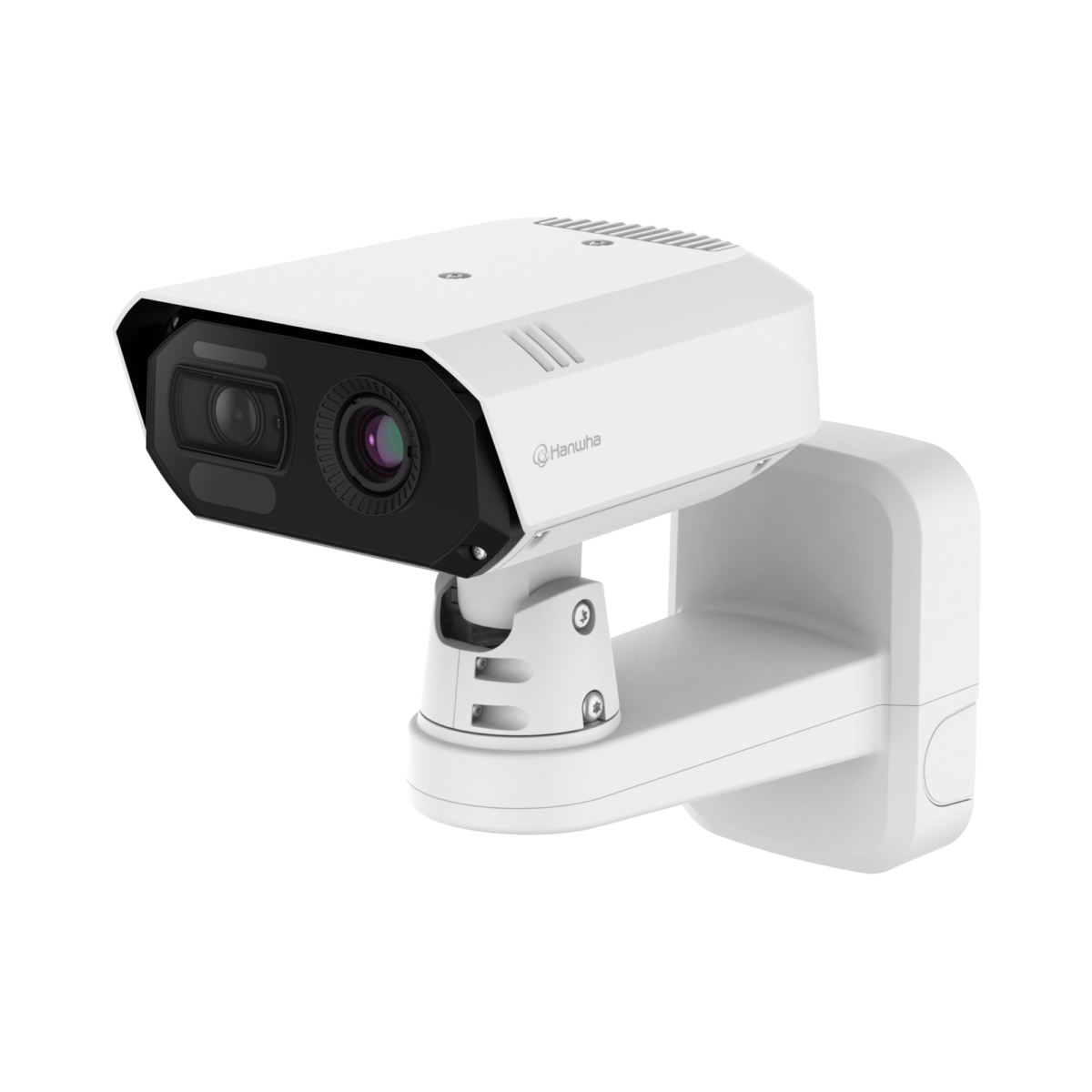

TNM-C4960TD

Bi-spectrum AI Thermal Camera

Key Features
• Bi-spectrum: VGA thermal & 8MP visible sensor
• Dual (thermal & visible) channel by one device, one IP
• Maximum 30fps @ all resolutions (H.265/H.264)
• Lens : 25mm fixed thermal & 10.9~29mm motorized varifocal visible
• Day & Night(ICR), WDR(120dB)
• Noise reduction : WiseNR II (Based on AI engine, visible only)
• Smart codec : WiseStream III (Based on AI engine, visible), WiseStream II (thermal)
• Video Analytics based on AI
• IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
• PoE+(IEEE802.3at), 12VDC
• Wall & Pole mount all-in-one design
Contact Sales Datasheet

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

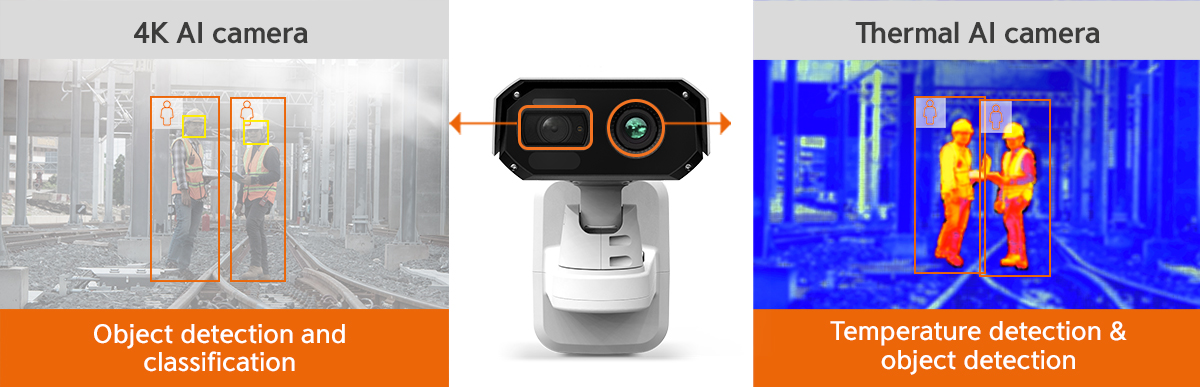

AI object detection and temperature detection with Bi-spectrum AI camera

AI based bi-spectrum camera detects each person individually with 4K resolution. Thermal video of bi-spectrum camera detects temperature change to prevent any possible accidents.
Specifically, it informs the viewer of dangerous places to touch by checking thermal images of hot places that cannot be clearly distinguished by the naked eye.

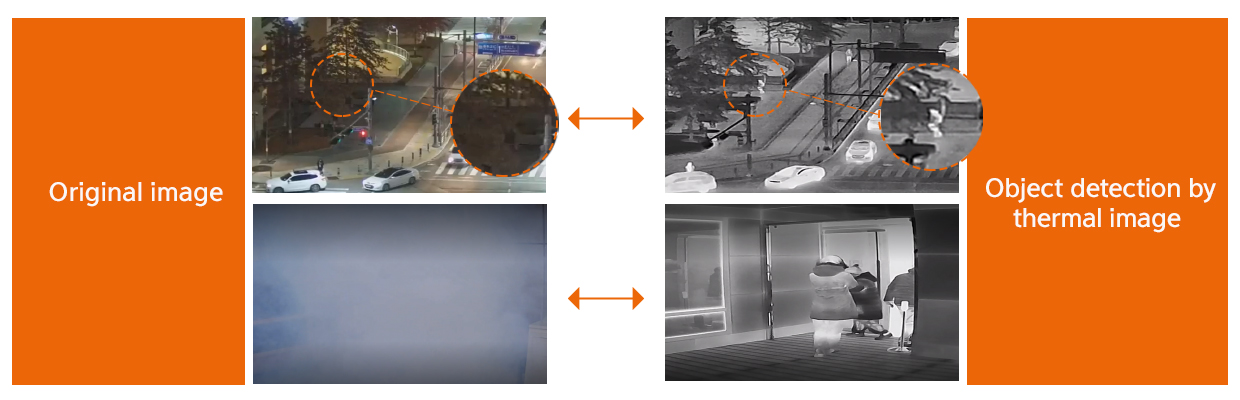

Enabling object detection from a long distance and unclear environment by thermal image

There are challenges to distinguish objects in long distance or dark environment. In order to overcome those challenges, thermal camera of bi-spectrum camera enables user to clearly monitor objects.

Product Specification

Video Thermal Visible
Imaging Device Uncooled micro bolometer 1/1.8" CMOS
Resolution 640x480 (can be scaled up to 1280x960)
1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 		3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768,
800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate H.265/H.264: Max. 30fps/25fps
(AI 2CH ON - 15fps)
MJPEG: Max. 3fps 		H.265/H.264: Max. 30fps/25fps
(AI 2CH ON - 15fps)
MJPEG: Max. 1fps
NETD ＜60mK
Pixel Size 12㎛
Min. Illumination Color: 0.06Lux(F1.7, 1/30sec)
BW: 0.005Lux(F1.7, 1/30sec)
Video Out USB : Micro USB Type B
Lens
Focal Length (Zoom Ratio) 25mm fixed focal 10.9~29mm(2.6x) motorized varifocal
Max. Aperture Ratio F1.0 F1.7(Wide)~F1.73(Tele)
Angular Field of View H: 17.4°, V: 13.1°, D: 21.6° H:42.0°(Wide)~15.0°(Tele) /
V:22.8°(Wide)~8.4°(Tele) /
D:48.7°(Wide)~17.1°(Tele)
Min. Object Distance 26m(85.30ft) Wide: 2.5m(8.20ft) / Tele: 6m(19.68ft)
Focus Control Fixed Simple foucs
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range WDR(120dB)
Digital Noise Reduction SSNR V, WiseNR II
Digital Image Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, rectangle zones
- Color: Gray/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker(1/5~1/12,000sec)
Auto prefer shutter control(Based on AI engine)
Analytics - Analytics events based on AI engine : Object detection (Person/Vehicle), Bestshot, IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Stopped vehicle, Traffic jam
- Analytics events : Motion detection
 Analytics events based on AI engine
- Object detection(Person, face, Vehicle(car/bus/truck/motorcycle/bicycle), License plate), Bestshot, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Stopped vehicle, Traffic jam

- Analytics events : Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Business Intelligence Vehicle counting Vehicle counting
Alarm I/O 4 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- Audio clip playback
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Color Palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law / G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec WiseStreamⅡ Manual(5ea area), WiseStreamⅢ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security TPM 2.0 (FIPS 140-2 level 2)
HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Device certificate(Hanwha Techwin Root CA, pre-installed)
Secure boot, Secure firmware
Application Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)
Wisenet open platform (visible channel only)
General
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slots 512GB
Memory 4GB RAM, 512MB FLASH
Environmental & Electrical
Operating Temperature / Humidity -40°C to +60°C(-58°F to +140°F)
* Start up should be done at above -30°C
less than 95% RH(non-condensing)
Storage Temperature / Humidity -50°C to +60°C(-58°F to +140°F) / Less than 95% RH(Non-condensing)
Certification IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption PoE+ : Max 23.5W, Typ 16.0W
12VDC : Max 19.5W, Typ 14.0W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight 353.4 * 287.5 * 191.2mm (13.92 * 11.32 * 7.53in) / 4.533kg
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 200.1m(656.40ft) / Tele: 583.4m(1913.89ft)
Observe (63PPM/ 19PPF) Wide: 80.0m(262.56ft) / Tele: 233.3m(765.56ft)
Recognize (125PPM/ 38PPF) Wide: 40.0m(131.28ft) / Tele: 116.7m(382.78ft)
Identify (250PPM/ 76PPF) Wide: 20.0m(65.64ft) / Tele: 58.3m(191.39ft)
