Network Cameras Discontinued

(Alternative product : TNU-6321)

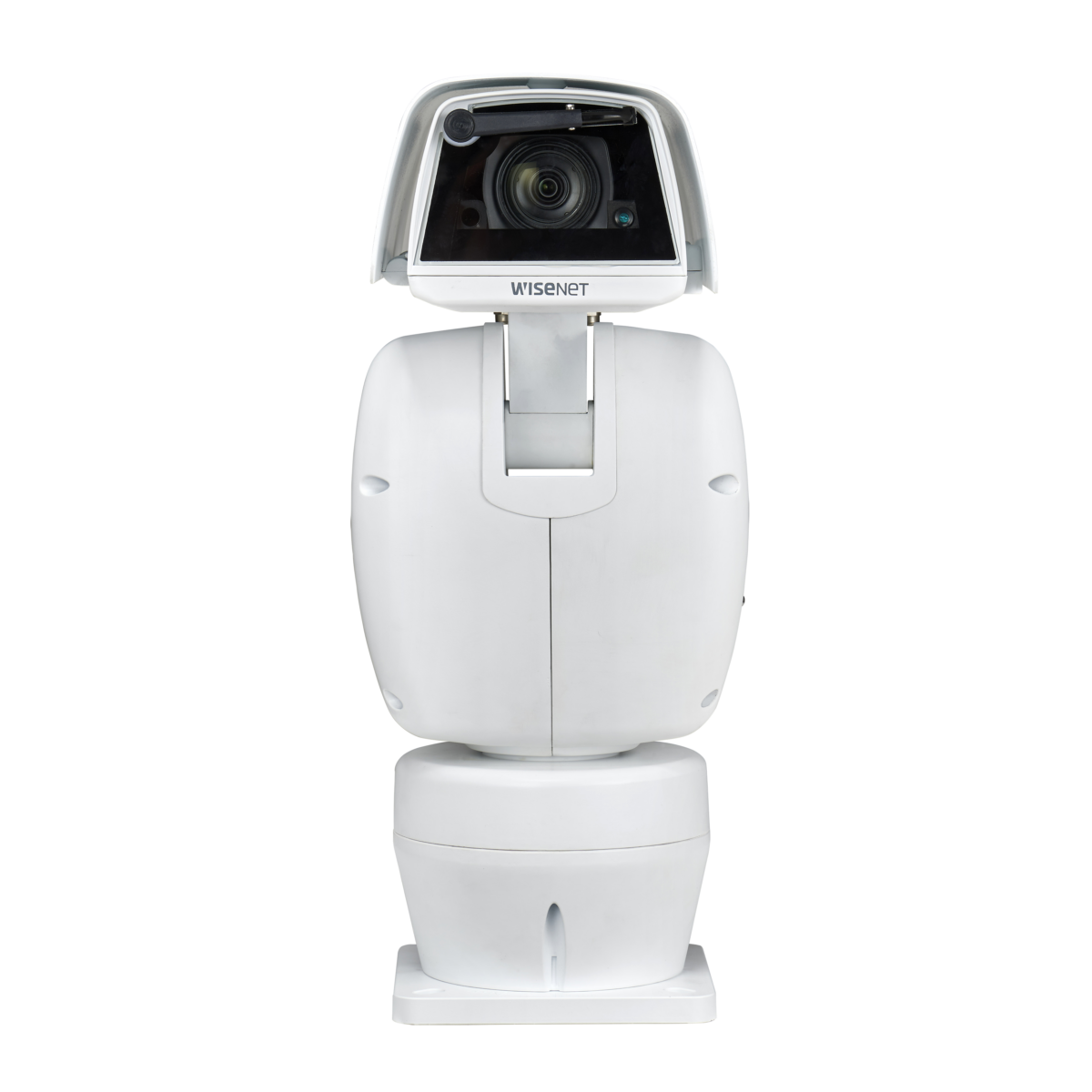

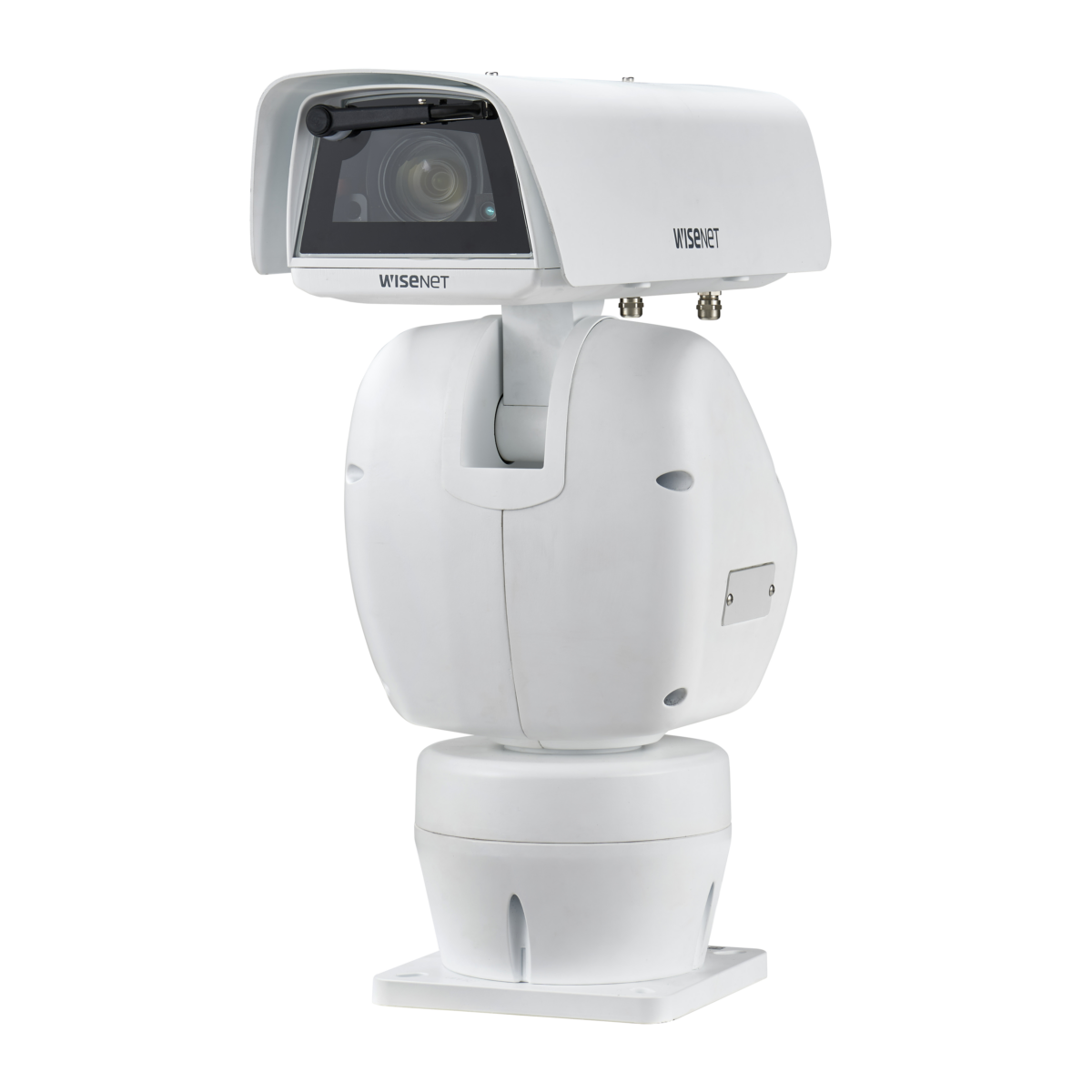

TNU-6320

2M H.264 Positioning Camera

Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 4.44 ~ 142.6mm (32x) varifocal lens
• Max. 60fps@2M (H.264), Max. 15fps@2M (MJPEG)
• H.264, MJPEG codec support
• Day & Night (ICR), WDR (120dB), Defog
• Tampering, Virtual line, Enter / Exit, (Dis)Appear
• Face detection, Motion detection
• SD / SDHC / SDXC slot
Contact Sales Datasheet

["camera","network","positioning"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x450, 720x576, 640x480, 640x360, 320x240, 320x180
Max. Framerate H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.3Lux (F1.6, 1/30sec)
B/W: 0.03 Lux (F1.6, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 62.8°(Wide)~2.23°(Tele) / V: 36.8°(Wide)~1.26°(Tele)
Min. Object Distance 1.5m(4.92ft)
Focus Control Auto / Manual / One Pus
Lens Type DC auto iris, P iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed 0.036°~120°/sec
Tilt Range -90°~40°
Tilt Speed 0.012°~ 40°/sec
Sequence Preset(255ea), Swing, Group(6ea), Trace, Tour(1ea), Auto Run, Schedule
Preset Accuracy ±0.3°
Operational
Camera Title Displayed up to 45 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRIII (2D+3D Noise Filter)
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Analytics Motion detection, Face detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP, E-Mail
Notification via E-Mail, TCP and HTTP
NAS recording at Alarm Triggers
External output
Preset
Audio In Selectable(Mic in/Line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms

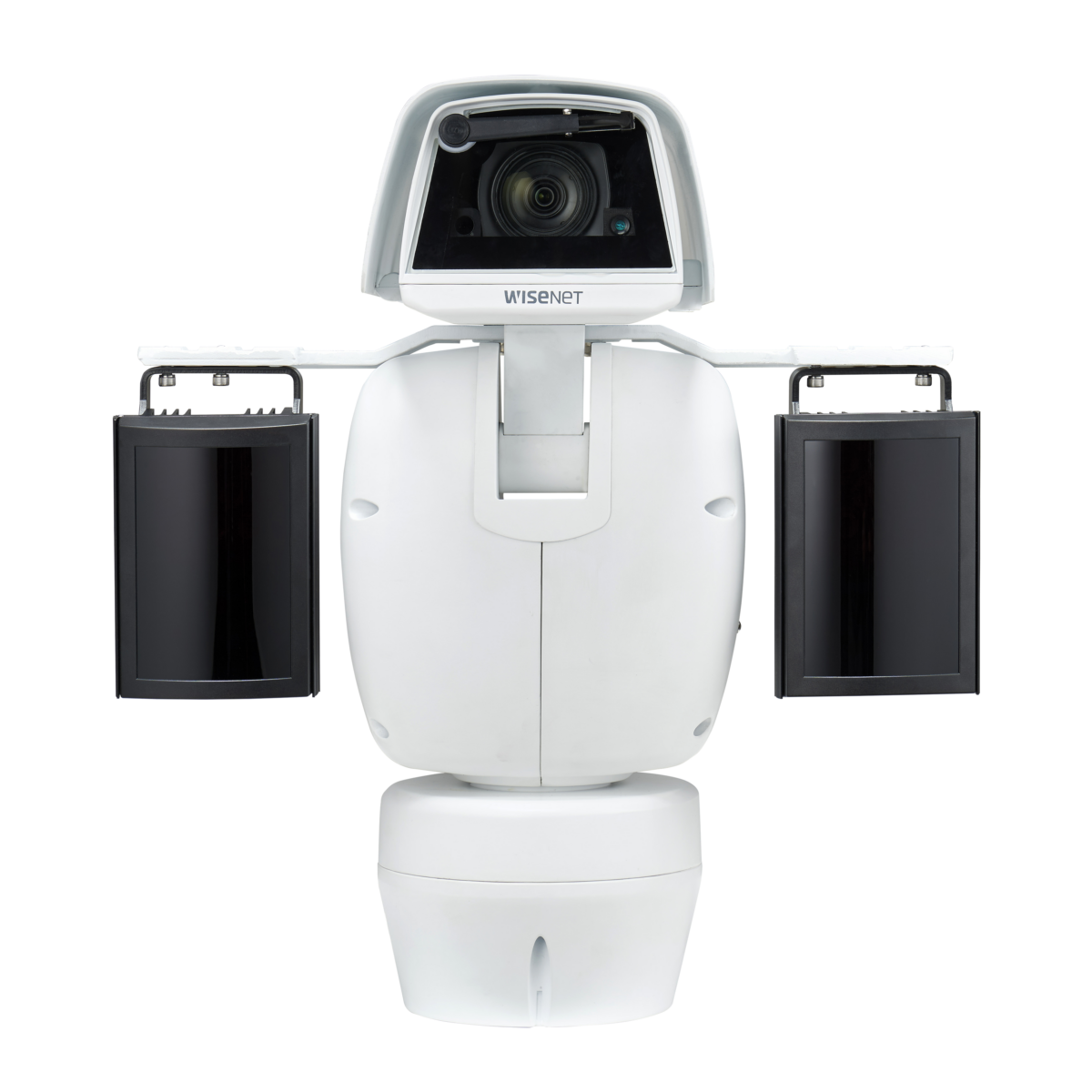

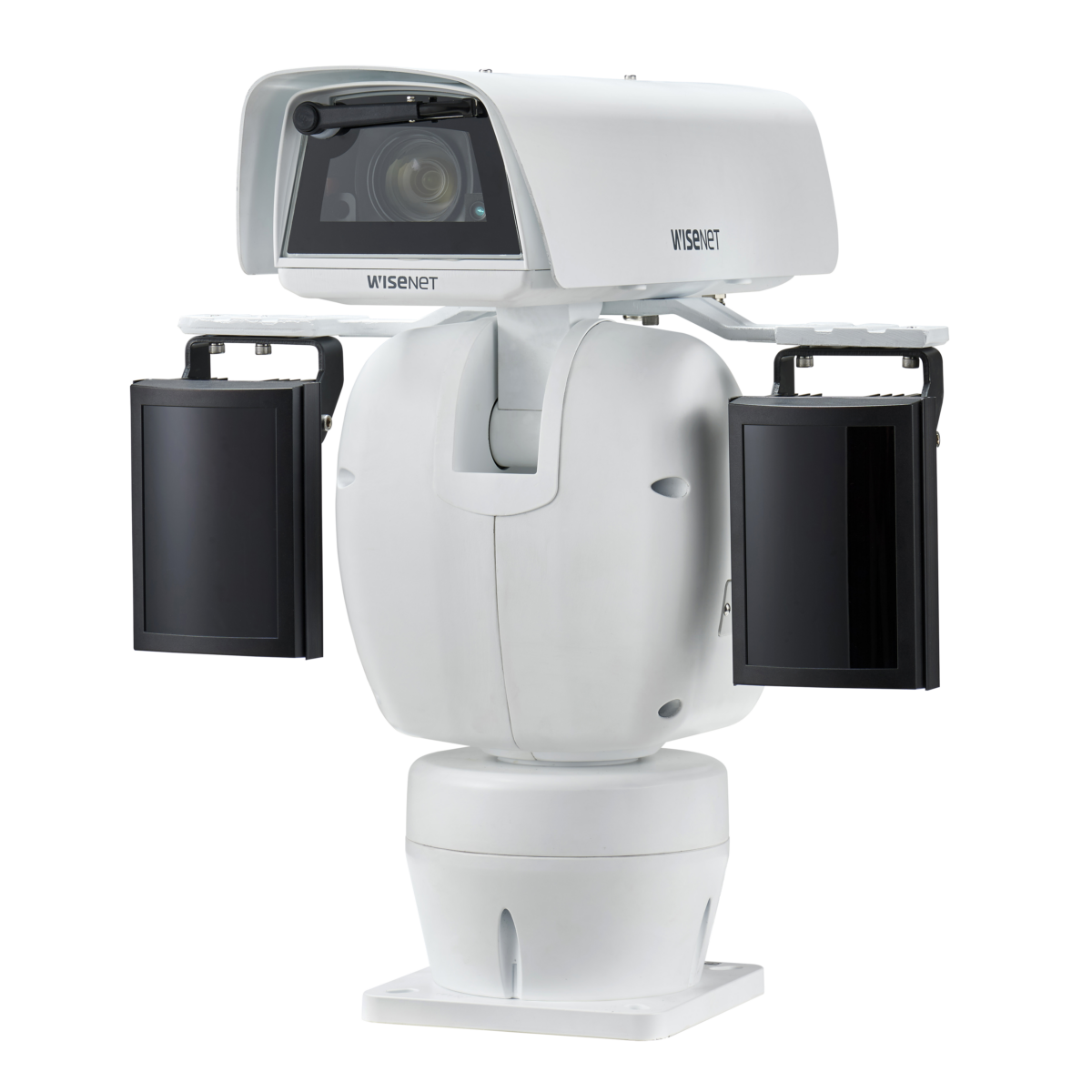

IR Illuminator (Optional) Support
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart Codec Manual mode(Area-based : 5ea), Face detection mode
Bitrate Control H.264: CBR or VBR
MJPEG: VBR
Streaming Unicast(10 users) / Multicast
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication
Application Programming Interface ONVIF Profile S
SUNAPI 2.0
SVNP 1.2
WiseNet Open Platform
General
Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11, 10.12
Plug-in Free Webviewer
Supported Browser : Google Chrome 54, MS Edge 30, Mozilla Firefox 49(Windows 64bit only), Apple Safari9(Mac OS X only)
Plug-in Webviewer
Supported Browser : MS Explorer 11, Apple Safari 9(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -40°C~+60°C (-40°F ~ +140°F) / Less than 90% RH
Certification IP66, Safety(UL, KC-SDOC), EMC(FCC, CE, VCCI, RCM, KC)
Input Voltage 24VAC
Power Consumption Max 100W (Heater On), typical 25W (Heater Off)
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight 219(W)×528.2(H)×460(D)mm (8.62x20.79x18.11"), 14Kg (30.86 lb)
