Network Cameras Discontinued

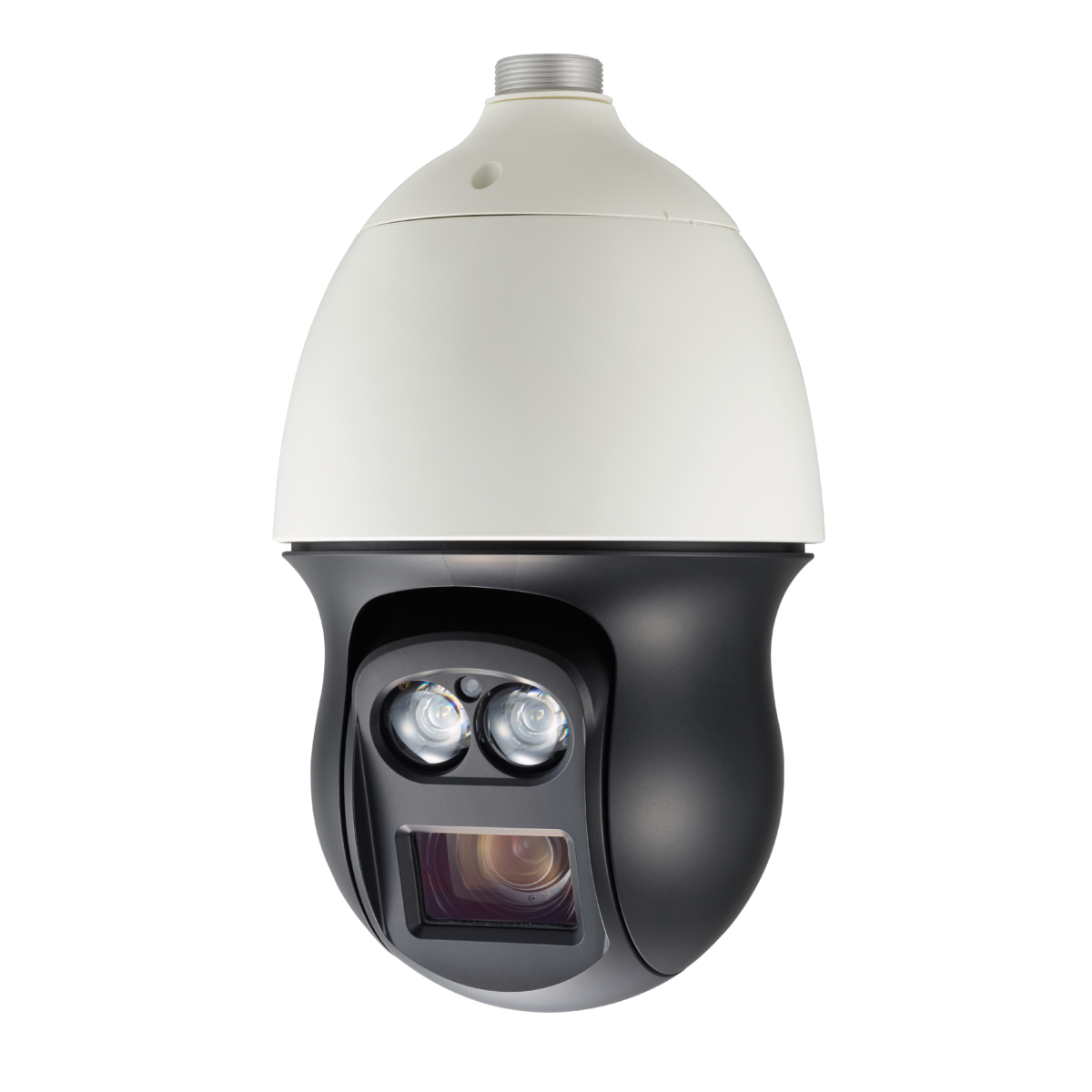

PNP-9200RH

4K H.265 20x IR PTZ Camera

Key Features
• Max. 8megapixel (3840 x 2160) resolution
• Real 4K 20x IR optical zoom, 16x digital zoom
• Max. Preset 400°/sec (Pan), 300°/sec (Tilt)
• H.265, H.264, MJPEG, WiseStream support
• Max.30fps@4K (H.265, H.264)
• Max. IR viewable length : 200m
• Day & Night (ICR), WDR (120dB)
• Auto tracking, Intelligent video analytics
• IP66, IK10
Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging Device 1/2.5" 8MP CMOS
Resolution 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.01Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 4.8~96mm(20x) zoom
Max. Aperture Ratio F1.8(Wide)~F3.6(Tele)
Angular Field of View H: 65.1°(Wide)~3.8°(Tele) / V: 38.4°(Wide)~2.2°(Tele)
Min. Object Distance 1.5m(3.28ft)
Focus Control Oneshot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Preset: 400°/sec, Manual: 0.024°/sec ~ 250°/sec
Tilt Range 190°(-5°~185°)
Tilt Speed Preset: 300°/sec, Manual: 0.024°/sec ~ 250°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Defog Support
Motion Detection 4ea, polygonal zones
Privacy Masking 16ea, rectangular zones
- Color: Grey/Green/Red/Blue/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 4ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length 200m(656.17ft)
Auto Tracking Support
Network
Ethernet RJ-45(10/100BASE-T), SFP(Optional)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStream
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(15 users) / Multicast
Multiple streaming (Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Support OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11
Recommended brower : Google Chrome
Supported broswer: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari (Mac OS X only)
Edge Storage SD/SDHC/SDXC 1slot 128GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -50°C~+55°C (-122°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C~+60°C (-122°F~+140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage 24VAC
Power Consumption 24VAC: Max 90W
Mechanical
Color / Material Body: Ivory / Plastic, Head: Black / Plastic
Product Dimensions / Weight Ø236.9x407.7mm(9.33x16.05"), 7.1Kg(15.65 lb)
