Network Cameras

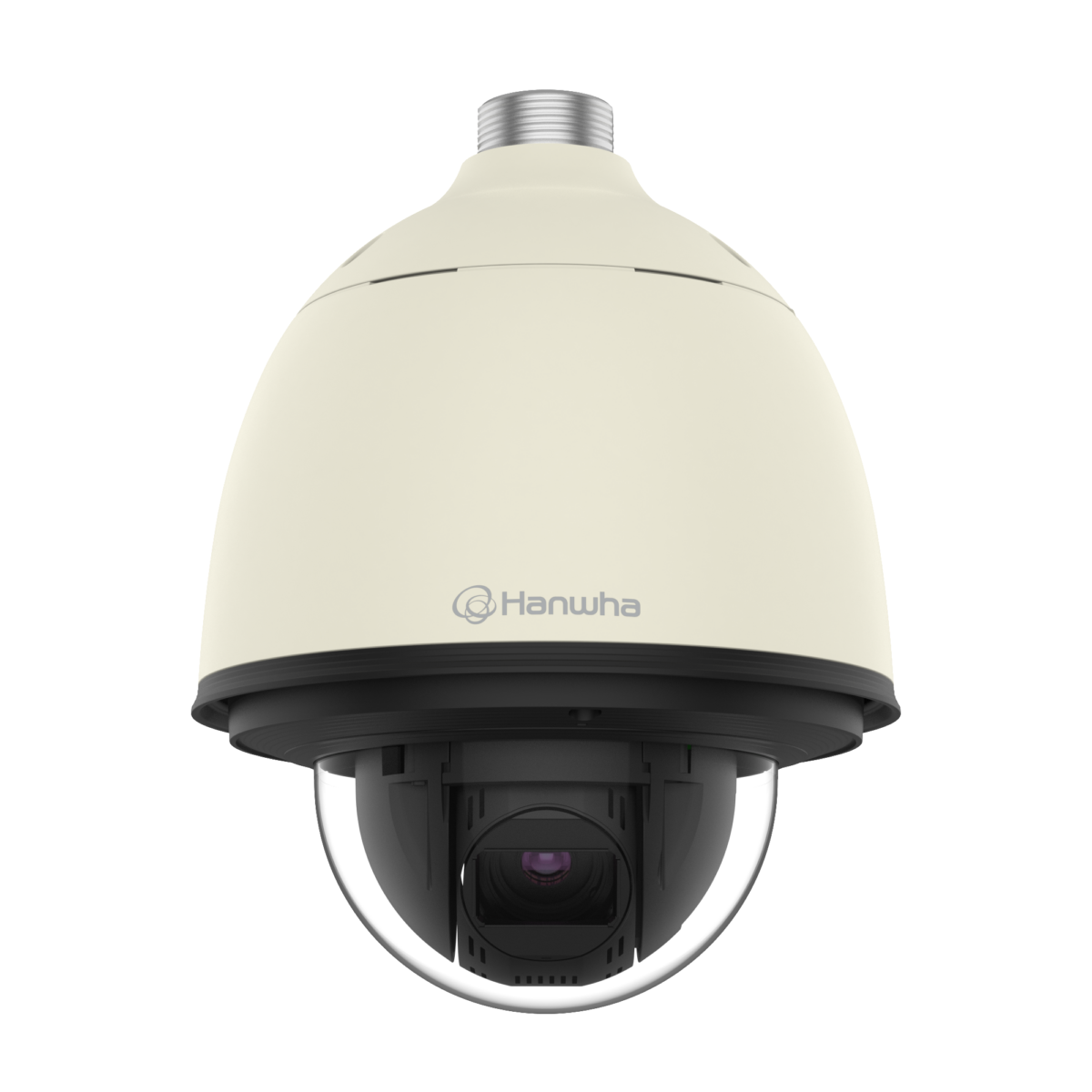

QNP-6230H

2M H.265 23x PTZ Camera

Key Features
• Max. 2MP (1920 x 1080) resolution
• 4.44 ~ 102.2mm (Optical 23x) lens
• H.265, H.264, MJPEG codec support
• Multiple streaming, WiseStreamII support
• Day & Night (ICR), WDR (120dB)
• DIS with Built-in Gyro sensor
• Tamepring, Motion detection
• Memory slot (Max. 256GB)
• IP66, IK10
Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Compact cameras
with essential qualities

Affordable product line offers professional qualities ideal
for securing small to medium sized applications

Wisenet-Q-Series-Hero Wisenet-Q-Series-Hero
Wisenet-Q-Series-Camera
  • 2Megapixel and 4Megapixel resolution
  • Framerate Max. 20fps@4M, 30fps@2M
  • Hallway view, Lens Distortion Correction
  • True WDR (120dB)
  • IP66/IK10 for Outdoor cameras
  • H.265, H.264, MJPEG
  • Motion and Defocus detection, Tampering
  • WiseStream
  • Edge storage
  • Compact design

Improved bandwidth efficiency with WiseStream, H.265

Improved bandwidth efficiency with WiseStream, H.265

WiseStream, the advanced compression technology can reduce bandwidth by 50% by using dynamic technologies. And when combined with H.265, the bandwidth efficiency can be improved up to 75% compared to the current H.264 technology.

Defocus detection

Defocus detection

Defocus detection helps recognizing images that are out of focus and significantly improves efficiency. Users can also adjust the optimal focus remotely via network (4MP Varifocal product), reducing the installation time of the camera.

Various lens options

Fixed Lens

Varifocal Lens

Even with backlight, Wisenet’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.

The 2.8 ~ 12mm varifocal lens, created by Hanwha Techwin’s own advanced technology, supports True H : 109.7° (Wide) ~ 26.0° (Tele) with more flexibility in field of view.
Demo Video
Demo Video
Hallway View for monitoring vertical shaped areas

Hallway View for monitoring vertical shaped areas

In a vertical shaped environment, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. The Hallway view creates 3 : 4 and 9 : 16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.

Minimize image distortion by Lens Distortion Correction

Minimize image distortion by Lens Distortion Correction

Lens Distortion is typically shown in video on the straight lines near to edges of a image making the straight lines look curved outward. With Lens Distortion Correction technology imperfections in images are easily removed.

Perfect for small to medium sized applications

Perfect for small to medium sized applications

By using the Wisenet Q series cameras along with NVRs, create a perfect solution for small to medium sized applications and save installation cost and time.



Product Specification

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
B/W: 0.005 Lux(F1.6, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 4.44~102.2mm(23x) zoom
Max. Aperture Ratio F1.6(Wide)~F3.6(Tele)
Angular Field of View H: 61.8°(Wide)~3.08°(Tele) / V: 36.2°(Wide)~1.73°(Tele)
Min. Object Distance Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft)
Focus Control Oneshot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Preset: 500°/sec, Manual: 0.024°/sec~200°/sec
Tilt Range 210°(-15°~195°)
Tilt Speed Preset: 500°/sec, Manual: 0.024°/sec~200°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 24ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Motion detection, Tampering
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 4ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet RJ-45 (10/100BASE-T), SFP(Optional)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(10 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity 24VAC: -50°C~+55°C(-58°F~+131°F) / Less than 90% RH
PoE+: -35°C~+55°C(-31°F~+131°F) / Less than 90% RH
* Start up should be done at above -30°C
Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage PoE+(IEEE802.3at, Class4), 24VAC
Power Consumption 24VAC: Max 20W
Mechanical
Color / Material Ivory / Plastic
Product Dimensions / Weight Ø220x293.6mm(8.66x11.56"), 3.3Kg(7.28 lb)
Hanging Mount (Dome) SBP-303HF(SFP)
