Network Cameras Discontinued

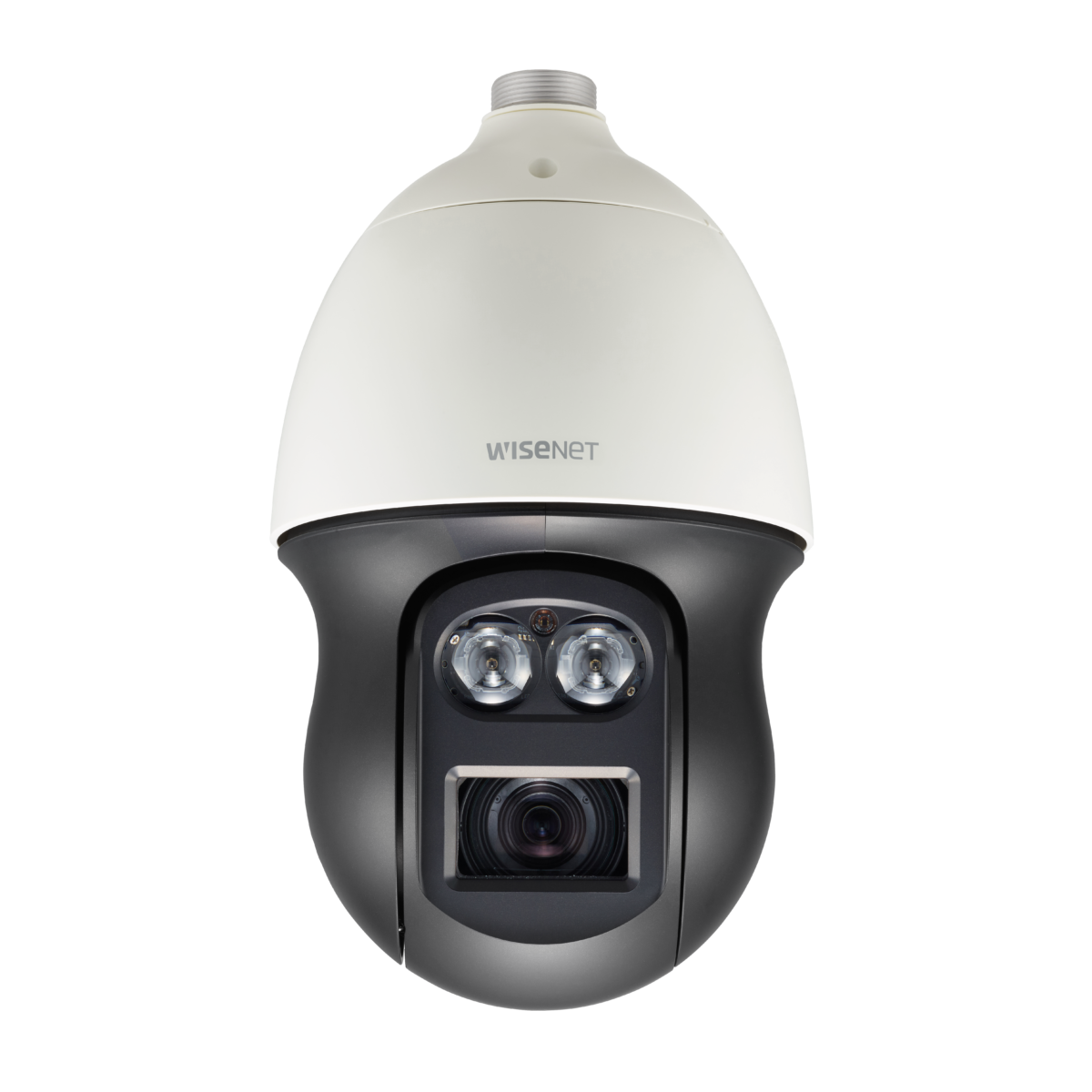

QNP-6230RH

2M H.265 23x IR PTZ Camera

Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 4.44~102.2mm(23x) lens
• Max. IR viewable length : 100m
• Day & Night(ICR), WDR(120dB), DIS(Built-in gyro sensor)
• Intelligenct Analytics
• Multiple streaming, WiseStream II support
• H.265, H.264, MJPEG codec support
• MicroSD / SDHC / SDXC memory
• IP66, IK10
Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Full HD 23x Zoom
The QNP-6230RH can zoom in up to 23x (4.44-102.2mm) to capture clear images of far-away objects, providing monitoring in sharp Full HD resolution.
Clear image with IR even at night
QNP-6230RH camera with IR LED can monitor images clearly even at night (almost no light) and can identify the object up to 100m away.



Product Specification

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.2Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED On)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 4.44~102.2mm(23x) zoom
Max. Aperture Ratio F1.6(Wide)~F3.6(Tele)
Angular Field of View H: 61.8°(Wide)~3.08°(Tele) / V: 36.2°(Wide)~1.73°(Tele)
Min. Object Distance Wide: 1.5m(4.92ft), Tele: 2m(6.56ft)
Focus Control Oneshot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Preset: 400°/sec, Manual: 0.024°/sec~250°/sec
Tilt Range 95°(-5°~90°)
Tilt Speed Preset: 250°/sec, Manual: 0.024°/sec~250°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 24ea, rectangular Support
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Intrusion
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 4ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length 100m(328.08ft)
Network
Ethernet RJ-45(10/100BASE-T), SFP(Optional)
Video Compression H.265/H.264,MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(10 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity 24VAC : -50°C~+55°C (-58°F ~ +131°F) / Less than 90% RH
HPoE : -40°C~+55°C (-40°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -35°C
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage 24VAC, HPoE(IEEE802.3bt, Class7)
Power Consumption 24VAC: Max. 83W (typical : 30W)
HPoE : Max. 51W (typical : 30W)
Mechanical
Color / Material Body: Ivory / Plastic, Head: Black / Plastic
Product Dimensions / Weight Ø236.9x407.7mm(9.33x16.05"), 6.8Kg(14.99 lb)
Hanging Mount (Dome) SBP-303HF(SFP)
