Enclosure
NEW

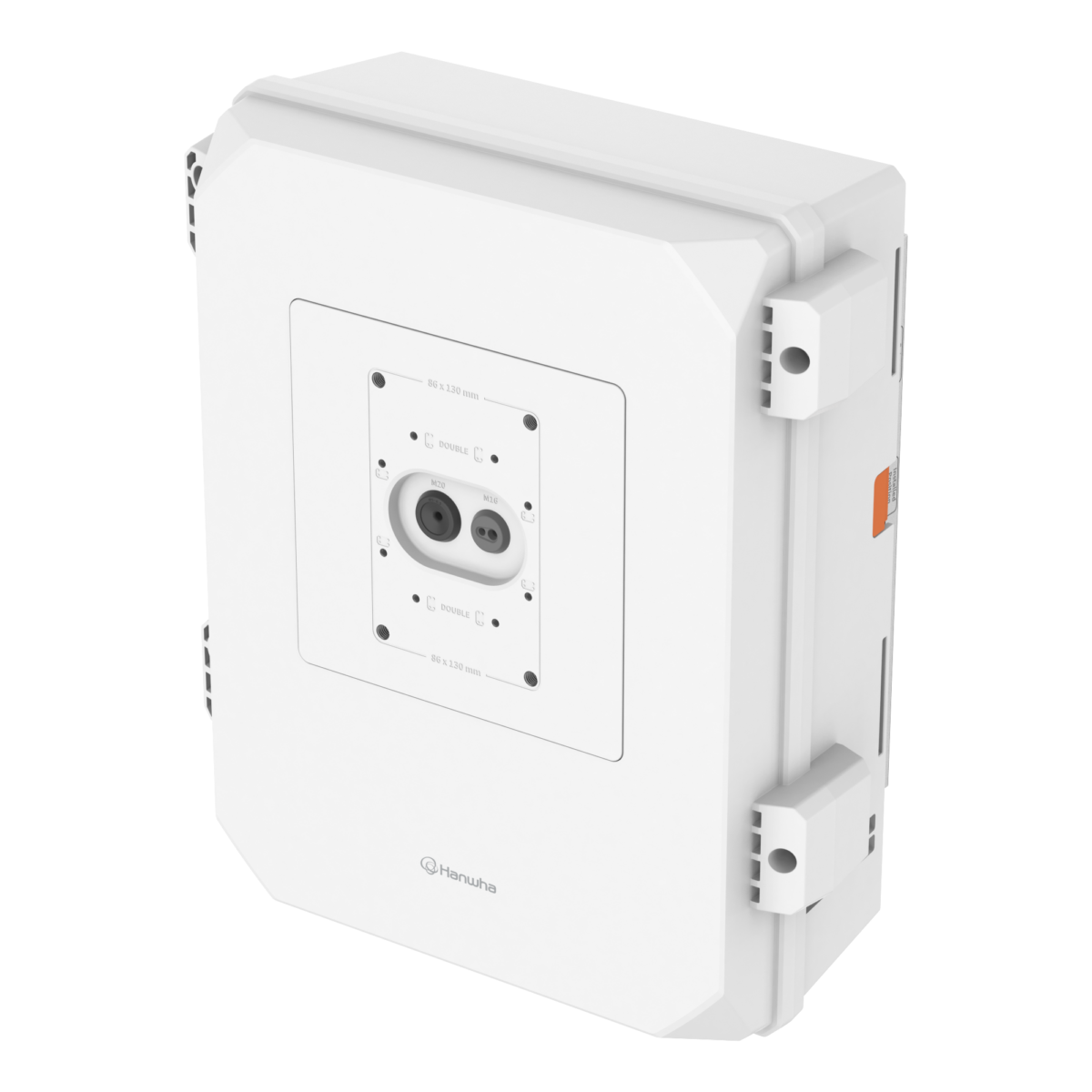

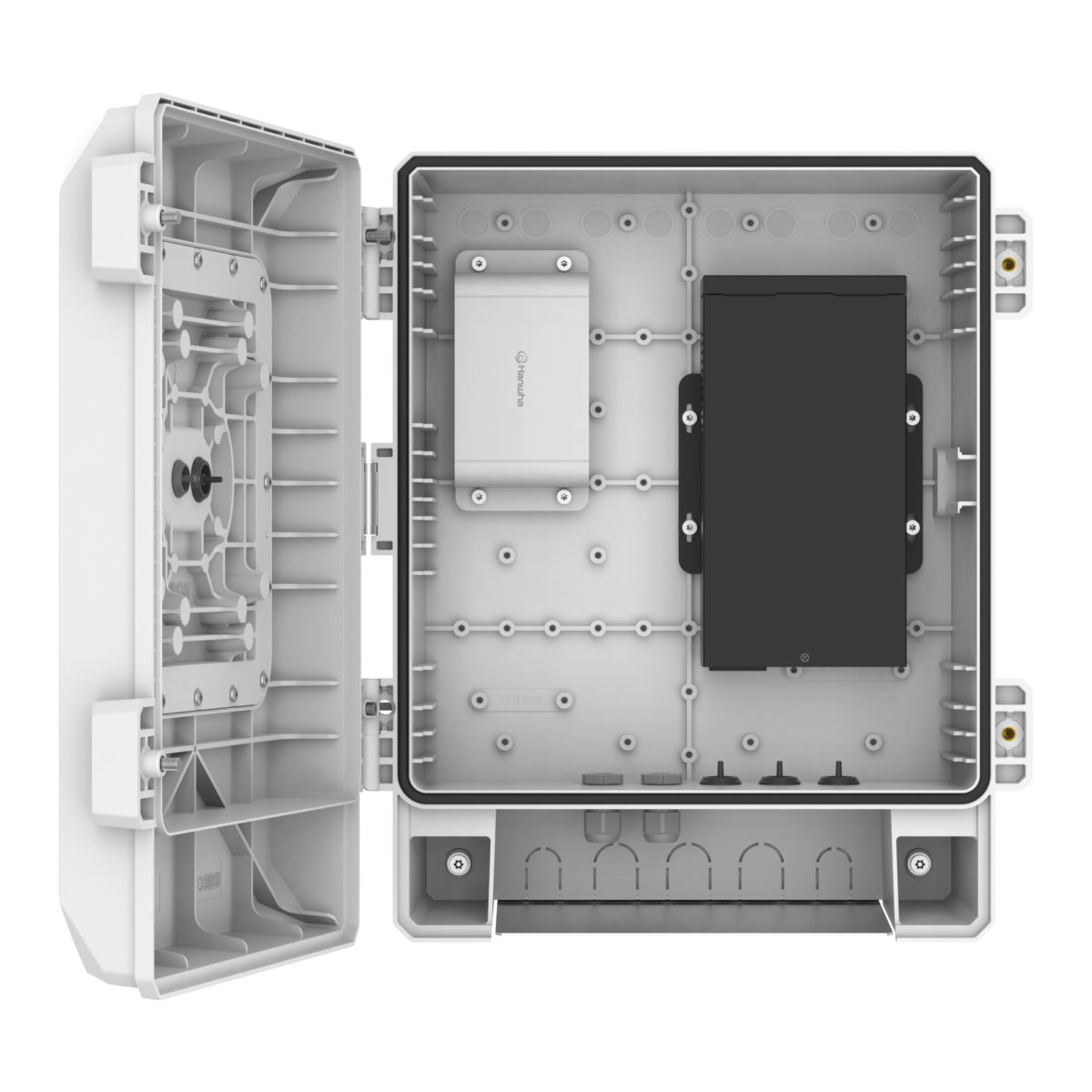

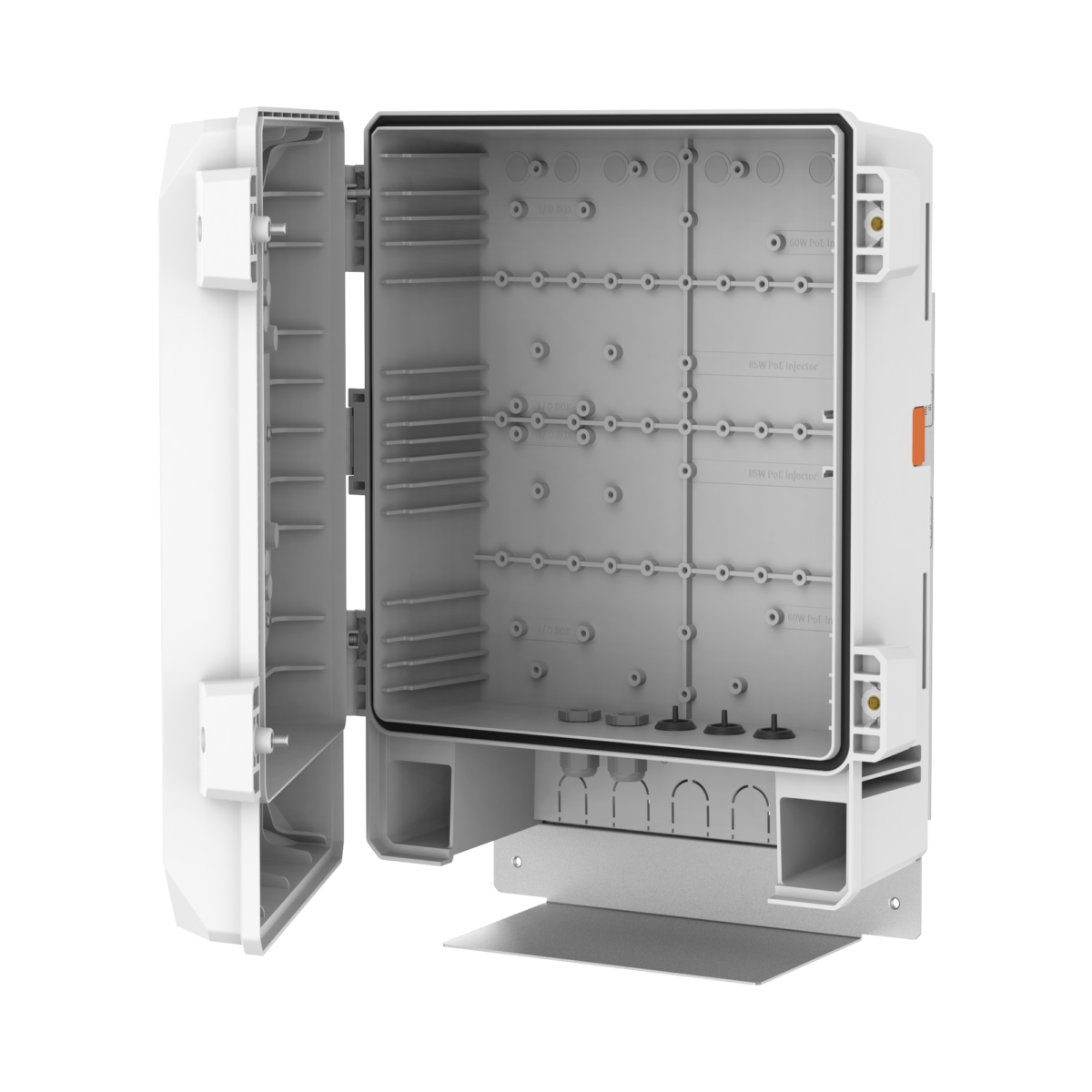

SBP-150NBW
Cabinet
Key Features
• Operating Temperature: -40°C~+65°C (-40°F~+149°F) / 0~100% RH (condensing)
• Material: PC (Polycarbonate), Aluminum
• Dimensions : 360x420x163.1mm
• Weight : 3,960g
• Color : White
• Max. load: 15kg
• Certification: IP66, IK10, NEMA 4X
• Material: PC (Polycarbonate), Aluminum
• Dimensions : 360x420x163.1mm
• Weight : 3,960g
• Color : White
• Max. load: 15kg
• Certification: IP66, IK10, NEMA 4X
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Environmental | |
|---|---|
| Operating Temperature / Humidity | -40°C~+65°C (-40°F~+149°F) / 0~100% RH (condensing) Humidity control /w Air vent |
| Storage Temperature / Humidity | -50°C~+65°C (-58°F~+149°F) / 0~95% RH |
| Certification | IP66, IK10, NEMA 4X |
| Mechanical | |
| Color | White |
| Material | PC(Polycarbonate), Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | 360x420x163.1mm / 3,960g |
| Mount Screw size | TR20, T30 |
| Max. load | 15kg |
| Conduit hole | 12.7mm(1/2")(M20, 2pcs) / 19.1mm(3/4")(M25, 3pcs) |

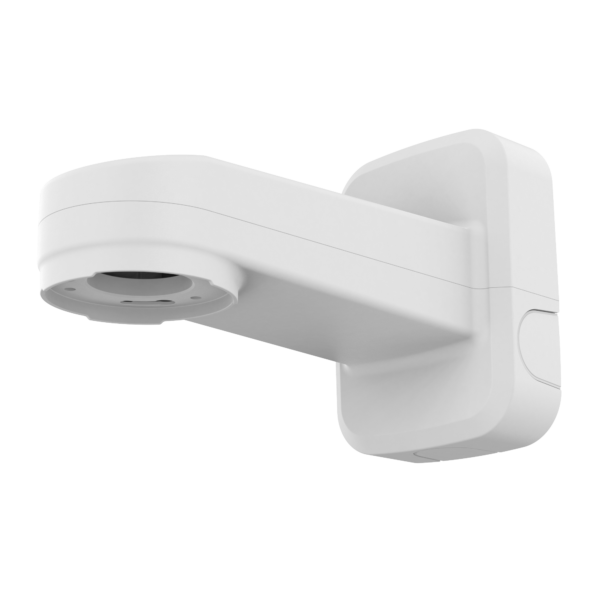

| Supported products | - Installation Solution : SBP-250WMW, SBP-156WMW, SBP-400WMW, SBP-150PMW - Camera : XND-C6083RV, PNV-A9081R, XNO-6083R, QNV-C8083R ※ For further compatible models, please visit our website or use Toolbox |
