Mount

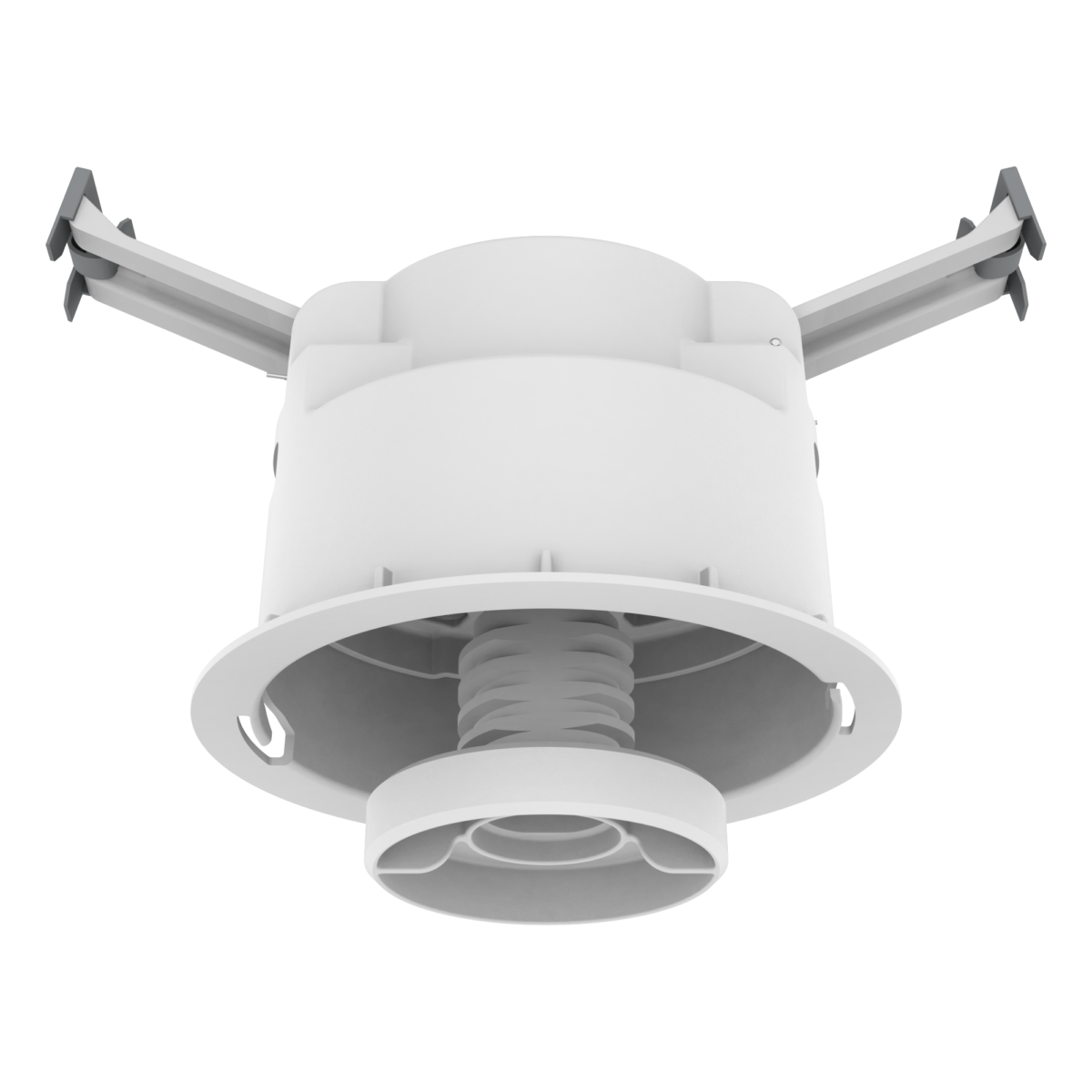

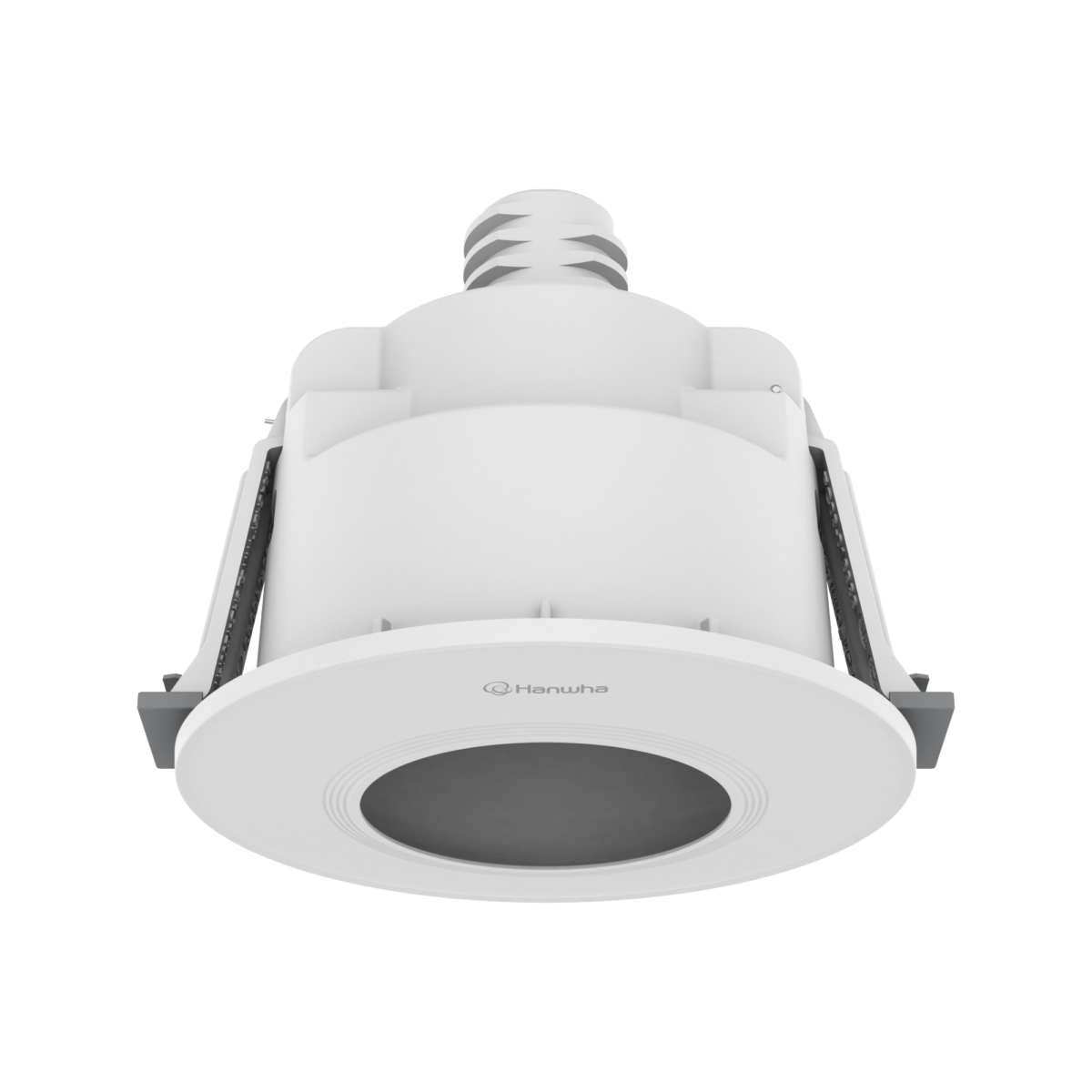

SHD-1100FW
In-ceiling Mount
Key Features
• Color : White
• Material : PC(Polycarbonate)
• Product dimensions / weight : 175x162x147mm (6.89x6.38x5.79") / 310g (0.68lb)
※ Ceiling hole size : ø140mm (ø5.51")
• Max. load : 0.6kg (1.32lb)
※ Maximum load of ceiling board : 3kg (6.61lb)
• Material : PC(Polycarbonate)
• Product dimensions / weight : 175x162x147mm (6.89x6.38x5.79") / 310g (0.68lb)
※ Ceiling hole size : ø140mm (ø5.51")
• Max. load : 0.6kg (1.32lb)
※ Maximum load of ceiling board : 3kg (6.61lb)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Mechanical | |
|---|---|
| Color | White |
| Material | PC(Polycarbonate) |
| RAL code | RAL9003 |
| Product dimensions / weight | 175x162x147mm (6.89x6.38x5.79") / 310g (0.68lb) ※ Ceiling hole size : ø140mm (ø5.51") |
| Tile thickness | 10~60mm (0.4~2.4") |
| Max. load | 0.6kg (1.32lb) ※ Maximum load of ceiling board : 3kg (6.61lb) |
| Supported products | QNV-C8011R/C8012/C9011R |
