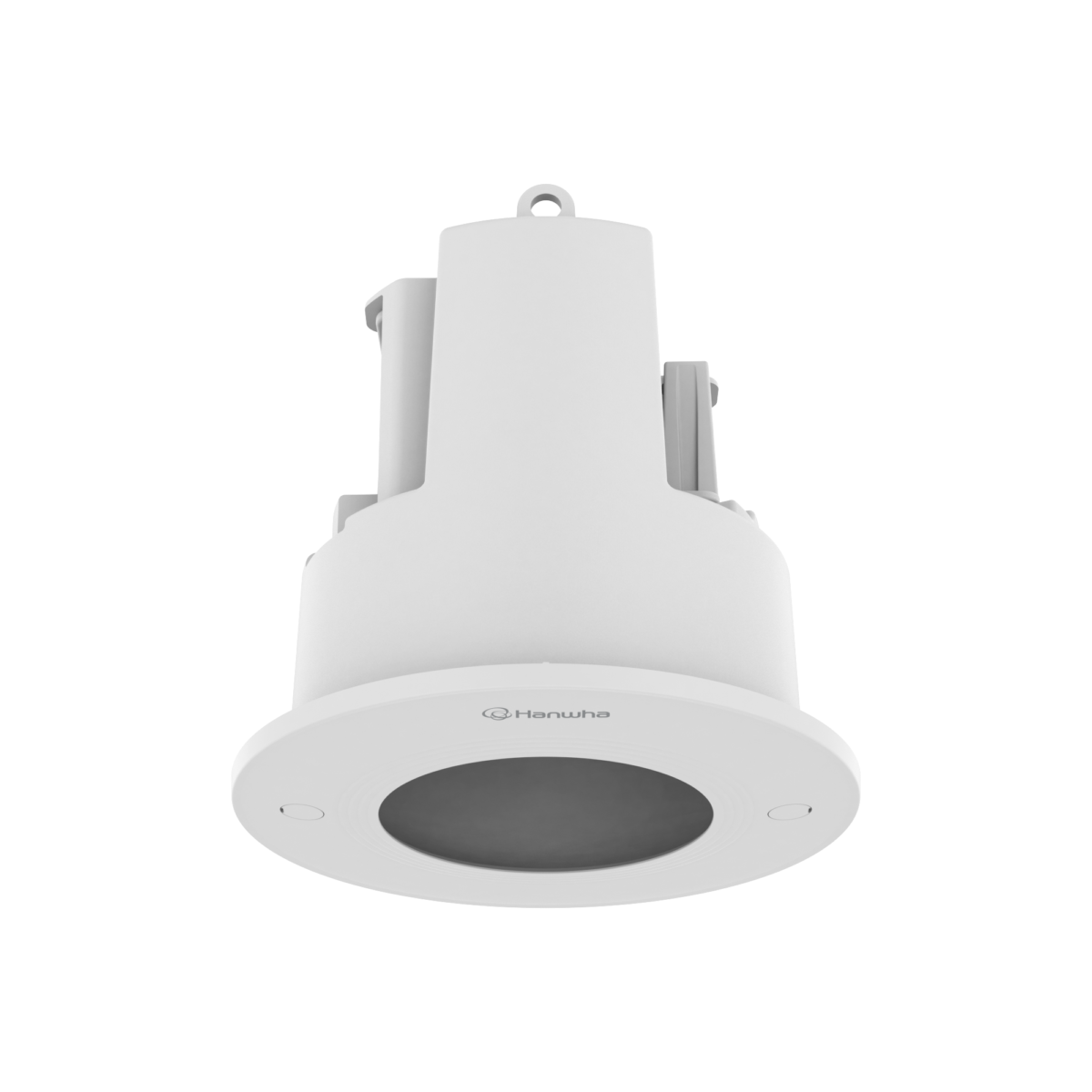

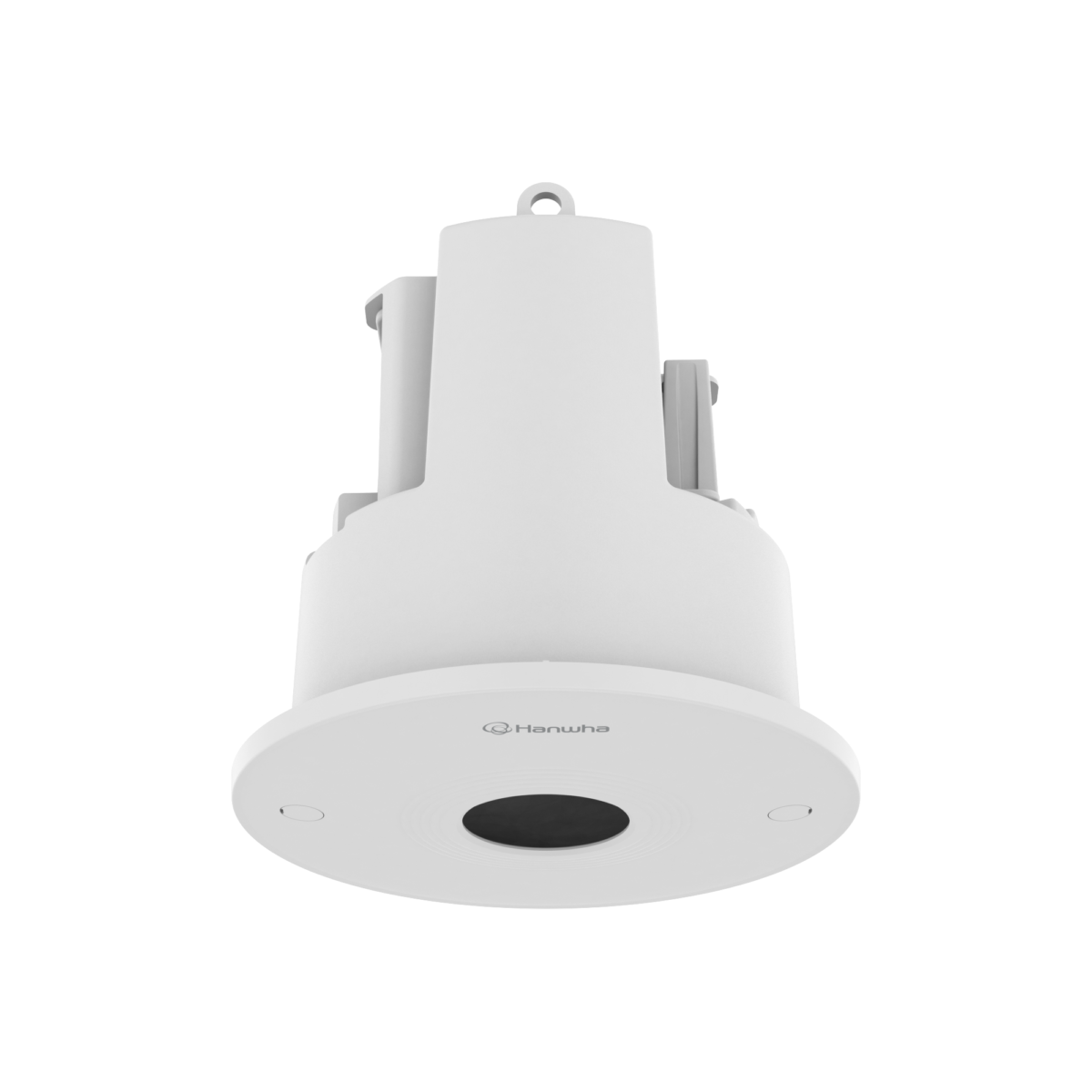

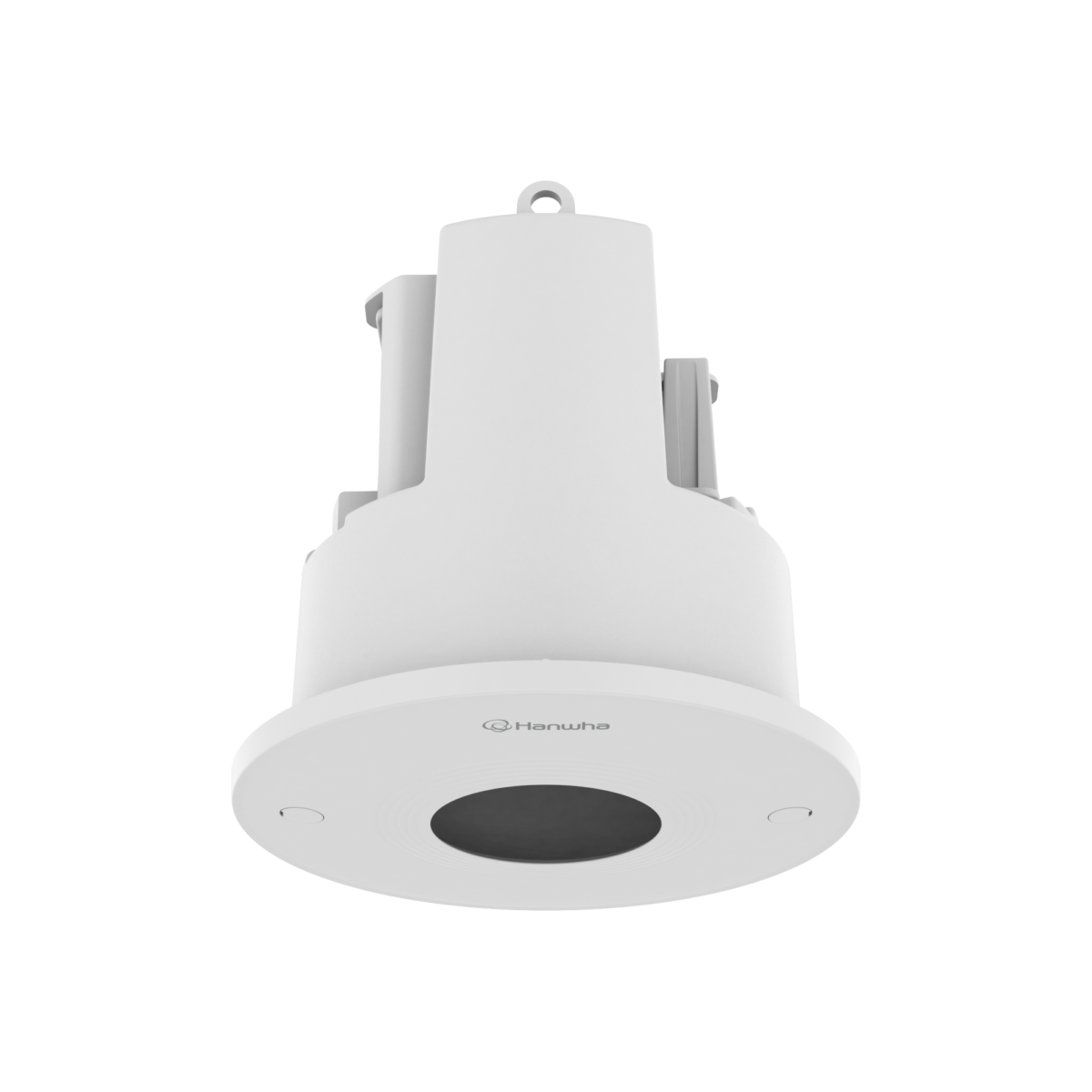

SHD-1128FPW
In-ceiling Mount
Key Features
• Enclosure: Aluminum / Top cover : Polycarbonate (PC)
• Dimensions : Ø160mm x H145.5mm (6.30" x 5.73")
• Weight : 692g (1.53 lb)
• Color : White
• QR installation guide support
• Dimensions : Ø160mm x H145.5mm (6.30" x 5.73")
• Weight : 692g (1.53 lb)
• Color : White
• QR installation guide support
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview

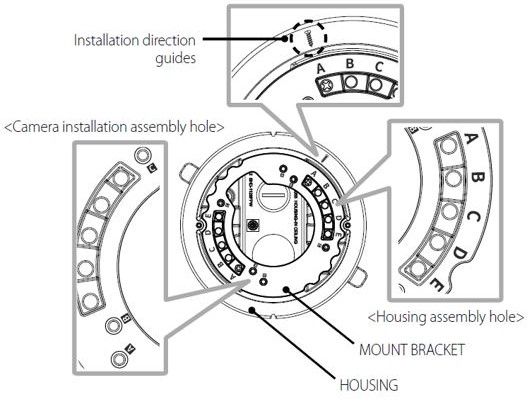

Housing installation guide

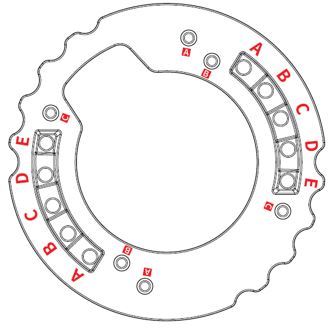

- Housing mount holes
- Bracket mount holes

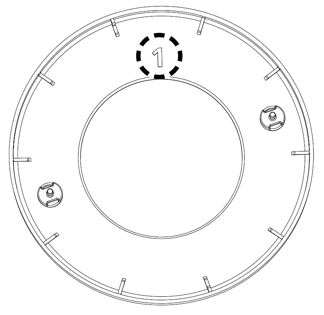

- Case top number
Installation code combination
| E-B-2 | B-A-1 | B-A-1 | A-A-1 | B-A-1 | A-A-1 | D-C-2 | C-B-3 |
|---|---|---|---|---|---|---|---|
| QND-6011 | HCD-6010 | LND-6010R | XND-6010 | HCD-7010R | QND-8010R | XNV-6011 | QNF-8010 |
| QND-6021 | HCD-6020R | LND-6012R | XND-6020R | HCD-7010RA | QND-8020R | QNF-9010 | |
| QND-8011 | LND-6011R | LND-6020R | XND-8020R | HCD-7020R | QND-8030R | ||
| QND-8021 | LND-6021R | LND-6022R | XND-8030R | HCD-7020RA | |||
| LND-6031R | LND-6030R | XND-8040R | HCD-7030R | ||||
| QND-6010R | LND-6032R | HCD-7030RA | |||||
| QND-6020R | QND-6012R | ||||||
| QND-6030R | QND-6022R | ||||||
| QND-7010R | QND-6032R | ||||||
| QND-7020R | |||||||
| QND-7030R |
| E-B-2 | B-A-1 | B-A-1 | A-A-1 | B-A-1 | A-A-1 | D-C-2 | C-B-3 |
|---|---|---|---|---|---|---|---|
| QND-6011 | HCD-6010 | LND-6010R | XND-6010 | HCD-7010R | QND-8010R | XNV-6011 | QNF-8010 |
| QND-6021 | HCD-6020R | LND-6012R | XND-6020R | HCD-7010RA | QND-8020R | QNF-9010 | |
| QND-8011 | LND-6011R | LND-6020R | XND-8020R | HCD-7020R | QND-8030R | ||
| QND-8021 | LND-6021R | LND-6022R | XND-8030R | HCD-7020RA | |||
| LND-6031R | LND-6030R | XND-8040R | HCD-7030R | ||||
| QND-6010R | LND-6032R | HCD-7030RA | |||||
| QND-6020R | QND-6012R | ||||||
| QND-6030R | QND-6022R | ||||||
| QND-7010R | QND-6032R | ||||||
| QND-7020R | |||||||
| QND-7030R |
Product Specification
| Mechanical | |
|---|---|
| Color | White |
| Material | Enclosure : Aluminum Top cover : Polycarbonate(PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | Ø160x145.5mm (Ø6.30x5.73") / 692g(1.53 Ib) |
| Tile thickness | 5~70mm |
| Conduit hole | 19.1mm(3/4") (M25) 12.7mm(1/2") (M20) |
| Supported products | QND-8021/8011/6021/6011 XND-8040R/8030R/8020R/6020R/6010 ※ For further compatible models, please visit our website or use Toolbox |
