SHD-1408FPW
In-ceiling Mount
Key Features
• Enclosure: Aluminum / Top cover : Polycarbonate (PC)
• Dimensions : Ø209mm x H115mm (8.23" x 4.53")
• Weight : 1,020g (2.25 lb)
• Color : White
• QR installation guide support
• Dimensions : Ø209mm x H115mm (8.23" x 4.53")
• Weight : 1,020g (2.25 lb)
• Color : White
• QR installation guide support
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
Housing installation guide

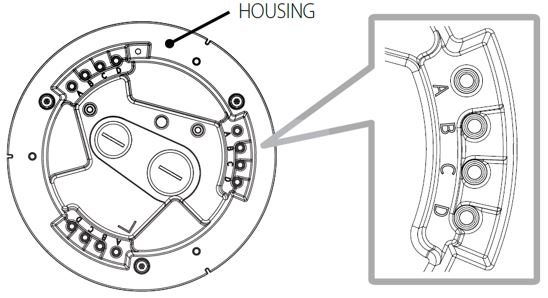

- Housing mount holes

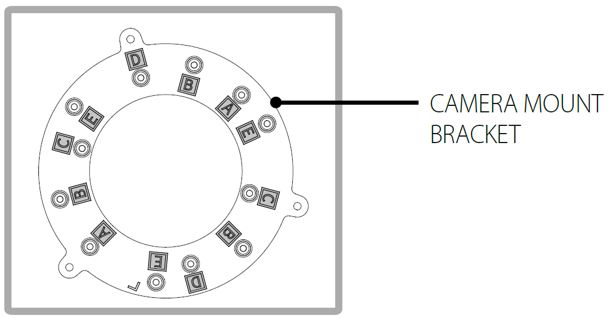

- Bracket mount holes
- Case top number
Installation code combination
| A-A-1 | B-B-1 | B-C-2 | B-D-3 | B-E-1 | C-C-2 | D-D-3 | |
|---|---|---|---|---|---|---|---|
| PND-9080R | QNV-6072R | QND-8080R | XNV-6010 | HCV-6070R | HCD-6080R | HCV-7010R | HCV-7010RA |
| XND-6080 | QNV-6082R | XNV-6020R | HCV-6080R | HCD-7070R | HCV-7020R | HCV-7020RA | |
| XND-6080R | QNV-8080R | XNV-8020R | HCV-6080R | HCD-7070RA | HCV-7030R | HCV-7030RA | |
| XND-6080RV | QNV-6070R | XNV-8030R | HCV-6080RSD | HCD-7080R | LNV-6011R | LNV-6021R | |
| XND-6080V | QNV-6071R | XNV-8040R | HCV-7070R | LND-6071R | LNV-6031R | QNV-6010R | |
| XND-8080R | QNV-7080R | HCV-7070RA | QND-6070R | QNV-6020R | QNV-6030R | ||
| XND-8080RV | QNV-7081R | HCV-7080R | QND-6071R | QNV-7010R | QNV-7020R | ||
| XND-L6080R | LNV-6071R | HCV-7080RVP | QND-7080R | QNV-7030R | LNV-6010R | ||
| XND-L6080RV | LNV-6070R | QND-7081R | LNV-6012R | LNV-6020R | |||
| XND-L6080V | LNV-6072R | LND-6070R | LNV-6022R | LNV-6030R | |||
| XNP-6040H | LND-6072R | LNV-6032R | QNV-6012R | ||||
| QND-6072R | QNV-6022R | QNV-6032R | |||||
| QND-6082R | QNV-8010R | QNV-8020R | |||||
| QNV-8030R | |||||||
| A-A-1 | B-B-1 | B-C-2 | B-D-3 | B-E-1 | C-C-2 | D-D-3 | |
|---|---|---|---|---|---|---|---|
| PND-9080R | QNV-6072R | QND-8080R | XNV-6010 | HCV-6070R | HCD-6080R | HCV-7010R | HCV-7010RA |
| XND-6080 | QNV-6082R | XNV-6020R | HCV-6080R | HCD-7070R | HCV-7020R | HCV-7020RA | |
| XND-6080R | QNV-8080R | XNV-8020R | HCV-6080R | HCD-7070RA | HCV-7030R | HCV-7030RA | |
| XND-6080RV | QNV-6070R | XNV-8030R | HCV-6080RSD | HCD-7080R | LNV-6011R | LNV-6021R | |
| XND-6080V | QNV-6071R | XNV-8040R | HCV-7070R | LND-6071R | LNV-6031R | QNV-6010R | |
| XND-8080R | QNV-7080R | HCV-7070RA | QND-6070R | QNV-6020R | QNV-6030R | ||
| XND-8080RV | QNV-7081R | HCV-7080R | QND-6071R | QNV-7010R | QNV-7020R | ||
| XND-L6080R | LNV-6071R | HCV-7080RVP | QND-7080R | QNV-7030R | LNV-6010R | ||
| XND-L6080RV | LNV-6070R | QND-7081R | LNV-6012R | LNV-6020R | |||
| XND-L6080V | LNV-6072R | LND-6070R | LNV-6022R | LNV-6030R | |||
| XNP-6040H | LND-6072R | LNV-6032R | QNV-6012R | ||||
| QND-6072R | QNV-6022R | QNV-6032R | |||||
| QND-6082R | QNV-8010R | QNV-8020R | |||||
| QNV-8030R | |||||||
Product Specification
| Mechanical | |
|---|---|
| Color | White |
| Material | Enclosure : Aluminum Top cover : Polycarbonate(PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | Ø209 x 115mm (Ø8.23x4.53") / 1020g (2.25lb) |
| Tile thickness | 5~70mm |
| Conduit hole | 19.1mm(3/4") (M25) 12.7mm(1/2") (M20) |
| Supported products | QNV-8030R/8020R/8010R/7030R/7020R/7010R/6032R/6022R/6012R LNV-6030R/6020R/6010R ※ For further compatible models, please visit our website or use Toolbox |
