Encoder

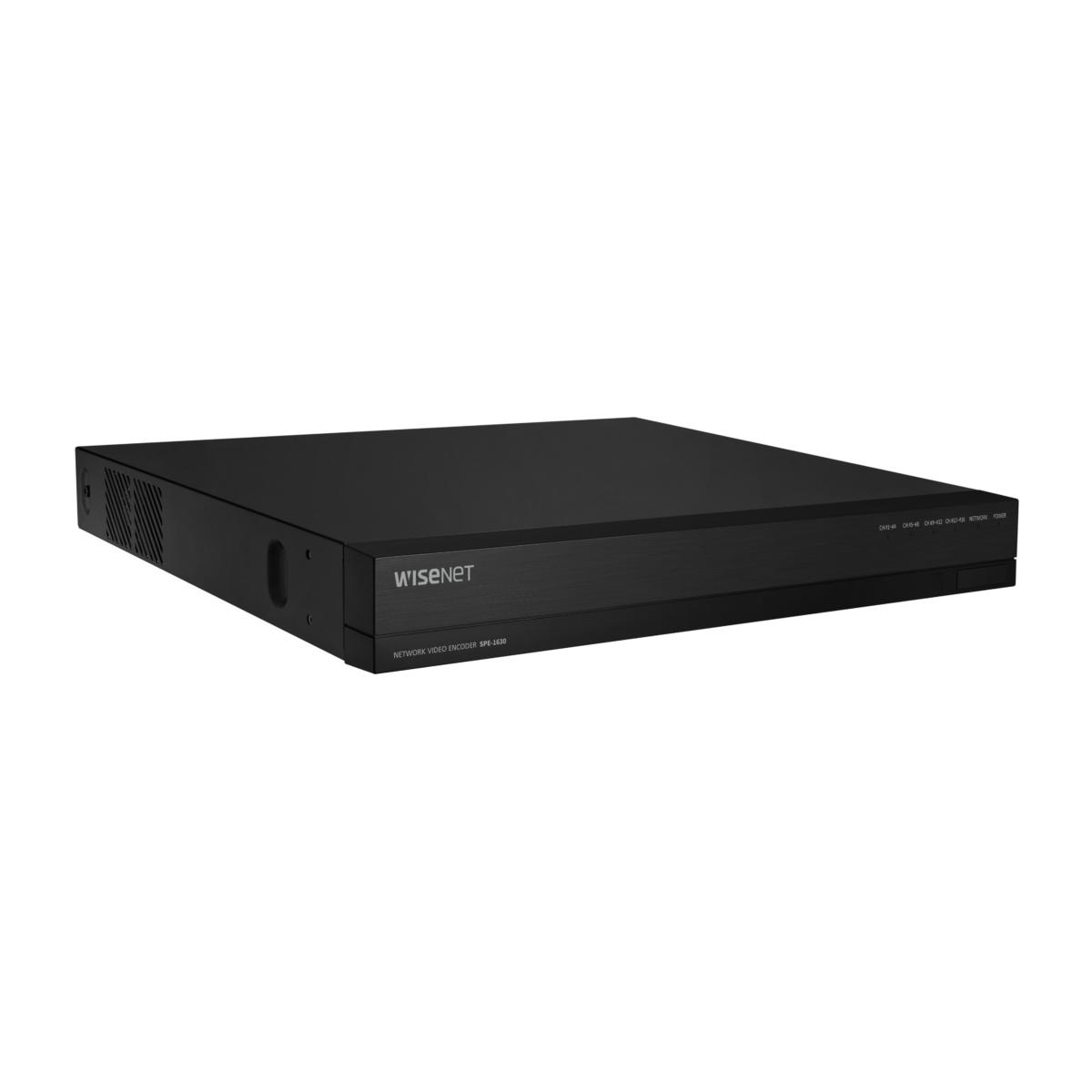

SPE-1630

16CH Video Encoder

Key Features
• Max. 5MP resolution
• Max. 12fps@5MP, 30fps@1080p
• H.265, H.264, MJPEG codec support
• Multiple streaming (up to 3 profiles per CH)
• 1 RJ-45 10/100/1000 Base-T

["peripherals","encoder"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Input Channel 16CH BNC, 1.0 Vp-p / 75Ω composite
NTSC/PAL
Input Signal & Resolution CVBS, AHD/CVI/TVI (1, 2, 4, 5MP) Auto Detection
Video Out 1 HDMI OUT (16 multi Image, 1920x1080)
Operational
Motion Detection Off / On
Privacy Masking Off / On (4ea rectangular zones)
De-Interlacing support
Alarm I/O 16 Input/ 4 Output(1 NO/COM/NC, 3 NO/COM)
Alarm Trigger Motion Detection, Alarm Input, Video Loss,
Tampering, Network disconnect
Alarm Events File Upload Via FTP, E-mail
Audio I/O 4 Line Input / 1 Line Output
OSD Title, Date(Y/M/D), Time(H/M)
Remote Control Interface 1ea RS-485(Half Duplex)
RS-485 Protocol SAMSUNG-T, PELCO-P/D
Coaxial Control CVBS(Pelco-C)
AHD, TVI, CVI
Network
Ethernet 1 RJ-45 10/100/1000 Base-T
Video Compression Format H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
Resolution 2560x1920, 2560x1440, 1920x1080, 1280x720,
928x480(N), 928x240(N), 704x480(N), 704x240(N), 640x368, 352x240(N)
928x576(P), 928*288(P), 704x576(P), 704x288(P), 640x368, 352x288(P)
Max. Framerate - Main Stream
5MP : 12fps/CH, 4MP : 15fps/CH(N),12fps/CH(P)
1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P)
- Sub Stream
WD1/4CIF : 30fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P)
- MJPEG : 5fps @ 640x368, 352x240,
SD Camera : 5fps @ 480x240, 352x240
※ Enabling Time Display function in the OSD menu may cause up to 50 percent frame drop of the original setting.
Bitrate Control Method H.265, H.264 : CBR or VBR
Streaming Capability Multiple Streaming (Up to 3 Profiles per channel)
Audio Compression G.711 u-law
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour
Security HTTPS (SSL) Login Authentication, Digest Login Authentication
IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access rtp/rtsp max. 48 users(4 Users/CH) at Unicast Mode , http max.32 users
Webpage Languages English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek
Web Viewer Supported OS : Windows 10 or later, Mac OS X 10.13 or later
Non-plugin WebViewer Supported Browser :
Google Chrome 80 or later,, MS Edge 83 or later, Mozilla Firefox 72 or later,
Apple Safari 11.0.1 or later
Application Programming Interface ONVIF profile S, SUNAPI (HTTP API)
Compatabile Software & Recoder SmartViewer), SSM, NVR(Hanwha Techwin, P/X/Q/L series)
Environmental
Operating Temperature / Humidity -10°C ~ +50°C / 20% ~ 80% RH
(-10°C ~ +40°C when installed in RACK)
Electrical
Input Voltage / Current DC12V/5A
Power Consumption MAX : 20.0W (12V, 1.67A)
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) (W) 370.0 × (H) 44.0 x (D) 320.0(include Connector 330.9)mm
Weight 2.32kg(5.115lb)
