Lenses

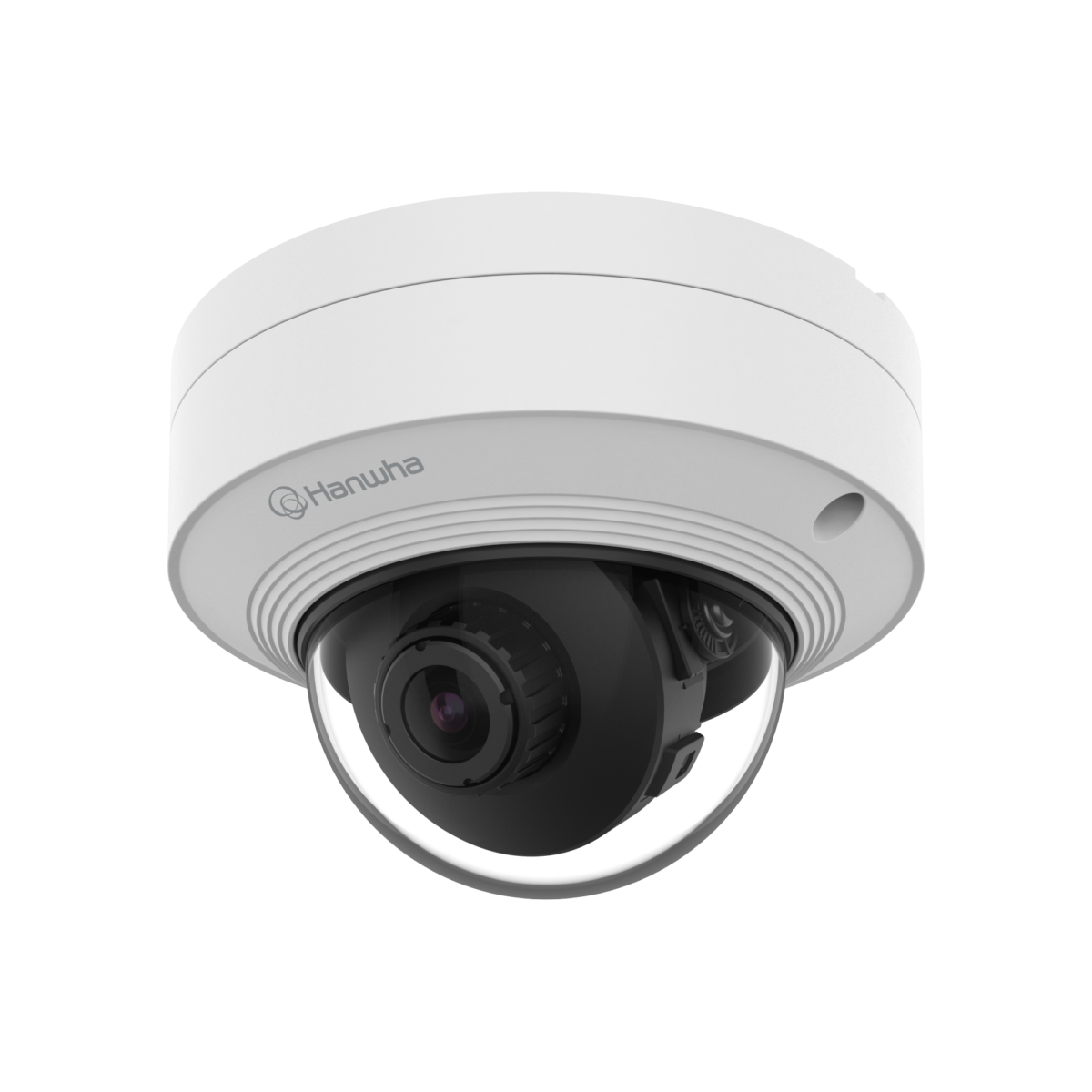

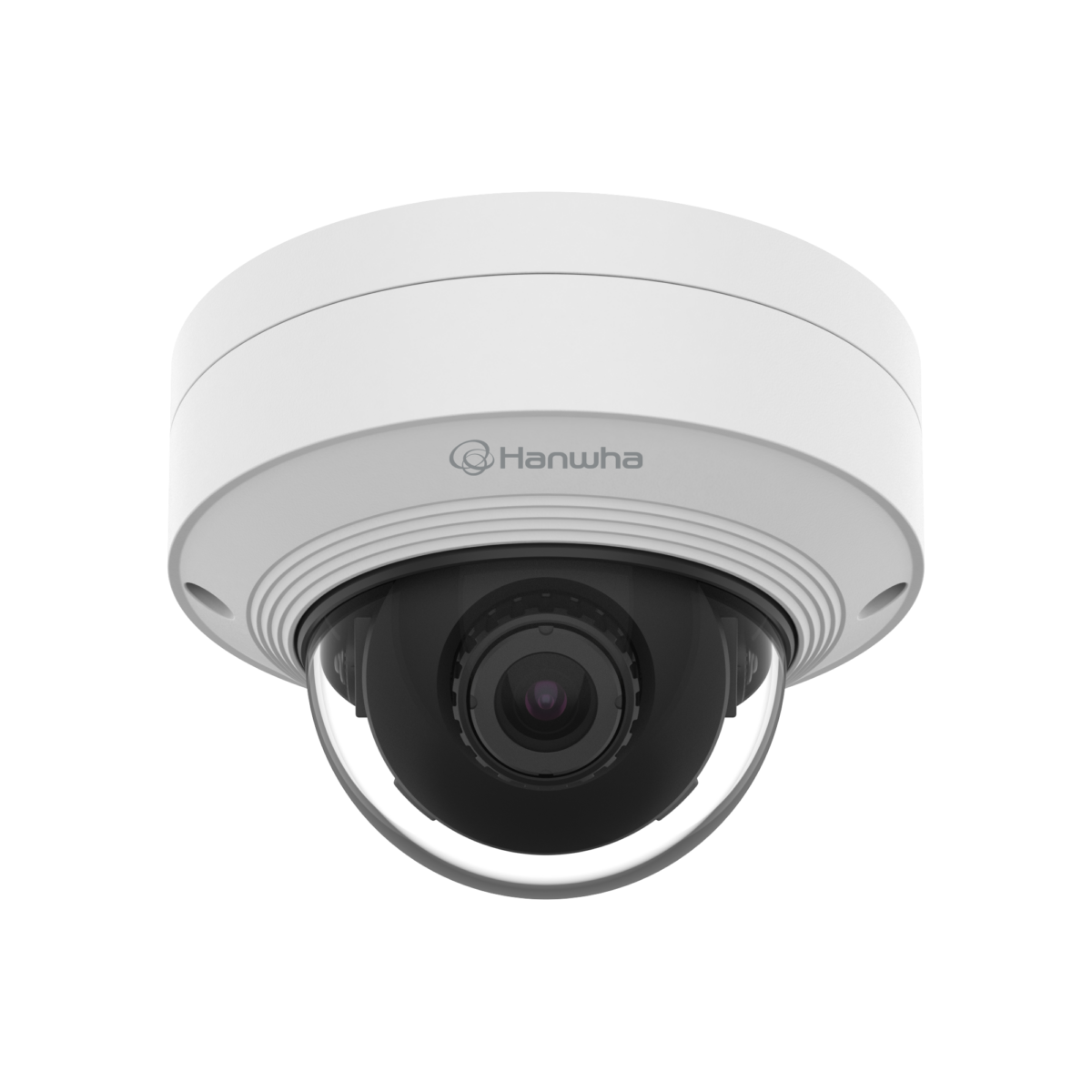

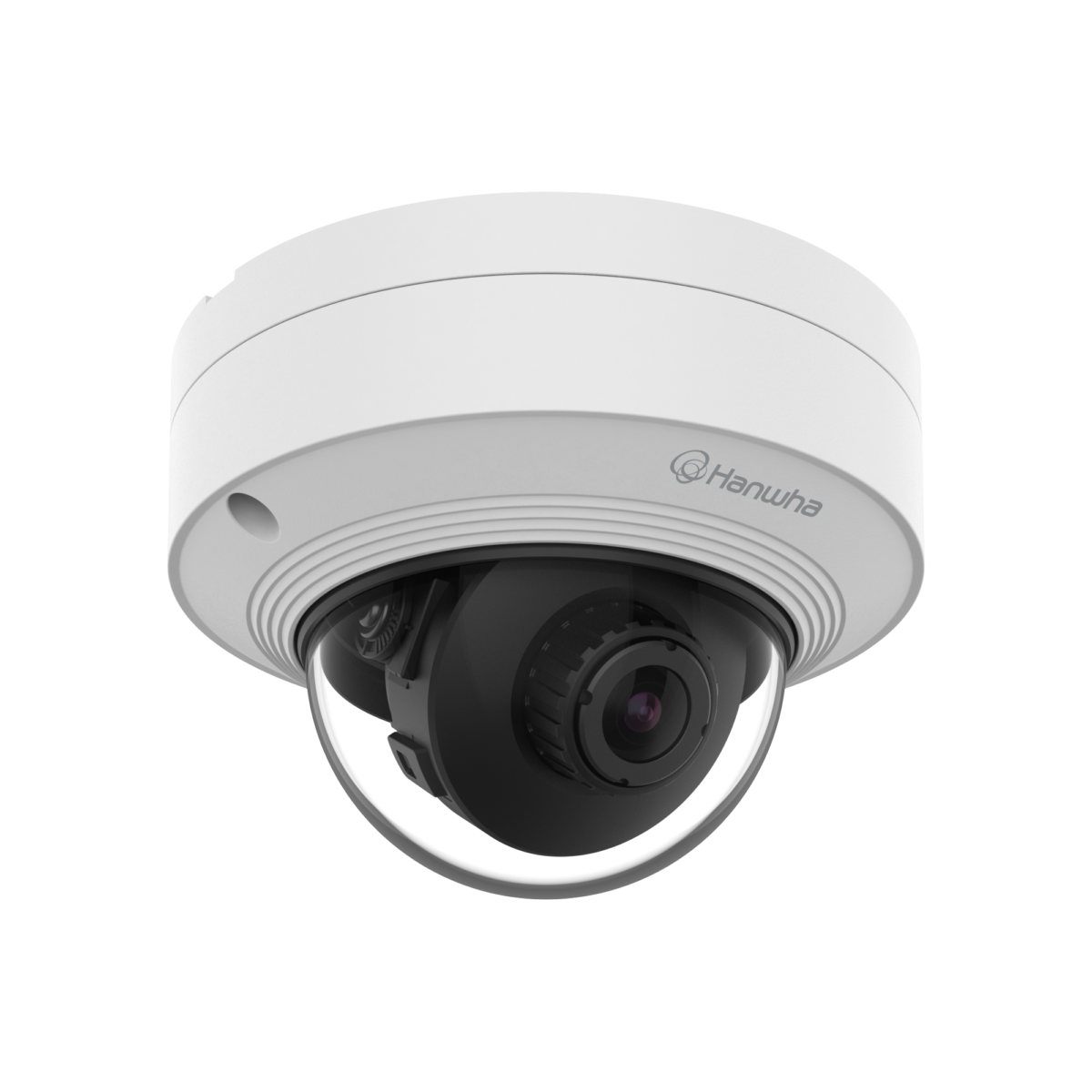

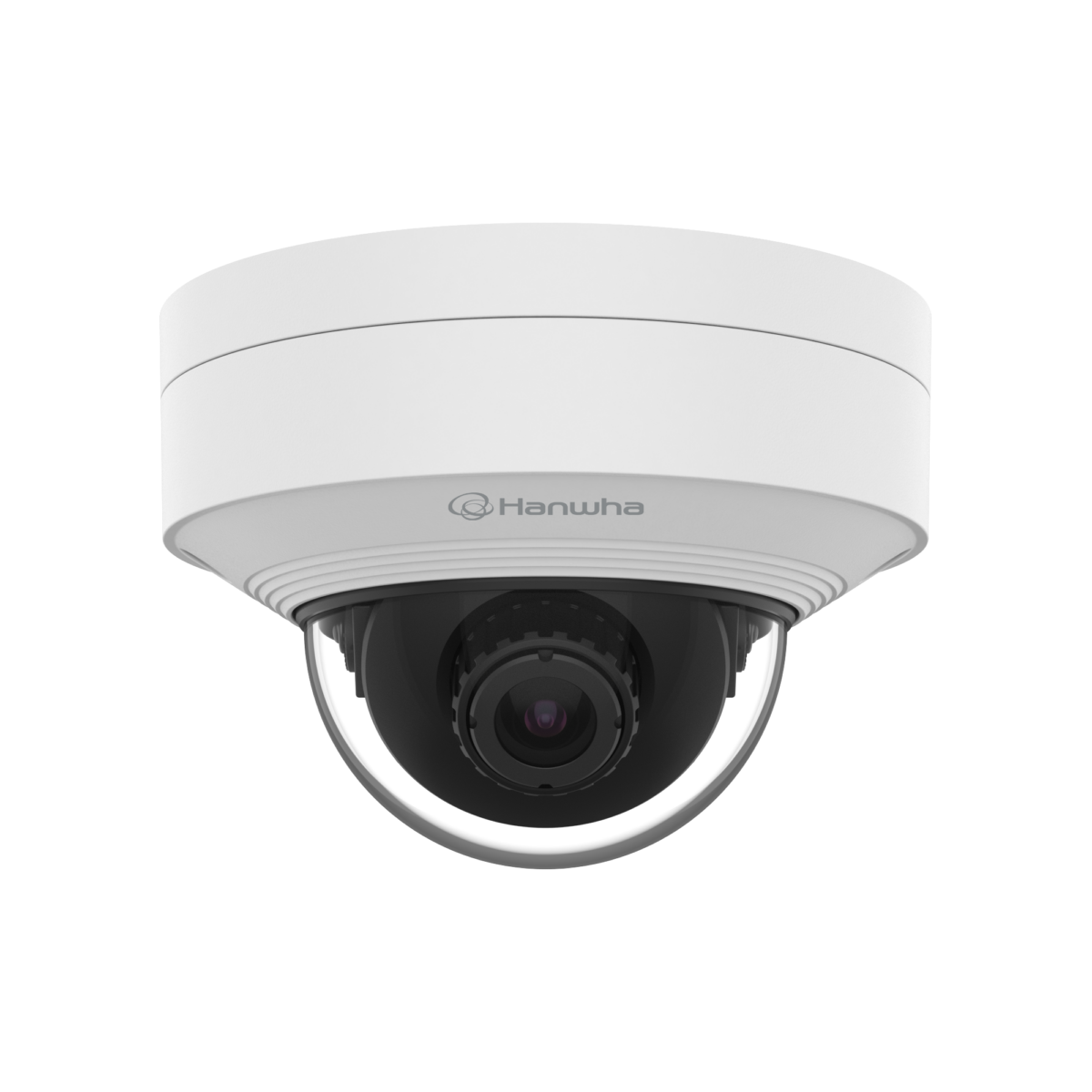

SLA-T2480WDA
2MP Waterproof Dome Lens Module
Key Features
• Color: 0.045Lux(F2.0, 1/30sec) with PNM-9000QB, XNB-6002
• 2.4mm fixed focal
• Product Dimensions / Weight: ø110.0x77.0mm(ø3.54x2.36"), 450g(0.99lb)
• EN IEC 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
• 2.4mm fixed focal
• Product Dimensions / Weight: ø110.0x77.0mm(ø3.54x2.36"), 450g(0.99lb)
• EN IEC 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Min. Illumination | Color: 0.045Lux(F2.0, 1/30sec, 30IRE) BW: 0.045Lux(F2.0, 1/30sec, 30IRE) * with PNM-9000QB, XNB-6002 |
| Lens | |
| Focal Length (Zoom Ratio) | 2.4mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 138° / V: 73° / D: 165° |
| Mount Type | RJ12 connected with main unit |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~70° / 0°~355° |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~+131°F) / 0~95% RH * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F ~+140°F) / 0~95% RH |
| Certification | IP66, NEMA 4X, IK10 |
| Mechanical | |
| Color / Material | White / Plastic |
| Product Dimensions / Weight | ø110.0x77.0mm(ø3.54x2.36"), 450g(0.99lb) Cable: 8m(26.2ft) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | EN IEC 63000 IEC 60529 IP66, IEC 62262 IK10 NEMA 250 type 4X |
