Monitors

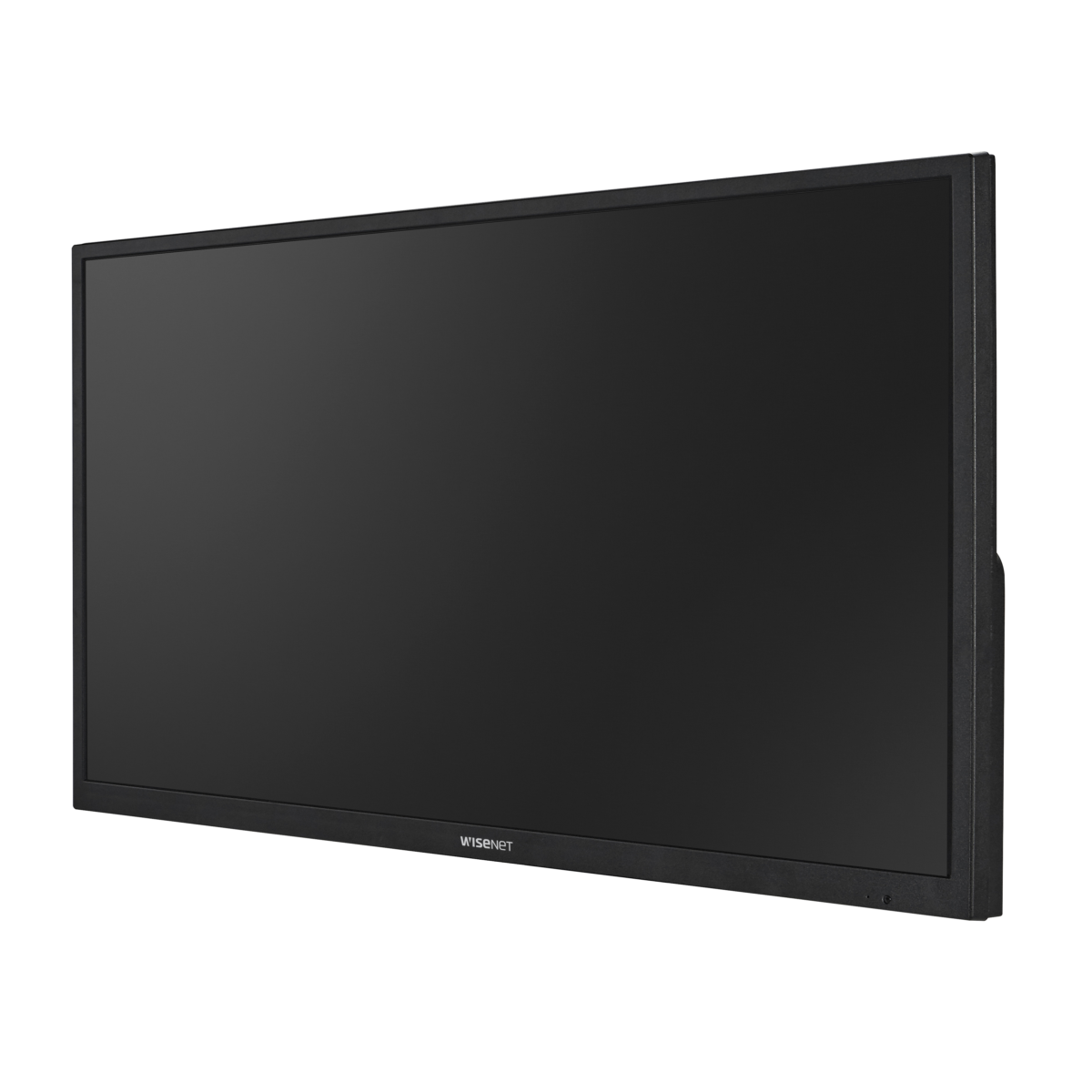

SMT-3234
32" LED Monitor
Key Features
• Support up to 1,920 x 1,080 resolution
• Contrast ratio 2250 :1（Typ）, 2000:1（Min）
• Fast response time 8ms
• Video input : HDMI, DVI, VGA, BNC
• Panel life 30,000 hours
• Weight : 5.6Kg
• Designed and tested on 24/7 operation
• Contrast ratio 2250 :1（Typ）, 2000:1（Min）
• Fast response time 8ms
• Video input : HDMI, DVI, VGA, BNC
• Panel life 30,000 hours
• Weight : 5.6Kg
• Designed and tested on 24/7 operation
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Display | ||
|---|---|---|
| Type | LED | |
| Screen Size | 31.5" | |
| Max. Resolution | 1,920 x 1,080 | |
| Brightness | 300cd/㎡ | |
| Contrast Ratio | 2250 :1（Typ）, 2000:1（Min） | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 16.7 million | |
| Response Time | 8ms(G to G) | |
| Video System | NTSC/PAL | |
| Panel Life | 30,000 hours | |
| Filter Type | 3D combfilter | |
| Interface | ||
| Video | ||
| Connectors | VGA, DVI, HDMI, BNC | |
| Composite Video | ||
| Input | 1 port, BNC | |
| VGA | ||
| Connector | 1port Analog D-sub(15 pin), 1 port DVI-D | |
| Available Format | 640 x 480@60Hz/66Hz/72Hz/75Hz (VGA), 800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA), 1,024 x 768@60Hz/70Hz/75Hz (XGA), 1,152 x 864@75Hz, 1,280 x 720@60Hz, 1,280 x 800@60Hz, 1,280 x 1,024@60Hz/75Hz (SXGA), 1,360 x 768@60Hz,1,440 x 900@60Hz, 1,600 x 900@60Hz, 1,680 x 1,050@60Hz, 1,920 x 1,080@60Hz | |
| HDMI | ||
| Connector | I port HDMI | |
| Available Format | 640 x 480p@60Hz, 720 x 480p@60Hz, 720 x 576p@50Hz, 1,280 x 720p@50Hz/60Hz, 1,920 x 1,080i@60Hz, 1,920 x 1,080p@60Hz | |
| Audio | ||
| Connector | 3.5mm Mini Phone Jack | |
| Output Signal | Loop-through line level(PC only), Speakers : 2 x 2Watt | |
| Application Support | Remote Controller | |
| On Screen Display | ||
| Functions | VESA™ DPM Compatible | |
| Language | Chinese( Simplified), English, French, German, Spanish,Dutch,Russian,Arabic | |
| General | ||
| Electrical | ||
| Input Voltage | AC 100 ~ 240V(50/60Hz) | |
| Power Consumption | <60W | |
| Environmental | ||
| Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) | |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | ||
| Dimensions without Stand (WxHxD) | 728.8 x 433.1 x 51.4mm | |
| Weight | 5.6kg | |
| Cabinet Color | Black | |
| VESA Mounts Interface | 100 x 100mm | |
