DVR
Discontinued

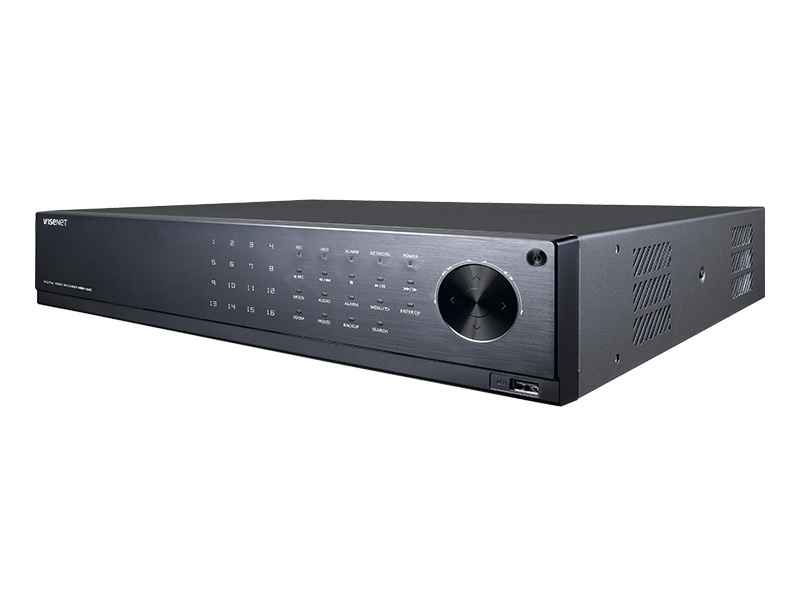

HRD-1642
16CH 4M H.264 AHD DVR
Key Features
• H.264 supported
• TVI, CVI (Max. 2MP), Analog Camera Input Support
• Up to 240 / 200 (4M)fps Recording Rate
• Up to 480 / 400 (1080p)fps Recording Rate
• HDMI/VGA Video Output
• 16CH Audio Inputs/ 1CH Audio Output
• Up to 8 Internal HDDs
• Coaxial Cable (Pelco-C, ACP)
• Smart Phone Support (Android, iOS)
• TVI, CVI (Max. 2MP), Analog Camera Input Support
• Up to 240 / 200 (4M)fps Recording Rate
• Up to 480 / 400 (1080p)fps Recording Rate
• HDMI/VGA Video Output
• 16CH Audio Inputs/ 1CH Audio Output
• Up to 8 Internal HDDs
• Coaxial Cable (Pelco-C, ACP)
• Smart Phone Support (Android, iOS)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LISTProduct Specification
| Display | ||
|---|---|---|
| Analog camera | ||
| Inputs | 16CH(1Vp-p 75ohm, BNC) | |
| Signal Type | AHD(4MP, 1080p, 720p) HDTVI(1080p) HDCVI(1080p) CVBS(NTSC/PAL) |
|
| Live | ||
| Local Display | HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
|
| Resolution | 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps), 720H(30/25fps) 960x576(30/25fps) per CH | |
| Performance | ||
| Record | ||
| Compression | H.264 | |
| Record Rate(Analog) | [Analog Camera(NTSC/PAL)] 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH |
|
| Recording Bandwidth | Nonne | |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (1~30 fps(N), 1~25fps(P)) | |
| Event Trigger | Video Loss, Motion(Level 1~10), Alarm Input(16), Tampering(Level Low,Medium, High) | |
| Event Action | E-mail, Alarm out, Buzzer | |
| Search & Play | ||
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | 16CH(Local Monitor) | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 8ea(Max 48TB) | |
| Backup | ||
| File backup | BU, SEC, AVI | |
| Function | Multi channel(Upto 16CH) Play, Date-Time/Title display | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Webviewer, Smart Viewer, Wisenet Mobile Viewer, System Controller |
|
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP | |
| Control | Live(8ch) : Multi-Profile Support Playback(1Ch, Max. 2MP) |
|
| Max. Remote Users | Search(1), Live Unicast(10) | |
| Coaxial Control | CVBS(Pelco-C)/AHD | |
| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 16CH In / 1CH Out(Spot Output) | |
| e-SATA | 2EA | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 16EA, Out 4EA\n - Relay Out1(NO/NC/COM)\n - Relay Out2~4(NO/COM) | |
| USB | 2EA(Front 1, Rear 1) | |
| Serial(Protocols) | RS-485/422 (Samsung-E/Samsung-T/Pelco-D/Pelco-p/Panasonic/ Phillips/ AD/ DIAMOND/ ERNA/ KALATEL/ VCL TP/VICON/ ELMO/GE) * for PTZ | |
| Power inlet | 1EA AC | |
| System | ||
| System Control | Mouse, Remote Controller, Web Viewer, System controller(SPC-7000, SPC-6000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Chinese(Traditional) | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC | |
| Electrical | ||
| Power Input | 100~240 VAC±10%, 50/60 Hz | |
| Power Consumption | Max. 62W (1x2T HDD) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”) | |
| Weight | 5.9kg (13.01lb) (4TB HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP | |
| DDNS | Wisenet DDNS | |
| Transmission speed | [Analog Camera(NTSC/PAL)]\n- Main Stream: 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH\n- Sub Stream) WD1/4CIF : 7fps/CH, 2CIF/CIF : 30fps/CH(N), 25fps/CH(P) | |
| Transmission Bandwidth | Max. 64Mbps | |
| Audio | ||
| Input/Output | 16 CH (Built in 4 CH, Option : Audio Extension Cable)/ 1 CH | |
| Compression | G.711 | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | User access Log, Watermark | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile | |
