DVR
Discontinued
HRD-440
4CH 4M H.264 AHD DVR
Key Features
• H.264 supported
• TVI, CVI (Max. 2MP), Analog camera input
• Up to 60/ 50 (4MP)fps recording rate
• Up to 120 / 100 (1080p)fps recording rate
• HDMI / VGA video output
• 1CH audio input / 1CH audio output
• Up to 1 internal HDD (Max.6TB)
• Coaxial cable (Pelco-C, ACP)
• Smartphone support
• TVI, CVI (Max. 2MP), Analog camera input
• Up to 60/ 50 (4MP)fps recording rate
• Up to 120 / 100 (1080p)fps recording rate
• HDMI / VGA video output
• 1CH audio input / 1CH audio output
• Up to 1 internal HDD (Max.6TB)
• Coaxial cable (Pelco-C, ACP)
• Smartphone support
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LISTProduct Specification
| Display | ||
|---|---|---|
| Analog camera | ||
| Inputs | 4CH(1Vp-p 75ohm, BNC) | |
| Signal Type | AHD(4MP, 1080p, 720p) HDTVI(1080p) HDCVI(1080p) CVBS(NTSC/PAL) |
|
| Live | ||
| Local Display | HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
|
| Resolution | 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps), 720H(30/25fps) 960x576(30/25fps) per CH | |
| Performance | ||
| Record | ||
| Compression | H.264 | |
| Record Rate(Analog) | [Analog Camera(NTSC/PAL)] 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH |
|
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (1~30 fps(N), 1~25fps(P)) | |
| Event Trigger | Video Loss, Motion(Level 1~10), Alarm Input(16), Tampering(Level Low,Medium, High) | |
| Event Action | E-mail, Alarm out, Buzzer | |
| Search & Play | ||
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | 4CH(Local Monitor) | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 1ea(Max 6TB) | |
| Backup | ||
| File backup | BU, SEC, AVI | |
| Function | Multi channel(Upto 4CH) Play, Date-Time/Title display | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Webviewer, Smart Viewer, Wisenet Mobile Viewer, System Controller |
|
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP | |
| Control | Live(4ch) : Multi-Profile Support Playback(1Ch) |
|
| Max. Remote Users | Search(1), Live Unicast(10) | |
| Coaxial Control | CVBS(Pelco-C)/AHD | |

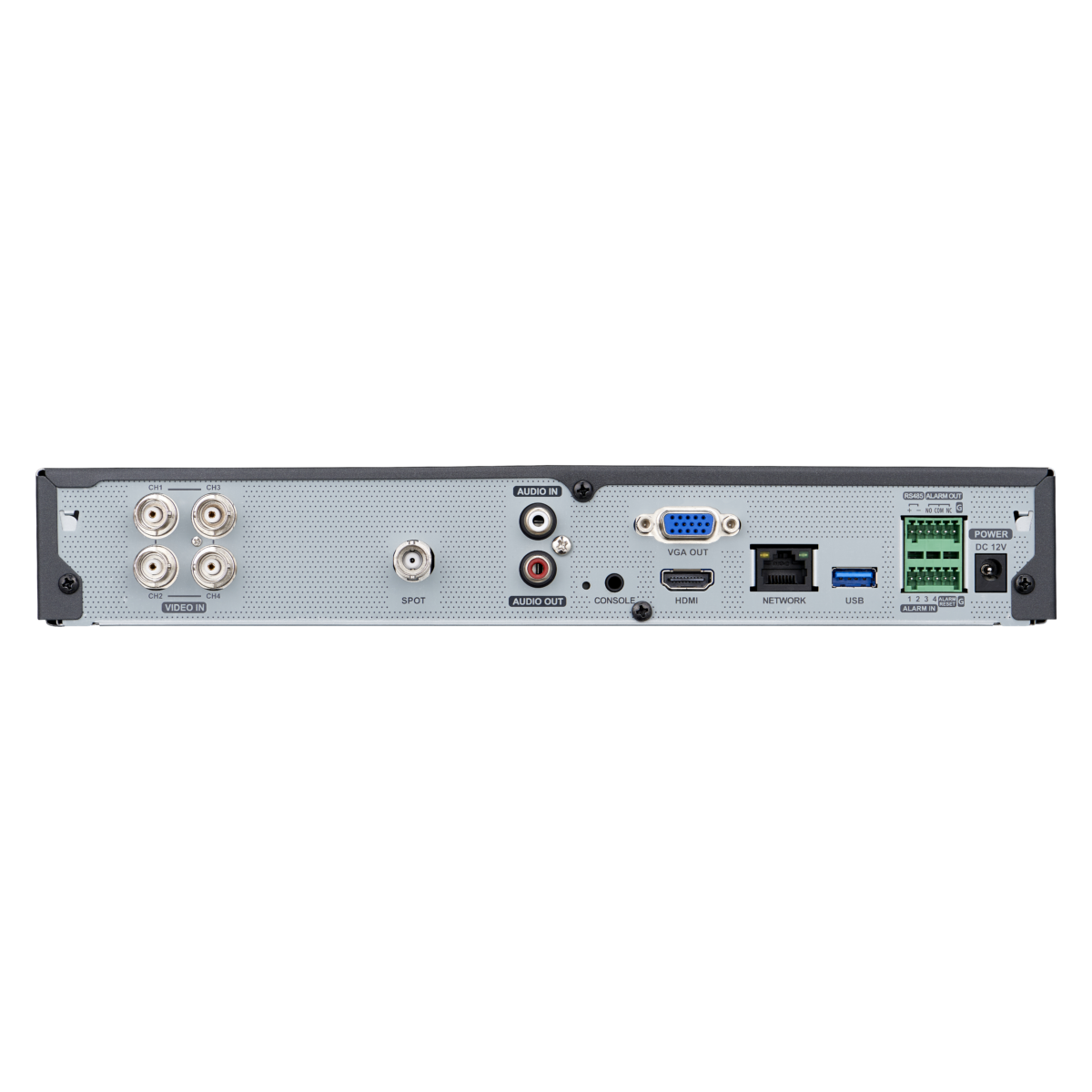

| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 4CH In / 1CH Out(Spot Output) | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 1EA, Out 1EA\n - Relay Out1(NO/NC/COM) | |
| USB | 2EA(Front 1, Rear 1) | |
| Serial(Protocols) | RS-485 (Samsung-E/Samsung-T/Pelco-D/Pelco-p/Panasonic/ Phillips/ AD/ DIAMOND/ ERNA/ KALATEL/ VCL TP/VICON/ ELMO/GE) * for PTZ | |
| Power inlet | 1EA DC Input Jack | |
| System | ||
| System Control | Mouse, Remote Controller, Web Viewer, System controller(SPC-7000, SPC-6000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Chinese(Traditional) | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC | |
| Electrical | ||
| Power Input | DC12V Adaptor(100~250V AC ±10% , 50/60Hz) | |
| Power Consumption | Max. 19W (1x4TB HDD) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W300x H 47x D 208.7(11.81” x 1.85” x 8.22”) | |
| Weight | 1.77Kg (3.9lb) (4TB HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP | |
| DDNS | Wisenet DDNS | |
| Transmission speed | [Analog Camera(NTSC/PAL)]\n- Main Stream: 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH\n- Sub Stream) WD1/4CIF : 12fps/CH, 2CIF/CIF : 30fps/CH(N), 25fps/CH(P) | |
| Transmission Bandwidth | Max. 64Mbps | |
| Audio | ||
| Input/Output | 1 CH / 1 CH | |
| Compression | G.711 | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | User access Log, Watermark | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile | |
