NVR

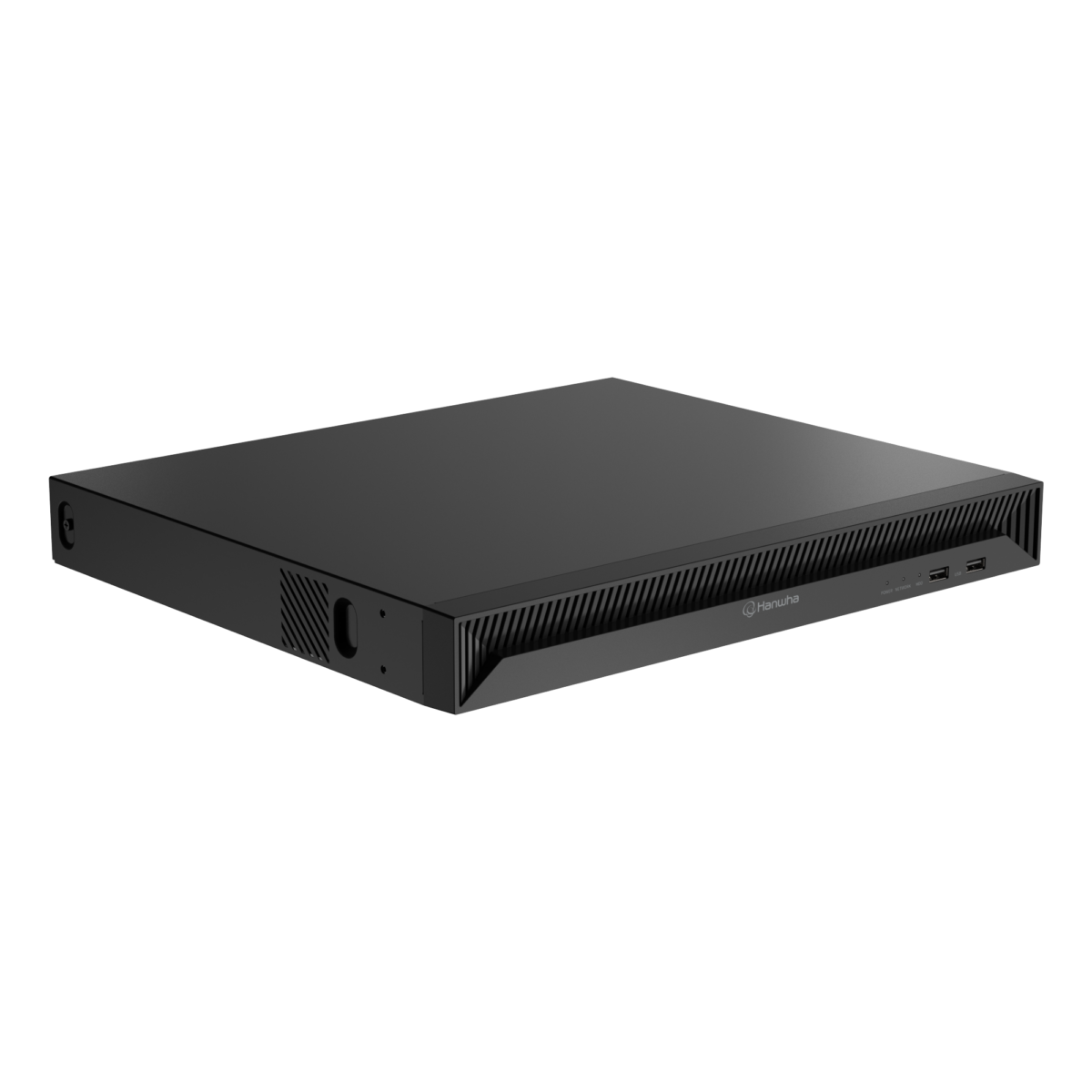

WRN-2010S
Edge Wave NVR
Key Features
• Supported by Wave client, mobile and Cloud Sync
• Supports AI metadata
• 150 Mbps of recording throughput
• Supports up to 20TB internal storage
• HDMI/DP monitor outputs for configuration and basic monitoring
• 8 PoE/PoE+ ports, with a total power budget of 100W Includes USB mouse and rack mount brackets
• Supports AI metadata
• 150 Mbps of recording throughput
• Supports up to 20TB internal storage
• HDMI/DP monitor outputs for configuration and basic monitoring
• 8 PoE/PoE+ ports, with a total power budget of 100W Includes USB mouse and rack mount brackets
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LISTProduct Specification
| Display | ||
|---|---|---|
| Decoding | ||
| Local Display | HDMI(1), DP(1) | |
| Performance | ||
| Operating System | ||
| Embedded | Ubuntu 22.04 LTS | |
| Record | ||
| Recording Bandwidth | Max. 150Mbps | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 2ea(Max. 20TB) | |
| Interface | ||
| Front | ||
| Indicator | Power, Network, HDD | |
| HDMI | 1EA | |
| DP | 1EA | |
| Audio | Audio output | |
| Ethernet | PoE RJ-45(LAN, 10/100) 8 ea, RJ-45 2ea (WAN, 1Gbps) | |
| USB | Front USB 2.0(2), Rear USB 3.0(2) | |
| Environmental | ||
| CPU | Dual core | |
| RAM | DDR4 8GB | |
| OS HDD | eMMC 32GB | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | 170W | |
| PoE Budget | 100W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 370.0 x 50.7 x 320 mm | |
| Weight | 2.78Kg | |
