NVR
WRN-2110SB1

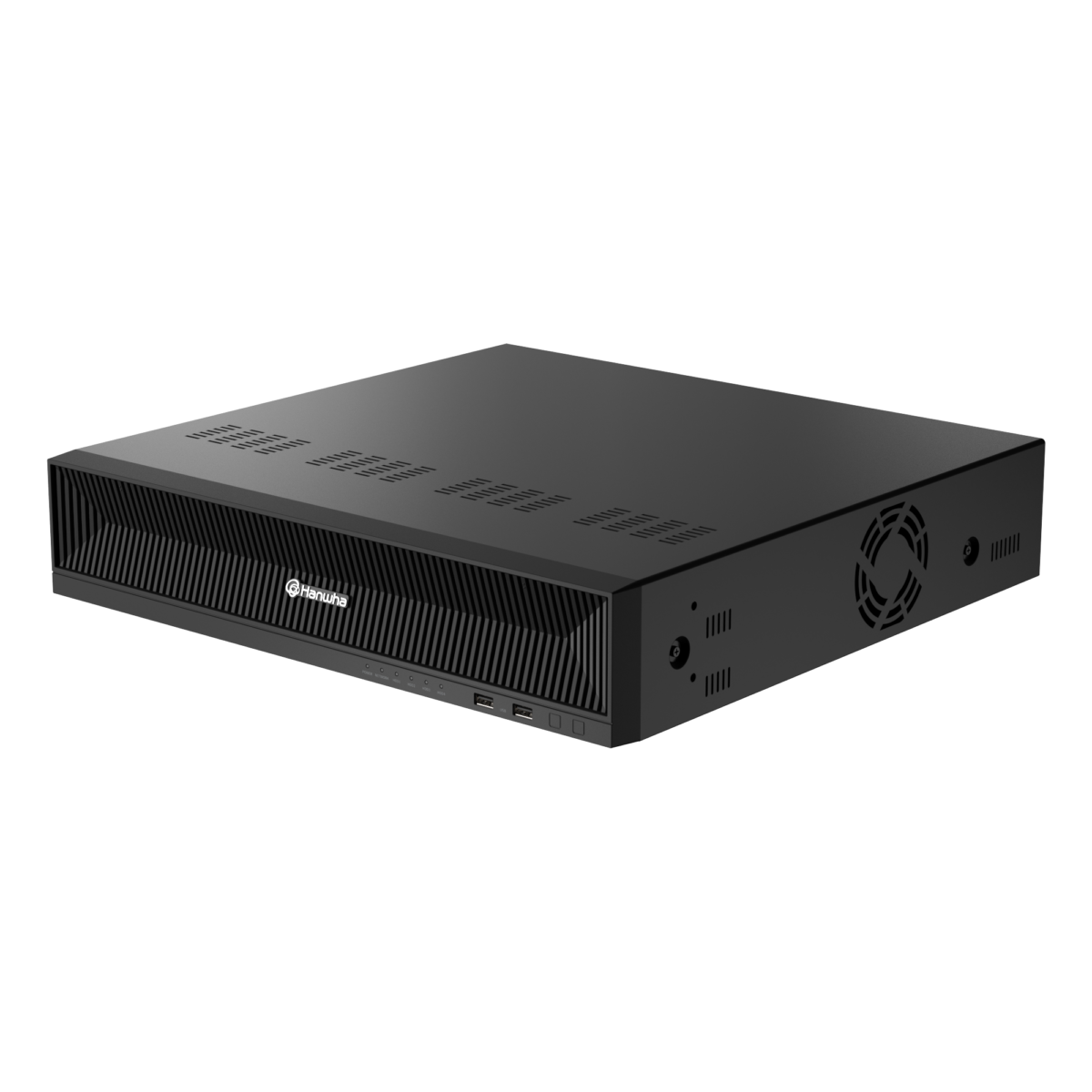

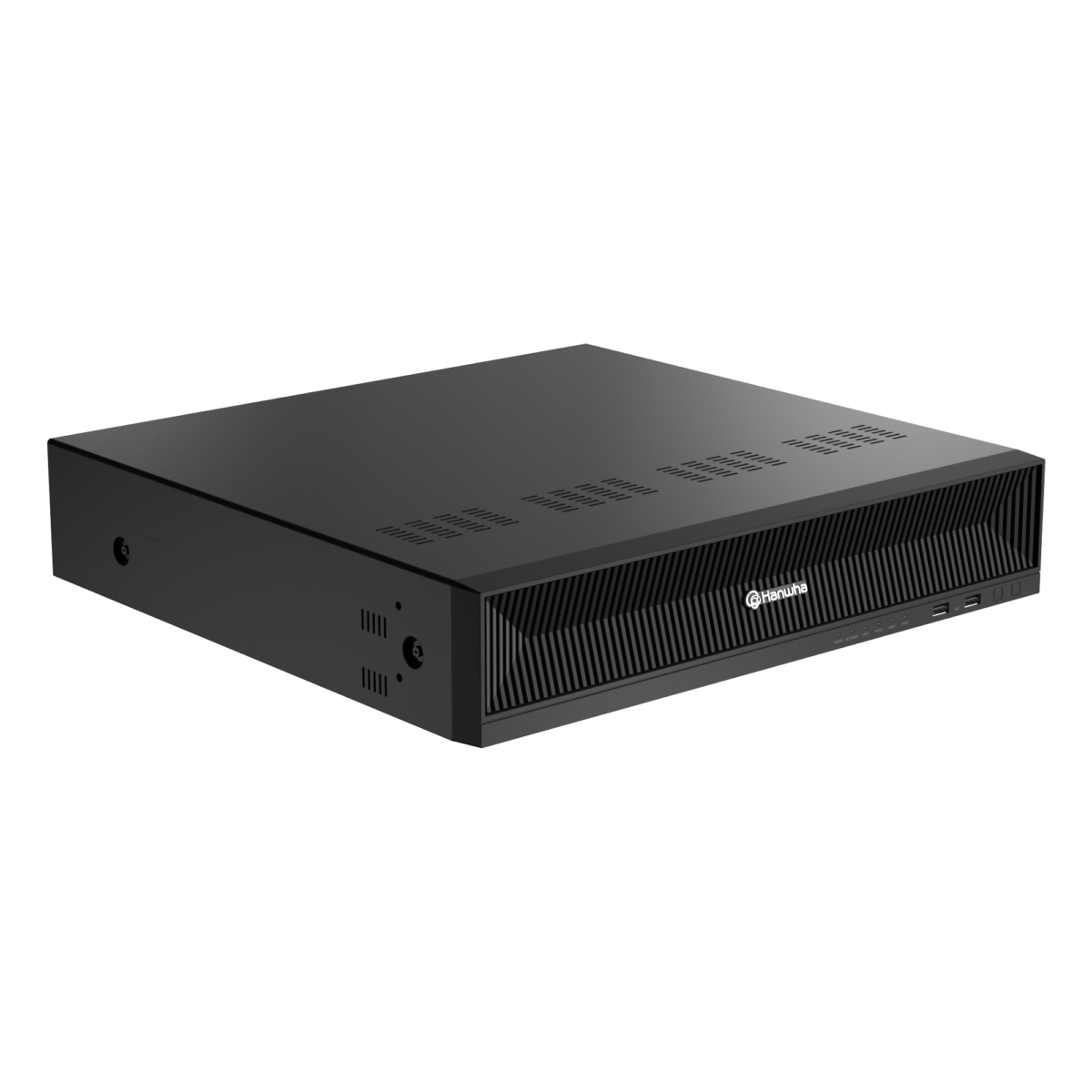

Edge Wave NVR
Key Features
• Supported by Wave client, mobile and Cloud Sync
• Supports AI metadata
• 250 Mbps of recording throughput
• Supports up to 40TB internal storage
• HDMI/DP monitor outputs for configuration and basic monitoring
• 16 PoE/PoE+ ports, with a total power budget of 200W
• Includes USB mouse and rack mount brackets
• Supports AI metadata
• 250 Mbps of recording throughput
• Supports up to 40TB internal storage
• HDMI/DP monitor outputs for configuration and basic monitoring
• 16 PoE/PoE+ ports, with a total power budget of 200W
• Includes USB mouse and rack mount brackets
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please follow the Hanwha Vision HDD compatibility list.
Product Specification
| Display | ||
|---|---|---|
| Decoding | ||
| Local Display | HDMI(1), DP(1) | |
| Performance | ||
| Operating System | ||
| Embedded | Ubuntu 22.04 LTS | |
| Record | ||
| Recording Bandwidth | Max. 250Mbps | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 4ea(Max. 40TB) | |
| Interface | ||

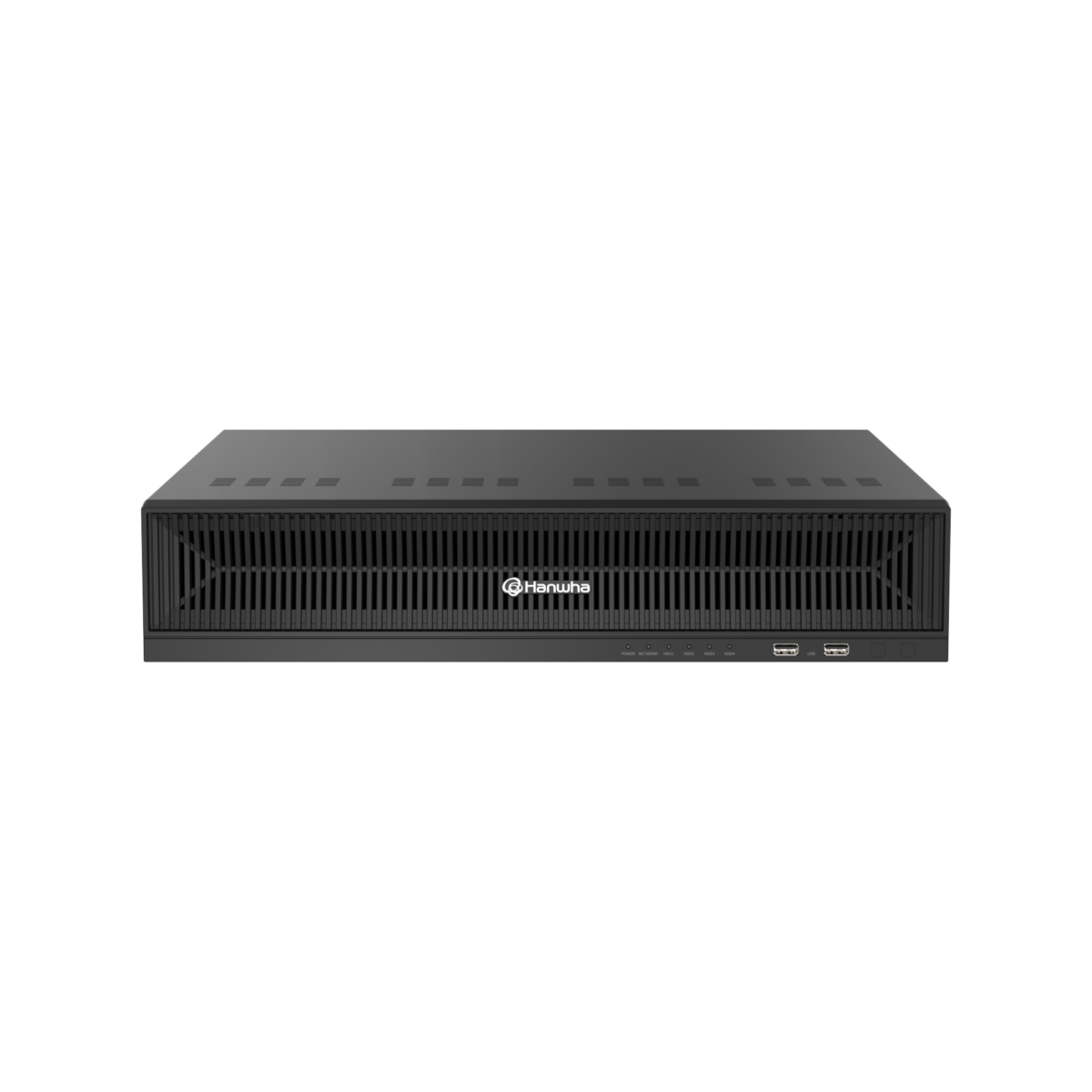

| Front | ||
| Indicator | Power, Network, HDD1, HDD2, HDD3, HDD4 | |
| HDMI | 1EA | |
| DP | 1EA | |
| Audio | Audio output | |

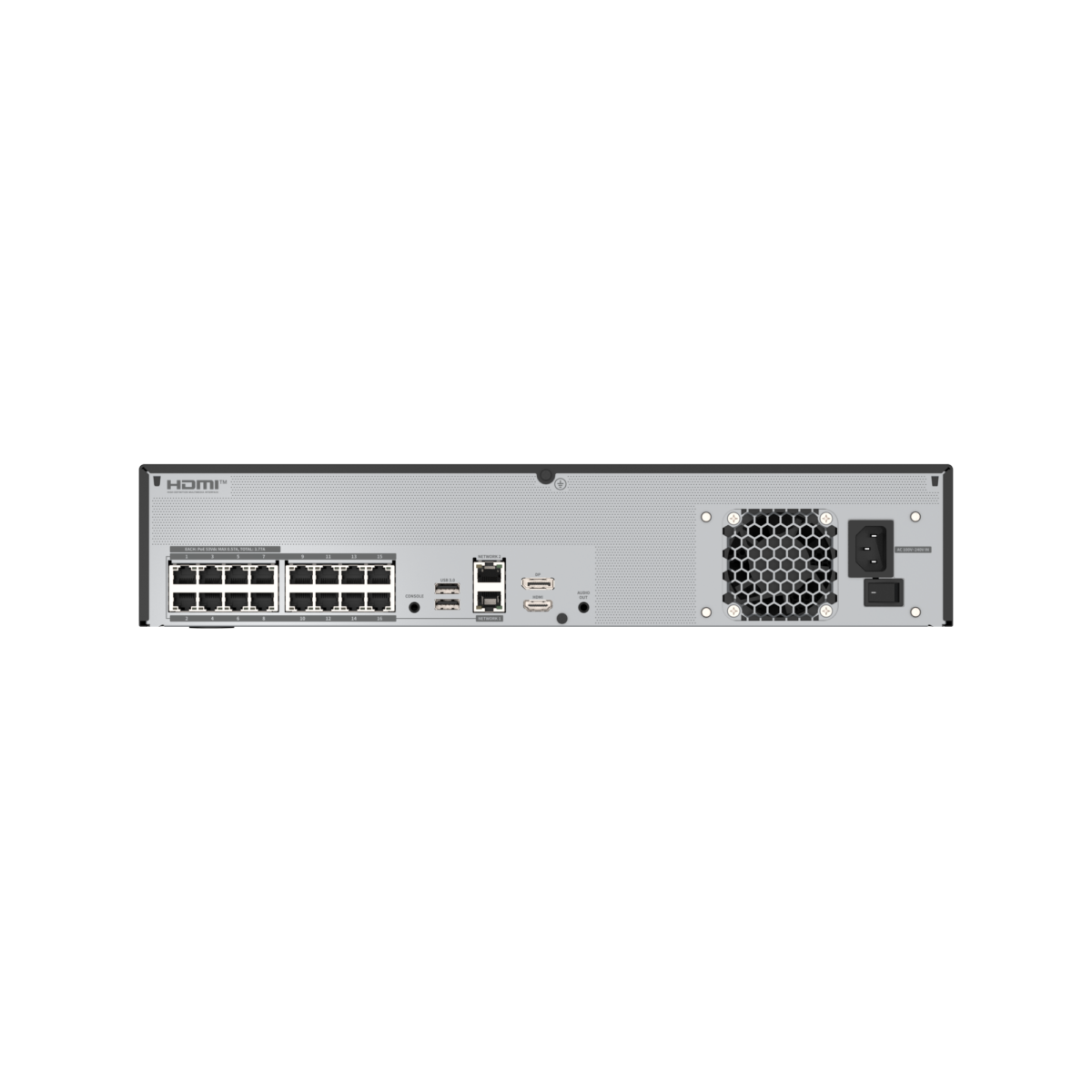

| Ethernet | PoE RJ-45(LAN, 10/100) 16 ea, RJ-45 2ea (WAN, 1Gbps) | |
| USB | Front USB 2.0(2), Rear USB 3.0(2) | |
| Environmental | ||
| CPU | Quad core | |
| RAM | DDR4 8GB | |
| OS HDD | eMMC 32GB | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | 340W | |
| PoE Budget | 200W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 89.8 x 428.4 mm | |
| Weight | 5.56Kg | |
