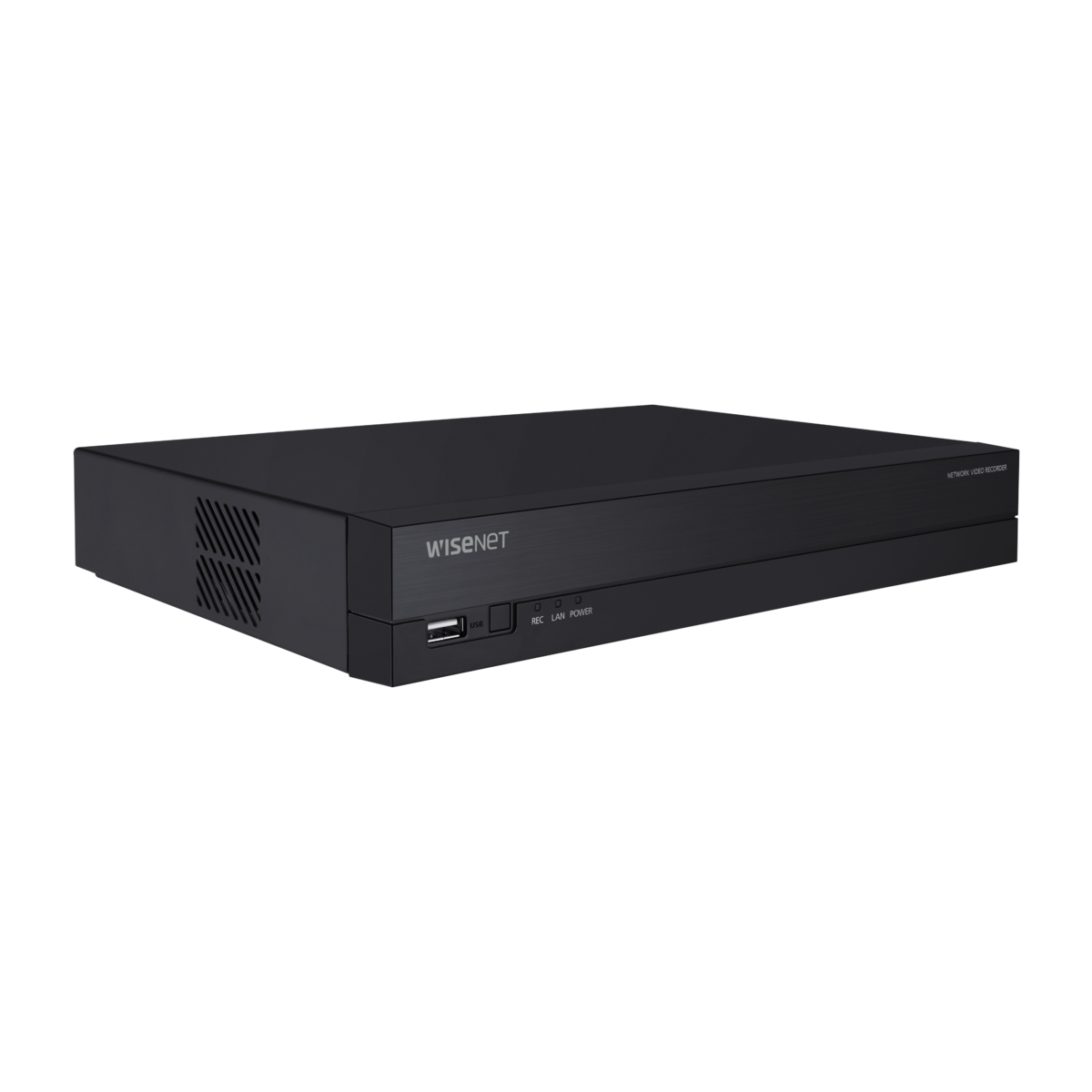

NVR
ARN-410S
4CH NVR
Key Features
• Up to 4 channels @ 8MP resolution
• H.265, H.264, MJPEG codec
• 40Mbps network camera recording
• Plug & play with 4 PoE ports
• 1 HDD (Up to 6TB)
• HDMI output
• P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile
• Dual track recording, 4K HDMI monitor out
• H.265, H.264, MJPEG codec
• 40Mbps network camera recording
• Plug & play with 4 PoE ports
• 1 HDD (Up to 6TB)
• HDMI output
• P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile
• Dual track recording, 4K HDMI monitor out
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LISTOverview
NDAA and FCC Compliant Camera and NVR Solutions
A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Affordability without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.
A series camera features
A series cameras offer clear and accurate imaging with a variety of options including essential form factors, 4MP and 2MP resolutions, H.265 compression, and lens types to meet your unique security challenges and circumstances.
WiseStream II + H.265 Compression
Reduce bandwidth and storage costs through efficient data transmission
120dB True WDR
Backlight compensation provides clear imaging under any lighting conditions
LDC Lens Distortion Correction
Corrects video distortion when using wide-angle lenses
30fps, H.265 Codec
Smooth 30fps video transmission with H.265 compression technology
IVA (Intelligent Video Analytics)
Increases situational awareness and alerts operators to abnormal activities in real-time
Hallway View 270° Rotation Support
Supports vertical FoV for monitoring narrow scenes with 90°, 180°, and 270° rotation
Affordable high quality NVR solutions
A series 4CH, 8CH, and 16CH NVRs support maximum camera resolutions of up to 8MP and H.265, H.264, and MJPEG codecs. The improved installation wizard and 4K resolution monitor output make system setup simple and monitoring crystal clear. Increased accessibility options include the use of P2P connections, the Wisenet Mobile application, and on PC or Mac with Wisenet Viewer CMS.
UHD Monitoring
4K HDMI Output
H.265
Advanced compression technology
P2P Connection
Easily connect with QR code
Wisenet Mobile App
Remote monitoring with Android or iOS devices
Wisenet Viewer Compatible
Easy system monitoring on Windows or Mac PCs
PoE
Power over ethernet
Product Specification
| Display | ||
|---|---|---|
| Network camera | ||
| Inputs | Max. 4CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | HDMI | |
| Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 |
|
| Resolution | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) |
|
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 40Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 16CH(Local 4CH, Remote 4CH per user) | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 1ea(Max. 6TB) | |
| Backup | ||
| File backup | BU/Exe(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 4CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 40Mbps | |
| Audio | ||
| Input/Output | 4 CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | ||
| Supported OS | Windows 10, macOS 10.13 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
|
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 4CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |

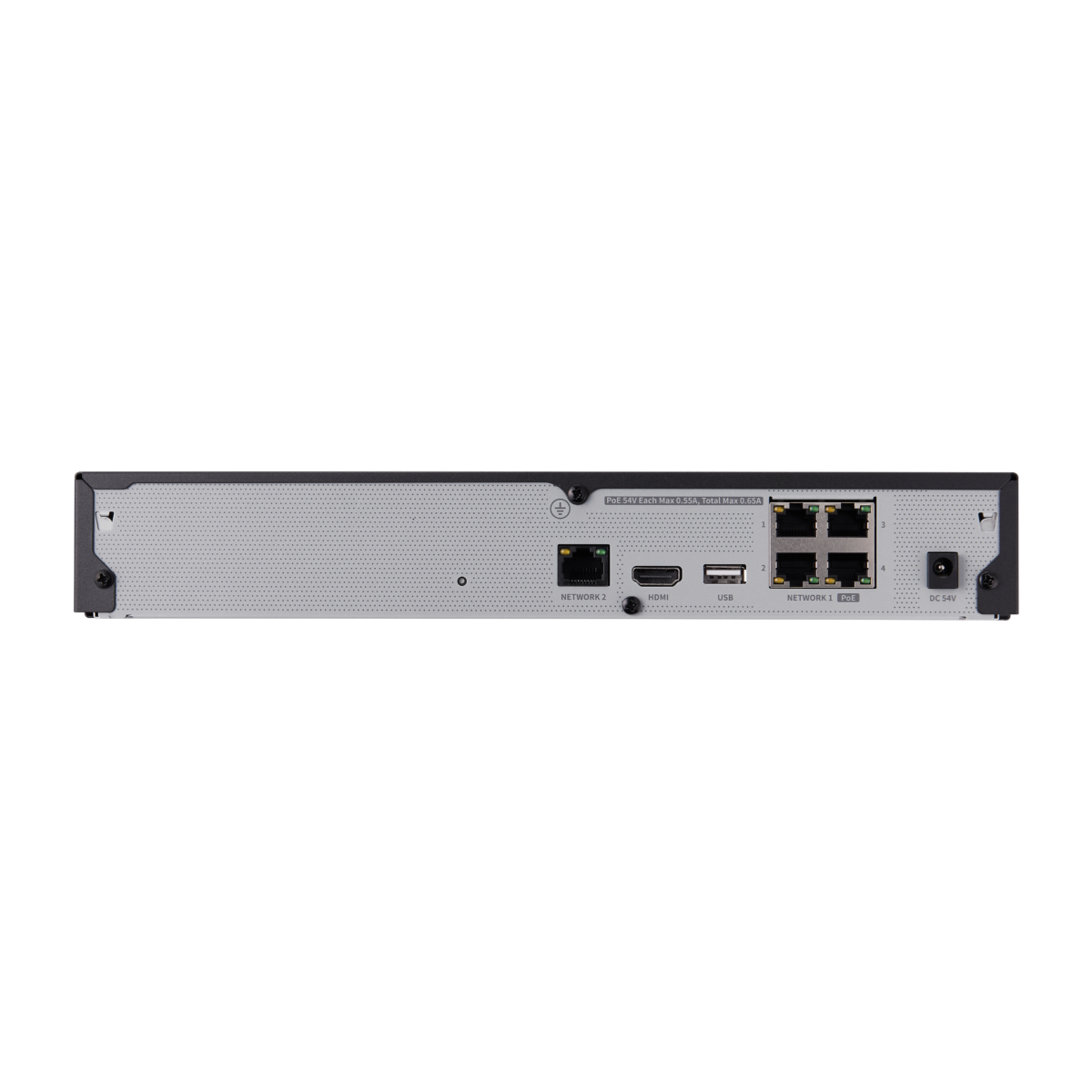

| Interface | ||

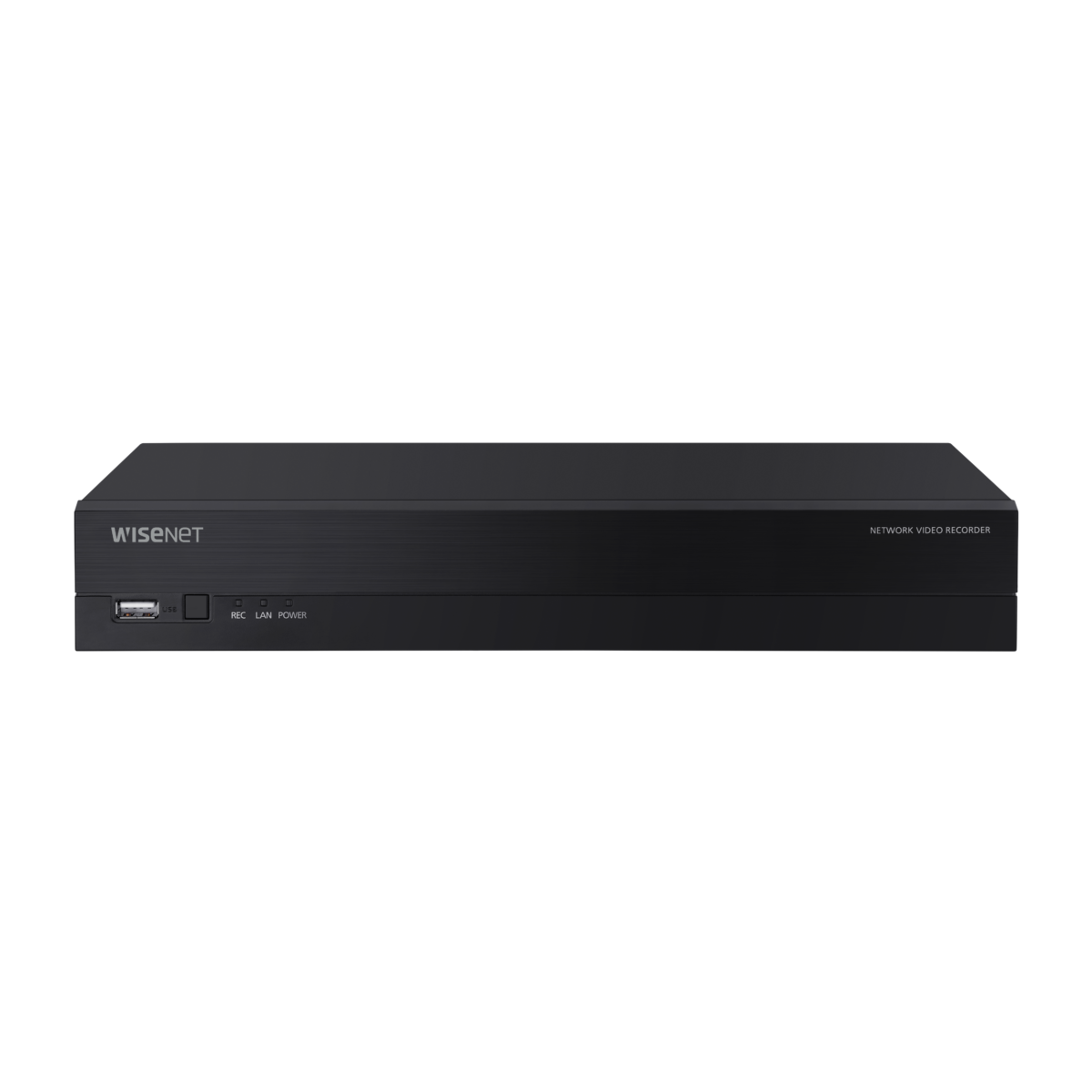

| Front | ||
| Indicator | Power, Record, Network | |
| Reset | Support | |
| HDMI | 1EA 3840x2160 30Hz | |
| Ethernet | PoE RJ-45(LAN, 10/100) 4 ea ,RJ-45 1ea (WAN, 10/100) | |
| USB | 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0) | |
| Power inlet | DC Adaptor | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 54VDC / 1.20A | |
| Power Consumption | Max 52W (1HDD, PoE On) | |
| PoE Budget | 35W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W300.0 x H47 x D208.7mm | |
| Weight | 1.03Kg | |
