NVR
Discontinued
XRN-3010
64CH 12M H.265 NVR
Key Features
• Up to 64CH, Max. 12megapixel camera supported
• Max. 300Mbps network camera recording
• Support 4K video out on HDMI monitor
• Support Dual monitor video out
• Support H.265, H.264, MJPEG compression
• WiseStream support
• Max. 8 internal HDDs (64TB), e-SATA storage support
• ARB & Failover (N+1) support
• Max. 300Mbps network camera recording
• Support 4K video out on HDMI monitor
• Support Dual monitor video out
• Support H.265, H.264, MJPEG compression
• WiseStream support
• Max. 8 internal HDDs (64TB), e-SATA storage support
• ARB & Failover (N+1) support
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LISTProduct Specification
| Display | ||
|---|---|---|
| Network camera | ||
| Inputs | Max. 64CH | |
| Resolution | 12MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | ||
| Local Display | [Dual Display] HDMI: 3840 x 2160, 1920x1080, 1280x720 VGA: 1920x1080, 1280x720 |
|
| Resolution | 12M(30fps), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1560fps) | |
| Performance | ||
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 300Mbps | |
| Resolution | 12MP ~ CIF | |
| Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post) | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) | |
| Event Action | e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps(16CH simultaneously) | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 16CH(Local Monitor, Network) | |
| Fisheye Dewarping | WEB / CMS | |
| Storage | ||
| Supported HDD | Up to 8TB | |
| HDD Slot | SATA 8ea(Max. 64TB) | |
| Backup | ||
| File backup | BU/Exe(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Upto 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission Bandwidth | Max. 512Mbps | |
| Audio | ||
| Input/Output | 64 CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption | |
| Web viewer | ||
| Supported OS | Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11 | |
| Supported browser | MS IE, Google Chrome, Mac Safari, Firefox | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile\nSupport SDK/CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | ||
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer, SPC-2000 | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(Multi-Profile Support), Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |

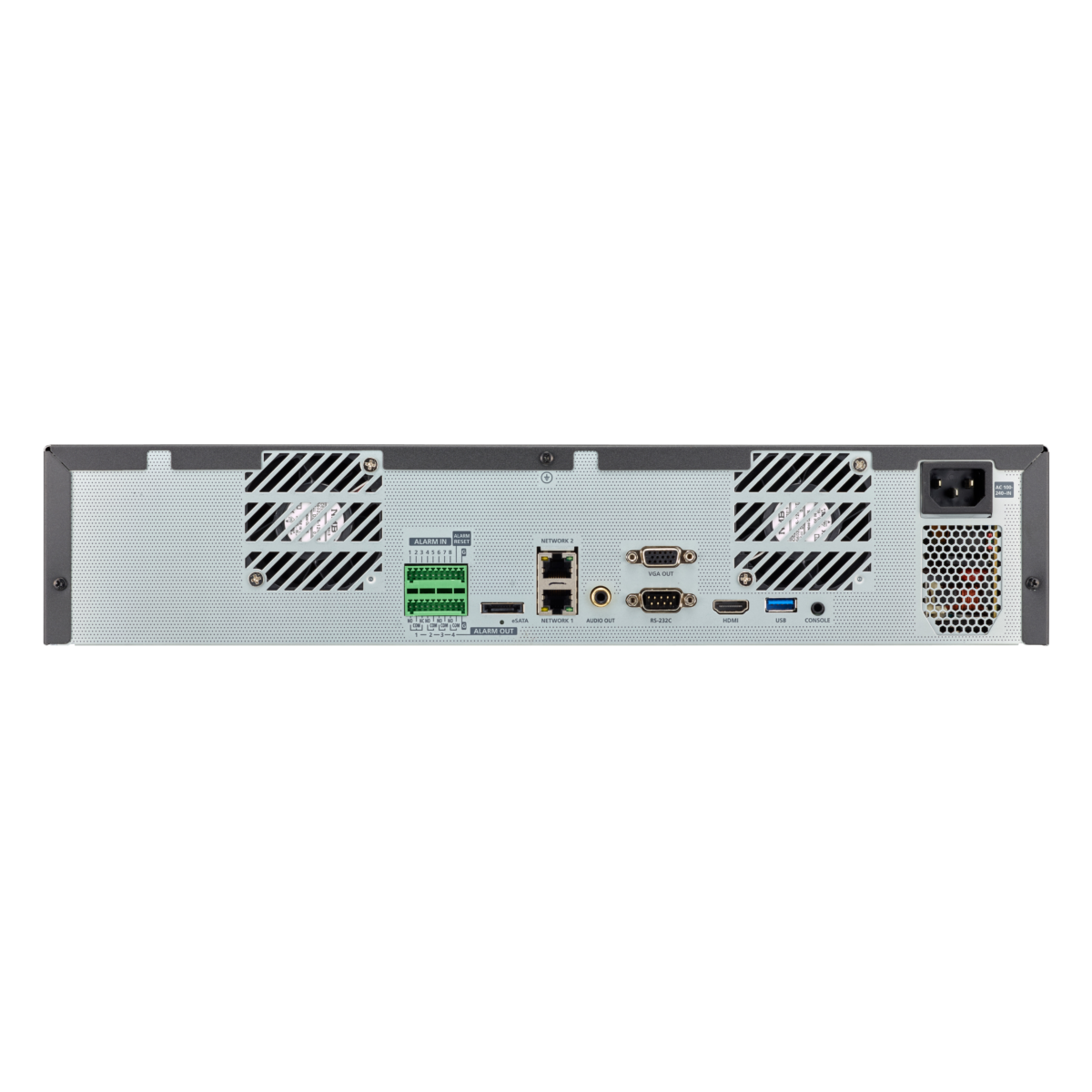

| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| e-SATA | 1EA | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) x 2 | |
| Alarm | In 8EA, Out 4EA | |
| USB | 2EA(Front 1, Rear 1) | |
| Serial(Protocols) | RS-232C | |
| Power inlet | AC 1EA | |
| System | ||
| System Control | Mouse, IR remocon, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100~240VAC±10% | |
| Power Consumption | Max. 99W(6 HDD) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U) | |
| Weight | 4.86Kg(10.71 lb) | |
