ネットワークカメラ

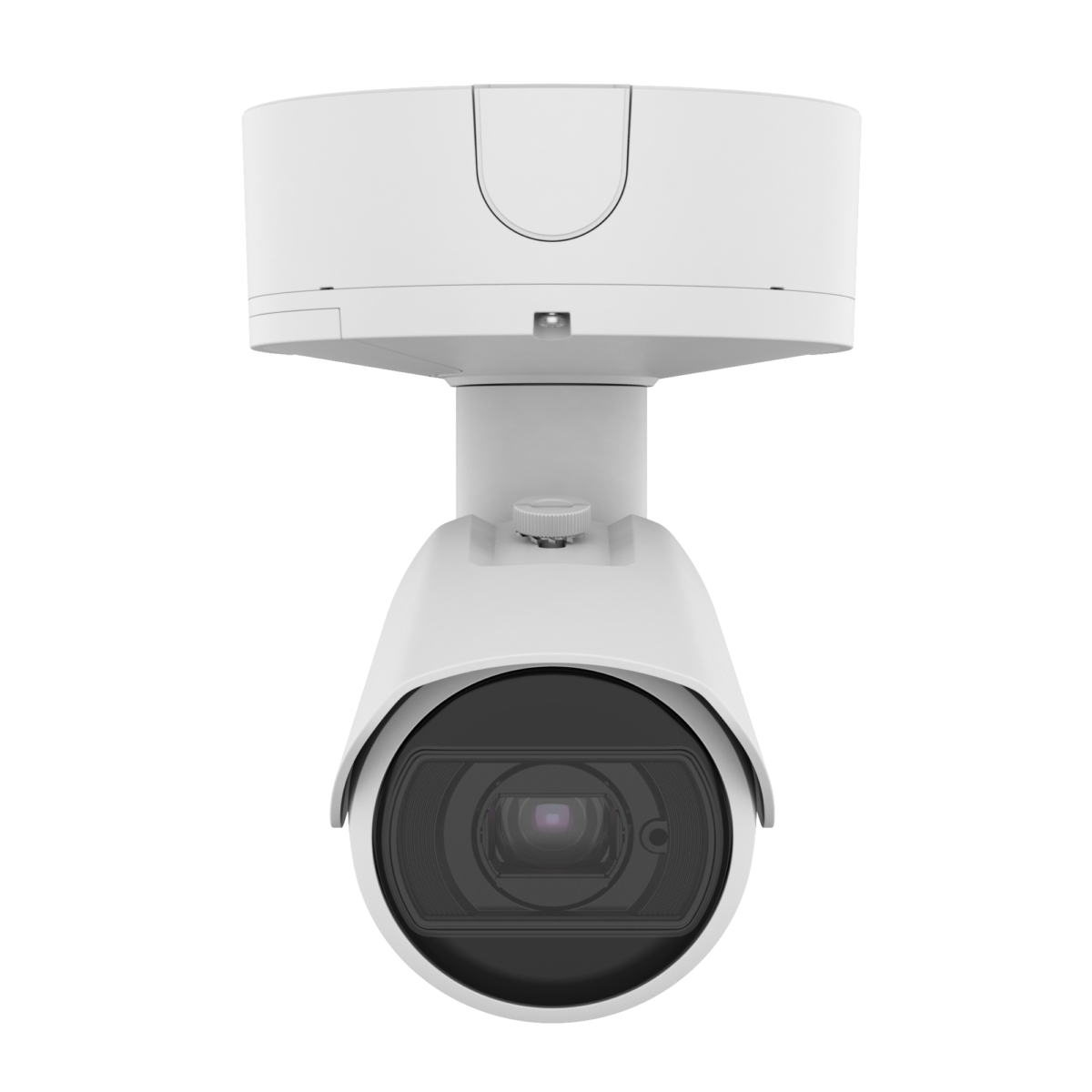

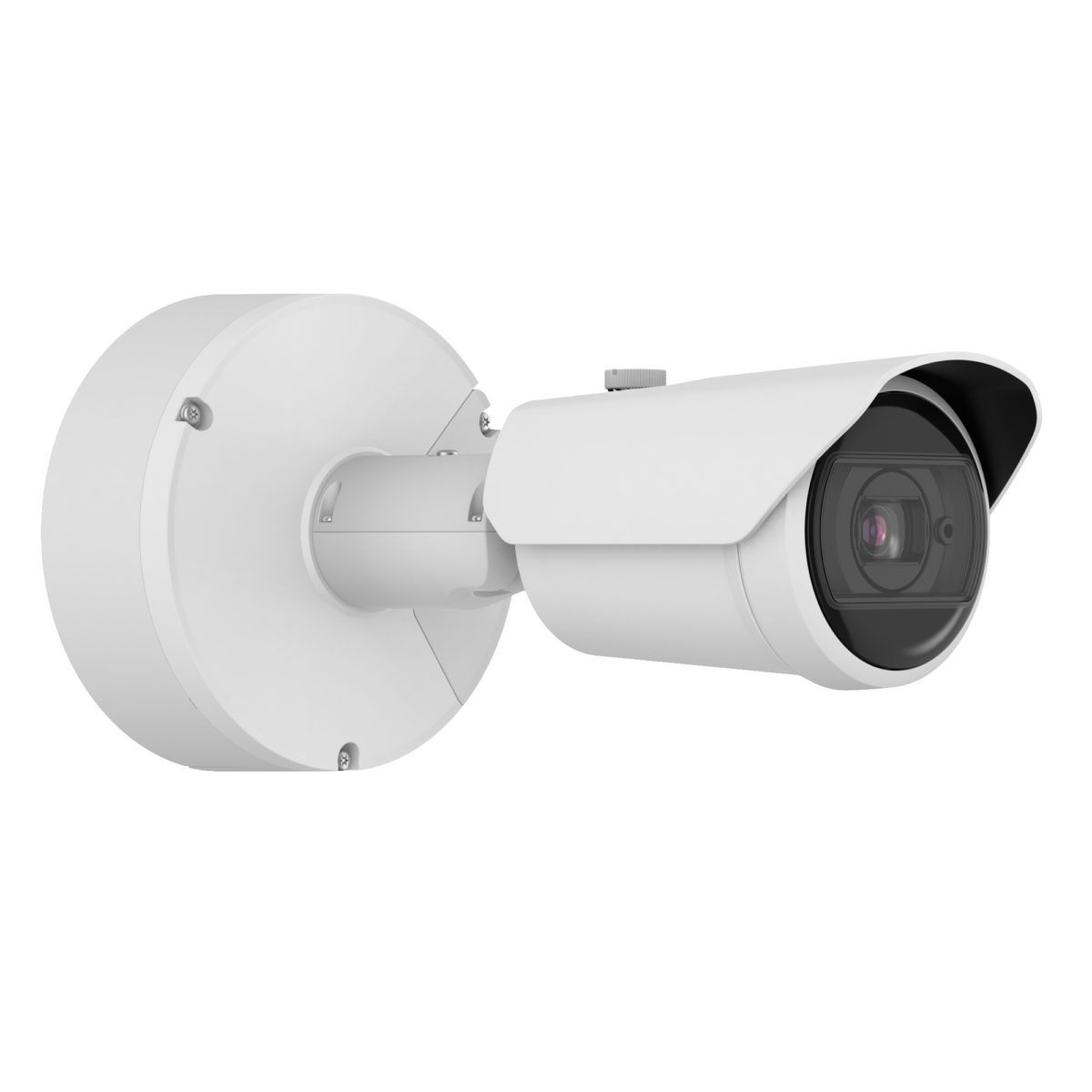

XNO-6123R

2MP AI IR Bullet Camera

Key Features
• Maximum 2MP resolution
• Color: 0.03 Lux (F1.6, 1/30 sec, 30IRE), 0 Lux (IR LED on)
• Maximum 120 fps (H.265/H.264)
• Maximum IR viewable length : WiseIR 90m(295.28ft)
• Day & Night (ICR), extremeWDR (150 dB)
• WiseNRⅡ(Based on AI engine), WiseStreamⅢ (Based on AI engine)
• DIS with built-in Gyro sensor
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• Certification : IP66/IP67, NEMA4X, IK10
お問い合わせ データシート

["camera","network"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Reducing False alarm based on AI
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. The cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
AI-based object detection for operational efficiency
Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene.

Powerful 12x optical zoom
Equipped with powerful 12x optical zoom capabilities in real-time using AI-based object detection, it can help to provide further enhanced security. In certain preset areas, XNO-6123R and XNV-6123R can detect and capture clear images of person, face, vehicle, and license plate by zooming in up to 12x (5.2~62.4mm). With the collaboration of 12x optical zoom and AI, it can offer improved security for entering/exit door areas, chemical factories, or corrections facilities.





製品の仕様

映像
映像素子 1/2.8" CMOS
解像度 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
最大フレームレート H.265/H.264: Max. 120fps/100fps(60Hz/50Hz)(WDR off)
Max. 60fps/50fps(60Hz/50Hz)(WDR on)
MJPEG: Max. 30fps
最低照度 Color: 0.03Lux(F1.6, 1/30sec, 30IRE)
BW: 0.003Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps

Color: 0.06Lux(F1.6, 1/60sec, 30IRE)
BW: 0.006Lux(F1.6, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps

Color: 0.12Lux(F1.6, 1/120sec, 30IRE)
BW: 0.012Lux(F1.6, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps
映像出力 CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
レンズ
焦点距離 5.2~62.4mm(12x) zoom(digital 32x, total 384x zoom)
最大口径比 F1.6(Wide)~F3.0(Tele)
画角 H: 55˚(Wide)~5˚(Tele)
V: 33˚(Wide)~3˚(Tele)
D: 62˚(Wide)~6˚(Tele)
最低被写体距離 1.5m(4.92ft)
フォーカス制御 Oneshot AF, Focus save
レンズタイプ DC auto iris
パンニング/チルト/回転
パンニング/チルト/回転範囲 0°~360° / 0°~90° / 0°~360°
シーケンス Preset(300ea)
カメラ機能
カメラタイトル Displayed up to 85 characters
デイナイト Auto(ICR)
逆光補正 BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR(150dB)
ノイズ軽減 WiseNRⅡ(Based on AI engine), SSNRⅤ
手振れ補正 Support(built-in gyro sensor)
デフォッグ Support
モーション検知 8ea, 8point Polygonal zones
プライバシーマスク 32ea, 4point Quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
- Mosaic
ゲイン制御 Off / Max Gain / Manual
ホワイトバランス ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
LDC(レンズ歪曲補正) Support(Fill/stretch mode)
電子シャッター Minimum / Maximum / Anti flicker(2~1/12,000sec)
prefer shutter control(Based on AI engine)
映像回転 Flip, Mirror, Hallway view(90°/270°)
インテリジェントビデオ Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate
Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
Analytics events
- Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
アラーム入出力 2 configurable I/O ports, DC 12V output(Max. 50mA)
アラームトリガー Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
アラームイベント When alarm trigger occurred
- File upload(image): e-mail/FTP/SFTP
- File upload(video clip): FTP/SFTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
音声入力 Selectable(mic in/line in)
音声出力 Line out
IR 照射距離 WiseIR 90m(295.28ft)
ネットワーク
イーサネット Metal shielded RJ-45(10/100/1000BASE-T)
映像圧縮 H.265/H.264: Main/Baseline/High, MJPEG
音声圧縮 G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
スマートコーデック Manual(5ea area), WiseStreamⅢ(Based on AI engine)
ビットレート制御 H.264/H.265: CBR or VBR
MJPEG: VBR
ストリーミング性能 Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
プロトコル IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
応用インターフェイス ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attacks
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage TPM, HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate TPM with FIPS 140-2 level 2
一般
ウェブビューワー言語 English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
SDカード Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
メモリー 2GB RAM, 512MB Flash
動作環境/電源
動作温度/湿度 -40°C~+60°C(-40°F~+140°F)
* Start up should be done at above -30°C
0~100% RH(condensing)
Humidity control /w AIR vent
保管温度/湿度 -50°C~+60°C(-58°F~+140°F) / 0~90% RH
規格認証 IP66/67, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
電源 PoE+(IEEE802.3at type2, Class4), 12VDC
消費電力 PoE+: Max 19.5W, typical 15.5W
12VDC: Max 16.5W, typical 13.1W
Power redundancy failover
物理的仕様
カラー/材質 White / Aluminum
Window: Hard-coated window
RAL コード RAL9003
寸法/重量 ø93.4x298.4mm(ø3.68x11.75"), 2300g(5.07 lb)
互換 Conduit hole / Gangbox 19.1mm(3/4")(M25)
single, double, 4" octagon, 4" square
耐衝撃ドーム SBP-160HMW1
バックボックス Included
Ceiling Mount (Assy) SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
Wall Mount SBP-300WMW/WMW1, SBP-390WMW2, SBP-160WMW1
Pole Mount SBD-180PMW, SBP-300PMW2
Parapet Mount SBP-300LMW, SBP-156LMW1
Corner Mount SBP-300KMW1
Cabinet SBP-300NBW
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10
NEMA TS 2-2013(2.2.8, 2.2.9)
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 73.8m(242.01ft) / Tele: 879.5m(2885.51ft)
Observe (63PPM/ 19PPF) Wide: 29.5m(96.81ft) / Tele: 351.8m(1154.21ft)
Recognize (125PPM/ 38PPF) Wide: 14.8m(48.40ft) / Tele: 175.9m(577.10ft)
Identify (250PPM/ 76PPF) Wide: 7.4m(24.20ft) / Tele: 88.0m(288.55ft)
