ネットワークカメラ

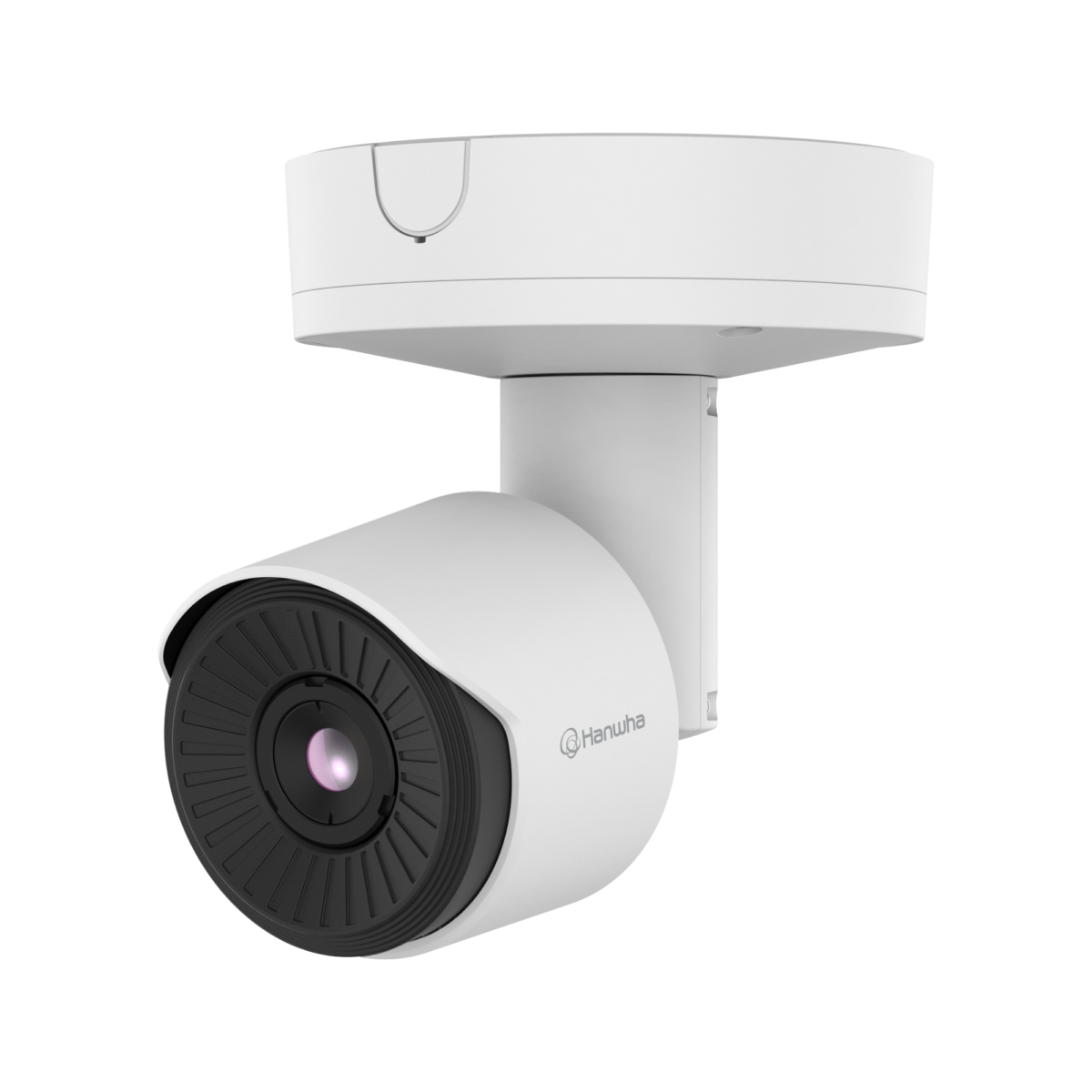

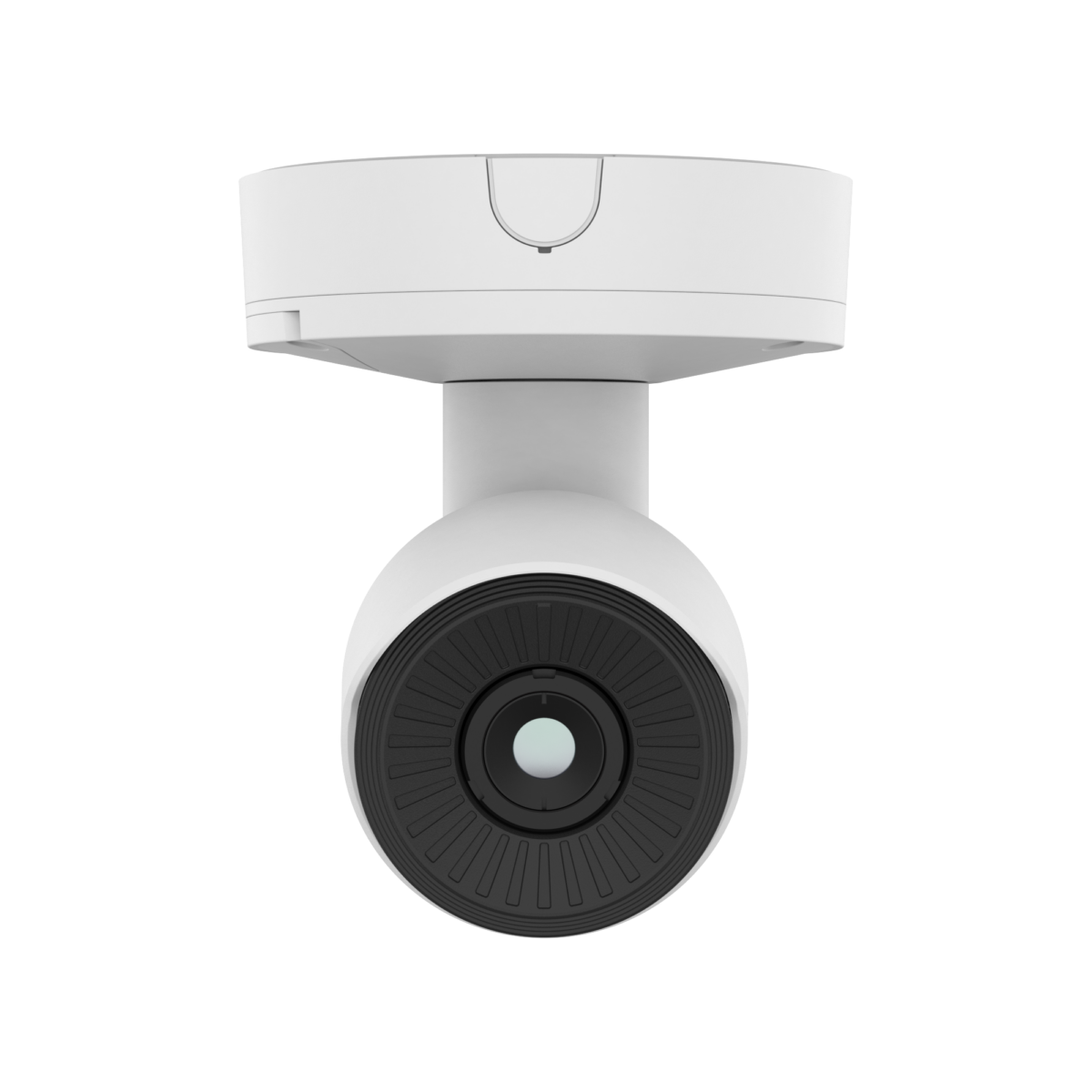

TNO-C3010TRA
QVGA Radiometric AI Thermal Camera
Key Features
• AI based object classification (person, vehicle)
• High performance detector applied (17μm, NETD 30mK)
• QVGA resolution (384x288) with wide angle (FoV 90°)
• Wide temperature monitoring range -40°~ 550°C (-40°F ~ 1,022°F)
• Smaller and light camera (Φ147 * 233.5mm, 1.7KG) for easy and simple installation
• Maximum 30fps @ all resolutions (H.265/H.264/MJPEG)
• High performance detector applied (17μm, NETD 30mK)
• QVGA resolution (384x288) with wide angle (FoV 90°)
• Wide temperature monitoring range -40°~ 550°C (-40°F ~ 1,022°F)
• Smaller and light camera (Φ147 * 233.5mm, 1.7KG) for easy and simple installation
• Maximum 30fps @ all resolutions (H.265/H.264/MJPEG)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
AI-enabled thermal cameras improve accuracy and efficiency
T series AI based radiometric thermal camera boasts AI-powered object detection that can accurately classify people and vehicles even under challenging conditions. This capability enables the camera to detect and classify people in extreme situations, such as fog or smoke, effectively preventing accidents.
Wide Temperature Detection Range
Hanwha Vision’s radiometric thermal cameras, with a temperature detection range of -40°C to 550°C, are ideal for diverse industrial applications. Effectively monitoring industrial equipment and materials, they ensure safe operation. By detecting temperature changes due to aging or connection failure, the cameras empower operators to promptly address potential problems, enhancing maintenance efficiency and reducing downtime.
More flexible option for commercial use
Thermal cameras specifically designed for products with a frame rate of 30fps fall under the Wassenaar Arrangement, necessitating various permits for export/import, even for security purposes. Offering a more flexible option for commercial use, Hanwha Vision’s AI-based radiometric thermal cameras come in two variants: 30fps and 8fps.
製品の仕様
| 映像 | |
|---|---|
| 映像素子 | Uncooled micro bolometer (Spectral range: 8~14㎛) |
| 解像度 | 768x576, 384x288(original) |
| 最大フレームレート | H.265/H.264/MJPEG: Max. 30fps |
| NETD | ＜30mK |
| ピクセルサイズ | 17㎛ |
| 映像出力 | USB: Micro USB Type B, 768x576 for installation |
| レンズ | |
| 焦点距離 | 4.4mm fixed focal |
| 最大口径比 | F1.0 |
| 画角 | H: 90° / V: 65.3° / D: 118.6° (iFoV: 3.9 mRad ) |
| 最低被写体距離 | 0.6m |
| フォーカス制御 | fixed |
| パンニング/チルト/回転 | |
| パンニング/チルト/回転範囲 | 0°~350° / 0°~90° / 0°~350° |
| カメラ機能 | |
| カメラタイトル | Displayed up to 85 characters |
| モーション検知 | 8ea, 8point polygonal zones |
| プライバシーマスク | 6ea, Rectangle zones - color : Grey, Black, White |
| 映像回転 | Flip, Mirror, Hallway view(90˚/270˚) |
| インテリジェントビデオ | Classified object type: Person/Vehicle Support BestShot Analytics events based on AI engine - WiseMD, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events - Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
| ビジネスインテリジェンス | Support (Temperature data) |
| シリアル通信 | RS-485 |
| アラーム入出力 | 2 configurable I/O ports |
| アラームトリガー | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription |
| アラームイベント | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset - MQTT: publication |
| 音声入力 | Selectable(mic in/line in) |
| 音声出力 | Line out |
| カラーパレット | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom, Hybrid palettes |
| 温度検知 | |
| 温度検知範囲 | -40°C~550°C(-40°F~1022°F) |
| 温度検知精度 | below 150°C: up to ±2°C Above 150°C: up to ±15% * based on measurements in a room temperature environment. Auto Temperature mode |
| 温度検知 | 10 Polygonal ROI zones, whole FoV area |
| 追加機能 | Hybrid palettes, Spot temperature reading (ROI condition monitoring: Above/ Below/ Increase/ Decrease) |
| ネットワーク | |
| イーサネット | Metal shielded RJ-45(10/100/1000BASE-T) |
| 映像圧縮 | H.265/H.264: Main/Baseline/High, MJPEG |
| 音声圧縮 | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| スマートコーデック | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| ビットレート制御 | H.264/H.265: CBR or VBR MJPEG: VBR |
| ストリーミング性能 | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| プロトコル | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT |
| 応用インターフェイス | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| 一般 | |
| ウェブビューワー言語 | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| SDカード | Micro SD/SDHC/SDXC 1slot Max. 1TB |
| メモリー | 2GB RAM, 512MB Flash |
| 動作環境/電源 | |
| 動作温度/湿度 | -40°C~+60°C(-40°F~+140°F) / 0~95% RH(non-condensing) |
| 保管温度/湿度 | -50°C~+60°C(-58°F~+140°F) / Less than 95% RH |
| 規格認証 | IP66, IK10, NEMA4X |
| 電源 | PoE(IEEE802.3af, Class3), 12VDC |
| 消費電力 | PoE: Max 10.8W, typical 9W 12VDC: Max 9.4W, typical 7.7W |
| 物理的仕様 | |
| カラー/材質 | White / Aluminum + PC |
| RAL コード | RAL9003 |
| 寸法/重量 | ø93.8x233.5mm(ø3.69x/9.19"), 1700g(3.75 lb) |
| 互換 Conduit hole / Gangbox | Conduit hole : SBP-060BA(Sold seperately) Gangbox : single, double, 4" octagon, 4" square |
| バックボックス | Included |
| Pole Mount | SBD-180PMW, SBP-300PMW2 |
| Corner Mount | SBP-300KMW1 |
| Cabinet | SBP-300NBW |
| Conduit Adaptor | SBP-060BA |
| Certifications & Standards | |
| EMC | EN 55032:2015/A11:2020 EN 50130-4:2011/A1:2014 EN 61000-3-2:2014 EN 61000-3-3:2013 FCC - 47 CFR Part 15, Subpart B Class A FCC - IC Regulation ICES 003 Issue 7 RCM - EN IEC 63000:2018 Class A VCCI - EN IEC 63000:2018 Class A KS - KS C 9832:2023 Class A KS - KS C 9835:2019 Class A |
| Safety | UL/CSA 62368-1 |
| Environment | ROHS - EN IEC 63000:2018 IK10 - KS C IEC 62262: 2005 IP66 - IEC 60529:1989 +A1:1999+A2:2013 NEMA4X - NEMA 250-2014 |
