TNU-6320E
2M H.264 Explosion-proof Camera
• Max. 60fps@2M all resolutions
• 4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom
• 0.15Lux@F1.6(color), 0.015Lux@F1.6(B/W)
• H.264, MJPEG dual codec, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Pan/Tilt : 50°/sec (Preset), Endless rotation, 255 preset
• Face detection, Tampering, Virtual line support
• Explosion-proof certificate : CE2460 EX II 2 GD Ex d IIC T6 Gb IP67 Ex tb IIIC T80°C Db
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
Explosion-proof cameras
for Hazardous area
TNO-6320E / TNU-6320E
- Max. 2MP (1920 x 1080) resolution
- 4.44~142.6mm (32x) optical zoom
- ATEX certification, Built-in wiper
- Max. 60fps@2MP at all resolution
- 0.15 Lux@F1.6 (Color), 0.015 Lux@F1.6@ (B/W)

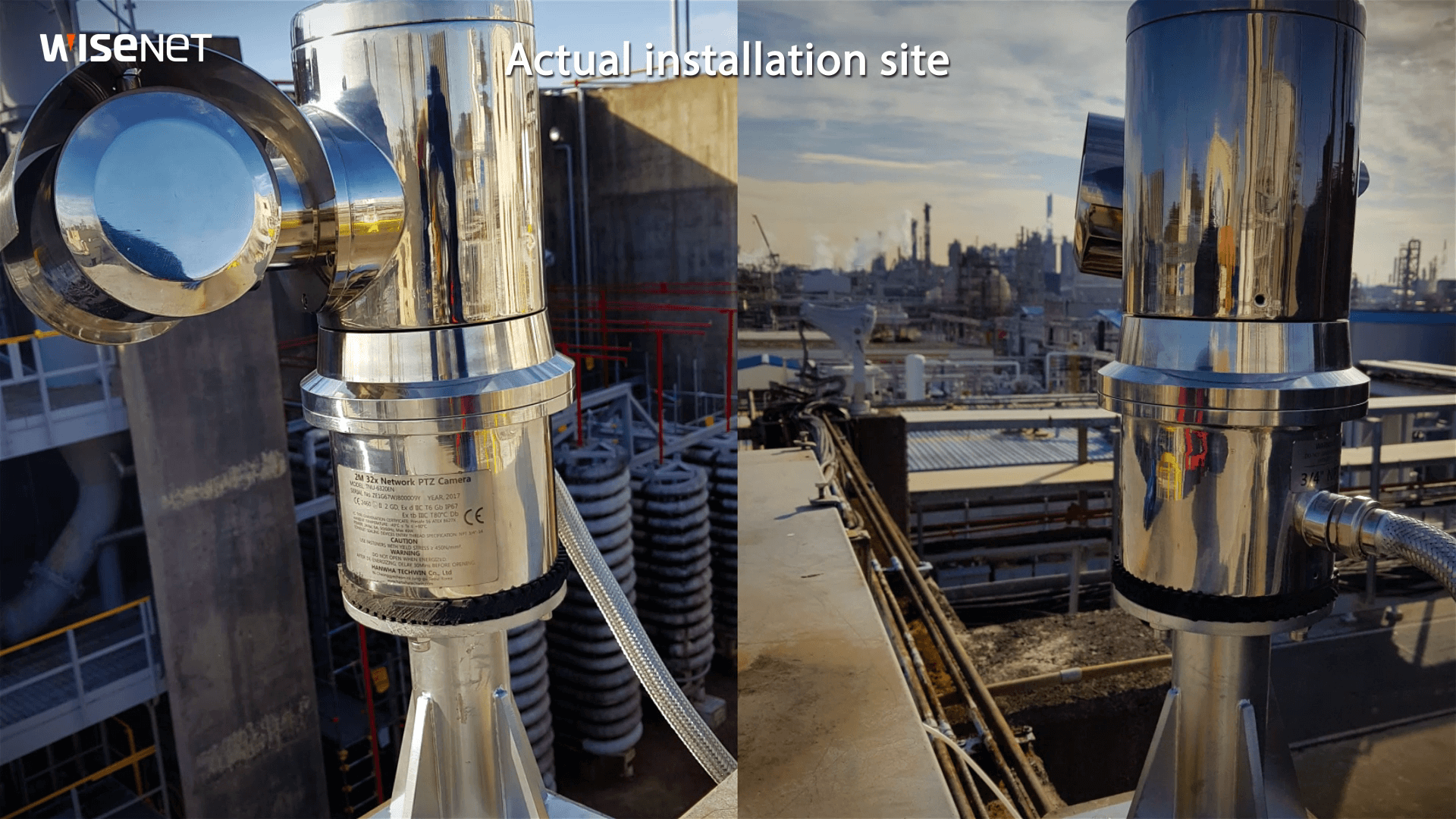

Explosion proof cameras for hazardous environments
Heavy industrial facilities such as gas pipelines, petrochemical plants or oil refineries are potentially explosive because of flammable gases and dusts emitted. Therefore, it is important that a video surveillance system used in heavy industrial facilities is not the cause of explosions whilst still delivering high quality images. Wisenet T series explosion proof camera satisfy both requirements by the powerful network cameras and stainless steel housing enclosure surrounding it.
Stainless steel 316L enclosure to prevent explosions
T series explosion proof cameras are designed to be safely operated in hazardous areas with the special enclosure made of stainless steel 316L housing. The ATEX certified enclosure has the ability to contain any internal explosions or prevent sparks from escaping the device which may lead to a disaster.
Capture details with 2MP 32x optical zoom
The powerful 2MP optical zoom 32x (4.44 ~ 142.6mm) camera SNZ-6320 is built in the explosion proof enclosure. 32x Optical zoom and 16x digital zoom helps users to see more further and clearly, capturing everything with sharpness without losing detail.
Defog technology to improve image clarity
Defog function is an image processing technology which helps increase image clarity in poor weather conditions such as fog or yellow dust. The visibility of the cameras can be enhanced in any weather condition so that users can monitor full-time.
360˚ endless pan rotation and 255 preset mode
TNU-6320E is capable of monitoring a broad range, with its 360˚ endless pan and 180˚ tilt feature moving at 1 ~ 50˚ /sec preset speed. In addition, the camera’s flexibility is increased by 255 preset positions, allowing users to save settings for pan/tilt functions and automatically view the location desired.
True WDR(120dB)
The true WDR function built into the explosion-proof camera provides enhanced picture quality, by resolving different brightness in a scene.
製品の仕様
| 映像 | |
|---|---|
| 映像素子 | 1/2.8" 2MP CMOS |
| 解像度 | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| 最大フレームレート | H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| 最低照度 | Color: 0.15Lux(F1.6, 1/30sec) B/W: 0.015Lux(F1.6, 1/30sec) |
| レンズ | |
| 焦点距離 | 4.44~142.6mm(32x) zoom |
| 最大口径比 | F1.6 (Wide)~F4.4 (Tele) |
| 画角 | H: 62.8°(Wide)~2.23°(Tele) / V: 36.80°(Wide)~1.26°(Tele) |
| 最低被写体距離 | 1.5m(59.06ft) |
| フォーカス制御 | Oneshot AF |
| レンズタイプ | DC auto iris |
| パンニング/チルト/回転 | |
| パンニング範囲 | 360° Endless |
| パンニング速度 | Preset: 50°/sec, Manual: 0.1°/sec ~ 40°/sec |
| チルト範囲 | 180°(-90°~90°) |
| チルト速度 | Preset: 50°/sec, Manual: 0.1°/sec ~ 40°/sec |
| シーケンス | Preset(255ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| プリセット精度 | ±0.2° |
| カメラ機能 | |
| カメラタイトル | Displayed up to 45 characters |
| 方向インジケーター | Support |
| デイナイト | Auto(ICR) |
| 逆光補正 | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| ノイズ軽減 | SSNRⅢ |
| 手振れ補正 | Support |
| デフォッグ | Support |
| モーション検知 | 4ea, rectangular zone |
| ゲイン制御 | Low / Middle / High |
| ホワイトバランス | ATW / AWC / Manual / Indoor / Outdoor |
| 電子シャッター | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| インテリジェントビデオ | Face detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line |
| アラーム入出力 | Input 1ea / Output 1ea |
| アラームトリガー | Analytics, Network disconnect, Alarm input |
| アラームイベント | File upload via FTP and e-mail Notification via e-mail NAS recording at event triggers Alarm output |
| 水切り | Support |
| ネットワーク | |
| イーサネット | RJ-45(10/100BASE-T) |
| 映像圧縮 | H.264: Main/Baseline/High, MJPEG |
| スマートコーデック | Manual(5ea area) |
| ビットレート制御 | H.264: CBR or VBR MJPEG: VBR |
| ストリーミング性能 | Unicast(10 users) / Multicast Multiple streaming(Up to 10 profiles) |
| プロトコル | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| セキュリティ | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| 応用インターフェイス | SUNAPI (HTTP API) SVNP 1.2 Wisenet open platform |
| 一般 | |
| ウェブビューワー言語 | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| メモリー | 512MB RAM, 128MB Flash |
| 動作環境/電源 | |
| 動作温度/湿度 | -40°C~+60°C (-40°F~+140°F) / Less than 90% RH * Start up should be done at above -30°C |
| 保管温度/湿度 | -30°C~+60°C (-22°F~+140°F) / Less than 90% RH |
| 規格認証 | IP67, IK10 CE2460, EX II 2 GD, Ex d IIC T6 Gb IP67 Ex tb IIIC T80°C Db |
| 電源 | 24VAC |
| 消費電力 | 24VAC: Max 49W |
| 物理的仕様 | |
| カラー/材質 | Silver / Stainless(SUS316L) |
| 寸法/重量 | 384(W)x402(H)x250(D)mm(15.12x15.83x9.84"), 35kg(77.16 lb) |
