ネットワークカメラ 生産中止

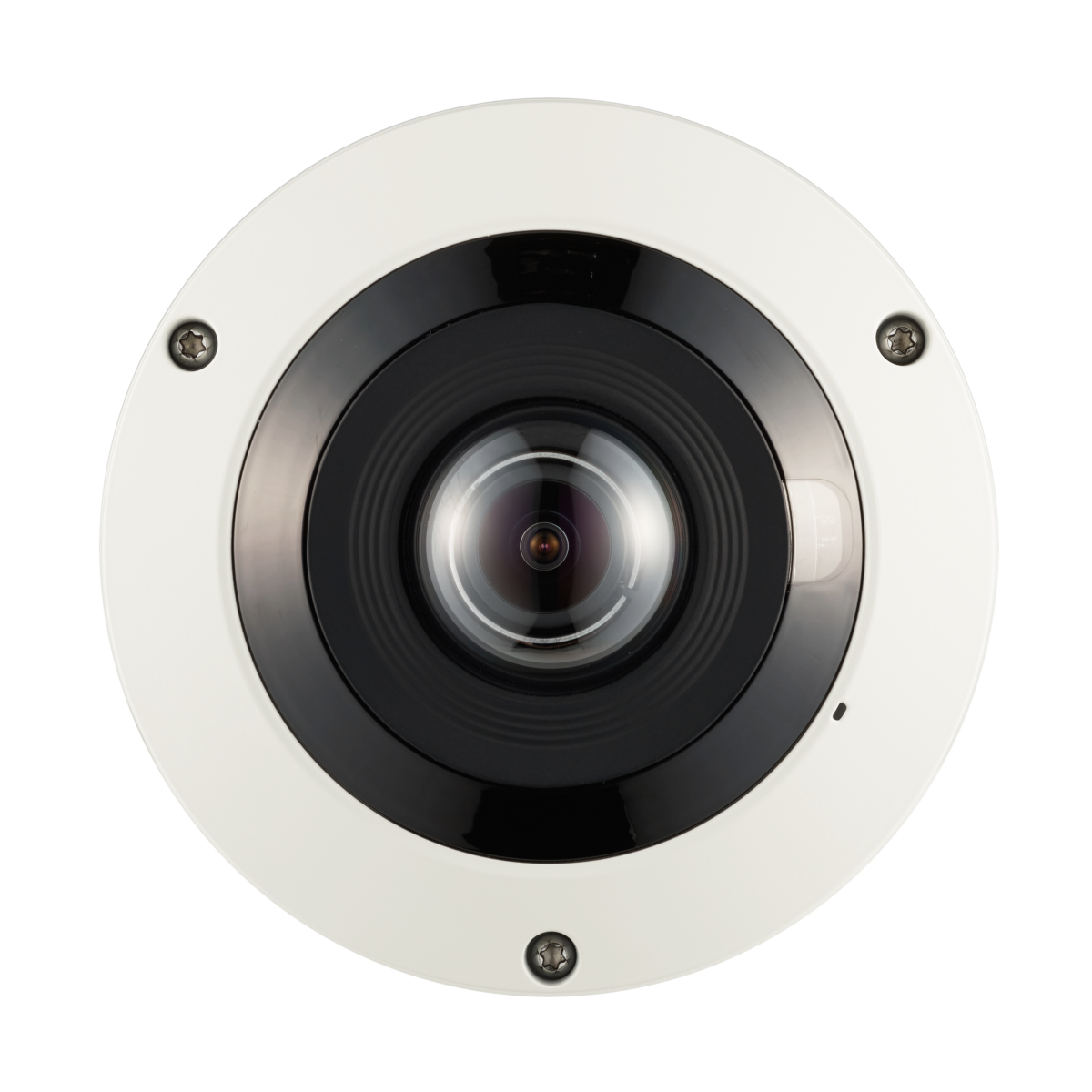

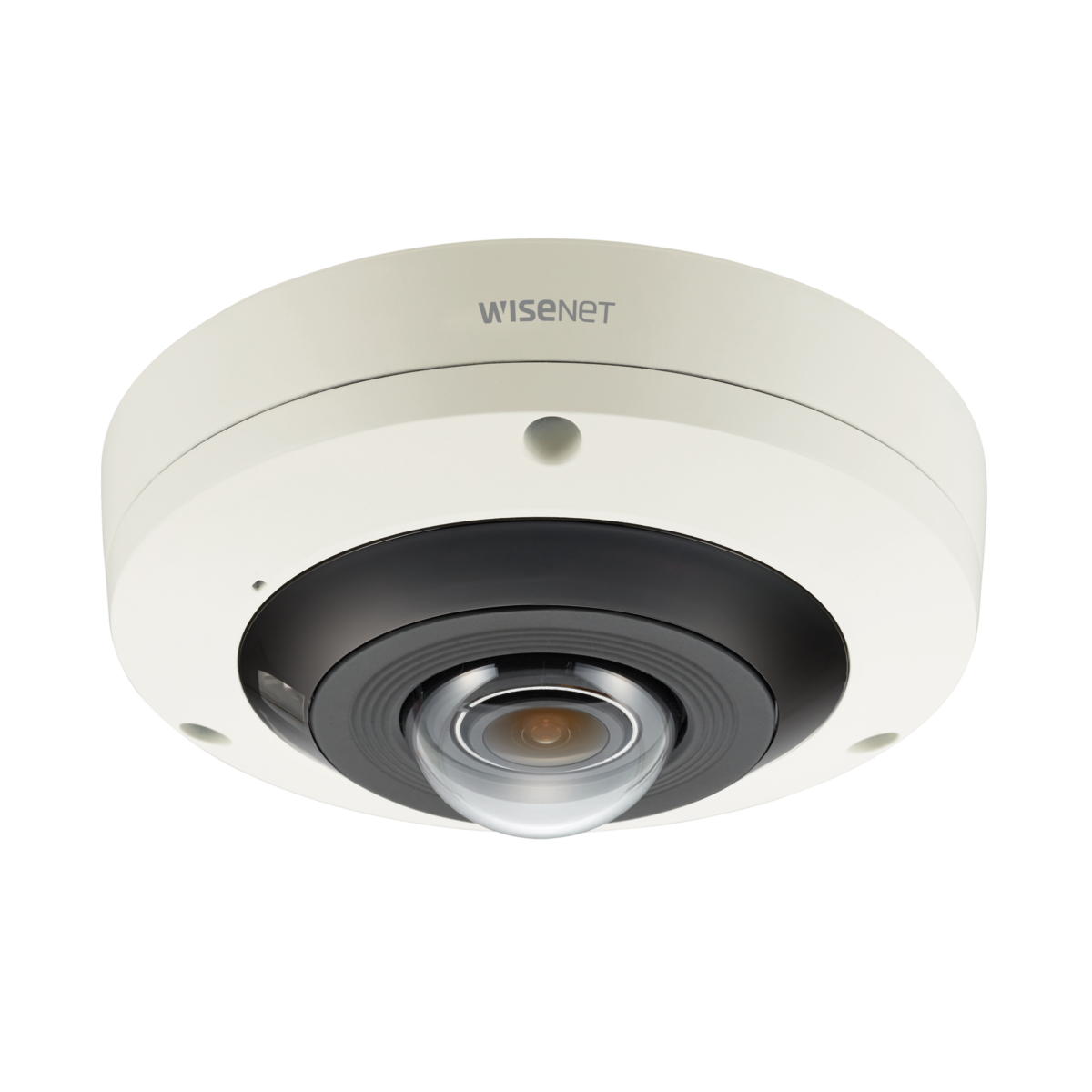

PNF-9010RVM

4K H.265 Fisheye Camera

Key Features
• Max.12megapixel (4000 x 3000) resolution
• H.265, H.264, MJPEG codec
• On board dewarping, Digital PTZ (16x)
• True WDR (120dB), WiseStream
• People counting, Heatmap, Defocus detection
• M12 connector
• IK10, IP66
• Variable view mode (Fishyeye, Single panorama, Double panorama, Quad view etc)

["camera","network","fisheye"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

PNF-9010R / 9010RV / 9010RVM
  • Max. 9Megapixel resolution
  • H.265, H.264, MJPEG codec
  • Max. 25fps@ 9M(H.265, H.264), Max. 20fps@ 12M
  • IR viewable distance 15m
  • WiseStream support
  • Variable view modes, Simple focus support
  • People counting, Heat mapping
  • IK10(Indoor/Outdoor), IP66(Outdoor)

360˚/180˚ panoramic view without blind spots
Equipped with a fisheye lens for 180° panoramic view or 360° surround view without blind spots, the camera is able to provide coverage of wide, open areas, such as retail stores, shopping malls, offices, railways and more.

Variable display modes
The new fisheye cameras in the Wisenet P series offer more than six display modes including single fisheye, single panorama, double panorama, 1 panorama + 2 PTZ, 1 fisheye + 3 PTZ and quad view mode.

* Variable display modes support in SSM

Improved Bandwidth with our new WiseStream technology
Wisenet P series camera’s streaming performance is greatly enhanced by applying an advanced compression technology called WiseStream. WiseStream can reduce bandwidth by 50% by using dynamic technology, and when combined with high efficiency video coding (H.265), the bandwidth efficiency can be improved by up to 75% compared to current H.264 technology.

Easy to install with Simple Focus feature
The Simple Focus feature is able to auto-focus with the touch of a button during the installation process.

People Counting and Heat Mapping
Premium fisheye cameras have a business intelligence function that offers retailers the opportunity to measure store efficiency. People Counting and Heat Mapping Applications display hotspots within a store, which allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and understand buying patterns.

Durable in any extreme environmental conditions with Built-in MIC
PNF-9010RV and PNR-9010RVM are designed to function even in the most extreme environmental condition. With the Built-in MIC, it can fully operate in a temperature range between -40˚ and 55˚, as well as in wet or very humid conditions.

Handover to PTZ
Wisenet PTZ hand-over feature allows a PTZ camera* to receive an alarm(motion detection) from a fisheye camera on the same IP video surveillance system. Once the notification is received, the PTZ camera will zoom into the assigned camera pre-set location. This feature improves the efficiency of the surveillance system by decreasing the reliance on the system operator on tracking events, and by increasing the likelihood that critical events in a surveillance area will be captured and recorded.

* Variable display modes support in SSM

製品の仕様

映像
映像素子 1/1.7" 12M CMOS
解像度 Double panorama: 2560x1280, 1920x960, 1280x640, 704x352, 640x320
Single panorama: 2560x640, 1920x480, 1280x320, 704x176, 640x160
Quad view: 2944x2208, 2560x1920, 2048x1536, 1600x1200, 1280x960,
1024x768, 800x600, 704x576, 640x480
最大フレームレート H.265/H.264: Max. 20fps@4000x3000, 20fps@2992x2992(60Hz/50Hz)
MJPEG: Max. 15fps(60Hz/50Hz)
最低照度 Color: 0.3Lux(F2.2, 1/30sec) BW : 0Lux(IR LED on)
映像出力 CVBS : 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P), for Installation
レンズ
焦点距離 2.1mm fixed focal
最大口径比 F2.2
画角 H: 180° / V: 180° / D: 180°
最低被写体距離 0.5m(1.64ft)
フォーカス制御 Simple focus
カメラ機能
カメラタイトル Displayed up to 60 characters
デイナイト Auto(ICR)
逆光補正 BLC, WDR
Wide Dynamic Range 120dB
ノイズ軽減 SSNR
デフォッグ Support
モーション検知 8ea, 8point polygonal zones
プライバシーマスク 8ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
ゲイン制御 Low / Middle / High
ホワイトバランス ATW / AWC / Manual / Indoor / Outdoor
電子シャッター Minimum / Maximum / Anti flicker
映像回転 Flip, Mirror
インテリジェントビデオ Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
ビジネスインテリジェンス People counting, Heatmap
アラーム入出力 Input 1ea / Output 1ea
アラームトリガー Analytics, Network disconnect, Alarm input
アラームイベント File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
音声入力 Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
音声出力 Line out, Max.output level: 1Vrms
IR 照射距離 15m(49.21ft)
ネットワーク
イーサネット M12
映像圧縮 H.265/H.264: Main/Baseline/High, MJPEG
音声圧縮 G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
スマートコーデック Manual(5ea area), WiseStreamⅠ
ビットレート制御 H.264/H.265: CBR or VBR
MJPEG: VBR
ストリーミング性能 Multiple streaming(Up to 3 profiles)
プロトコル IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
セキュリティ HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
応用インターフェイス ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
一般
ウェブビューワー Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Recommended Browser: Google Chrome
Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
SDカード Micro SD/SDHC/SDXC 1slot 256GB
メモリー 1024MB RAM, 256MB Flash
動作環境/電源
動作温度/湿度 -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
保管温度/湿度 -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
規格認証 IP66, IK10
EN55011:2009+A1:2010, EN50581:2012, EN50121-3-2:2015, EN61000-4-2:2009,
EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014,
EN61000-4-6:2009
電源 PoE(IEEE802.3af, Class3), 12VDC
消費電力 PoE: Max 12.95W
12VDC: Max 12W
物理的仕様
カラー/材質 Ivory / Aluminum
寸法/重量 Ø146x63.4mm(Ø5.75x2.5"), 815g(1.8 lb)
