ネットワークカメラ 生産中止

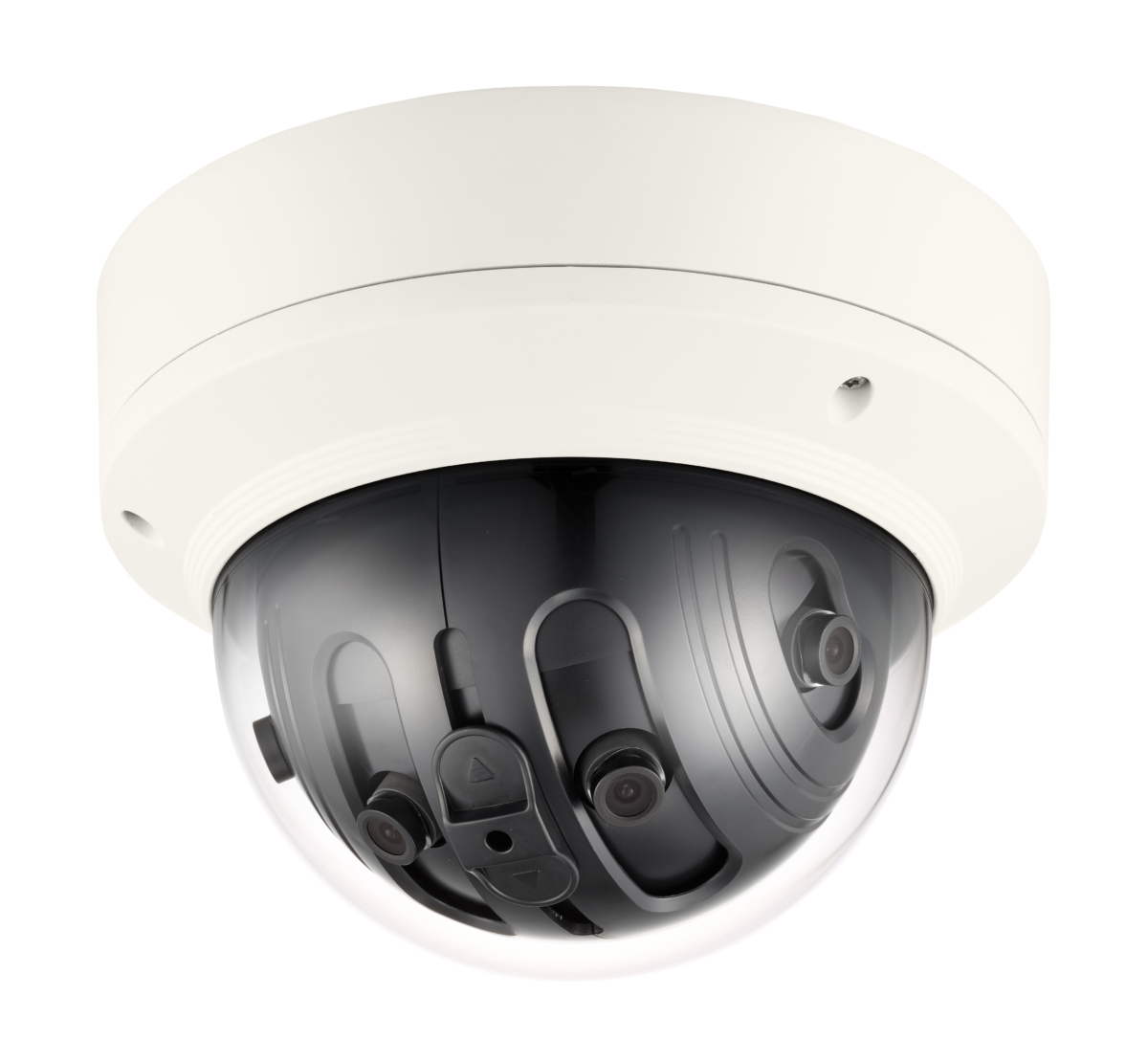

PNM-9020V

7.3M H.265 Panoramic 180˚ Camera

Key Features
• Max. 7.3M (4096 x 1800) resolution
• Built-in 3.6mm fixed lens
• H.265/H.264 : Max. 30fps at all resolutions
• MJPEG : Max. 15fps at all resolutions
• H.265, H.264, MJPEG codec, WiseStream supported
• Hand over to PTZ, Tampering, Digital auto tracking
• Heatmap
• IP66, IK10
お問い合わせ データシート

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Never miss a thing

Wisenet Premium 180˚ Panoramic Camera

Four cameras in one

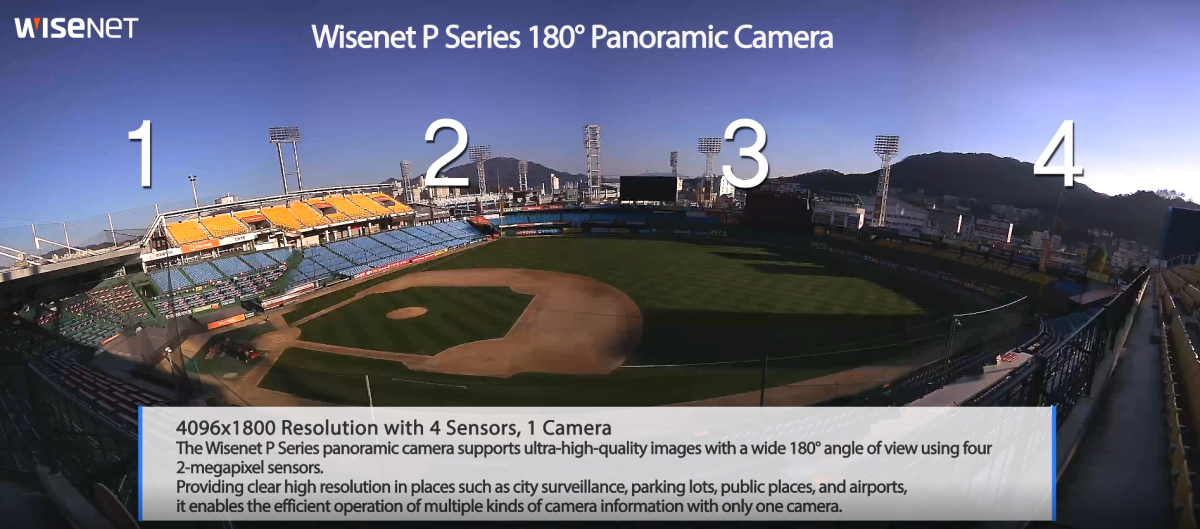

PNM-9020V 180˚ panoramic camera provides wide view with up to 7.3 megapixel high resolution within single camera instead of installing 4 cameras. It offers a seamless single image by merging 4 images from each sensors.

Multiple view modes

The Multi sensor camera offers panoramic(16:9), half panoramic(4:3) and 3PTZ modes with a panoramic view.

Improved bandwidth efficiency with WiseStream, H.265

WiseStream, the advanced compression technology can reduce bandwidth by 50% by using dynamic technologies. And when combined with H.265, the bandwidth efficiency can be improved up to 75% compared to the current H.264 technology.

Optimized for Indoor and Outdoor

Wisenet P series multi-sensor/multi-directional cameras provide a wide area of coverage in extreme detail. They are ideal for applications such as parking lots, shopping mall entrances, lobbies, station concourses and airports.

製品の仕様

映像
映像素子 1/2.8" 2MP CMOSx4
解像度 [Panorama]
4096x1800, 3584x1576, 3072x1352, 2560x1124, 2048x900, 1536x676, 1024x452, 512x224, 720x576
[Halfview]
2048x1536, 1600x1200, 1024x768, 800x600
最大フレームレート H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps(60Hz/50Hz)
最低照度 Color: 0.3Lux(F2.0, 1/30sec)
B/W: 0.03Lux (F2.0, 1/30sec)
レンズ
焦点距離 3.6mm Fixed
最大口径比 F2.0
画角 H: 180°, V: 84°
最低被写体距離 1.5m(4.92ft)
フォーカス制御 Fixed
パンニング/チルト/回転
パンニング/チルト/回転範囲 0°~355° / 0°~60° / -
カメラ機能
カメラタイトル Displayed up to 45 characters
デイナイト Auto(ICR)
逆光補正 BLC
ノイズ軽減 SSNRⅢ
デフォッグ Support
モーション検知 8ea, 8point polygonal zones
プライバシーマスク 16ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
ゲイン制御 Low / Middle / High
ホワイトバランス ATW / AWC / Manual / Indoor / Outdoor
電子シャッター Minimum / Maximum / Anti flicker (2~1/12,000sec)
映像回転 Flip, Mirror
インテリジェントビデオ Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
ビジネスインテリジェンス Heatmap
アラーム入出力 Input 1ea / Output 1ea
アラームトリガー Analytics, Network disconnect, Alarm input
アラームイベント File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC recording at event triggers
Alarm output
ネットワーク
イーサネット RJ-45(10/100/1000BASE-T)
映像圧縮 H.265/H.264: Main/Baseline/High, MJPEG
スマートコーデック Manual(5ea area)
ビットレート制御 H.264/H.265: CBR or VBR
MJPEG: VBR
ストリーミング性能 Unicast(15 users) / Multicast
Multiple streaming(Up to 10 profiles)
プロトコル IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
セキュリティ HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
応用インターフェイス ONVIF Profile S/G
SUNAPI(HTTP API)
一般
ウェブビューワー Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
SDカード Micro SD/SDHC/SDXC 1slot 128GB
メモリー 8GB RAM, 4GB Flash
動作環境/電源
動作温度/湿度 -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -35°C
保管温度/湿度 -40°C ~ +60°C(-40°F ~ +140°F) / Less than 90% RH
規格認証 IP66, IK10
電源 PoE+(IEEE802.3at, Class4), 12VDC
消費電力 PoE+: Max 25.5W
12VDC: Max 21.0W
物理的仕様
カラー/材質 Ivory / Aluminum
寸法/重量 Ø199x143.5mm, 2025g
