ネットワークカメラ

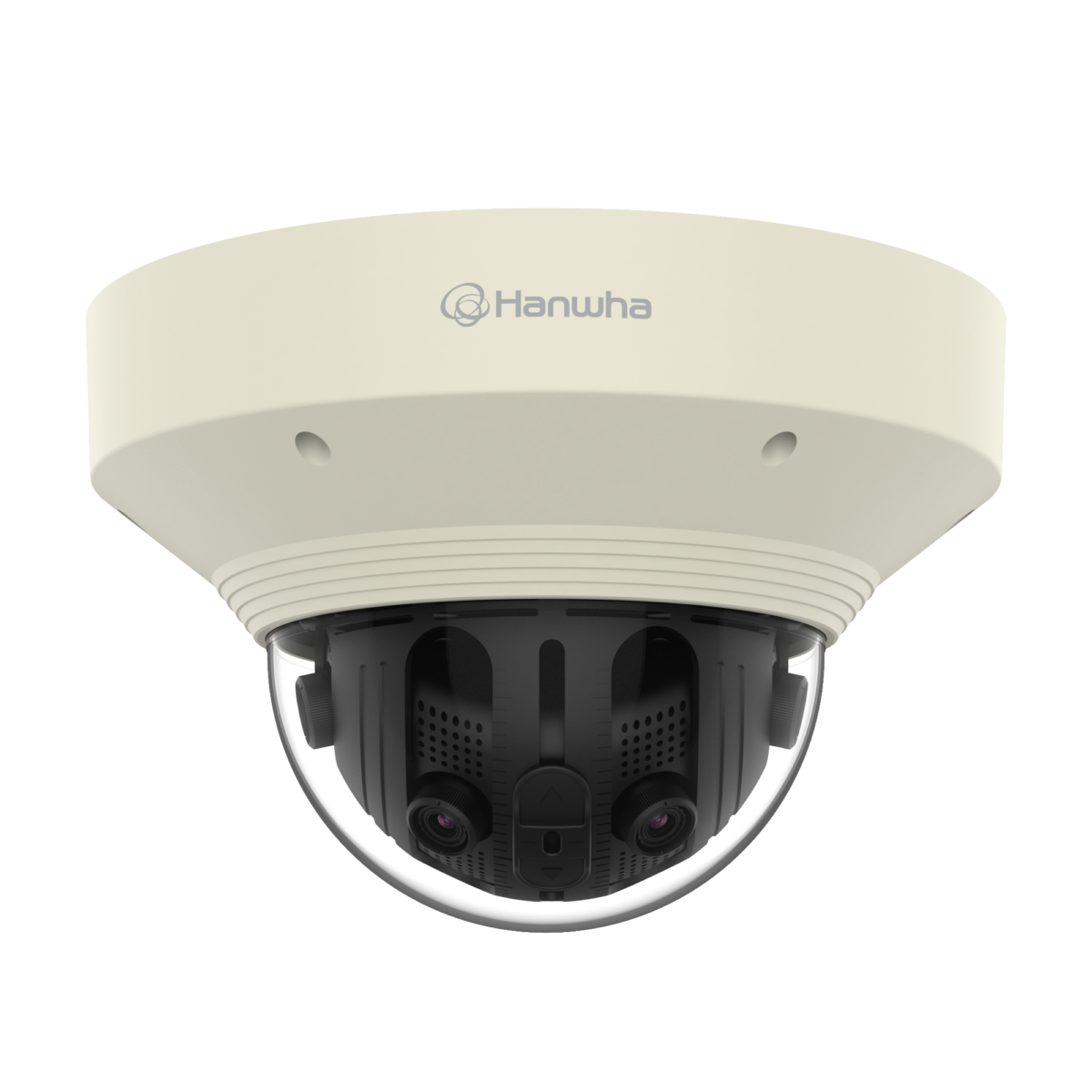

PNM-9030V

15MP Panoramic Camera

Key Features
• Max. 15MP 180°/220° panoramic stitching image
• Panoramic stitching, original, crop view channel
• H.265 / H.264 : Max. 30fps at all resolutions
• MJPEG : Max. 15fps at under 2Megapixel resolutions
• H.265, H.264, MJPEG codec, WiseStream II supported
• Tampering, Loitering, Directional detection, Virtual line, Enter / Exit
• (Dis)Appear, Audio detection,Motion detection, Handover, Sound classification, Heatmap
• microSD/SDHC/SDXC 2 slots, PoE+, IP66, IK10
お問い合わせ データシート

["camera","network","multi-sensor"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Never Miss a thing

Wisenet Premium 180˚
Panoramic Camera
PNM-9030V

Single Panorama + Original + Crop images
PNM-9030V can simultaneously stream a total of 7CH : a single panoramic 20MP image merged from the 4 original images, 4 of the original 5MP images from each sensor, and 2 of the 2MP crop images.

180˚ and 220˚ view mode for Panorama images
The panoramic image of PNM-9030V support both 180˚ and 220˚ view modes.
ㆍThe 180° mode provides 180° horizontal and 70° vertical field of view, which maximizes the effectiveness with its vast vertical viewing angle.
ㆍThe 220° mode provides 220° horizontal and 52° vertical field of view, which can help users to monitor areas that need wider viewing angle such as corners of the building.

Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.

A comprehensive range of intelligent video analytics
Wisenet P series multi-sensor cameras support a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.
* Supported video analytics may vary depending on the camera.

Optimized for Indoor and Outdoor
Wisenet P series multi-sensor cameras are suitable to monitor even the smallest details in a wide area. They are ideal for applications such as warehouse, shopping mall entrances, train stations, parking lots, and more supporting IP66, IK10.

製品の仕様

映像
映像素子 1/2.8" 5MP CMOSx4
解像度 [180° mode]\n6096x2540, 5760x2400, 5472x2280, 5184x2160, 4800x2000, 4560x1900, 4096x1704, 3840x1600, 2688x1120, 2560x1064, 2048x852, 1920x800, 1280x532, 640x264\n[220° mode]\n7744x1936, 6096x1524, 5760x1440, 5472x1368, 5184x1296, 4800x1200, 4560x1140, 4096x1024, 3840x960, 2688x672x 2560x640, 2048x512, 1920x480, 1280x320, 640x160
最大フレームレート H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)\nMJPEG: Max. 15fps(60Hz/50Hz)
最低照度 Color: 0.15Lux(F2.0, 1/30sec)\nB/W: 0.01Lux (F2.0, 1/30sec)
映像出力 USB : Micro USB Type B, 1280x720 for installation
レンズ
焦点距離 4mm Fixed
最大口径比 F2.0
画角 [180° mode] H: 180°, V: 70°\n[220° mode] H: 220°, V: 52°
最低被写体距離 3m(9.84ft)
フォーカス制御 Fixed
パンニング/チルト/回転
パンニング/チルト/回転範囲 0°~355° / 0°~60° / -
カメラ機能
カメラタイトル Displayed up to 75 characters
デイナイト Auto(ICR)
逆光補正 BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
ノイズ軽減 SSNRⅤ
デフォッグ Support
モーション検知 8ea, 8point polygonal zones
プライバシーマスク 16ea, rectangle zones\n - Color: Grey/Green/Red/Blue/Black/White\n - Mosaic
ゲイン制御 Low / Middle / High
ホワイトバランス ATW / AWC / Manual / Indoor / Outdoor
LDC(レンズ歪曲補正) Support
電子シャッター Minimum / Maximum / Anti flicker (2~1/12,000sec)
映像回転 Flip, Mirror, Hallway view(90°/270°)
インテリジェントビデオ Directional detection, Motion detection,, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
ビジネスインテリジェンス Heatmap
アラーム入出力 Input 1ea / Output 1ea
アラームトリガー Analytics, Network disconnect, Alarm input
アラームイベント File upload via FTP and e-mail \nNotification via e-mail \nSD/SDHC/SDXC recording at event triggers\nAlarm output
ネットワーク
イーサネット RJ-45(10/100/1000BASE-T)
映像圧縮 H.265/H.264: Main/Baseline/High, MJPEG
スマートコーデック Manual(5ea area), WiseStreamⅡ
ビットレート制御 H.264/H.265: CBR or VBR\nMJPEG: VBR
ストリーミング性能 Unicast(15 users) / Multicast\nMultiple streaming(Up to 5 or 3 profiles)
プロトコル IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
セキュリティ HTTPS(SSL) Login Authentication\nDigest Login Authentication\nIP Address Filtering\nUser access log\n802.1X Authentication(EAP-TLS, EAP-LEAP)
応用インターフェイス ONVIF Profile S/G\nSUNAPI(HTTP API)
一般
ウェブビューワー Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12\nRecommended Browser: Google Chrome\nSupported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
SDカード Micro SD/SDHC/SDXC 1slot 256GB
メモリー 8GB RAM, 4GB Flash
動作環境/電源
動作温度/湿度 -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
保管温度/湿度 -40°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
規格認証 IP66, IK10
電源 PoE+(IEEE802.3at, Class4), 12VDC
消費電力 PoE+: Max 25.5W\n12VDC: Max 21.0W
物理的仕様
カラー/材質 Ivory / Aluminum
寸法/重量 Ø253x165mm(9.96"x6.5"), 3200g
データシート

製品デモ映像

20Megapixel 180˚ Panoramic Camera Demo_PNM-9030V
