SMT-2710

27" FHD monitor

Key Features
• 27 inch FHD Monitor, support up to 1920×1080 @60Hz
• Brightness 250 cd/m² (Typical), Contrast 3000:1 (Minimum) 4000:1 (Typical)
• Viewing Angle (H/V) : 178°/178°, Response Time : 6.5ms (Typical)
• Video Input : HDMI, DP, VGA
• Panel Life : 30,000 hours
• Designed and tested on 24/7 operation

["peripherals","monitor","led"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

製品の仕様

Display
Type LED Monitor
Screen Size 27"
Max. Resolution 1920*1080 60Hz (FHD)
Brightness 250 cd/m²(Typ)
Contrast Ratio 3000:1(Min), 4000:1(Typ)
Aspect Ratio 16:9
Viewing Angle (H/V) 178°/178°
Display Color 16.7M Colors(Typ)
Response Time 6.5ms(Typical)
Panel Life 30,000 hours
Interface
Video

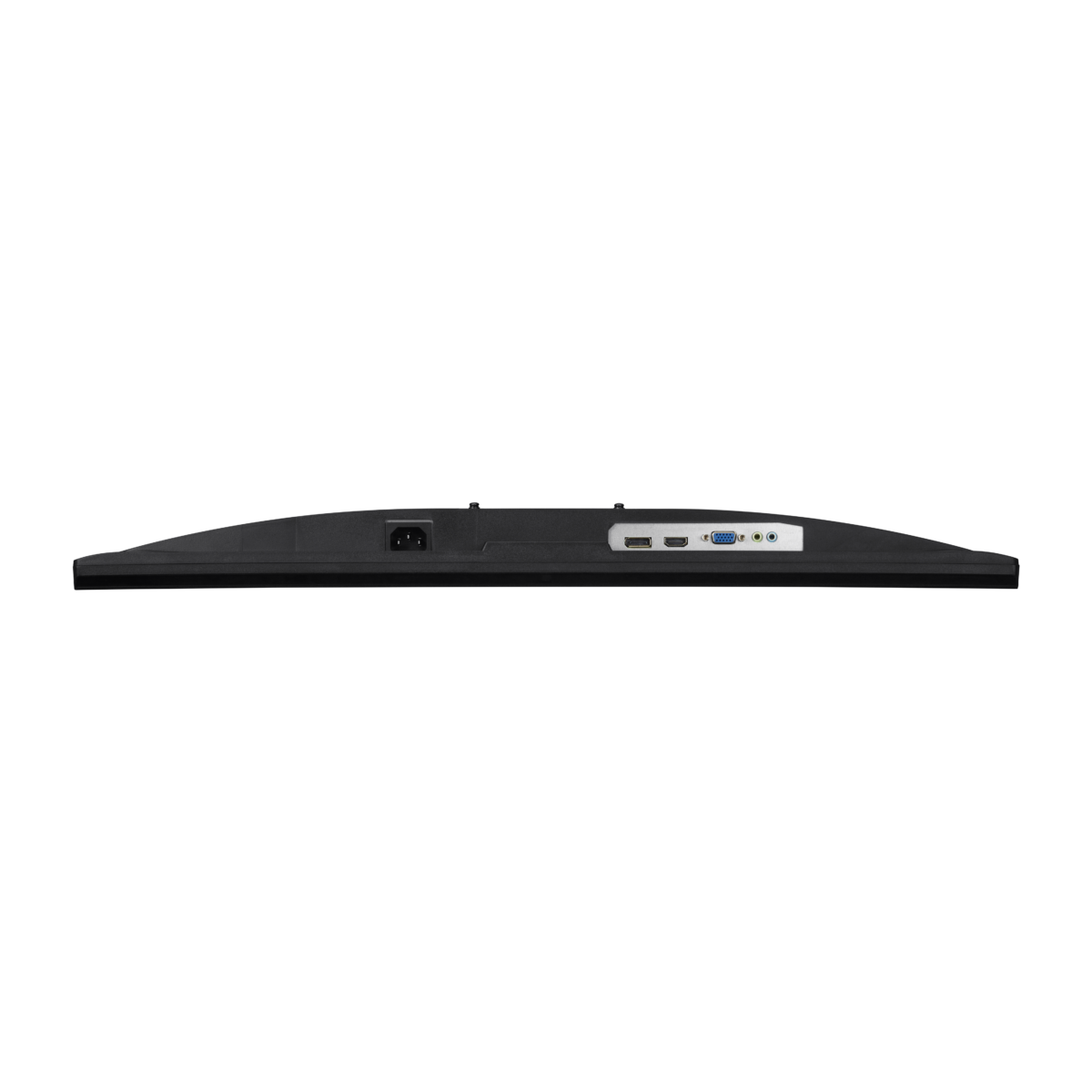

Connectors VGA(1), HDMI 1.4(1), DP 1.2(1)
VGA
Connector VGA
Available Format 640 x 480@60Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz, 1024 x 768@60Hz/70Hz/75Hz,
1280 x 1024@60Hz/75Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 1080@50Hz/60Hz,
1280 x 800@60Hz, 1280 x 960@60Hz, 1280 x 720@60Hz
HDMI
Connector HDMI
Available Format 640 x 480@60Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz, 1024 x 768@60Hz/70Hz/75Hz,
1280 x 1024@60Hz/75Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 1080@50Hz/60Hz,
720 x 480P60Hz, 1280 x 720P@50Hz,
720 x 576P@50Hz, 1920x1080P@50/60Hz
1280 x 800@60Hz, 1280 x 960@60Hz, 1280 x 720@60Hz
DP
Connector DP
Available Format 640 x 480@60Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz, 1024 x 768@60Hz/70Hz/75Hz,
1280 x 1024@60Hz/75Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 1080@50Hz/60Hz,
720 x 480P60Hz, 1280 x 720P@50Hz,
720 x 576P@50Hz, 1920x1080P@50/60Hz,
1280 x 800@60Hz, 1280 x 960@60Hz, 1280 x 720@60Hz
Audio
Connector Audio-in(1) Audio-out(1)
Output Signal Loop-through line level(PC only), Speakers : 4Ω 2.5Wx 2
On Screen Display
Functions VESA™ DPM Compatible
Language Korean, English, Pусский, Deutsch, Français, Españo, Italiano, Português, Chinese (Simplified), Chinese (Traditional), Japanese, Arabic
General
Electrical
Input Voltage AC 100 ~ 240V(50/60Hz)
Power Consumption <45W
Environmental
Operating Temperature 0 ~ +40°C (+32°F ~ +104°F)
Operating Humidity 10% ~ 80% (non-condensing)
Mechanical
Dimensions with Stand (WxHxD) 614.7*452.5*224.1mm
Dimensions without Stand (WxHxD) 614.7*336.4*50.8mm
Weight 4.54Kg(with stand), 4.13Kg(without stand)
Cabinet Color Black
VESA Mounts Interface 100*100mm
