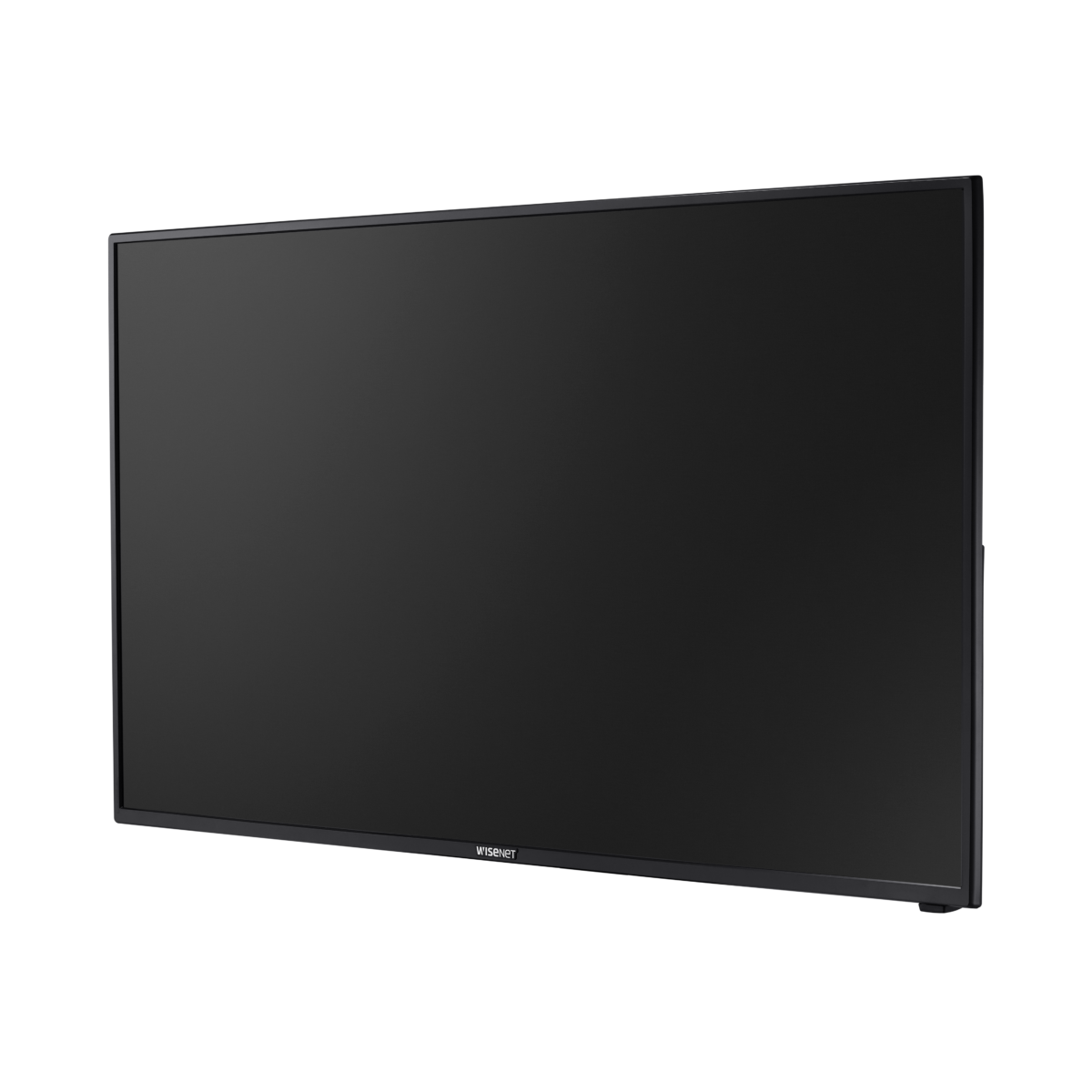

SMT-4343
43” LED Monitor
Key Features
• Support up to 3840 x 2160 resolution
• Contrast ratio 800:1 (Min.), 1000:1 (Typ.)
• Fast response time 8ms (G to G)
• HDMI, DP, Audio connector
• Panel life 30,000 hours
• Designed and tested on 24/7 operation
• Contrast ratio 800:1 (Min.), 1000:1 (Typ.)
• Fast response time 8ms (G to G)
• HDMI, DP, Audio connector
• Panel life 30,000 hours
• Designed and tested on 24/7 operation
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
製品の仕様
| Display | ||
|---|---|---|
| Type | LED Monitor | |
| Screen Size | 42.5” | |
| Max. Resolution | 3840*2160 | |
| Brightness | 300 cd/m² | |
| Contrast Ratio | 800:1（Min）1000:1（Typ） | |
| Aspect Ratio | 0.67291666666667 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 1.07G (8bits + FRC ) | |
| Response Time | 8ms(G to G) | |
| Panel Life | 30,000 hours | |
| Interface | ||
| Video | ||
| Connectors | HDMI 2.0(1) DP 1.2(1) | |
| HDMI | ||
| Connector | HDMI | |
| Available Format | 640 x 480@60Hz/70Hz/72Hz/75Hz (VGA), 720 x 400@50Hz/60Hz/70Hz, 720×576@50Hz，800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA), 832 x 624@75Hz, 1,024 x 768@60Hz/70Hz/75Hz (XGA), 1,152 x 864@60Hz/75Hz, 1,280 x 720@60Hz, 1,280 x 800@60Hz, 1,280 x 1,024@60Hz/75Hz (SXGA), 1,360 x 768@60Hz, 1,440 x 900@60Hz/75Hz, 1,600 x 900@60Hz, 1,680 x 1,050@60Hz, 1,920 x 1,080i@60Hz, 1,920 x 1,080p@60Hz,1920×1440@60Hz，2560×1440@60Hz,3840×2160p@30Hz/60Hz |
|
| DP | ||
| Connector | DP | |
| Available Format | 640 x 480@60Hz/70Hz/72Hz/75Hz (VGA), 720 x 400@50Hz/60Hz/70Hz, 720×576@50Hz，800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA), 832 x 624@75Hz, 1,024 x 768@60Hz/70Hz/75Hz (XGA), 1,152 x 864@60Hz/75Hz, 1,280 x 720@60Hz, 1,280 x 800@60Hz, 1,280 x 1,024@60Hz/75Hz (SXGA), 1,360 x 768@60Hz, 1,440 x 900@60Hz/75Hz, 1,600 x 900@60Hz, 1,680 x 1,050@60Hz, 1,920 x 1,080i@60Hz, 1,920 x 1,080p@60Hz,1920×1440@60Hz，2560×1440@60Hz,3840×2160p@30Hz/60Hz |
|
| Audio | ||
| Connector | Audio Out | |
| Output Signal | Loop-through line level(PC only), Speakers : 2x10W | |
| Application Support | Remote Controller | |
| On Screen Display | ||
| Functions | VESA™ DPM Compatible | |
| Language | Korean, English, Pусский, Deutsch, Français, Españo, Italiano, Português, Chinese (Simplified), Chinese (Traditional), Japanese, Arabic | |
| General | ||
| Electrical | ||
| Input Voltage | AC 100 ~ 240V(50/60Hz) | |
| Power Consumption | <80W | |
| Environmental | ||
| Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) | |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | ||
| Dimensions with Stand (WxHxD) | 967*637*236.7mm | |
| Dimensions without Stand (WxHxD) | 967*560*73.5mm | |
| Weight | 7.6Kg | |
| Cabinet Color | Black | |
| VESA Mounts Interface | 100*100mm /400*200mm | |
