NVR

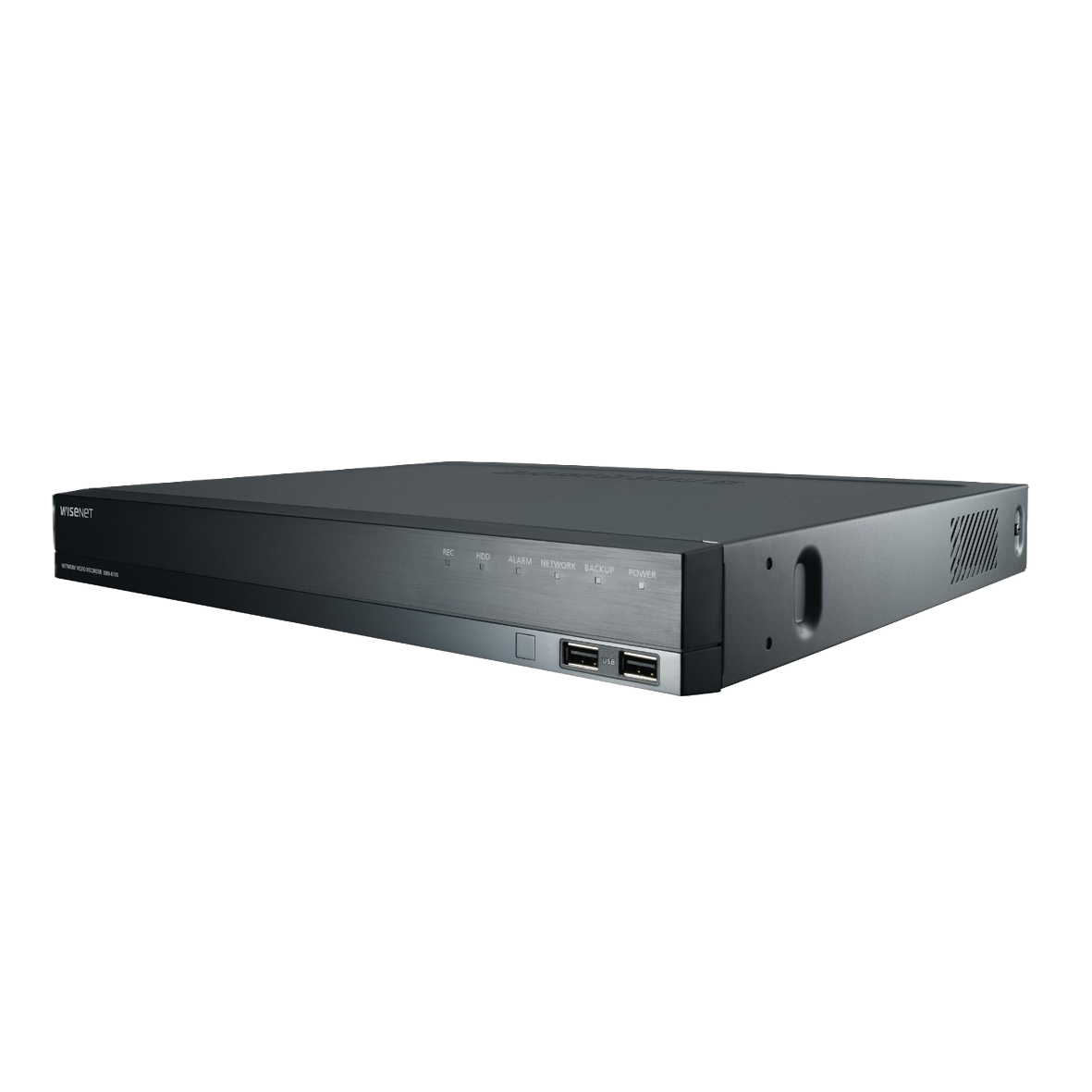

XRN-820S
8CH NVR
Key Features
• Up to 8CH 32MP supported
• Max. 120Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• H.265, H.264, MJPEG codec supported
• Plug & play by 8 PoE ports
• Bookmark management (Up to 100 set)
• SATA 2ea (Up to 12TB)
• Max. 120Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• H.265, H.264, MJPEG codec supported
• Plug & play by 8 PoE ports
• Bookmark management (Up to 100 set)
• SATA 2ea (Up to 12TB)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LISTOverview
Timeline preview and easy channel, event, alarm configuration
When managing multi channels, XRN-1620SB1/1620B2/820S greatly improves search efficiency by allowing users to preview images and videos by simply hovering mouse cursor on the timeline. Moreover, users can configure event and alarm for all channels within a single page.
Supports live monitoring and bookmarks
With the live monitoring feature, XRN-1620SB1/1620B2/820S allow users to view information by channel including real-time videos, system status, recording status and etc. and also offer easy and detailed monitoring with the digital PTZ control.
Moreover, bookmarks feature makes it possible to save up to 100 major events for the easy and quick event search.
Moreover, bookmarks feature makes it possible to save up to 100 major events for the easy and quick event search.
Save cost and install easy NVR with integral PoE
XRN-1620SB1/820S with built-in PoE switches further reduce cost and save installation time by supplying ample power to cameras directly and detecting products automatically upon integration.
製品の仕様
| ディスプレイ | ||
|---|---|---|
| ネットワークカメラ | ||
| 入力 | Max. 8CH | |
| 解像度 | 32MP ~ CIF | |
| プロトコル | SUNAPI, ONVIF | |
| デコーディング | ||
| モニター出力 | FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor |
|
| 画面分割 | [Local Monitor] - Dynamic layout, Virtual channel view - Clone mode : Up to 16 Division - Expand mode : Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| 解像度 | [Local Monitior] FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps) FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps) |
|
| パフォーマンス | ||
| オペレーティングシステム | ||
| Embedded | Linux | |
| 録画 | ||
| 圧縮方式 | H.265, H.264, MJPEG | |
| 帯域幅 | Max. 120Mbps | |
| 解像度 | 32MP ~ CIF | |
| 録画モード | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| イベントトリガー | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| イベントアクション | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
|
| 検索/再生 | ||
| 再生帯域幅 | Max. 32Mbps | |
| ユーザーアクセス数 | Max. 4 Users (Local 1, Remote 3) | |
| 同時再生 | Max. 32CH(Local 8CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| モード | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| 解像度 | CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP) | |
| 再生制御 | Fast/Slow Forward / Backward, Move one step Up / Down | |
| ストレージ | ||
| 対応HDD容量 | Up to 6TB | |
| HDDスロット | SATA 2ea(Max. 12TB) | |
| RAID | RAID-1 | |
| バックアップ | ||
| ファイルフォーマット | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| 機能 | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| プロトコル | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| 伝送帯域幅 | Max. 120Mbps | |
| 音声 | ||
| GUI | 8 CH(network) | |
| Web | G.711, G.726, AAC(16/48KHz) | |
| 了解 | 2-Way | |
| 最大接続ユーザー数 | Search(3), Live Unicast(10), Multicast(20) | |
| セキュリティ | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| ウェブビューワー | ||
| 対応OS | Windows 10, macOS 10.13 | |
| 対応ブラウザー | Google Chrome, Microsoft Edge, Mac Safari | |
| ビューワーソフトウェア | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
|
| 機能 | ||
| カメラ設定 | ||
| 登録 | Auto, Manual | |
| 設定項目 | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| 制御 | Via GUI, Webviewer, SPC-2000 | |
| プリセット | 300 Presets | |
| Smart phone | ||
| 対応製品 | iOS, Android | |
| プロトコル | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| 制御 | Live 8CH(Multi-Profile Support), Playback 4CH | |
| 最大接続ユーザー数 | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| インターフェイス | ||
| 前面 | ||
| 表示部 | HDD, Alarm, Power, Record, Backup, Network | |
| ストレージ | OK | |
| HDMI | 1EA 3840x2160 30Hz | |
| VGA | 1EA 1920x1080 60Hz | |
| 音声 | Out 1EA (3.5mm Audio Jack) | |
| イーサネット | PoE+ RJ-45 8EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps) | |
| アラーム | In 4EA, Out 2EA | |
| USB | 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) | |
| AC電源入力部 | AC 1EA | |
| システム | ||
| ログ | ||
| システム制御 | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| 言語 | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| 環境 | ||
| 動作温度 | 0°C to +40°C(32℉ to 104℉) | |
| 動作湿度 | 20% ~ 85% RH | |
| 電源管理 | ||
| 入力電源 | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| 消費電力 | Max 160W | |
| PoE 電源容量 | 100W | |
| 物理的仕様 | ||
| カラー/材質 | Black / Metal | |
| 寸法 (WxHxD) | 370 x 50.7 x 324.3 mm (14.57 x 2 x 12.77 inch) | |
| 重量 | 2.7Kg (5.95lb) | |
| インテリジェンス分析 | ||
| AI 検索 | ||
| オブジェクト分析 | Compatible for Hanwha AI Camera | |
