Сетевые камеры

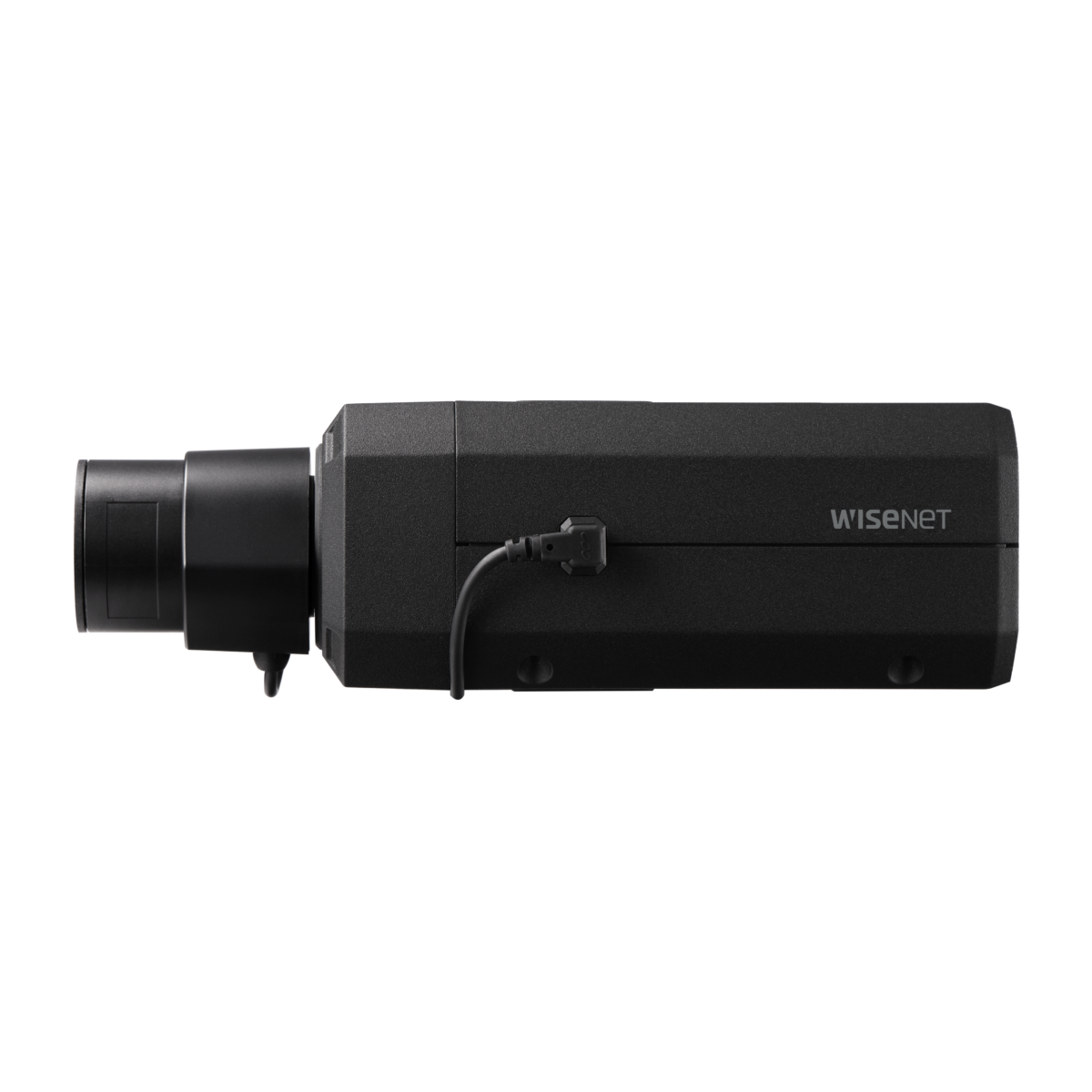

XNB-8002

6МП сетевая корпусная камера

Key Features
• Разрешение 6 Мп
• 0,05 лк при F1.2 (цветн.), 0,005 лк (Ч/Б)
• До 30 кад/с при 6 Мп (H.265 / H.264)
• Дневной и ночной (с выдвижным ИК фильтром) режимы, extreme WDR (120 дБ)
• Цифровая стабилизация изображения со встроенным гироскопическим датчиком
• Видеоаналитика (обнаружение расфокусировки, обнаружение направления, обнаружение аудио, обнаружение удара, определение лица/верхней части тела)
• Цифровое автоматическое слежение, распознавание звуков по типам
• Обнаружение движения, передача данных на PTZ камеру
• Два слота для карты памяти SD (макс. 1TB)
• Поддержка WiseStream II
• Сертифицировано UL CAP

["camera","network","box"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Обзор







Технические характеристики

Video
Imaging Device 1/2.8" CMOS
Resolution 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps(@6MP Max. 5fps)
Min. Illumination Color: 0.05Lux(F1.2, 1/30sec, 30IRE)
BW: 0.005Lux(F1.2, 1/30sec, 30IRE)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focus Control Simple focus
Lens Type DC auto iris, P iris, Manual, I-CS
Mount Type C mount, CS mount
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR(120dB)
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
- Mosaic
Gain Control Off / Max gain / Manual
White Balance ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
LDC Support(Fill/stretch mode)
Electronic Shutter Speed Minimum / Maximum / Anti flicker(2~1/12,000sec)
Prefer shutter control
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Analytics events
- Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Fog detection, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection
Business Intelligence People counting, Queue management, Heatmap
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP/SFTP
- File upload(video clip): FTP/SFTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
Audio In Selectable(mic in/line in/Built-in mic)
Audio Out Line out
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles, 3 virtual channel support)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attacks
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C~+55°C(+14°F~+131°F) / 0~95% RH(non-condensing)
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~90% RH
Input Voltage PoE(IEEE802.3af, class3), 12VDC, 24VAC
Power Consumption PoE: Max 12.95W, typical 8.2W
12VDC: Max 11.5W, typical 7.5W
24VAC: Max 13.5W, typical 8.9W
Power redundancy failover
Mechanical
Color / Material Black / Aluminum
Product Dimensions / Weight 81(W)x67(H)x165(D)mm(3.19x2.64x6.48"), 880g(1.94 lb)
Housing (Box) SHB-4301HP, SHB-4200/4200H
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 60950-1, CAN/CSA C22.2 NO. 60950-1
IEC/EN 62471
