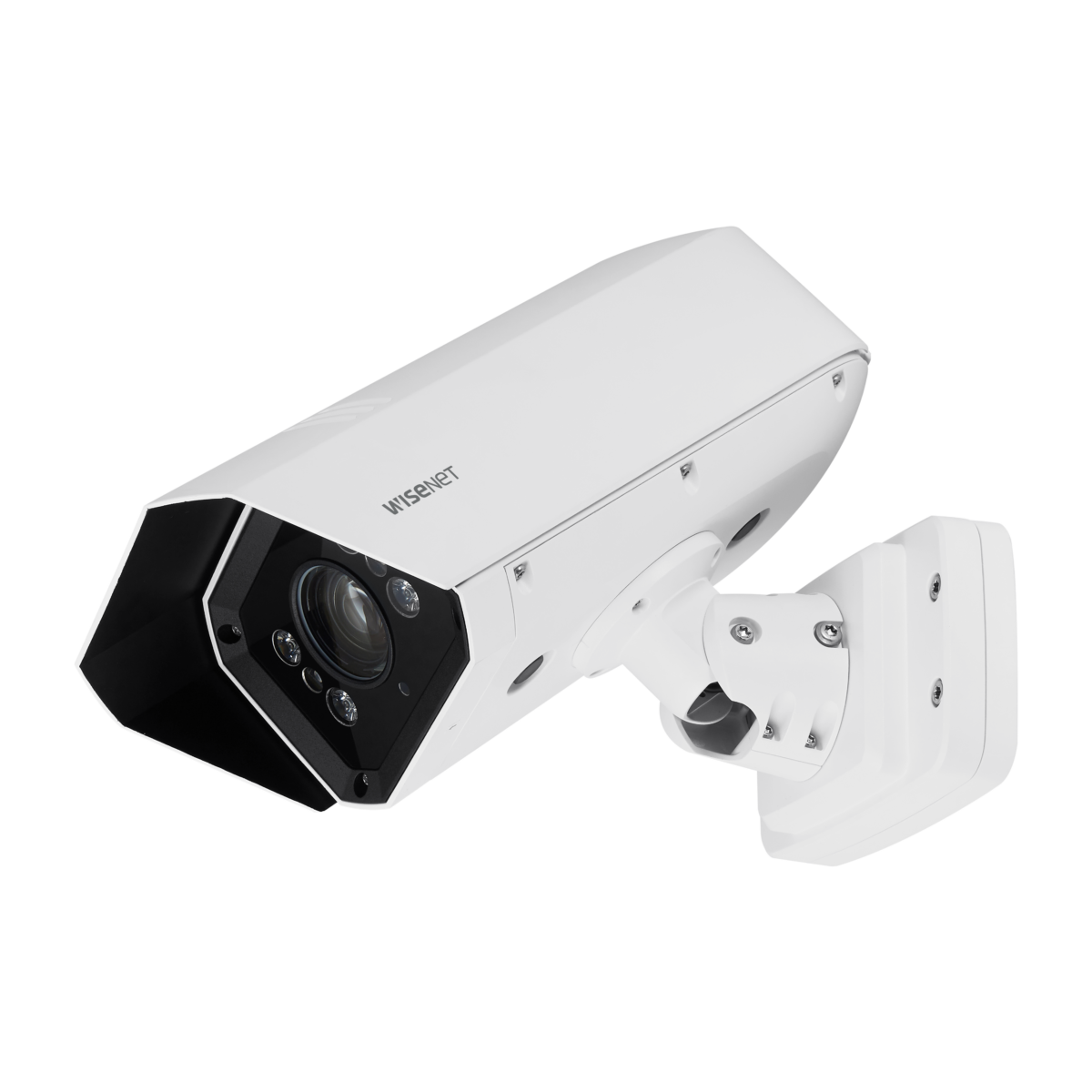

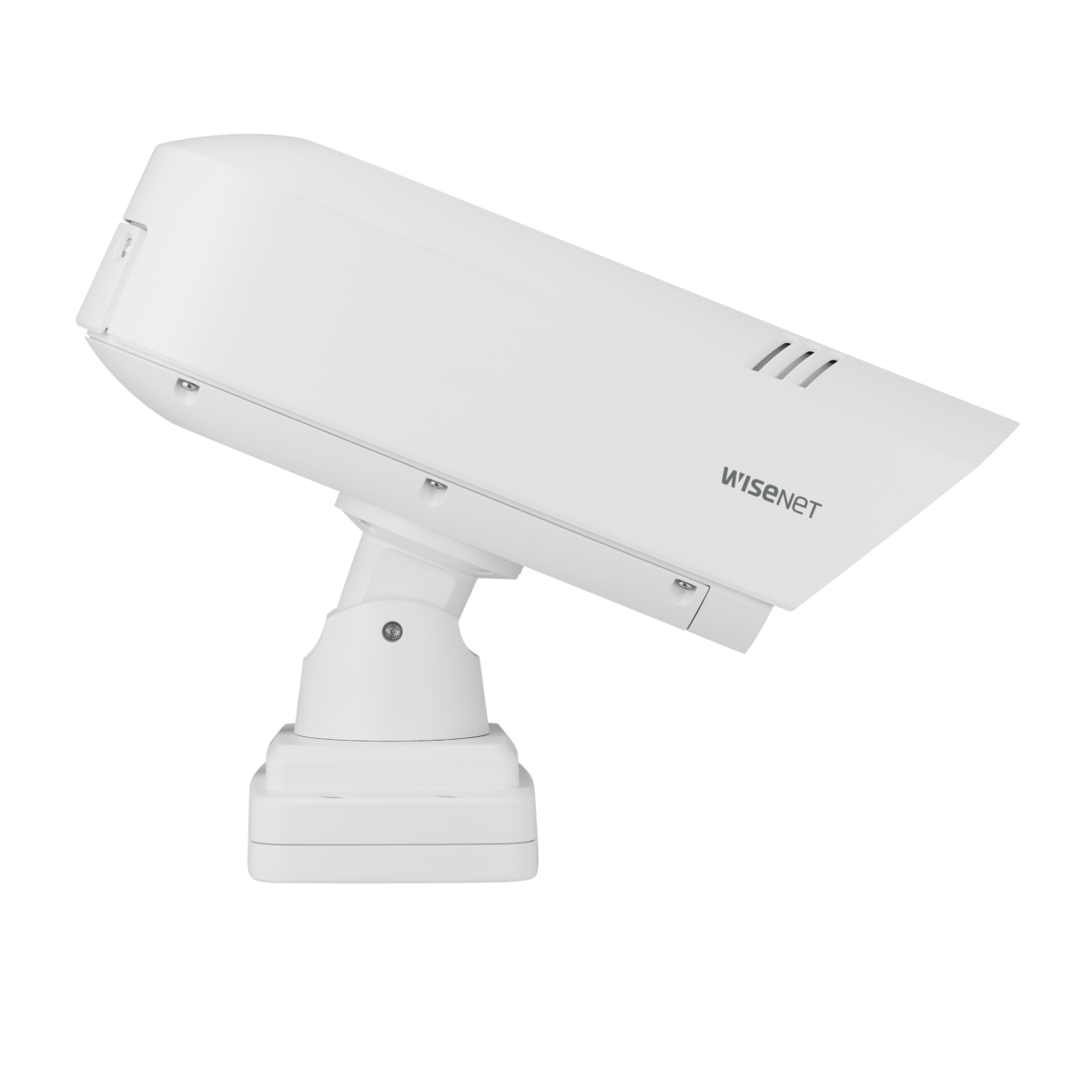

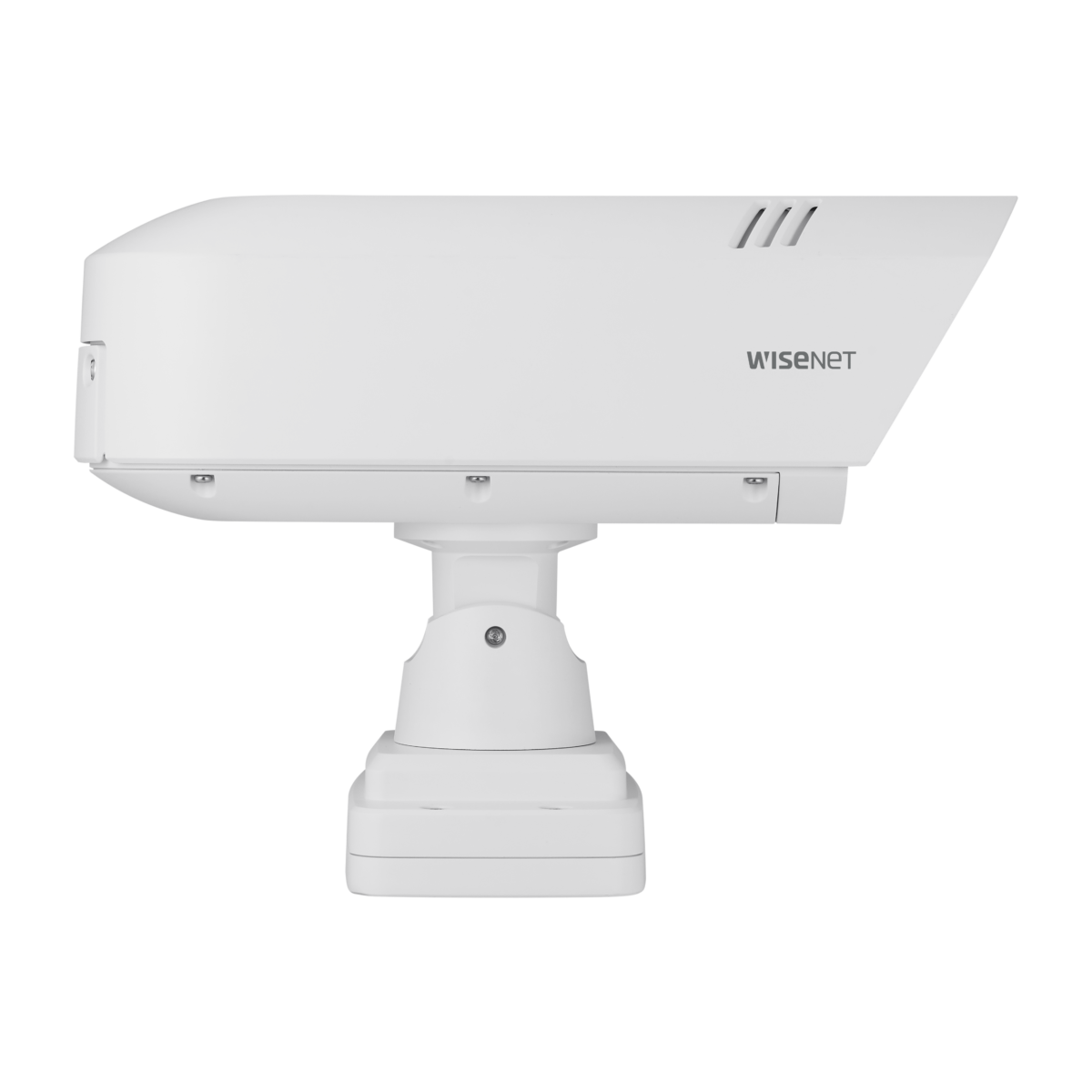

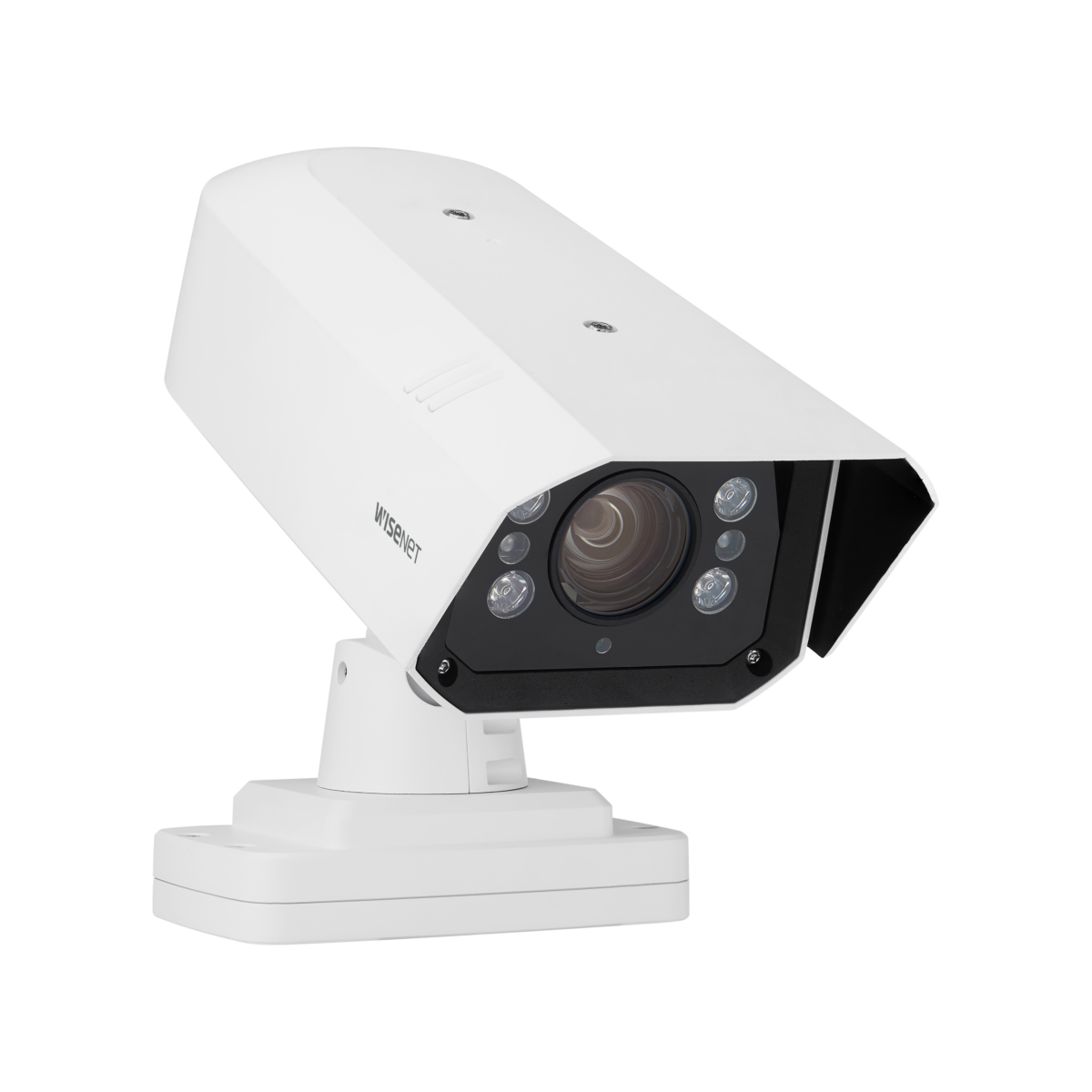

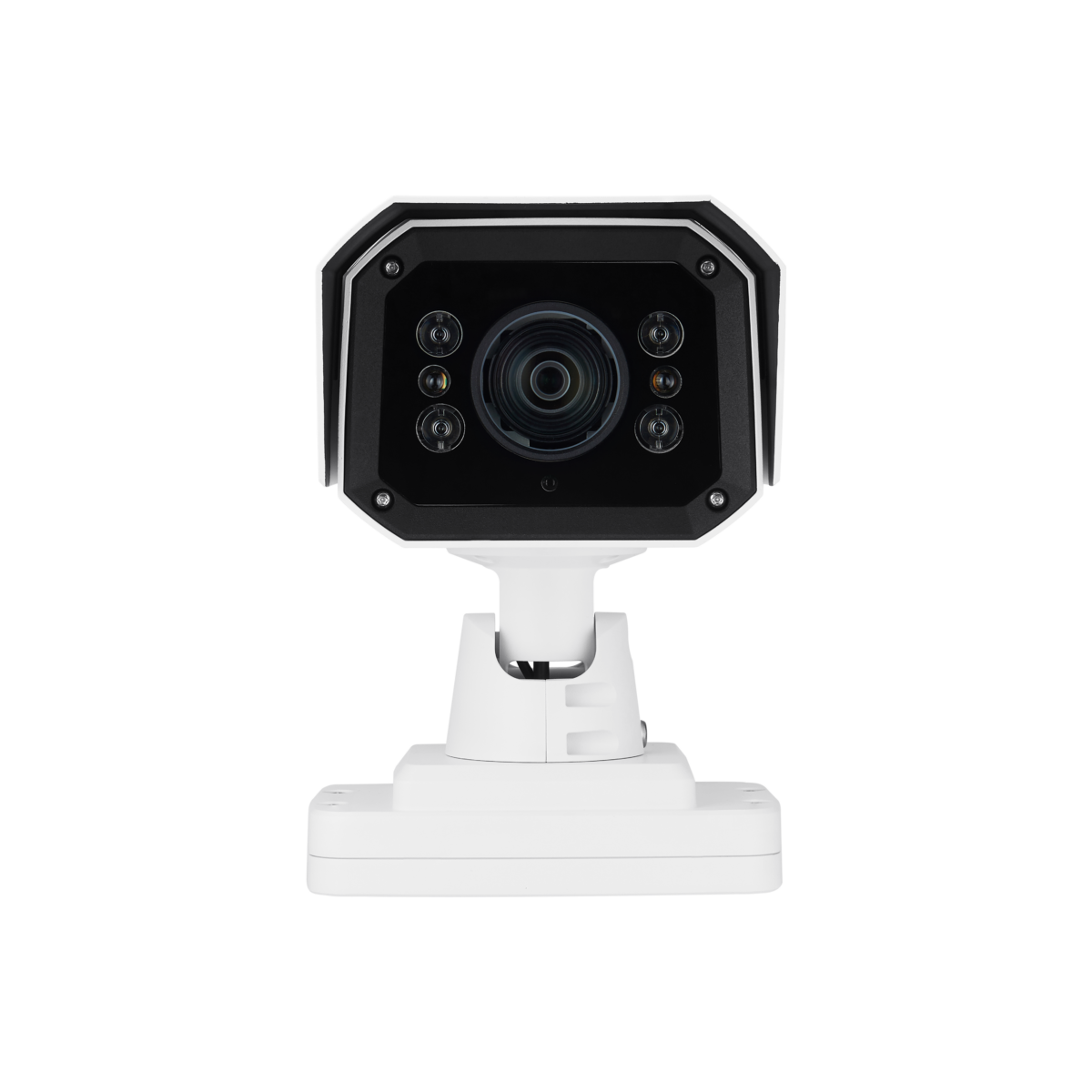

TNO-7180R

High-speed License Plate Capture Camera

Key Features
• Maximum 3MP resolution support
• 6.8~120mm(18x) motorized varifocal
• H.265, H.264, MJPEG codec
• Maximum 60fps@3MP all resolutions (H.265, H.264, MJPEG)
• Motion detection, Face detection, Tampering, Loitering, Audio detection
• Micro SD/SDHC/SDXC 1slot (256GB)
• WiseStreamII support
• HPoE, 12VDC
• IR Viewable Length 50m(164.04ft)
• IP66, IK10, NEMA 4X, NEMA TS 2(2.2.8, 2.2.9)
Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Технические характеристики

Video
Imaging Device 1/1.8" CMOS
Resolution 3M:
2048x1536, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
2M:
1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate 3M: H.265/H.264: Max. 55fps/50fps(55Hz/50Hz), MJPEG: Max. 5fps(55Hz/50Hz)
2M: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz), MJPEG: Max. 5fps (60Hz/50Hz)
Min. Illumination Color: 0.1Lux(F1.36, 1/30sec, 30IRE)
BW: 0.01Lux(F1.36, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 6.8~120mm(18x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F4.13(Tele)
Angular Field of View H: 54.5º(Wide)~3.4º(Tele)
V: 42.3º(Wide)~2.5º(Tele)
Min. Object Distance 2m (6.5ft)
Focus Control Simple focus, Focus save
Lens Type DC auto iris
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, SSDR
Digital Noise Reduction SSNRⅤ
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, Rectangle zones
- Color: Grey/Green/Red/Blue/Black/White
Gain Control 1 ~ 48
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Global Shutter mode
Video Rotation Flip, Mirror
Analytics Analytics events
- Motion detection, Tampering, Virtual line(Crossing/Direction), Virtual Area(Loitering/Intrusion/Enter/Exit, Appear/Disappear)
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O 4 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type IR LED (850nm)
IR Viewable Length WiseIR 50m (164ft)
IR Wavelength 850nm
Network
Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming (Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform v3.60
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attack
Network authentication IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS (WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file
Audit Access / System / Event Log management
Device ID Device certificate (Hanwha Techwin Root CA)
Secure Storage TPM, SDcard partition encrypt
Security Certificate TPM with FIPS 140-2 level 2
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot Max. 256GB
Memory 2048MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F)
Cold start : -40°C
Maximum Temperature based on NEMA-TS 2(2.2.7) : +74°C(+165°F)
Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C~+60°C / Less than 95% RH(Non-dondensing)
Certification IP66, IK10, NEMA 4X, NEMA TS 2(2.2.8, 2.2.9)
Input Voltage HPoE(IEEE802.3bt type3, Class6), 12VDC
** HPoE injector not included
Power Consumption PoE : Max 50W, Typical 27W
12VDC : Max 47.5W, Typical 25W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight W186.9 x D293.7 x H259.3 (mm) / 4.8kg (10.5 lb)
Wall Mount SBP-187WMW
Pole Mount SBP-187WMW
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66, IEC/EN 62262 IK10
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 79.5m / Tele: 1,380m
Observe (63PPM/ 19PPF) Wide: 31.8m / Tele: 552m
Recognize (125PPM/ 38PPF) Wide: 15.9m / Tele: 276m
Identify (250PPM/ 76PPF) Wide: 8.0m / Tele: 138m
