Сетевые камеры

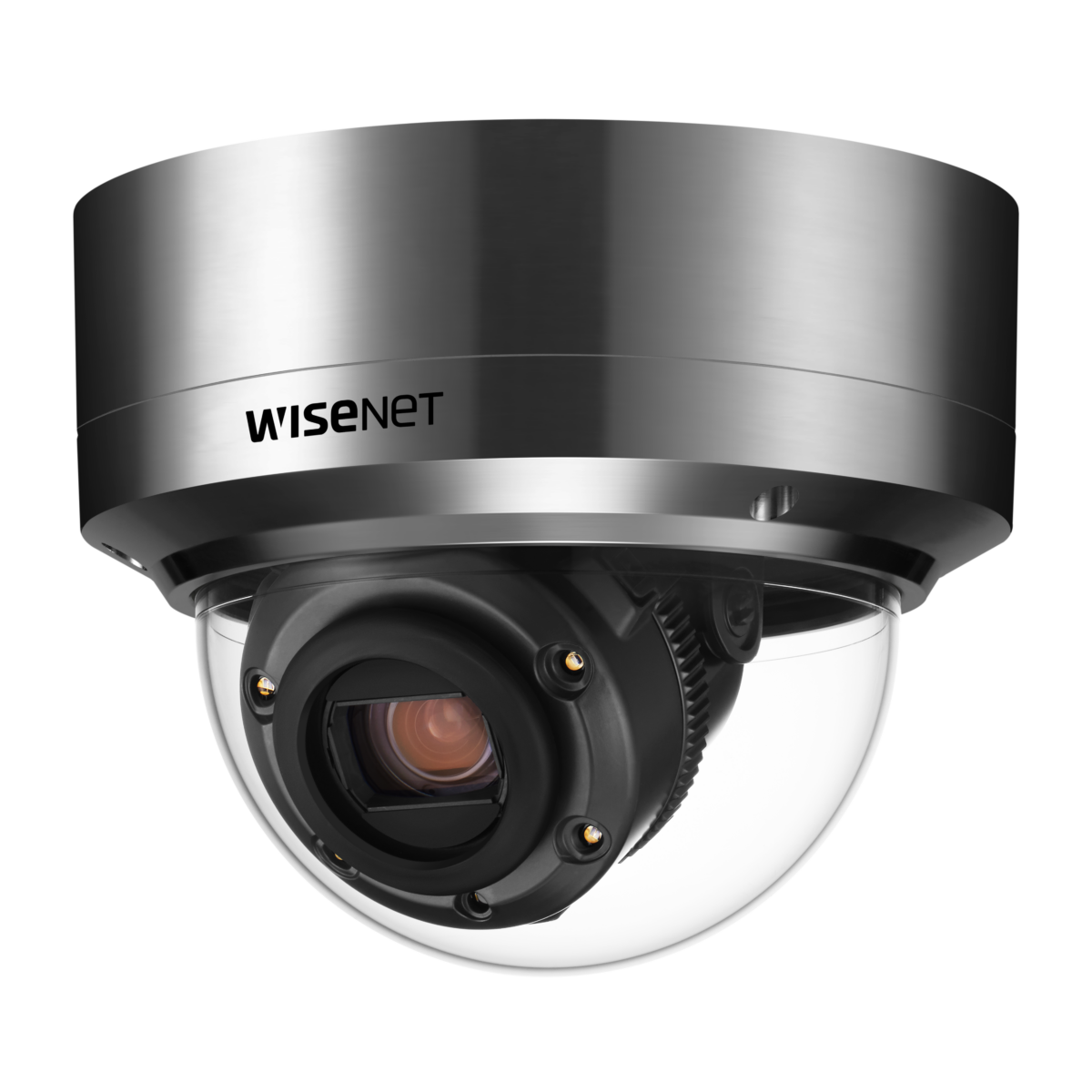

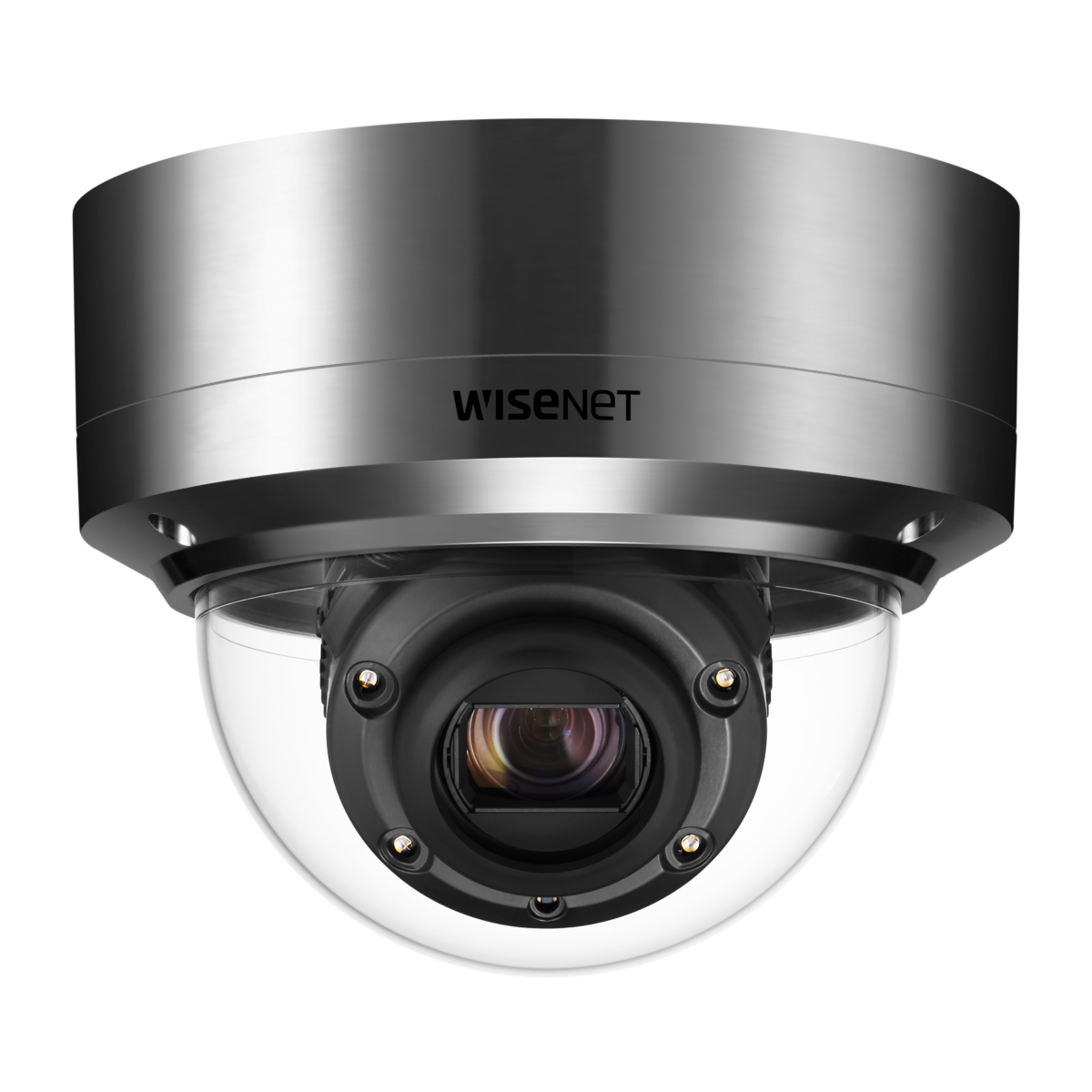

XNV-6120RSA

2МП сетевая нержавеющая с ИК-подсветкой вандалозащищенная купольная камера

Key Features
• Макс. разрешение 2 Мп (1920 x 1080)
• 5,2 - 62,4 мм (оптический зум 12x), моторизированный вариофокальный объектив
• До 60 кад/с при любом разрешении (H.265 / H.264)
• Поддержка кодеков H.265, H.264, MJPEG, многоканальная передача видео
• Дневной и ночной (с выдвижным ИК фильтром) режимы, WDR (150 дБ), функция Defog
• Обнаружение праздношатания, направления движения, внешнего воздействия, аудио, цифровое автоматическое слежение,
обнаружение тумана, распознавание звуков по типам
• Обнаружение движения, передача данных на PTZ камеру
• Два слота для карт памяти SD/SDHC/SDXC (макс. 512 Гб)
• Функция обзора коридоров, поддержка WiseStream II
• Дальность видимости с ИК-подсветкой 70 м (229,66 фута)
• IP66, IP6K9K, IK10+, NEMA4X
• Функция коррекции искажения объектива, поддержка технологии PoE
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Технические характеристики

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color : 0.03 lux(F1.6, 1/30sec)
B/W : 0 lux(IR LED On)
Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation USB : Micro USB type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 5.2~62.4mm (Optical 12X) motorized varifocal
Max. Aperture Ratio 1.6(Wide) ~ 3.0(Tele)
Angular Field of View H : 54.58°(Wide) ~ 5.30°(Tele)
V : 32.19(Wide) ~ 3.00°(Tele)
D : 61.40°(Wide) ~ 6.06°(Tele)
Min. Object Distance 2.1m (6.89ft)
Focus Control Auto / Manual / Oneshot AF
Lens Type DC Auto Iris
Mount Type Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 75° / 0° ~ 355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC / HLC(Masking/Dimming) / WDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNR5 (2D+3D Noise Filter)
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8 point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color : Gray, Green, Red, Blue, Black, White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Tampering, Loitering, Directional Detection, Defocus Detection, Fog Detection, Virtual Line, Enter/Exit, Appear / Disappear, Audio Detection, Face Detection, Motion Detection, Digital Auto Tracking, Sound Classification
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Alarm Input, Motion Detection, Video & Audio Analytics, Network Disconnect
Alarm Events File upload via FTP, E-Mail
Notification via E-Mail
Local storage(SD/SDHC/SDXC) or NAS recording at Event (Alarm Triggers)
External output
DPTZ preset
Audio In Selectable (Mic IN/Line IN) Supply voltage: 2.5VDC(4mA), Input impedance: approx. 2K Ohm
Audio Out Line out, Max output level: 1 Vrms
IR Viewable Length 70m(229.66ft)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression H.265/H.264 (MPEG-4 Part 10/AVC) : Main/Baseline/High
MJPEG
Audio Compression G.711 μ-law /G.726 Selectable
G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC : 48Kbps at 8/16/32/48KHz
Smart Codec Manual mode(Area-based : 5ea)
Bitrate Control H.264/H.265 : CBR or VBR
MJPEG : VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1x Authentication (EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G SUNAPI(HTTP API) Open Platform
General
Webpage Language English, Korean, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage SD/SDHC/SDXC 2slot (up to 512 GB)
NAS(Network Attached Storage)
Local PC for Instant Recording
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -35°C(-31°F)
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66, NEMA 4X, IP6K9K, IK10+
Input Voltage Max. 11.5W (12VDC), Max. 12.95W (PoE), Max. 14W (24VAC)
Power Consumption PoE : Max. 12.95W
12VDC : Max. 11.5W
24VAC : Max. 14W
Mechanical
Color / Material Silver / SUS316L
Product Dimensions / Weight Ø 162 X H134.5mm (Ø6.38” x 5.3”), 2.7Kg
Hanging Mount (Dome) SBP-300HMS6
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 74.4m(244.19ft) / Tele: 829.7m(2,721.97ft)
Observe (63PPM/ 19PPF) Wide: 29.8m(97.68ft) / Tele: 331.9m(1,088.79ft)
Recognize (125PPM/ 38PPF) Wide: 14.9m(48.84ft) / Tele: 165.9m(544.39ft)
Identify (250PPM/ 76PPF) Wide: 7.4m(24.42ft) / Tele: 83m(272.2ft)
