Сетевые камеры

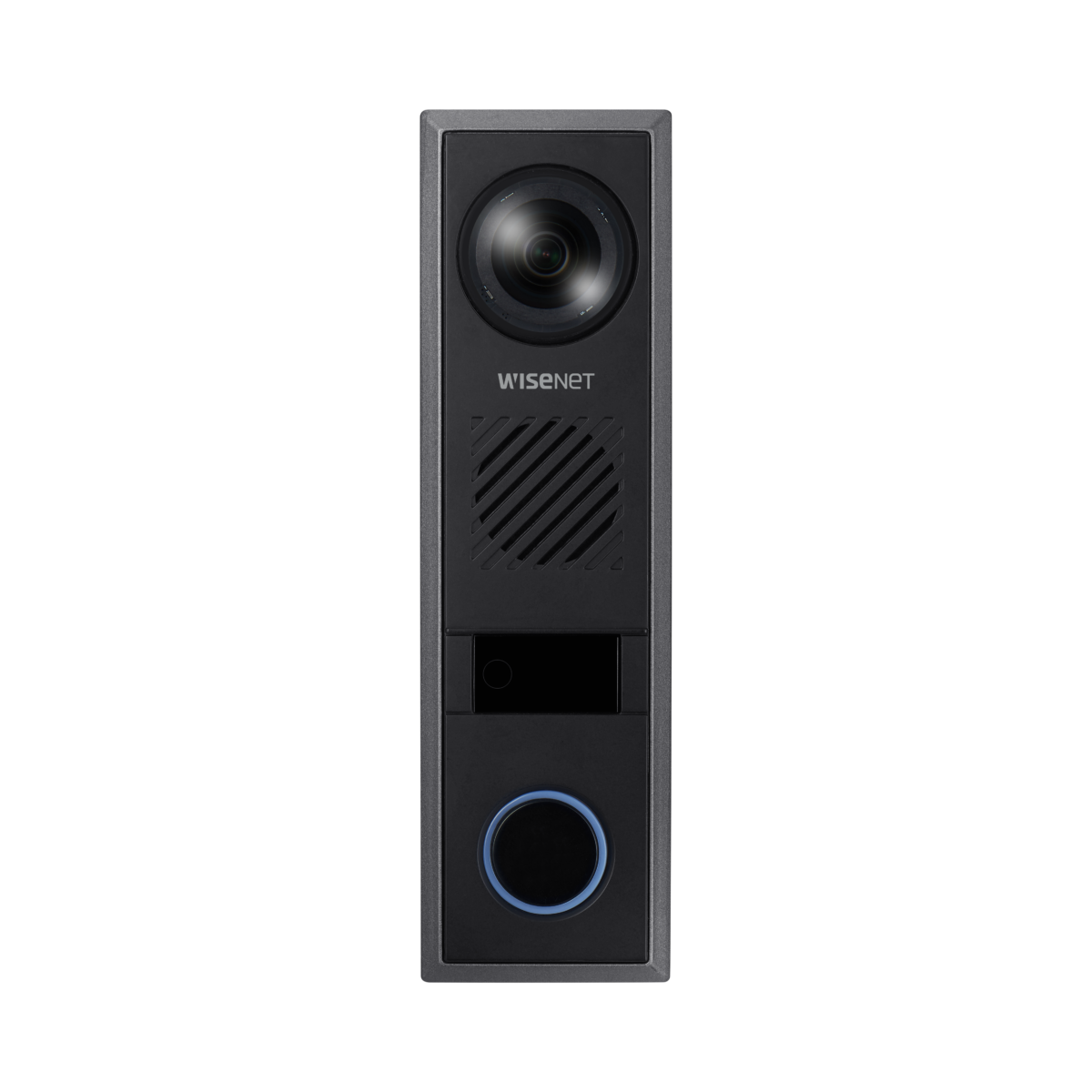

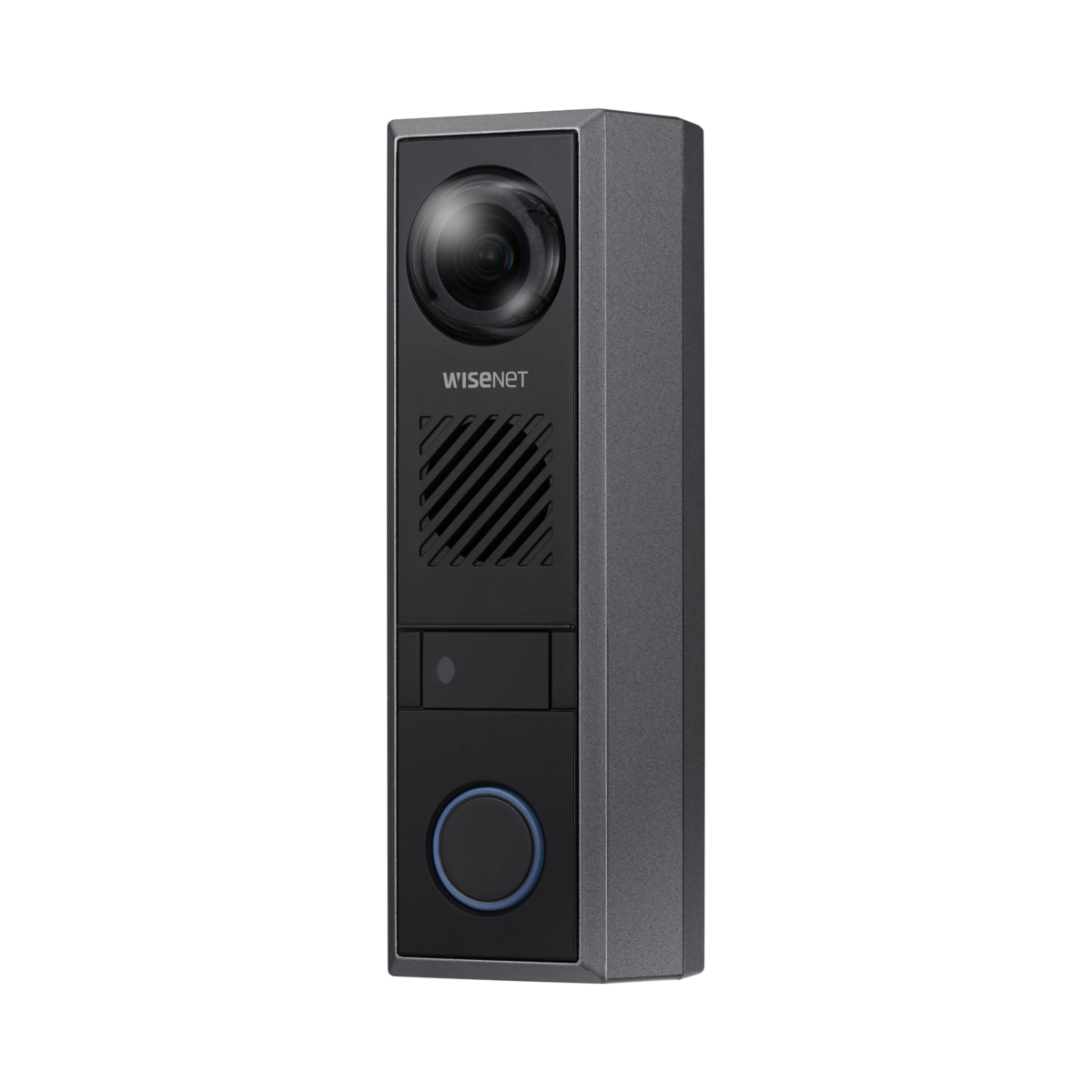

TID-600R
2MP Intercom
Key Features
• 1/2.8” 2MP sensor
• 1.6mm fixed lens : HFoV 180°, VFoV 114°
• IR viewable length 5m
• Built-in mic and speaker : 85dB speaker out at 0.5m
• Echo cancellation and noise reduction
• Touchless call, Built-in tamper switch
• SIP 2.0 support
• MicroSD 1slot, PoE/12VDC
Max. 550mA relay out with 2A 12VDC adapter
• IP65, IK08, NEMA4X
• 1.6mm fixed lens : HFoV 180°, VFoV 114°
• IR viewable length 5m
• Built-in mic and speaker : 85dB speaker out at 0.5m
• Echo cancellation and noise reduction
• Touchless call, Built-in tamper switch
• SIP 2.0 support
• MicroSD 1slot, PoE/12VDC
Max. 550mA relay out with 2A 12VDC adapter
• IP65, IK08, NEMA4X
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Обзор
Wide Field of View for a wide range of applications
TID-600R has a wide field of view, 180 ̊ horizontal and 114 ̊ vertical. Making it suitable for various applications as TID-600R can capture from 14.2 inches (36cm) to 100.4 inches (255cm) tall objects (When an object is 29.5 inches away from the station)
*Various applications including Kindergarten, Nurshing home, Residence, Commercial building, Warehouse, and more
Various mounting options for a greater versatility

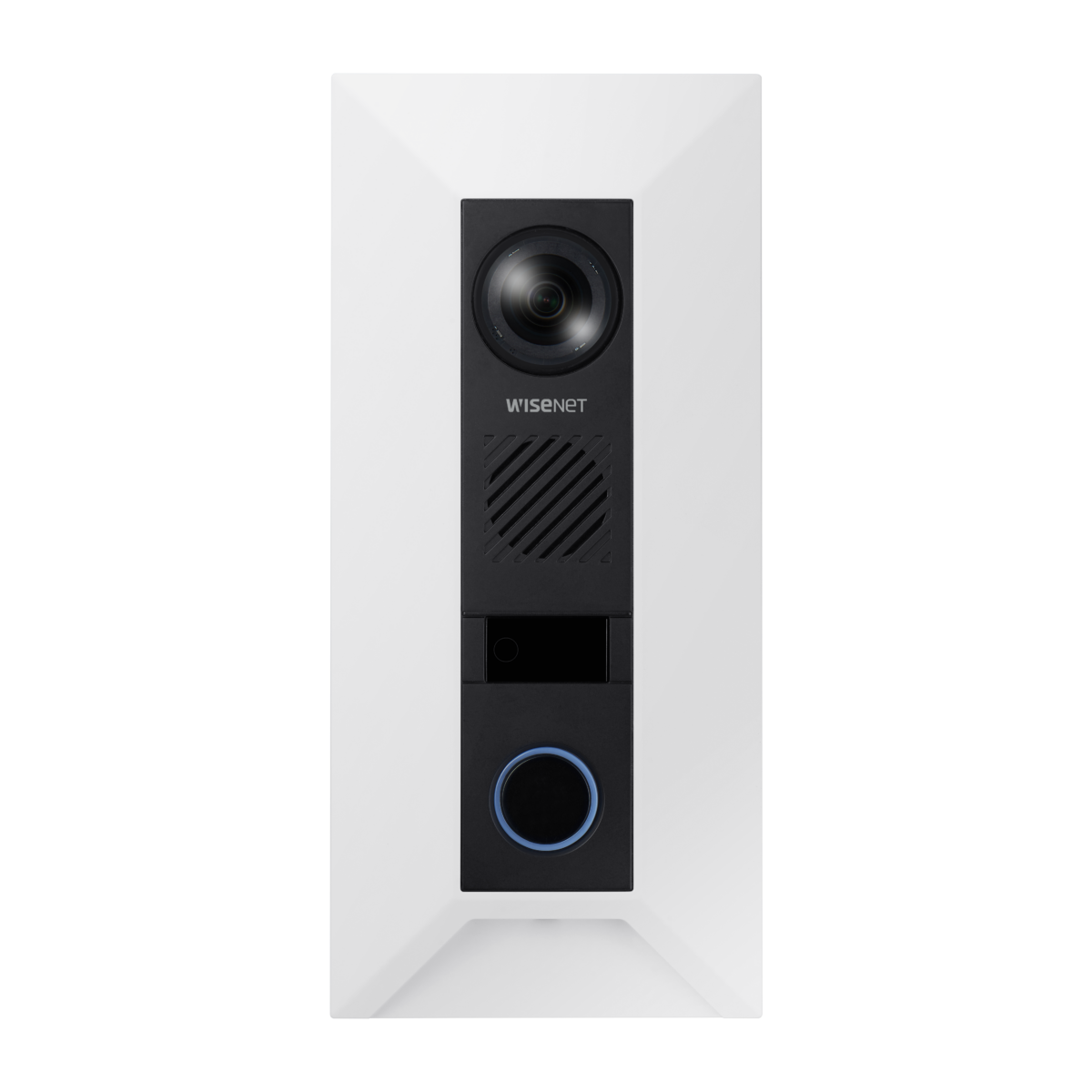

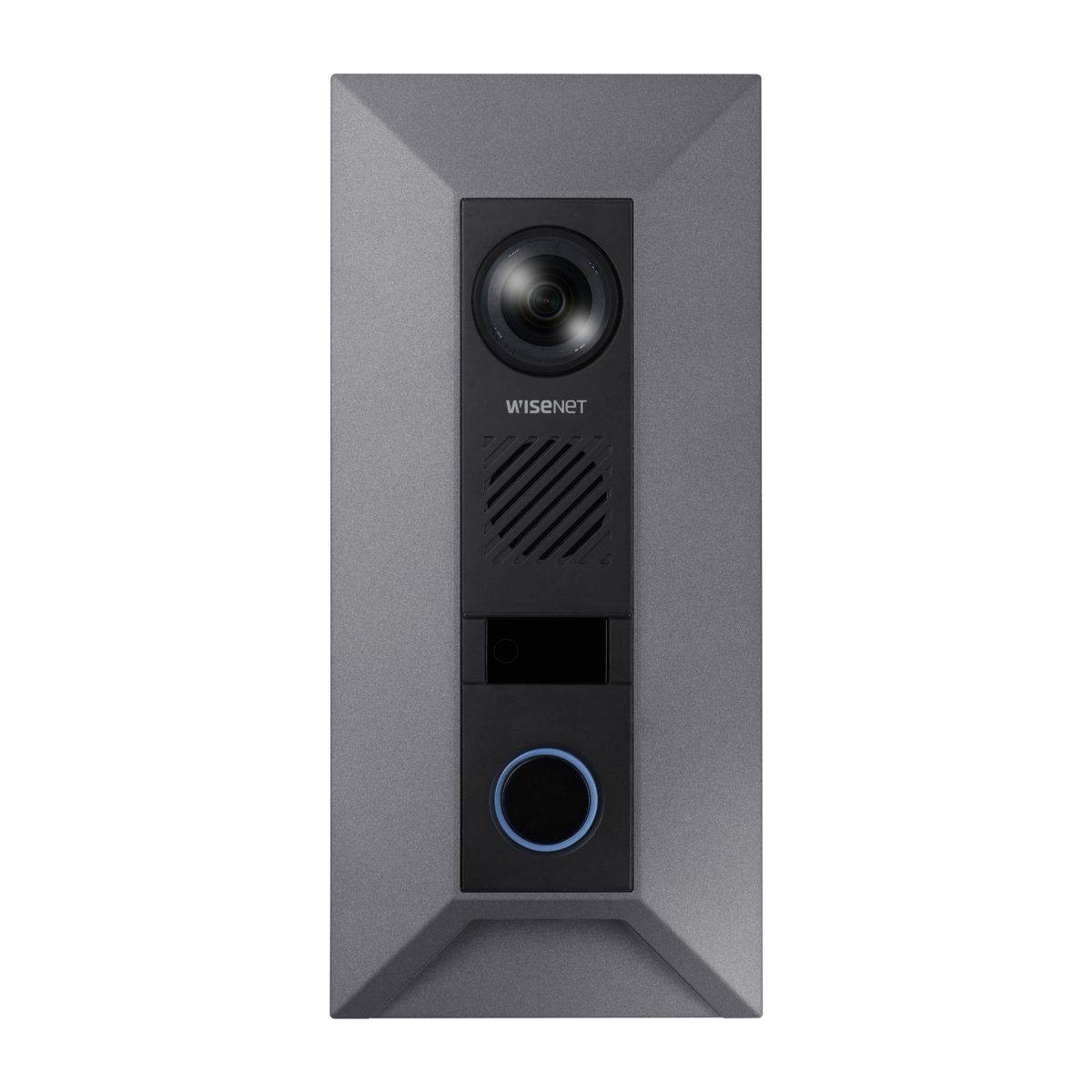

TID-600R is designed to be used at various business areas. Its small and slim from factor and contemporary product design offer both style and functionality. With multiple mounting options, covers and skin, it fits perfectly with its surroundings.
Touchless call as an essential post COVID-19 safety protocol
The ToF sensor of TID-600R allows touchless call, where users simply present their palm within 6 inches of the station to initiate a call. Touchless system is getting more and more important especially when there’s a highly contagious diseases and outbreaks.
*It also offers a push-button call
Технические характеристики
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps |
| Min. Illumination | Color: 0.018Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.6mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 180° / V: 114° / D: 180° |
| Min. Object Distance | 0.3m (0.98ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Shock detection, Sound classification |
| Alarm I/O | Input 2ea / Output 1ea, Relay out 1ea (12VDC Max. 550mA with 2A adapter) Tampering switch, Touchless call |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
| Audio Streaming | Two-way/one-way selectable, Full duplex, Echo cancellation and noise reduction |
| Audio In | Built-in mic |
| Audio Out | Built-in speaker: 85dB at 0.5m(1.64ft) |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 5m |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz Opus 8/16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP, SIP 2.0(RFC 3261 and companion RFCs) |
| SIP support (VoIP, Peer-to-peer, SIP/PBX integration) | Tested with Cisco, Grandstream, Yealink VoIP phones and Asterisk PBX software |
| Security | HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication(EAP-TLS, EAP-LEAP), Device certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~95% RH |
| Storage Temperature / Humidity | -50°C~+55°C(-58°F~+131°F) / Less than 95% RH |
| Certification | IP65, IK08, NEMA4X, Safety(UL), EMC(FCC, CE) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 9.1W 12VDC: Max 17.6W, typical 7W * 12VDC power consumption includes 12VDC/550mA relay out. |
| Mechanical | |
| Color / Material | Dark gray / Aluminum |
| RAL Code | RAL7022 |
| Product Dimensions / Weight | 49(W)x165(H)x48(D)mm(1.93x6.50x1.89") / 490g(1.08lb) |
| Compatible Models | |
| In-ceiling Mount | SHS-165F |
| Tilt Mount | SBS-165TM |

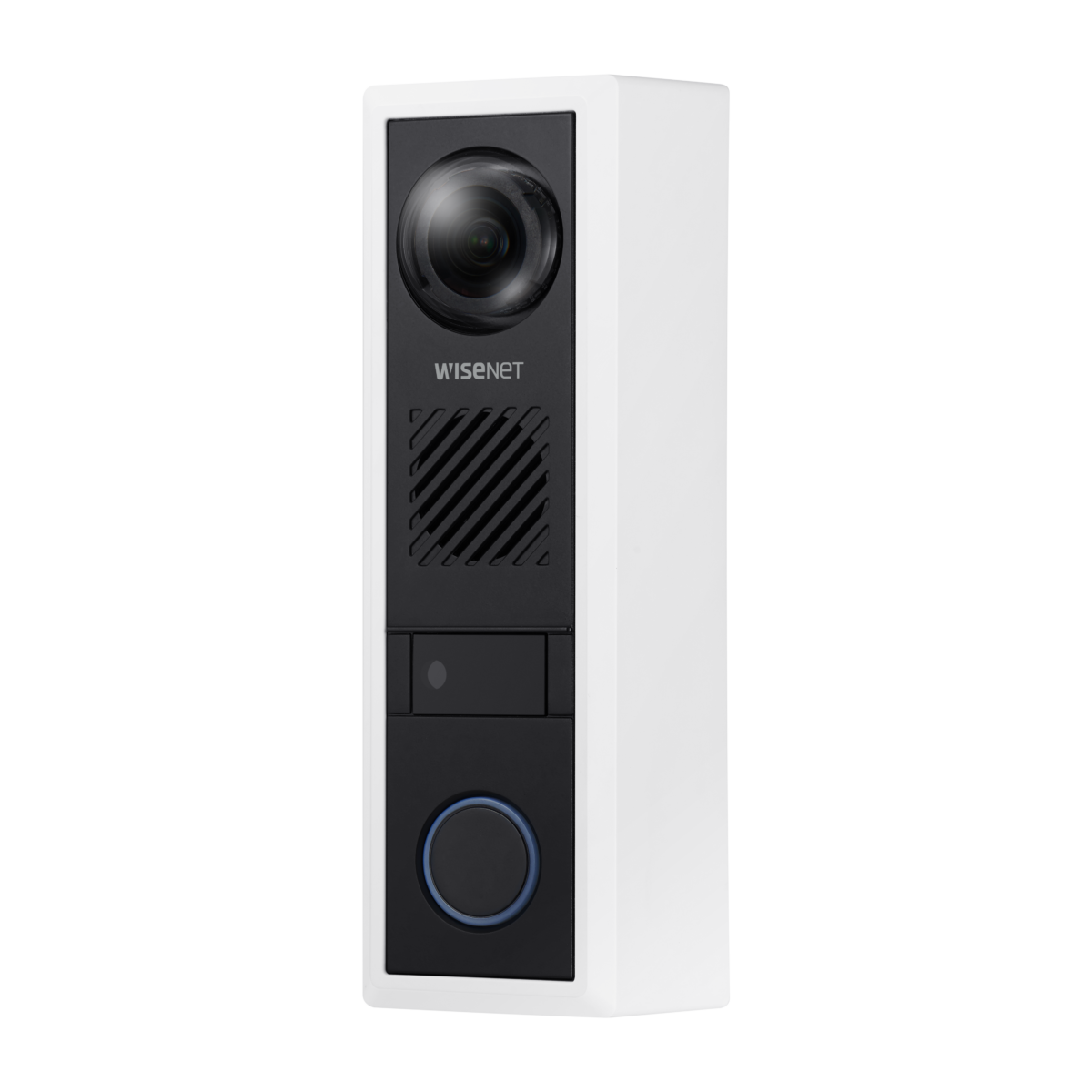

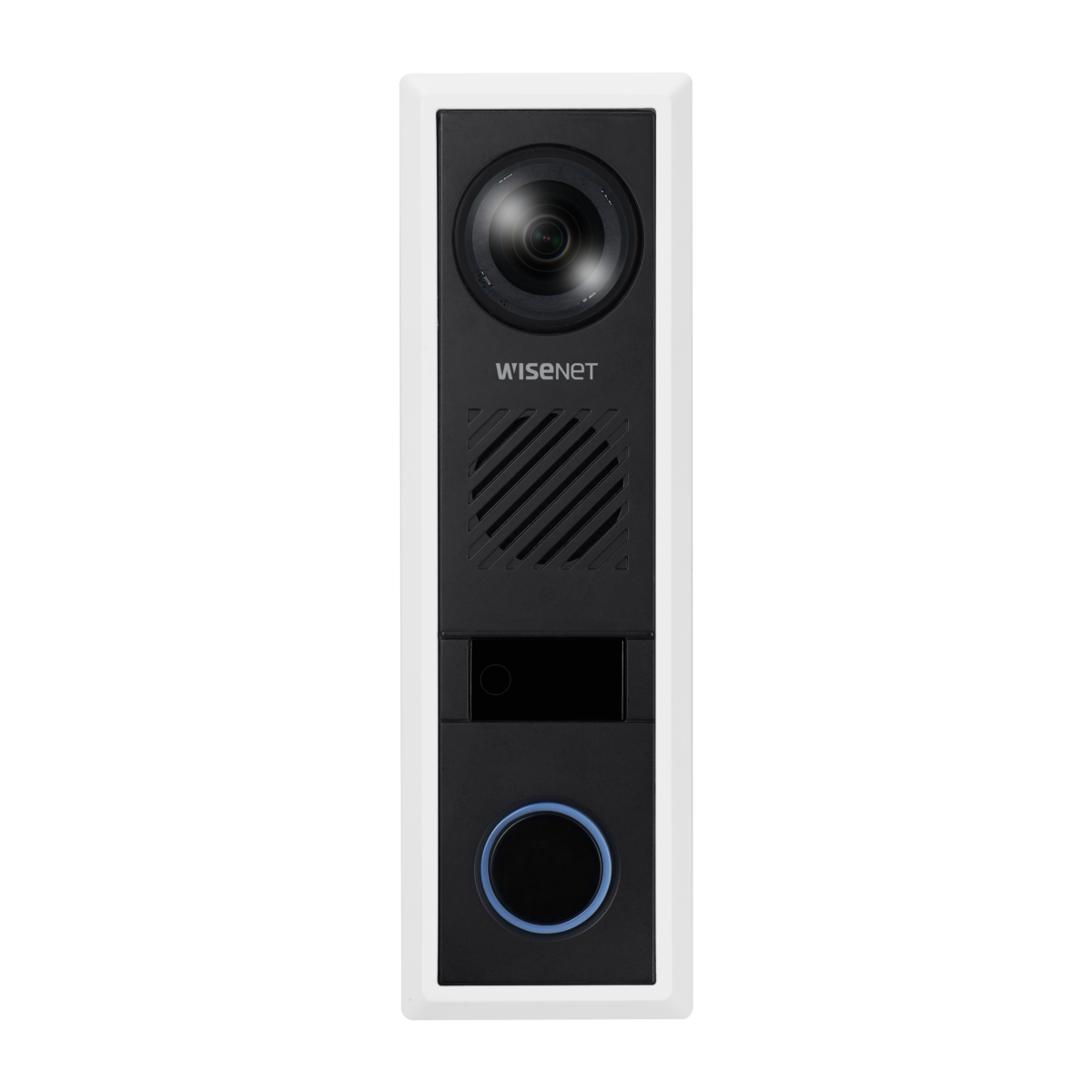

| Skin Cover | SBC-165W |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 20.72m(67.98ft) |
| Observe (63PPM/ 19PPF) | 8.29m(27.20ft) |
| Recognize (125PPM/ 38PPF) | 4.14m(13.58ft) |
| Identify (250PPM/ 76PPF) | 2.07m(6.79ft) |
Связанные продукты

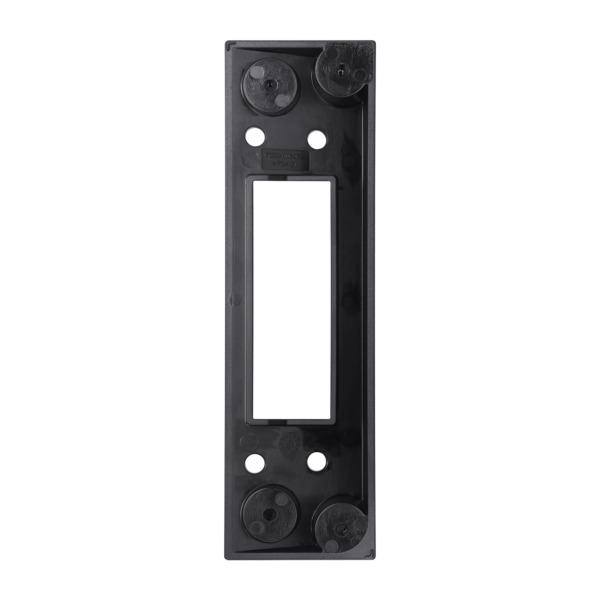

SBS-165TM
Tilt Mount

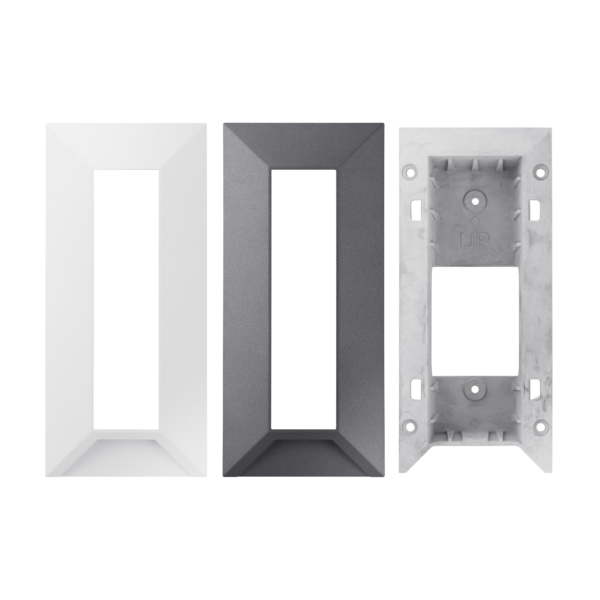

SHS-165F
