Сетевые камеры

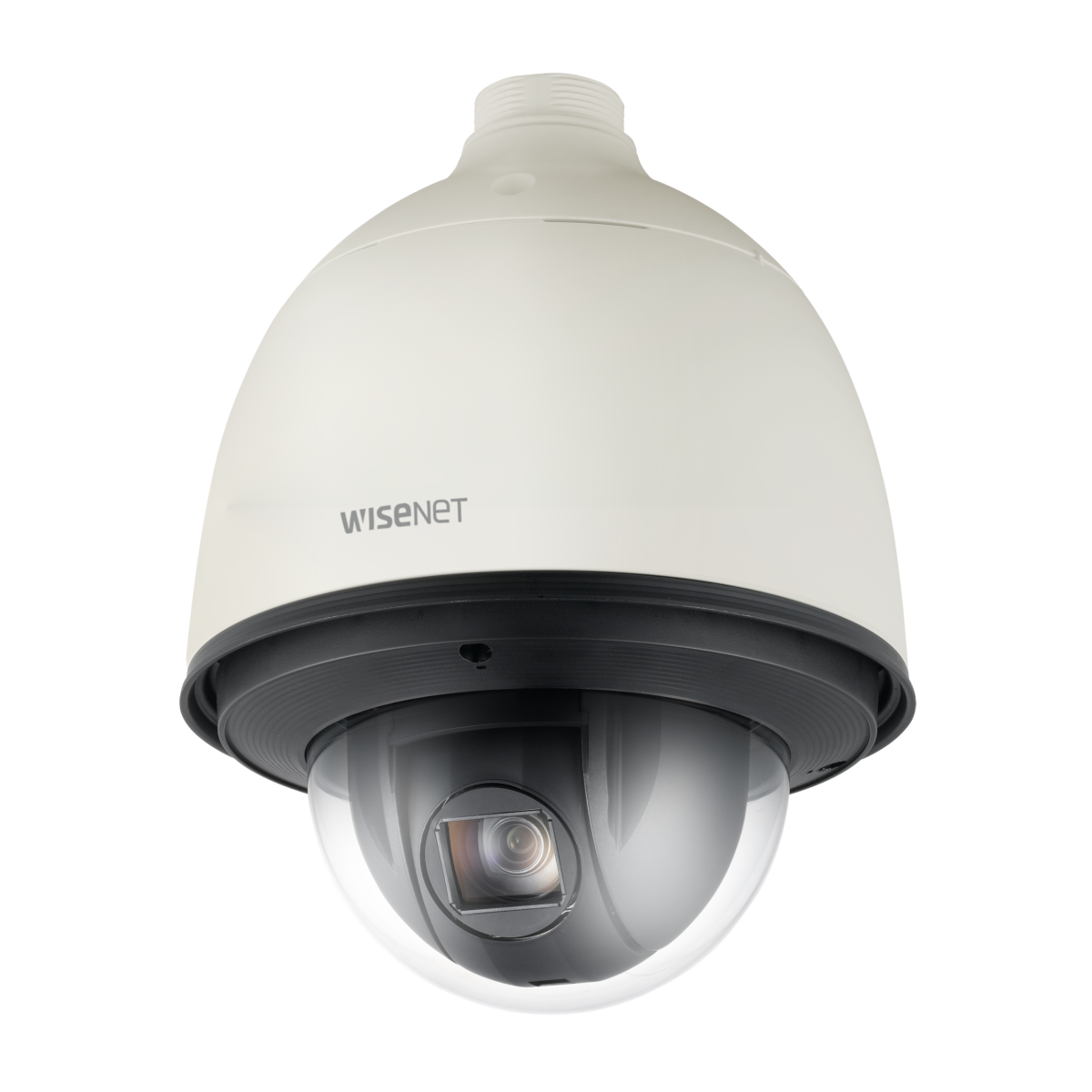

XNP-6320H

2МП H.265 сетевая 32x PTZ камера

Key Features
• Макс. разрешение 2 Мп (1920 x 1080)
• Поддержка кодеков H.265, H.264, MJPEG
• Многопотоковая передача данных, поддержка WiseStream II
• Дневной и ночной (с выдвижным ИК фильтром) режимы, WDR (150 дБ)
• Цифровая стабилизация изображения со встроенным гироскопическим датчиком
• Автоматическое слежение, интеллектуальная видео-аналитика
• Слот для карт памяти (макс. 512 ГБ)
• IP66, IK10
Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Технические характеристики

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
B/W: 0.005 Lux(F1.6, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.44~142.6mm(32x) zoom
Optical Zoom 32x
Max. Aperture Ratio F1.6(Wide)~F4.4(Tele)
Angular Field of View H: 61.8°(Wide)~2.19°(Tele) / V: 36.2°(Wide)~1.24°(Tele)
Min. Object Distance Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft)
Focus Control Oneshot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Preset: 700˚/sec, Manual: 0.024˚/sec~200˚/sec
Tilt Range 210˚(-15˚~195˚)
Tilt Speed Preset: 700˚/sec, Manual: 0.024˚/sec~200˚/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, rectangular Support
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 4ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Auto Tracking Support
Network
Ethernet RJ-45 (10/100BASE-T), SFP(Optional)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP, NTCIP 1205
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Private Root CA)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity 24VAC: -50°C~+55°C(-58°F~+131°F) / Less than 90% RH
PoE+: -35°C~+55°C(-31°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C~+60°C(-22°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage PoE+(IEEE802.3at, Class4), 24VAC
Power Consumption 24VAC: Max 65W
Mechanical
Color / Material Ivory / Plastic+Aluminum
Product Dimensions / Weight ø220x293.6mm(8.66x11.56"), 3.3Kg(7.28 lb)
Ceiling Mount (Assy) SBP-300CM
Wall Mount SBP-300WM1, SBP-300WM
Pole Mount SBP-300PM1
Parapet Mount SBP-300LM
Corner Mount SBP-300KM1
Other Compatible Models SBP-303HF, SPB-PTZ7
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 64.2m(210.5ft) / Tele: 2009.0m(6591.3ft)
Observe (63PPM/ 19PPF) Wide: 25.7m(84.2ft) / Tele: 803.6m(2636.5ft)
Recognize (125PPM/ 38PPF) Wide: 12.8m(42.1ft) / Tele: 401.8m(1318.3ft)
Identify (250PPM/ 76PPF) Wide: 6.4m(21.1ft) / Tele: 200.9m(659.1ft)
Datasheet

Демонстрация продукта

Wisenet X — Audio Analytics

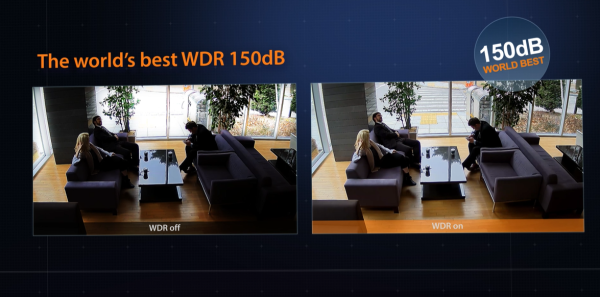

Wisenet X — WDR
Wisenet X Series Introduction

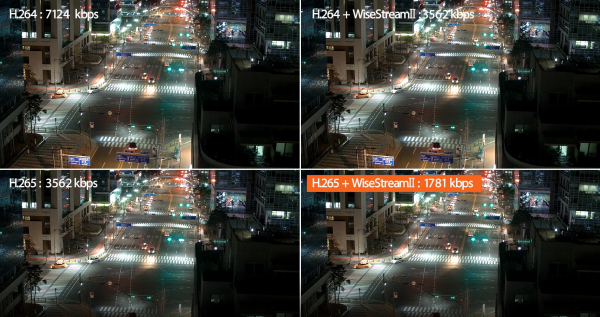

WiseStream II — Extreme Bandwidth Reduction
