Сетевые камеры

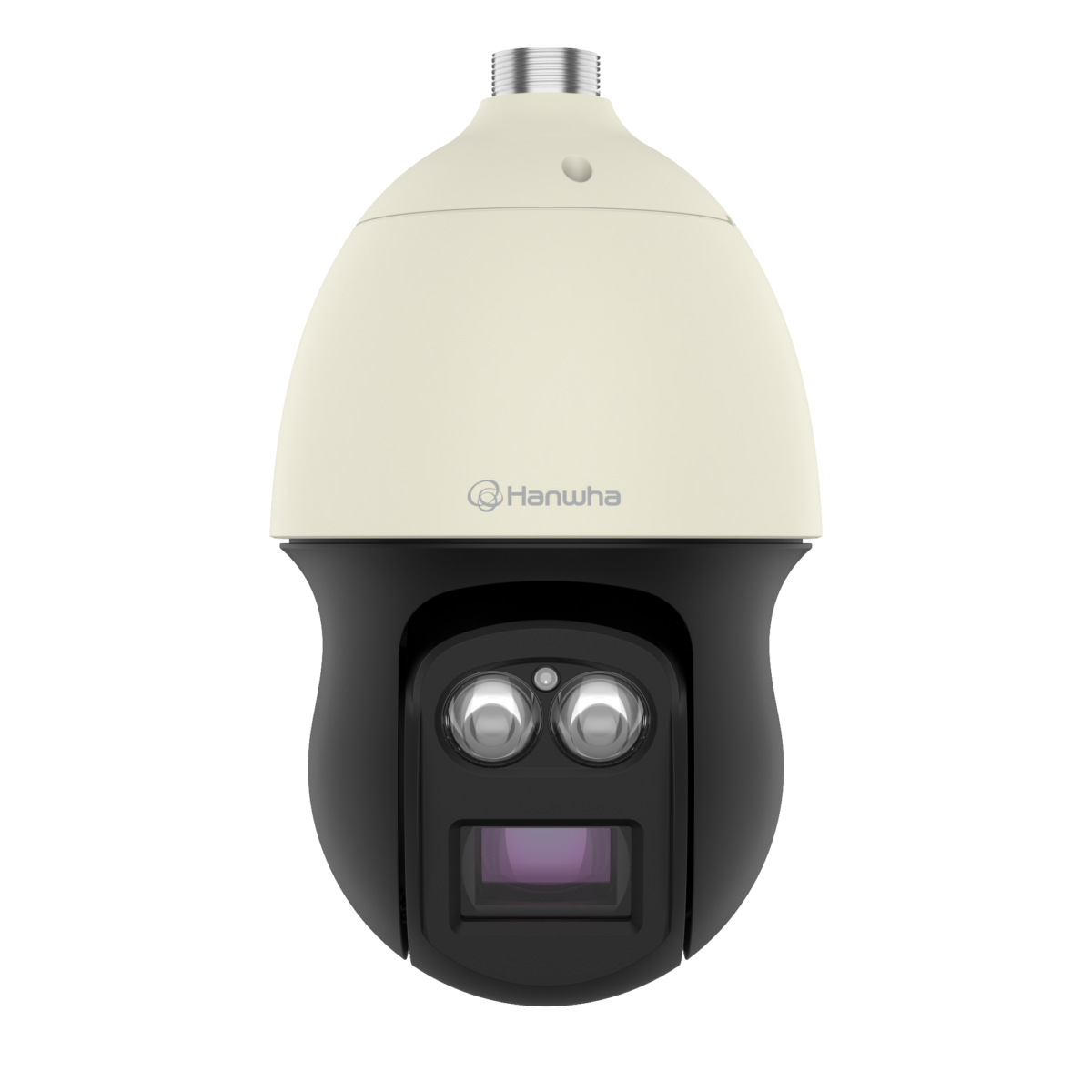

XNP-6550RH

2МП H.265 сетевая 55x с ИК-подсветкой PTZ камера

Key Features
• Макс. разрешение 2 Мп (1920 x 1080)
• Объектив с оптическим зумом 55x, 4,75 - 261,4 мм
• Дневной и ночной (с выдвижным ИК фильтром) режимы, WDR (120 дБ)
• Цифровая стабилизация изображения со встроенным гироскопическим датчиком
• Макс. дальность видимости с ИК подсветкой: 500 м
• Поддержка кодеков H.265, H.264, MJPEG
• Многоканальная передача видео, поддержка WiseStream II
• Интеллектуальная видео-/аудиоаналитика, функция Defog (оптичес.)
• 2 слота для карт памяти microSD / SDHC / SDXC (до 512 Гб)
• IP66, IK10
Contact Sales Datasheet

["camera","network","ptz"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Обзор

Сертификат Транспортной Безопасности №969
Сертификат соответствия технических средств обеспечения транспортной безопасности требованиям к их функциональным свойствам, утвержденных постановлением Правительства Российской Федерации от 26 сентября 2016 г. № 969.



Технические характеристики

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.02Lux(F1.6, 1/30sec)
BW: 0.002 lux (1/30sec,F1.6), 0Lux(IR LED On)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 4.75~261.4mm(55x) zoom
Optical Zoom 55x
Max. Aperture Ratio F1.6 (Wide) ~ F6.5 (Tele)
Angular Field of View H: 58.6˚(Wide)~1.23˚(Tele) / V: 34.8˚(Wide)~0.71˚(Tele)
Min. Object Distance 5m
Focus Control AF / One-Shot AF / Manual
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Preset: 400°/sec, Manual: 0.024°/sec~250°/sec
Tilt Range 95°(-5°~90°)
Tilt Speed Preset: 250°/sec, Manual: 0.024°/sec~250°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2°
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, rectangular Support
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 4ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Light Type IR LED (850nm)
IR Viewable Length 500m(1,640.42ft)
Auto Tracking Support
Network
Ethernet RJ-45(10/100BASE-T), SFP(Optional)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP, NTCIP 1205
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Private Root CA)
Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity 24VAC : -50°C~+55°C (-58°F ~ +131°F), Less than 95% RH-Non-Condensing
HPoE : -40°C~+55°C (-40°F ~ +131°F) /Less than 95% RH-Non-Condensing
* Start up should be done at above -35°C FAN/Heater included
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 90% RH
Certification IP66, IK10
Input Voltage 24VAC, HPoE(IEEE802.3bt, Class7)
Power Consumption 24VAC: Max. 92W (typical : 30W) HPoE : Max. 60W (typical : 30W)
Mechanical
Color / Material Body: Ivory / Aluminum+Plastic, Head: Black / Aluminum+Plastic
Product Dimensions / Weight ø236.9x407.7mm(9.33x16.05"), 7.1Kg(15.65 lb)
Ceiling Mount (Assy) SBP-300CM
Wall Mount SBP-300WM1, SBP-300WM
Pole Mount SBP-300PM1
Parapet Mount SBP-300LM
Corner Mount SBP-300KM1
Other Compatible Models SBP-303HF
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 68.4m(224.5ft) / Tele: 3577.4m(11736.7ft)
Observe (63PPM/ 19PPF) Wide: 27.4m(89.8ft) / Tele: 1430.9m(4694.7ft)
Recognize (125PPM/ 38PPF) Wide: 13.7m(44.9ft) / Tele: 715.5m(2347.3ft)
Identify (250PPM/ 76PPF) Wide: 6.8m(22.5ft) / Tele: 357.7m(1173.7ft)
