DVR
Снято с производства

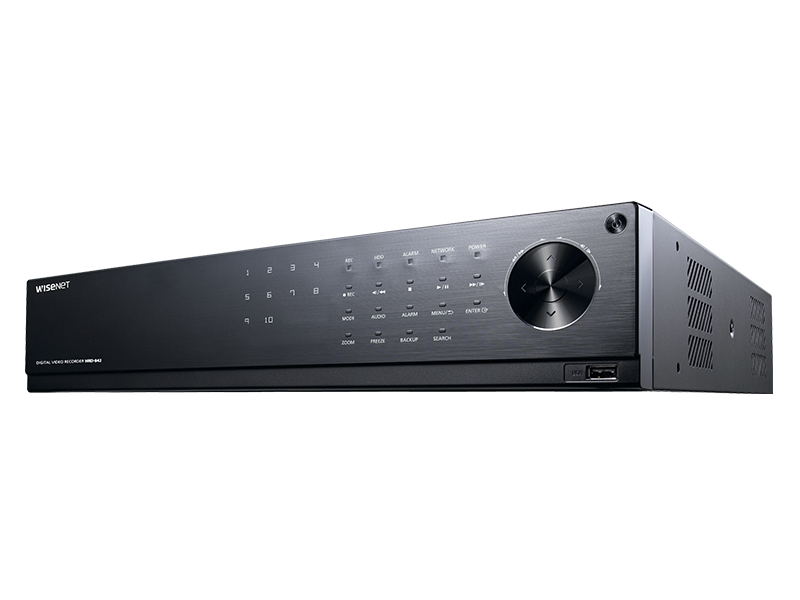

HRD-842
8CH 4МП H.264 AHD аналоговый видеорегистратор
Key Features
• Поддержка H.264
• TVI, CVI (макс. 2Мп), Поддержка входа аналоговой камеры
• Скорость записи до 120/100 кад/с (4Мп)
• Скорость записи до 240/200 кад/с (1080p)
• Видеовыход HDMI/VGA
• 8-канальные аудиовходы/ 1-канальный аудиовыход
• До 4 внутренних жестких дисков
• Коаксиальный кабель (Pelco-C, ACP)
• Поддержка смартфонов (Android, iOS)
• TVI, CVI (макс. 2Мп), Поддержка входа аналоговой камеры
• Скорость записи до 120/100 кад/с (4Мп)
• Скорость записи до 240/200 кад/с (1080p)
• Видеовыход HDMI/VGA
• 8-канальные аудиовходы/ 1-канальный аудиовыход
• До 4 внутренних жестких дисков
• Коаксиальный кабель (Pelco-C, ACP)
• Поддержка смартфонов (Android, iOS)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please follow the Hanwha Vision HDD compatibility list.
Технические характеристики
| Display | ||
|---|---|---|
| Analog camera | ||
| Inputs | 8CH(1Vp-p 75ohm, BNC) | |
| Signal Type | AHD(4MP, 1080p, 720p) HDTVI(1080p) HDCVI(1080p) CVBS(NTSC/PAL) |
|
| Live | ||
| Local Display | HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
|
| Resolution | 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps), 720H(30/25fps) 960x576(30/25fps) per CH | |
| Performance | ||
| Record | ||
| Compression | H.264 | |
| Record Rate(Analog) | [Analog Camera(NTSC/PAL)] 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH |
|
| Recording Bandwidth | Nonne | |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (1~30 fps(N), 1~25fps(P)) | |
| Event Trigger | Video Loss, Motion(Level 1~10), Alarm Input(16), Tampering(Level Low,Medium, High) | |
| Event Action | E-mail, Alarm out, Buzzer | |
| Search & Play | ||
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | 8CH(Local Monitor) | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 4ea(Max 32TB) | |
| Backup | ||
| File backup | BU, SEC, AVI | |
| Function | Multi channel(Upto 8CH) Play, Date-Time/Title display | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Webviewer, Smart Viewer, Wisenet Mobile Viewer, System Controller |
|
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP | |
| Control | Live(8ch) : Multi-Profile Support Playback(1Ch) |
|
| Max. Remote Users | Search(1), Live Unicast(10) | |
| Coaxial Control | CVBS(Pelco-C)/AHD | |
| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 8CH In / 1CH Out(Spot Output) | |
| e-SATA | 2EA | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 8EA, Out 4EA\n - Relay Out1(NO/NC/COM)\n - Relay Out2~4(NO/COM) | |
| USB | 2EA(Front 1, Rear 1) | |
| Serial(Protocols) | RS-485/422 (Samsung-E/Samsung-T/Pelco-D/Pelco-p/Panasonic/ Phillips/ AD/ DIAMOND/ ERNA/ KALATEL/ VCL TP/VICON/ ELMO/GE) * for PTZ | |
| Power inlet | 1EA AC | |
| System | ||
| System Control | Mouse, Remote Controller, Web Viewer, System controller(SPC-7000, SPC-6000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Chinese(Traditional) | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC | |
| Electrical | ||
| Power Input | 100~240 VAC±10%, 50/60 Hz | |
| Power Consumption | Max. 25W (2T HDD 1ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”) | |
| Weight | 5.3Kg (11.69lb) (4TB HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP | |
| DDNS | Wisenet DDNS | |
| Transmission speed | [Analog Camera(NTSC/PAL)]\n- Main Stream: 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH\n- Sub Stream) WD1/4CIF : 12fps/CH, 2CIF/CIF : 30fps/CH(N), 25fps/CH(P) | |
| Transmission Bandwidth | Max. 64Mbps | |
| Audio | ||
| Input/Output | 8 CH (Built in 4 CH, Option : Audio Extension Cable)/ 1 CH | |
| Compression | G.711 | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | User access Log, Watermark | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile | |
