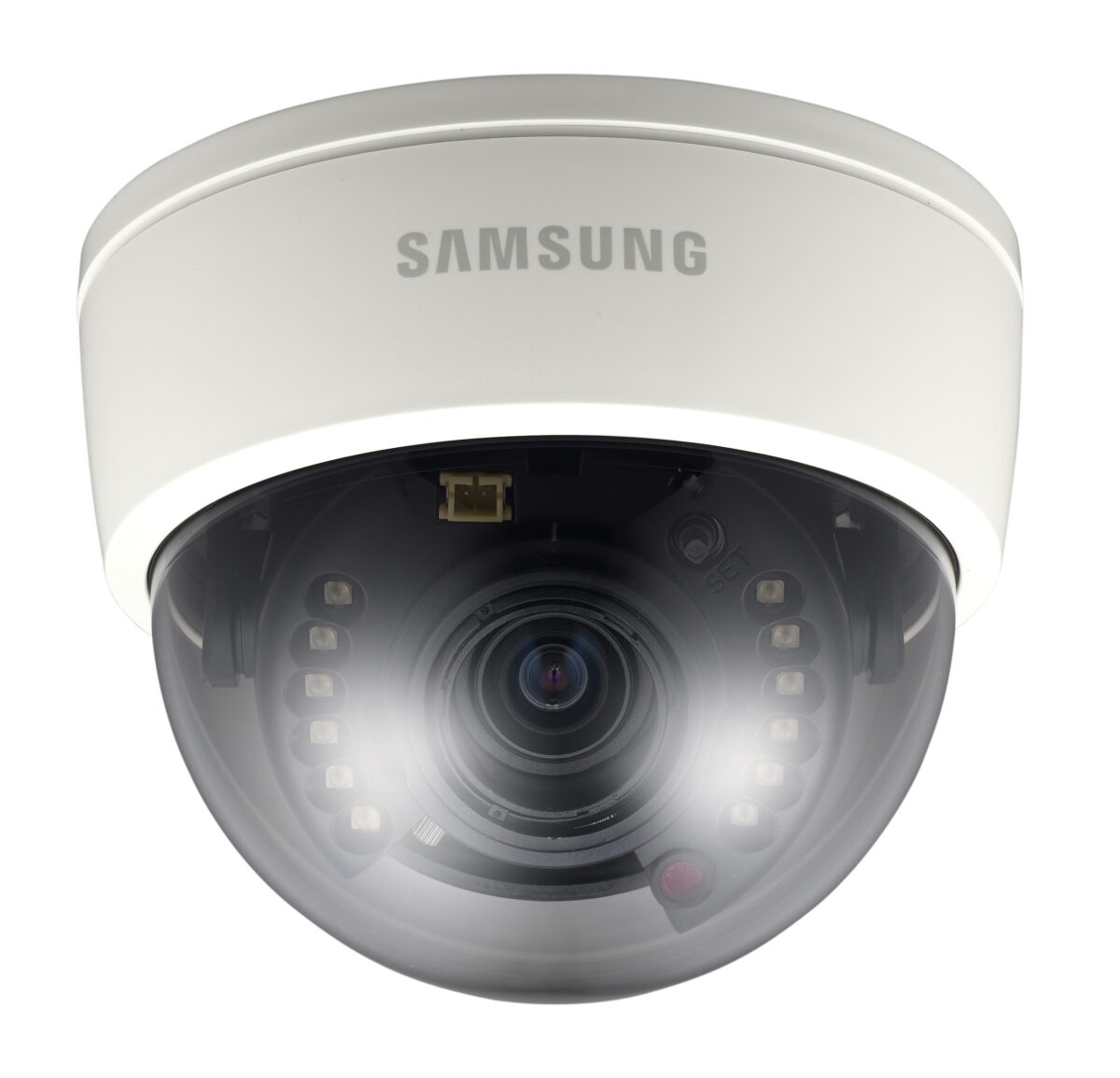

SCD-2080R
1/3" High Resolution IR Dome Camera
• Min. illumination 0Lux (IR LED on), IR distance 20m
• 3.6x V/F lens (2.8 ~ 10mm)
• True Day & Night (ICR), MD, SSNRIII (3D+2D)
• Coaxial control (Pelco-C), 12V DC
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Thông số sản phẩm
Video | |
---|---|
Imaging Device | 1/3" Super HAD CCD II |
NETD | 2 : 1 Interlace |
Pixel Size | Color : 600TV lines, B/W : 700TV lines |
Min. Illumination | 0.15Lux@F1.2 (50IRE), 0.0003Lux (Sens-up, 512x) |
Video Out | CVBS : 1.0 Vp-p / 75Ω composite |
Lens | |
Focal Length (Zoom Ratio) | 2.8 ~ 10mm |
Max. Aperture Ratio | 1 : 1.2(Wide) ~ 2.8(Tele) |
Angular Field of View | H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele) |
Min. Object Distance | 0.2m (0.66ft) |
Lens Type | DC Auto Iris |
Mount Type | Board-in type |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0° ~ 352° |
Tilt Range | 0° ~ 75° |
Operational | |
Privacy Masking | Pelco-C (Coaxitron) |
Environmental & Electrical | |
Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) |
Storage Temperature / Humidity | Less than 90% RH |
Input Voltage | 12V DC ±10% |
Mechanical | |
Color / Material | Ivory |
RAL Code | Plastic (Dome cover : Smoked) |
