Analog Cameras Ngừng sản xuất

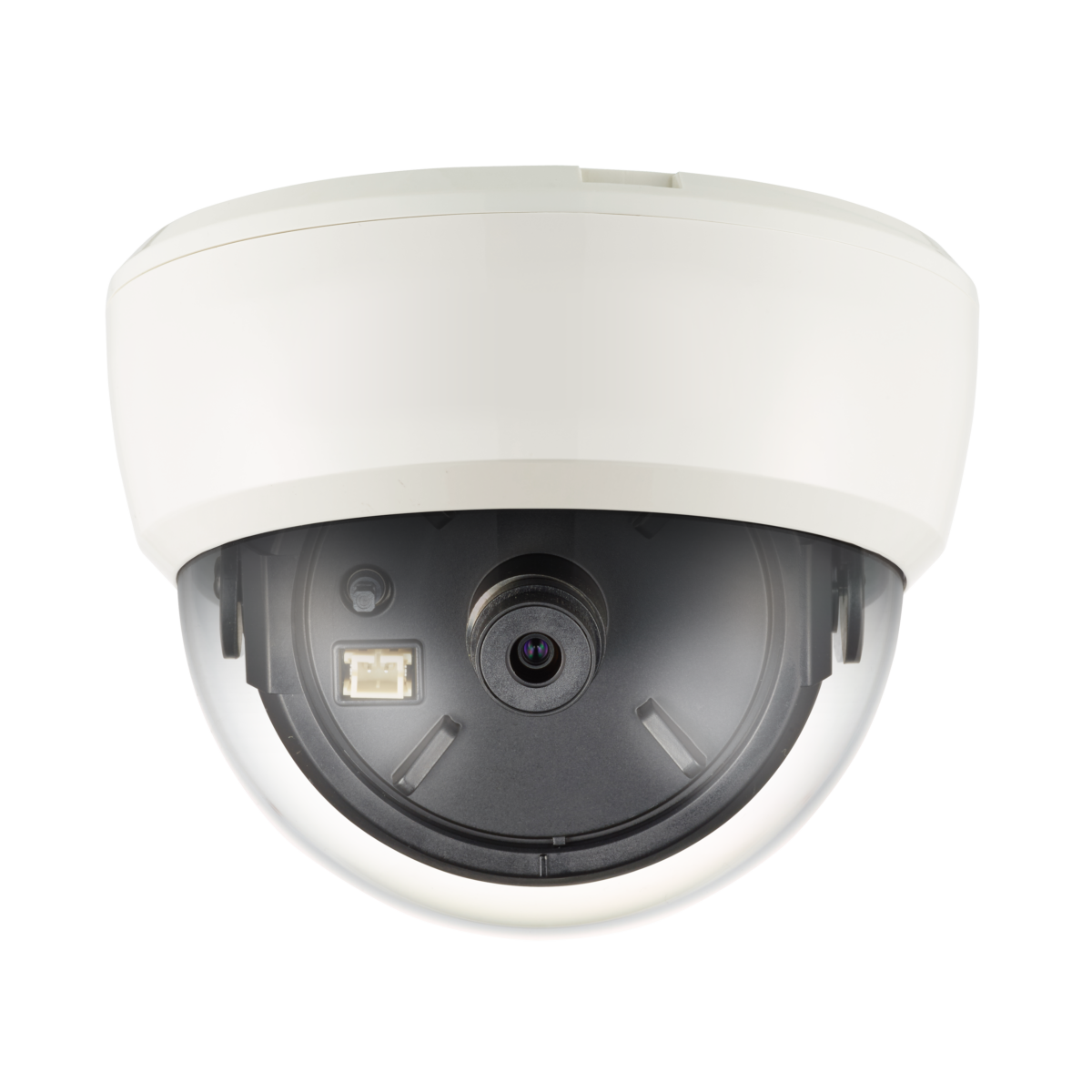

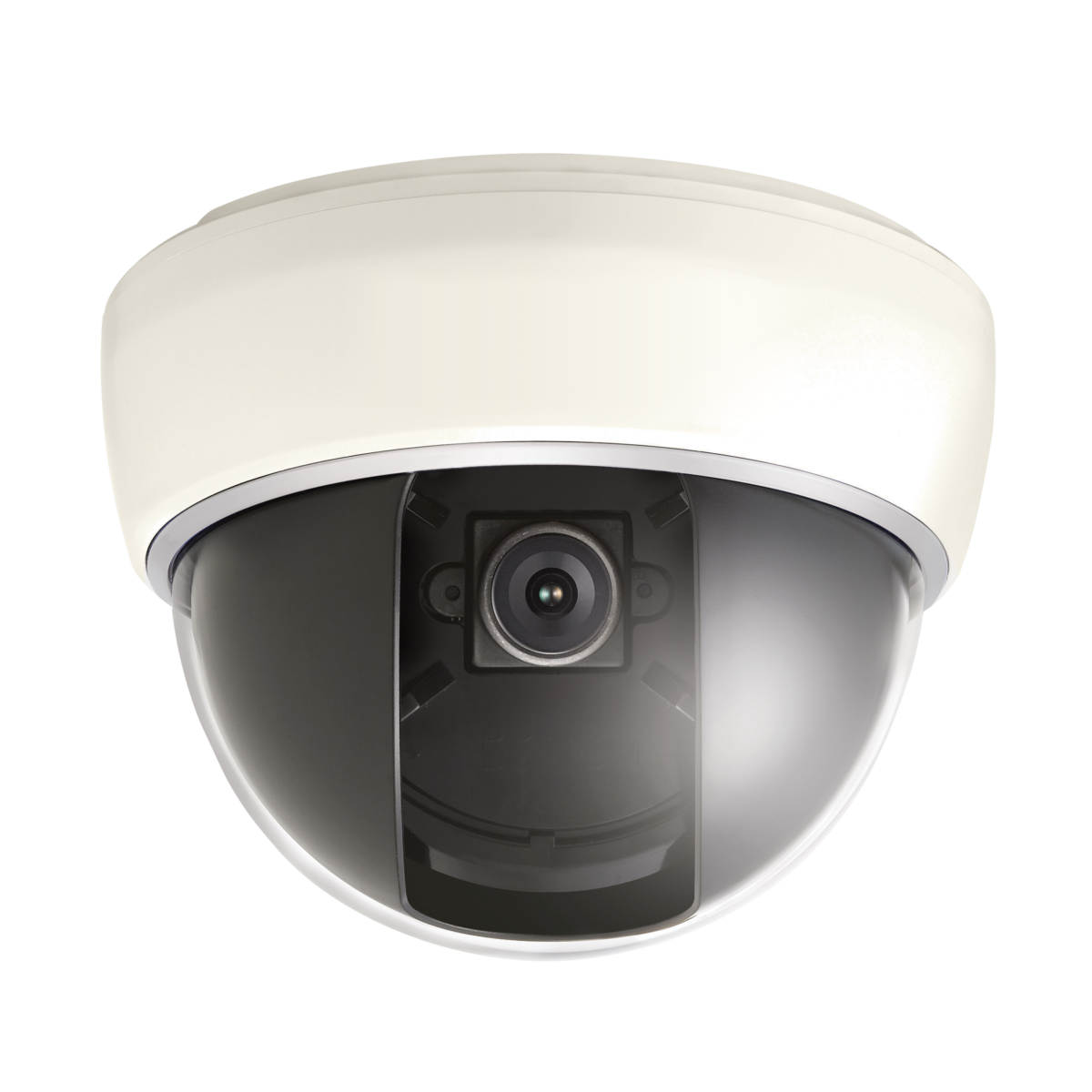

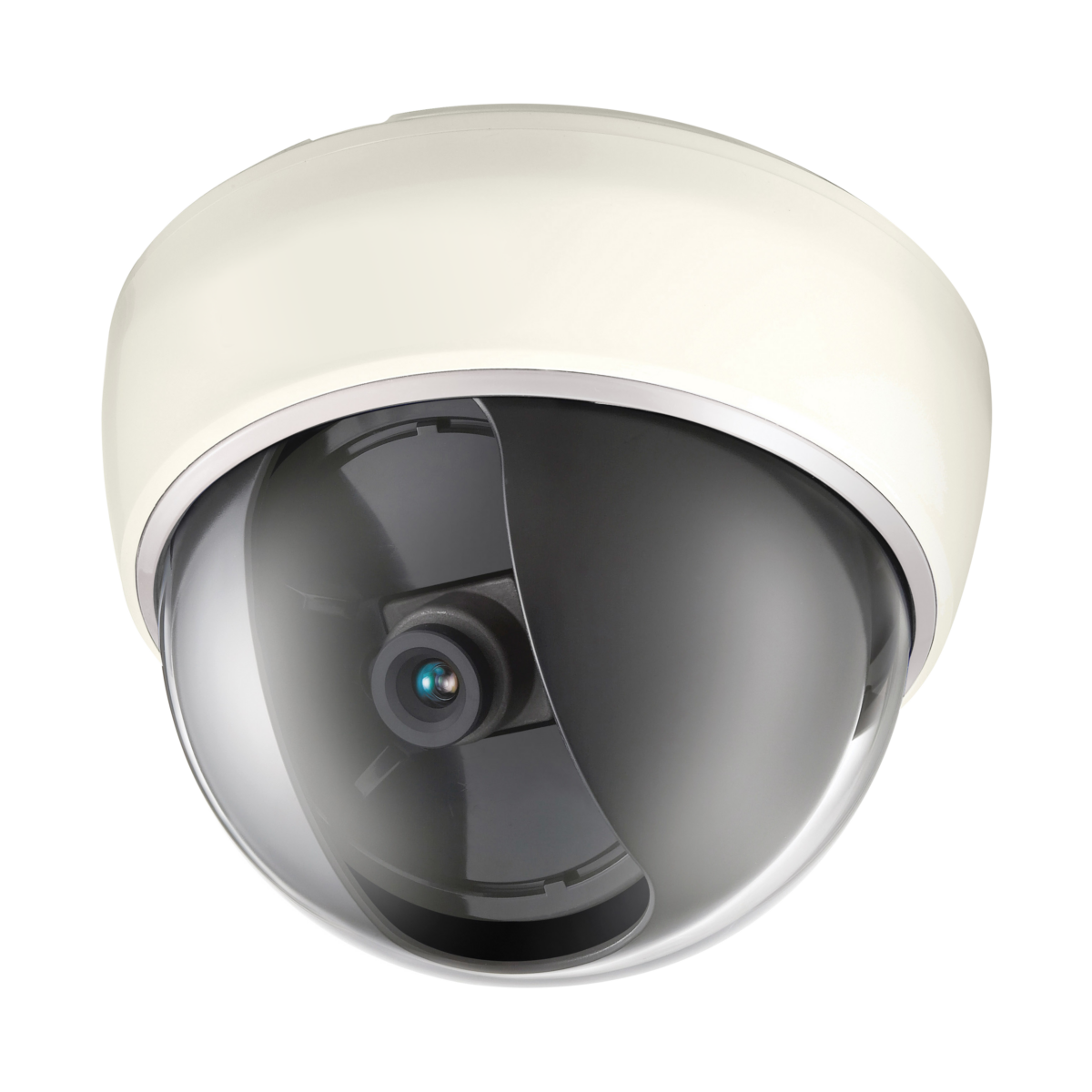

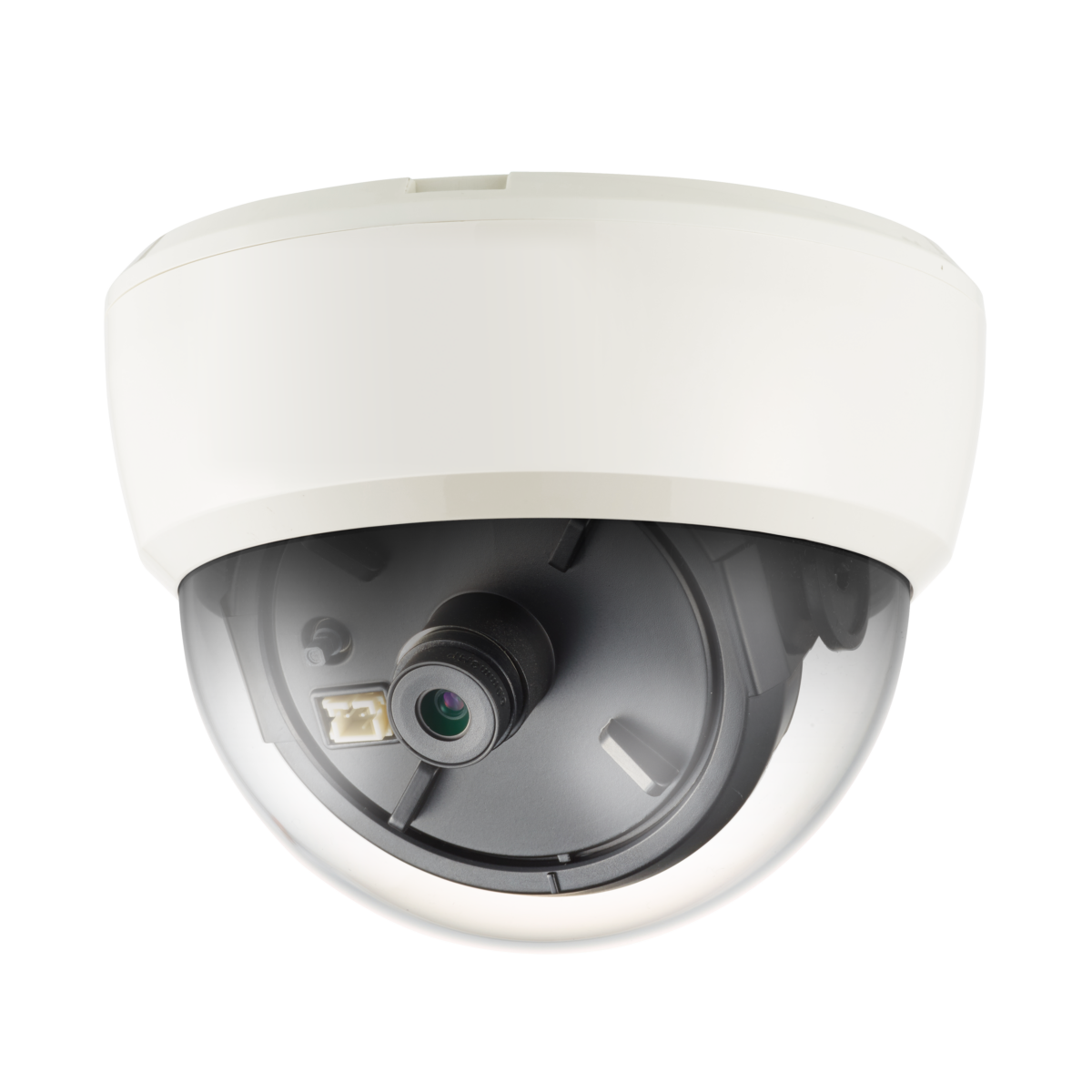

SCD-5020

1000TVL (1280H) Small Clear Dome Camera

Key Features
• High resolution of 1000TV lines (Color), 1000TV lines (B/W)
• Min. illumination 0.09Lux@F1.8, 50IRE, 0.05Lux@F1.8, 30IRE
• Built-in fixed lens (3.6mm)
• SSDR, SSNRIV, Defog
• Coax : Pelco-C (Coaxitron), 12V DC

["camera","analog","analog-dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Thông số sản phẩm

Video
Imaging Device 1/3" 1.3M CMOS
NETD Progressive
Pixel Size Color : 1000 TVL, B/W : 1000 TVL
Min. Illumination 0.09Lux (F1.8, 50IRE), 0.002Lux (1sec, F1.8, 50IRE)
Video Out CVBS : 1.0 Vp-p / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3.6mm
Max. Aperture Ratio F1.8
Angular Field of View H : 78° / V : 62.5° / D : 100°
Min. Object Distance 0.2m (0.66ft)
Lens Type Fixed Iris
Mount Type Board type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 352°
Tilt Range 0° ~ 70°
Operational
Privacy Masking Pelco-C (Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F)
Storage Temperature / Humidity Less than 90% RH
Input Voltage 12V DC ±10%
Mechanical
Color / Material Ivory
RAL Code Plastic
