Analog Cameras

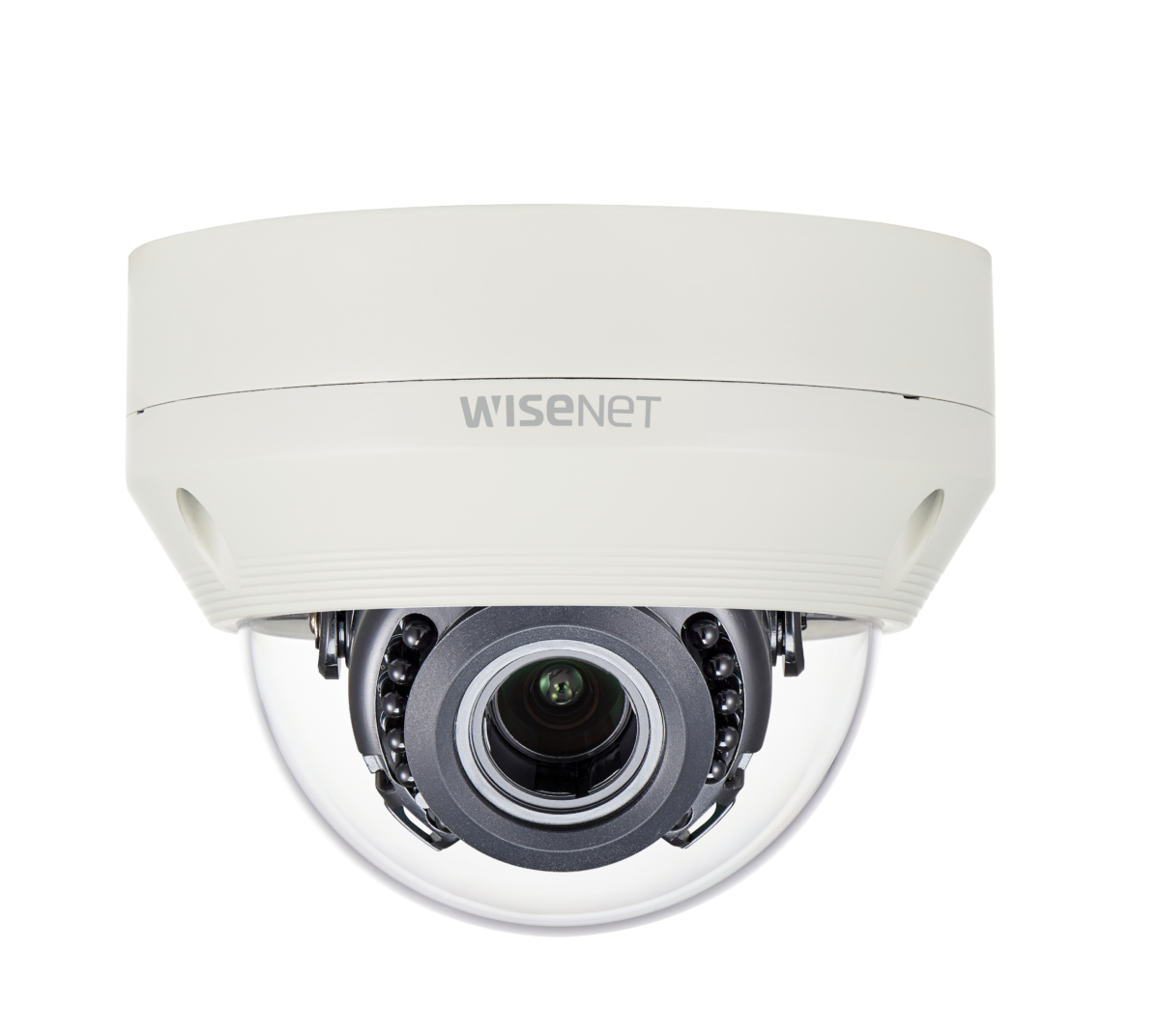

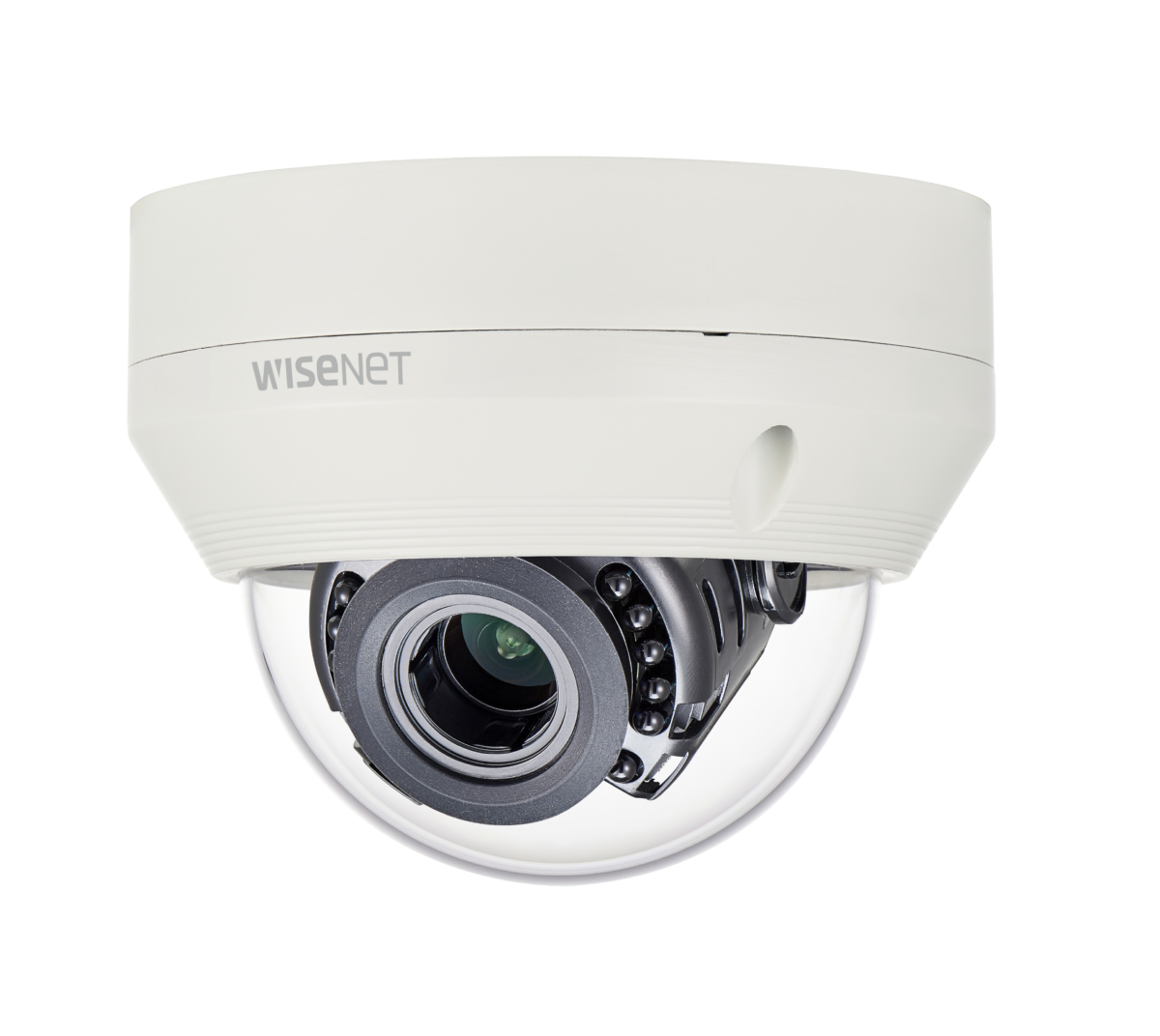

SCV-6085R

2MP Analog IR Vandal Dome Camera

Key Features
• Full HD (1,920 x 1,080 30fps) resolution
• 0.11Lux (Color), 0Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) varifocal lens
• Day & Night (ICR), Motion detection
• IR viewable length 30m (98.42ft)
• Transmission distance max. 500m
Contact Sales Datasheet

["camera","analog","analog-dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Thông số sản phẩm

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080
Max. Framerate 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.11Lux (F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video Out BNC(AHD 2MP,CVBS)
Video Transmission Distance 500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) varifocal
Max. Aperture Ratio F1.6
Angular Field of View H : 110.2°(Wide) ~ 32°(Tele)
V : 55.4°(Wide) ~ 18°(Tele)
D : 128.4°(Wide) ~ 36.6°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title Displayed up to 15 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, DWDR
Digital Noise Reduction SSNRⅣ
Defog Support
Motion Detection 4ea
Privacy Masking 8ea, rectangular zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1 ~ 1/12,000sec
Video Rotation H-REV / V-REV / HV-REV
Analytics Motion detection
Alarm I/O Output 1ea
Alarm Triggers Analytics
Alarm Events Alarm output
IR Viewable Length 30m(98.42ft)
Coaxial Protocol ACP(AHD Coax Protocol)
CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -30°C ~ +55°C (+14°F ~ +131°F) /
Less than 90% RH
* Start up should be done at above -10°C
Certification IP66, IK10
Input Voltage 24V AC24V~ 50/60Hz, 12V DC
Power Consumption AC 24V / 0.45A
DC 12V / 0.46A
Mechanical
Color / Material Ivory / Aluminum
Product Dimensions / Weight Ø137 x 106.1mm (Ø5.39" x 4.18"), 715g
Hanging Mount (Dome) SBP-301HM5
DORI
Detect (25PPM/ 8PPF) Wide: 26.8m(87.89ft) / Tele: 133.9m(439.36ft)
Observe (63PPM/ 19PPF) Wide: 10.7m(35.16ft) / Tele: 53.6m(175.74ft)
Recognize (125PPM/ 38PPF) Wide: 5.4m(17.58ft) / Tele: 26.8m(87.87ft)
Identify (250PPM/ 76PPF) Wide: 2.7m(8.79ft) / Tele: 13.4m(43.94ft)
