Network Cameras

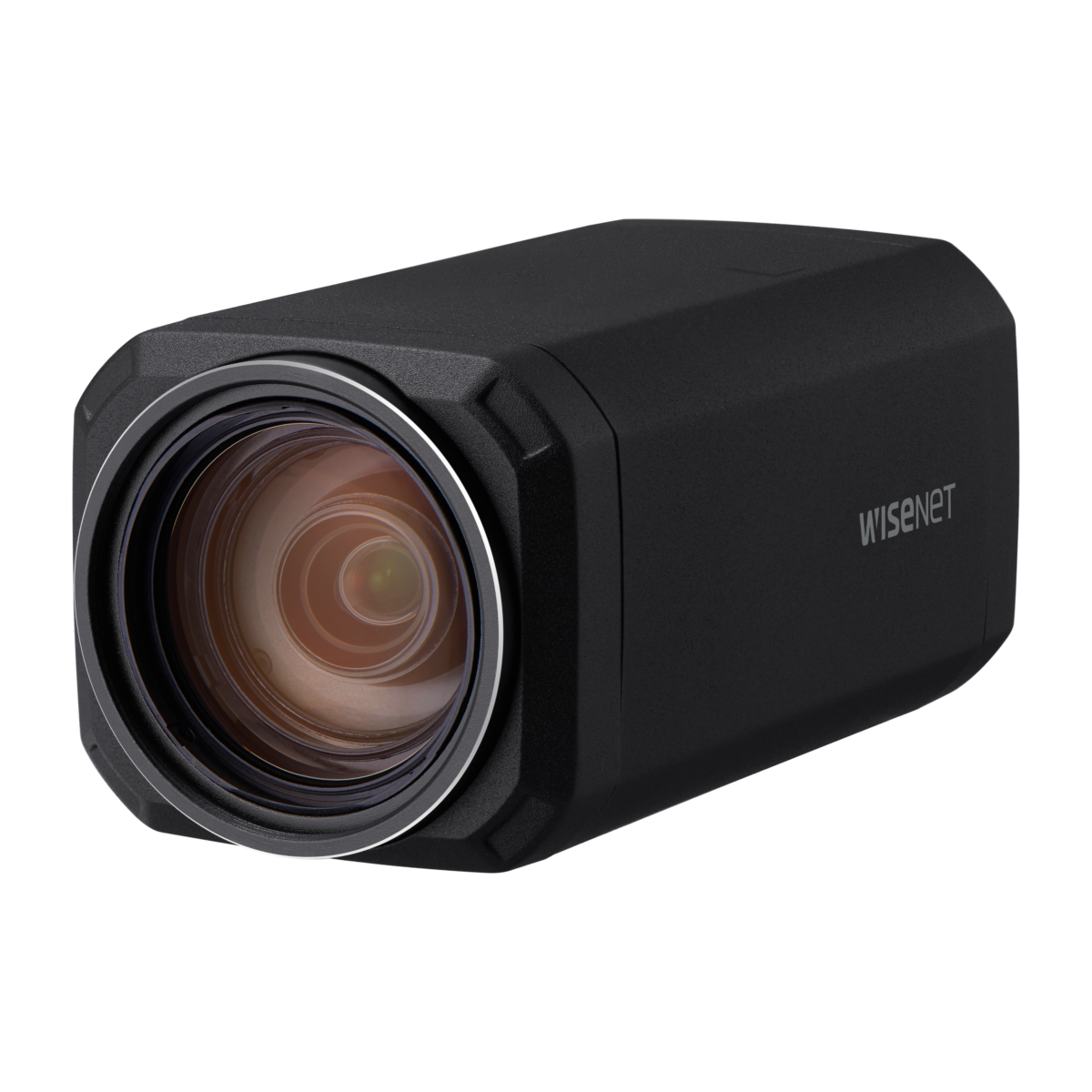

XNZ-L6320A
2MP H.265 32x Zoom Camera
Key Features
• Maximum 2MP (1920 x 1080) resolution
• 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom
• Maximum 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG Codec, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Video & Audio Analytics
• PoE, 12VDC, Micro SD/SDHC/SDXC 1slot 256GB
• 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom
• Maximum 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG Codec, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Video & Audio Analytics
• PoE, 12VDC, Micro SD/SDHC/SDXC 1slot 256GB
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Tổng quan
Full HD 32x Zoom
The XNZ-L6320A can zoom in up to 32x (4.44-142.6mm) to capture clear images of far-away objects, providing monitoring in sharp Full HD resolution.
Advanced compression technology WiseStreamⅡ reducing the data size
Using WiseStreamⅡ, Hanwha Techwin’s original video compression technology, the Wisenet X series reduces data by up to 99% compared to current H.264 technology, when combined with H.265compression. System costs are also greatly reduced without comprising image quality.
Thông số sản phẩm
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux (1/30sec, F1.6) B/W: 0.005Lux (1/30sec, F1.6) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm (Optical 32X) (digital 32x, total 1024x zoom) |
| Max. Aperture Ratio | F1.6(Wide) ~ F4.4(Tele) |
| Angular Field of View | H: 64.66˚(Wide)~2.29˚(Tele) / V: 38.08˚(Wide)~1.30˚(Tele) |
| Min. Object Distance | Wide 1.5m(4.92ft) ,Tele 2m(6.56ft) |
| Focus Control | Auto, One shot AF |
| Lens Type | DC auto iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | OFF/ LOW/ MID/ HIGH |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Serial Interface | RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover(PTZ Preset) |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 90% RH(Non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.5W, Typ 5.0W 12VDC: Max 5.7W, Typ 3.7W |
| Mechanical | |
| Color / Material | Black / Metal |
| Product Dimensions / Weight | 72x63.9 x 135.4mm(2.83x2.52x5.33"), 480g(1.06 lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft) |
