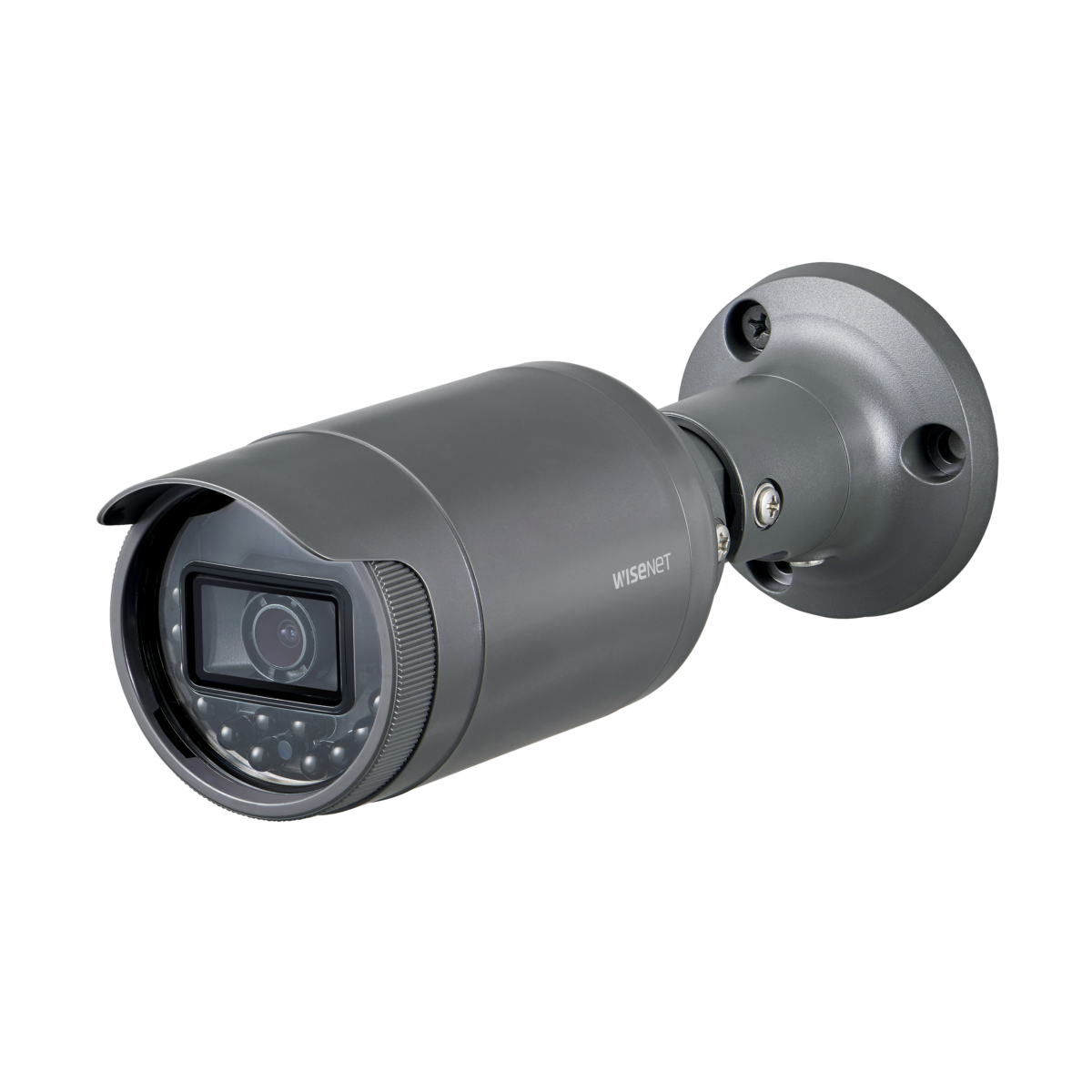

LNO-6010R
2M H.264 IR Bullet Camera
• Built-in 3mm fixed lens
• Max. 30fps@all resolutions (H.264)
• H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Tampering, Motion detection
• microSD/SDHC/SDXC memory slot (Max. 32GB), PoE
• Hallway view, WiseStreamII support
• IR viewable length 30m
• IP66 support
※ Available in select regions
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Tổng quan
Brilliant Cameras with essential functions
- Max. 2megapixel(1920 x 1080) resolution
- H.264, MJPEG codec
- Max. 30fps@2MP (H.264)
- True WDR(120dB), WiseStreamⅡ
- Hallway view, LDC(Lens Distortion Correction)
- Motion detection, Tampering
- SD/SDHC memory slot(Max. 32GB), PoE
- IP66 / IK10 support(Vandal-Resistant cameras)
Broad lineup for indoors and outdoors
The newly launched L series cameras consist of very affordable cameras with essential features. The broad line-up includes fixed and varifocal lens depending on its lens type, and bullet, dome and vandal-resistant dome cameras. The cameras have a modern design and can be used both indoors and outdoors.
True WDR(120dB)
The true WDR function built-in into the L series cameras can generate natural images without any image loss even in the challenging environments, such as when the background is brighter than the main object, when an image is obscured by shade due to strong light, when there is a large gap in screen brightness. In addtion, it can significantly reduce the effect of motion blur, which is a critical weakness of conventional WDR.
Improve bandwidth using WiseStreamⅡ
WiseStreamⅡ is an advanced video compression technology based on motion analytics to maintain video quality whilst reducing the amount of data required. WiseStreamⅡ reduces noise and minimizes image quality degradation, which are common problems of traditional image compression artifacts and image noise in low light settings.
Hallway view
In a vertical shaped environment, such as corridors, hallways, tunnels, or aisles, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. By using the hallway view, 3:4 and 9:16 aspect ratio image is created : a verticallly oriented video that maximizes image quality in narrow locations.
Thông số sản phẩm
| Video | |
|---|---|
| Imaging Device | 1/2.9" 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 640x480, 640x360, 320x240 |
| Max. Framerate | H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 1fps at 1920x1080, 1280x1024, 1280x720, 1024x768, Max. 15fps at other resolution |
| Min. Illumination | Color: 0.18Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.0mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 102.0° / V: 54.0° / D: 120.0° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, rectangler zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Low / Middle / High |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering |
| Alarm Triggers | Analytics |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers |
| IR Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC 1slot 32GB |
| Memory | 256MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +131°F) / Less than 90% RH |
| Certification | IP66 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 6.50W |
| Mechanical | |
| Color / Material | Dark grey / Plastic |
| Product Dimensions / Weight | Ø58.6x182.0mm(Ø2.31x7.17"), 240g(0.53 lb) |
