Network Cameras

PND-A9081RF

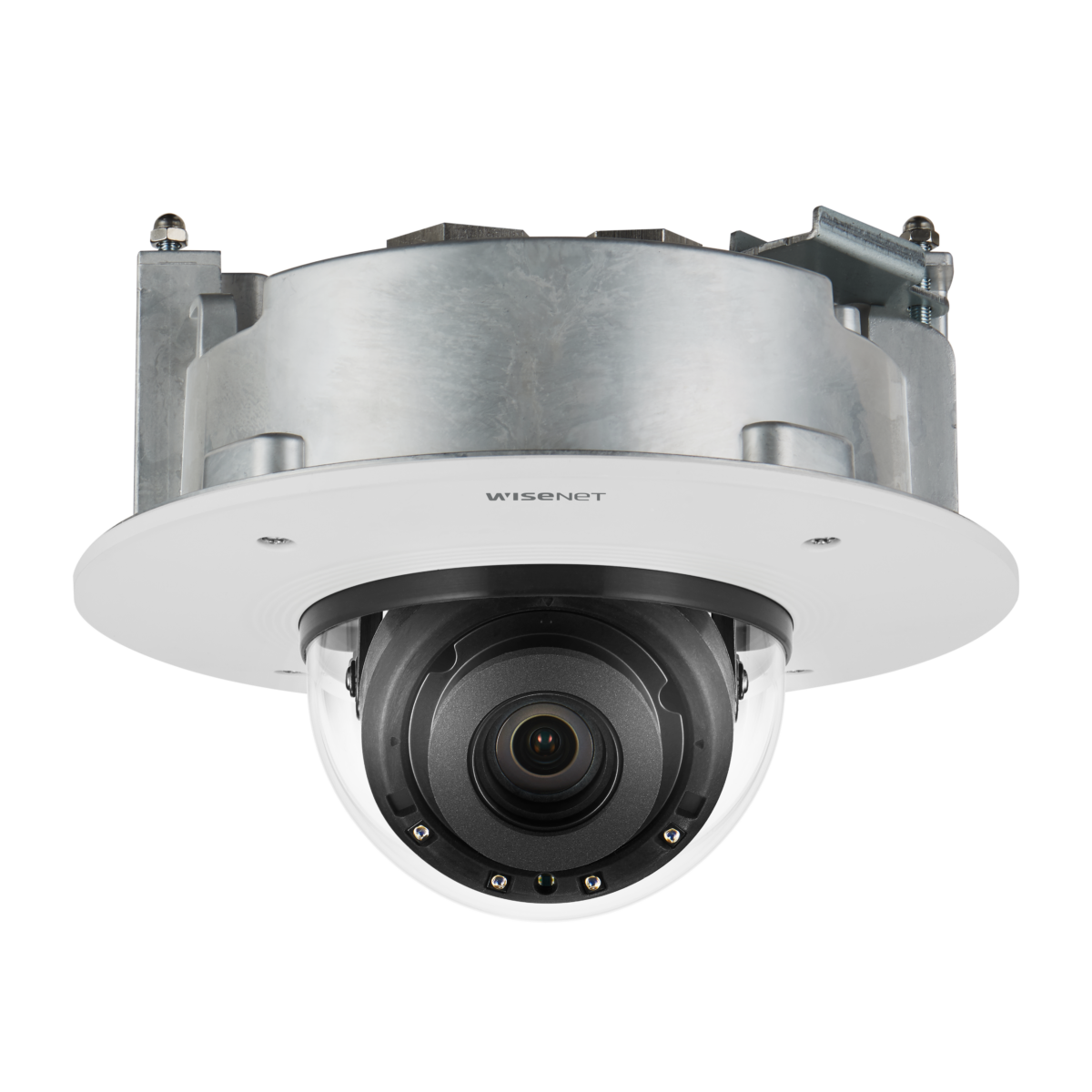

4K AI IR Dome Camera

Key Features
• Maximum 4K resolution
• 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
• Day & Night(ICR), WDR(120dB), WiseNRⅡ (Using AI engine), Prefer Shutter
• H.265, H.264, MJPEG codec, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• Video Analytics based on AI
- Object detection and classification(Person, Face, Vehicle, License Plate)
- Face mask detection, Social distancing detection
- Attribute, BestShot
• Modular structure for easy installation
• Requires camera firmware v1.41.03 or later to use Face Mask Detection
• System requirements
- SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Tổng quan

Reducing false alarm based on deep learning technology
P series AI cameras using AI algorithms filter out irrelevant movements caused by environmental changes such as waving trees, shadows, or animals. While conventional cameras detect motion based on its pixels and generate events even if users want to ignore, Deep Learning-based P series AI cameras generate event alarm only for people and vehicles, reducing false alarms for more efficient operation.
feature_1-min2
Attribute, BestShot for the forensic search
Metadata including attribute (people : age, gender, colors of top/bottom clothes, wearing glasses, Vehicle : types, colors) is sent to the backend server and used to extract information on specific situations, significantly reducing the time to search the entire video. And P series AI cameras are equipped with the BestShot feature for re-identification which ensures that only the most suitable images of classified objects are sent to the backend server. P seires AI cameras can also quickly and accurately detect the objects with or without face mask and immediately sends out alert.
MN000011 MN000011

VMS Integration for forensic search applications
P series AI cameras offers integration of video management system from Milestone, Genetec using Hanwha Vision’s AI Plug-ins and Wisenet WAVE. These Plug-ins provide improved AI search on Milestone and Genetec’s video management system.
Download AI Plug-ins for Genetec and Milestone video management system here.  Compatible models • Milestone 2019 R3 or higher, Milestone Expert or Corporate level • Genetec Security Center 5.9.2.0 or Higher(Official announcement from Genetec DAP group)

  – Partnumber = GSC-1SDK-HANWHA-AICam

• Wisenet SSM, Wisenet WAVE

images_000037_feature_3 images_000037_feature_3_mb@2x

Thông số sản phẩm

Video
Imaging Device 1/1.8" CMOS
Resolution 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768,
800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.5~10mm(2.2x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F2.65(Tele)
Angular Field of View H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0˚~360˚ / -45˚~85˚ / 0˚~355˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Digital Noise Reduction WiseNR Ⅱ(using AI engine)
SSNRⅤ
Digital Image Stabilization Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, rectangle zones
- Color: Gray/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Auto prefer shutter control based on AI engine
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Classified object type: Person/Face/Vehicle/License plate
Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color)
Support BestShot per object
Analytics events based on AI engine
- Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection
Analytics events
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Support WiseDetector for Adding custom objects

*Some of the video analytics only works with people and vehicle detection
Business Intelligence People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine
Alarm I/O 2 configurable I/O ports, DC 12V output(Max. 50mA)
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type IR LED (850nm)
IR Viewable Length WiseIR 30m(98.42ft)
Network
Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 6 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Wisenet open platform
- WiseAI application included(Analytic based on AI, Business intelligence)
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attack
Network authentication IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS (WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file
Audit Access / System / Event Log management
Device ID Device certificate (Hanwha Techwin Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slots 512GB
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP52, IK10, Plenum rate
Input Voltage PoE+(IEEE802.3at), 12VDC
Power Consumption PoE+: Max 20.00W, typical 16.00W
12VDC: Max 17.70W, typical 14.00W
Mechanical
Color / Material White / Aluminum, Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight Ø205x163mm(8.07x4.92"), Weight : 1.95Kg (4.30lb)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 62.2m(204.04ft) / Tele: 185.4m(608.31ft)
Observe (63PPM/ 19PPF) Wide: 24.9m(81.62ft) / Tele: 74.2m(243.32ft)
Recognize (125PPM/ 38PPF) Wide: 12.4m(40.81ft) / Tele: 37.1m(121.66ft)
Identify (250PPM/ 76PPF) Wide: 6.2m(20.40ft) / Tele: 18.5m(60.83ft)
Datasheet

Demo sản phẩm

Wisenet P series AI Camera Demo
