Network Cameras

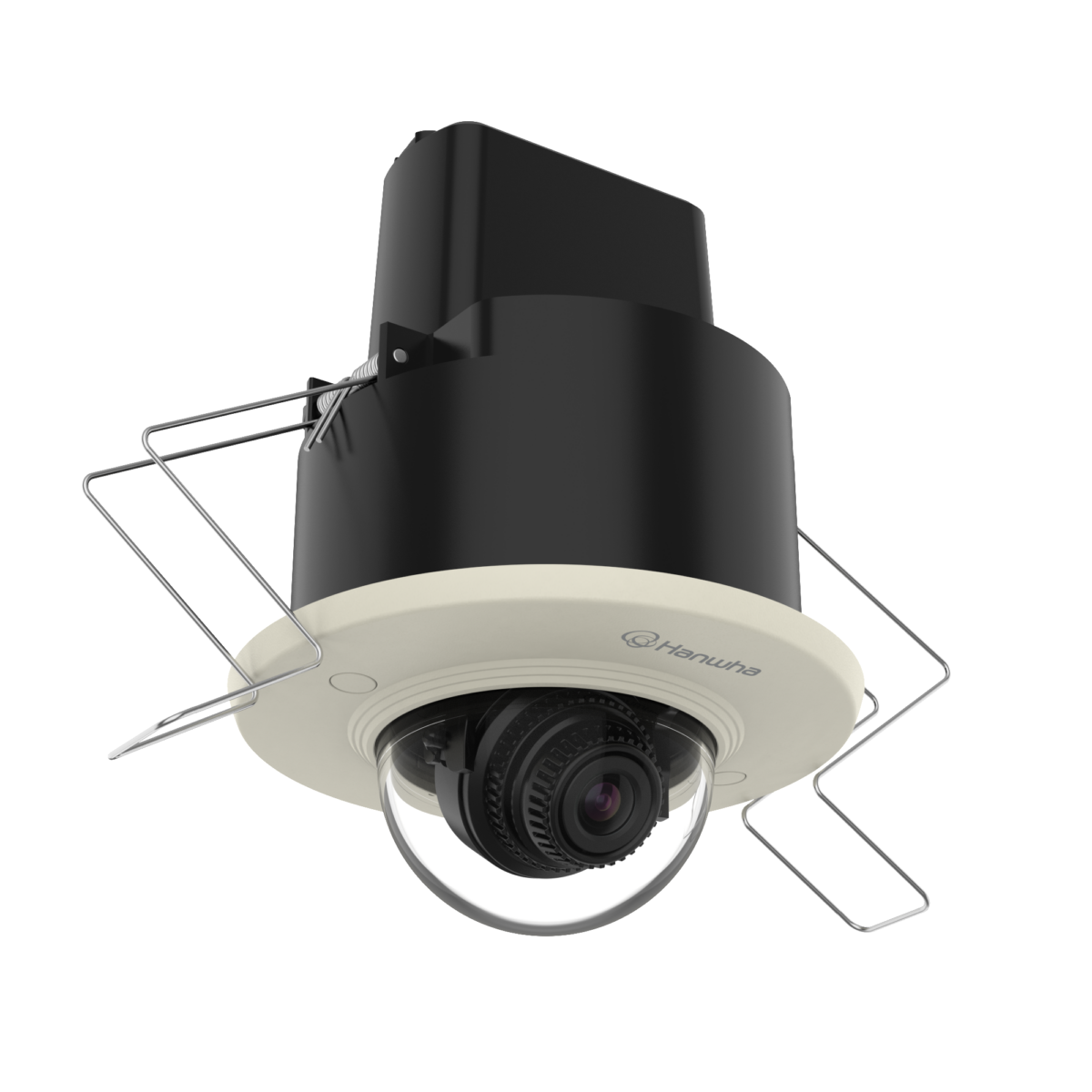

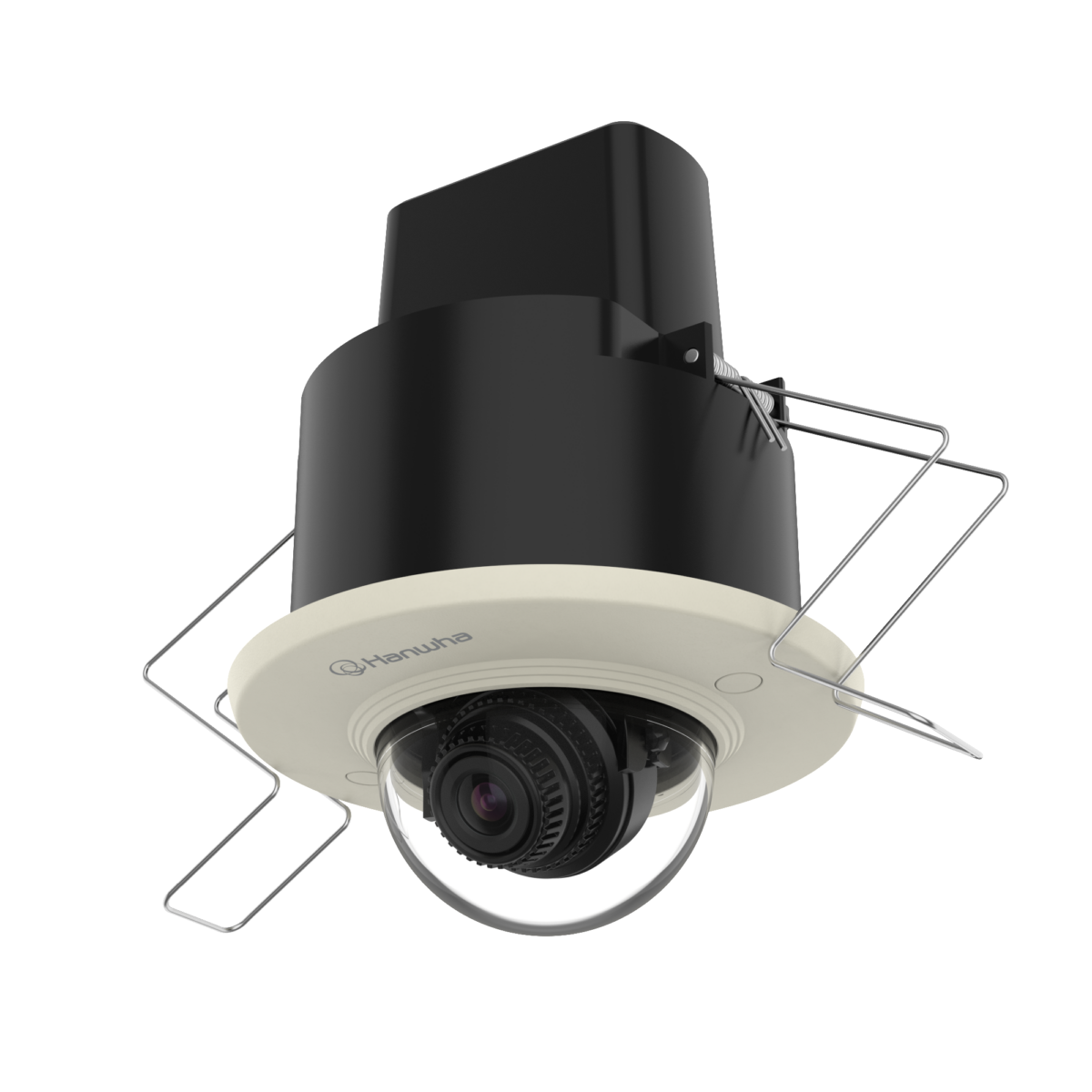

XND-6011F

2M H.265 Dome Camera

Key Features
• Built-in 2.8mm fixed lens
• Max. 60fps@all resolutions (H.265 / H.264)
• WDR (150dB), Defog
• Loitering, Directional detection, Fog detection
• Audio detection, Digital auto tracking, Sound classification
• Heatmap, People counting, Queue management
• Motion detection, Handover, Tampering
• Memory slot (Max. 256GB), PoE
• Hallway View, WiseStreamII Support
• LDC Support (Lens distortion correction)
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Thông số sản phẩm

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.55Lux(F2.0, 1/30sec)
BW: 0.55Lux(F2.0, 1/30sec)
Video Out USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 107.4°, V: 62.2°, D: 122°
Min. Object Distance 0.2m(0.66ft)
Lens Type Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~355° / 0°~47° / 0°~353°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Business Intelligence People counting, Queue management, Heatmap
Alarm Triggers Analytics, Network disconnect
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Audio In Built-in mic
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C~+55°C(14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE : Max 4.7W
Mechanical
Color / Material Ivory / Plastic
Product Dimensions / Weight Ø98.9x129.1mm(3.9"x5.1"), 275g(0.6 lb)
