Network Cameras

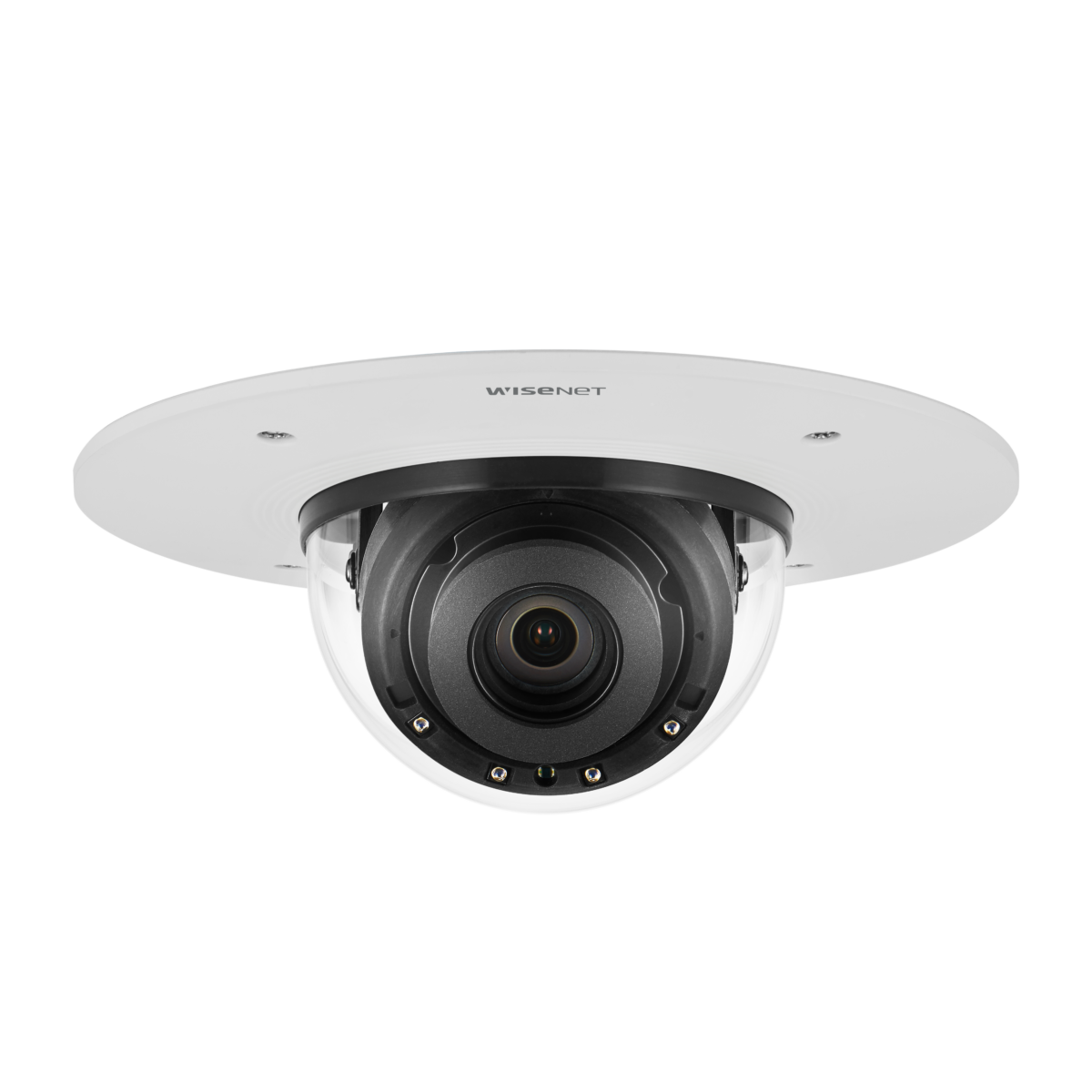

XND-8081RF

5M H.265 IR Dome Camera

Key Features
• Max. 5Megapixel resolution
• 0.07Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
• Day & Night (ICR), WDR (120dB)
• Modular structure
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• DIS and shock detection with built-in gyro sensor
• IP52, Plenum rate, PoE, 12VDC
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Tổng quan

2MP / 5MP NW Modular Camera
Faster installation, reduced costs
Advanced performance, multiplied values

Wisenet-X-Plus-Hero Wisenet-X-Plus-Hero

  • Max. 2Megapixel & 5Megapixel resolution
  • Video & audio analytics, Audio playback
  • DIS and shock detection with built-in gyro sensor
  • Modular structure and motorized PTRZ
  • Installer friendly package design
  • IP67/IP66/IP6K9K, IK10+, NEMA4X(XNV-6081Z/8081Z)

X-Plus-Product-list-Outdoor-Indoor-Flush-Mount

Wisenet-X-Plus-head X-Plus-Product-list-XNV-6081Z,XNV-8081Z,XND-6081VZ,XND-8081VZ,XND-6081FZ,XND-8081FZ

The most powerful chipset WISENET 5
Wisenet X series is supercharged by the most powerful chipset ever incorporated into a full camera range. The Wisenet 5 chip uses an all-new architecture that enables faster processing. That means you get the best video performance just as you need it.

The-most-powerful-chipset-wisenet-5

Easy installation with modular structure and motorized PTRZ
Wisenet X PLUS cameras offer easy installation with their modular structure and motorized PTRZ. The product package has been renewed to save time and money in installation and maintenance.

Easy installation with modular structure and motorized PTRZ

Extended tilt range for greater flexibility
Extended tilt angle has been added for greater flexibility in placement and use cases of Wisenet X PLUS cameras.

Extended tilt range for greater flexibility

Advanced DIS and shock detection with built-in gyro sensors
Wisenet X PLUS cameras have built-in gyro sensors to enable advanced DIS with reduced motion blur and shock detection which detects when the camera is hit.

Advanced DIS and shock detection with built-in gyro sensors Advanced DIS and shock detection with built-in gyro sensors

High reliability in challenging environments
One of the most important features of a security camera is reliability in challenging environments. Wisenet X PLUS cameras offer high reliability by providing resistance to weather and impact with IP67, IP66, IP6K9K, and IK10+ ratings.

High reliability in challenging environments High reliability in challenging environments
* Detailed specifications differ for each products.

Audio playback on event
Audio playback feature responses to user-defined events to assist operators communicate with the public.

Audio playback on event

Optional accessories for various applications
A weather cap and the skin covers available in black and ivory would blend in with the surroundings of different kinds.

Optional accessories for various applications Optional accessories for various applications
* Weather cap(XNV only) and ivory skin cover(XNV and XND) are included in product package.
   The weather cap can not be applied with the skin cover on.

Thông số sản phẩm

Video
Imaging Device 1/1.8" 6MP CMOS
Resolution 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.07Lux(F1.3, 1/30sec)
BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 3.9~9.4mm(2.4x) motorized varifocal
Max. Aperture Ratio F1.3(Wide)~F2.4(Tele)
Angular Field of View H: 92.1°(Wide)~38.7°(Tele) / V: 67.2°(Wide)~29.0°(Tele) / D: 119.9°(Wide)~48.6°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris, P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / -45°~85° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence People counting, Queue management, Heatmap
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio playback
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max. output level: 1Vrms
IR Viewable Length 50m(164.04ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -25°C~+60°C (-13°F~+140°F) / Less than 90% RH
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 90% RH
Certification IP52
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W, typical 10.10W
12VDC: Max 11.7W, typical 7.90W
Mechanical
Color / Material White / Aluminum(Plenum)
RAL Code RAL9003
Product Dimensions / Weight Ø205x155mm(8.07x6.10"), 1.80kg(3.97 lb)
Datasheet
