Network Cameras

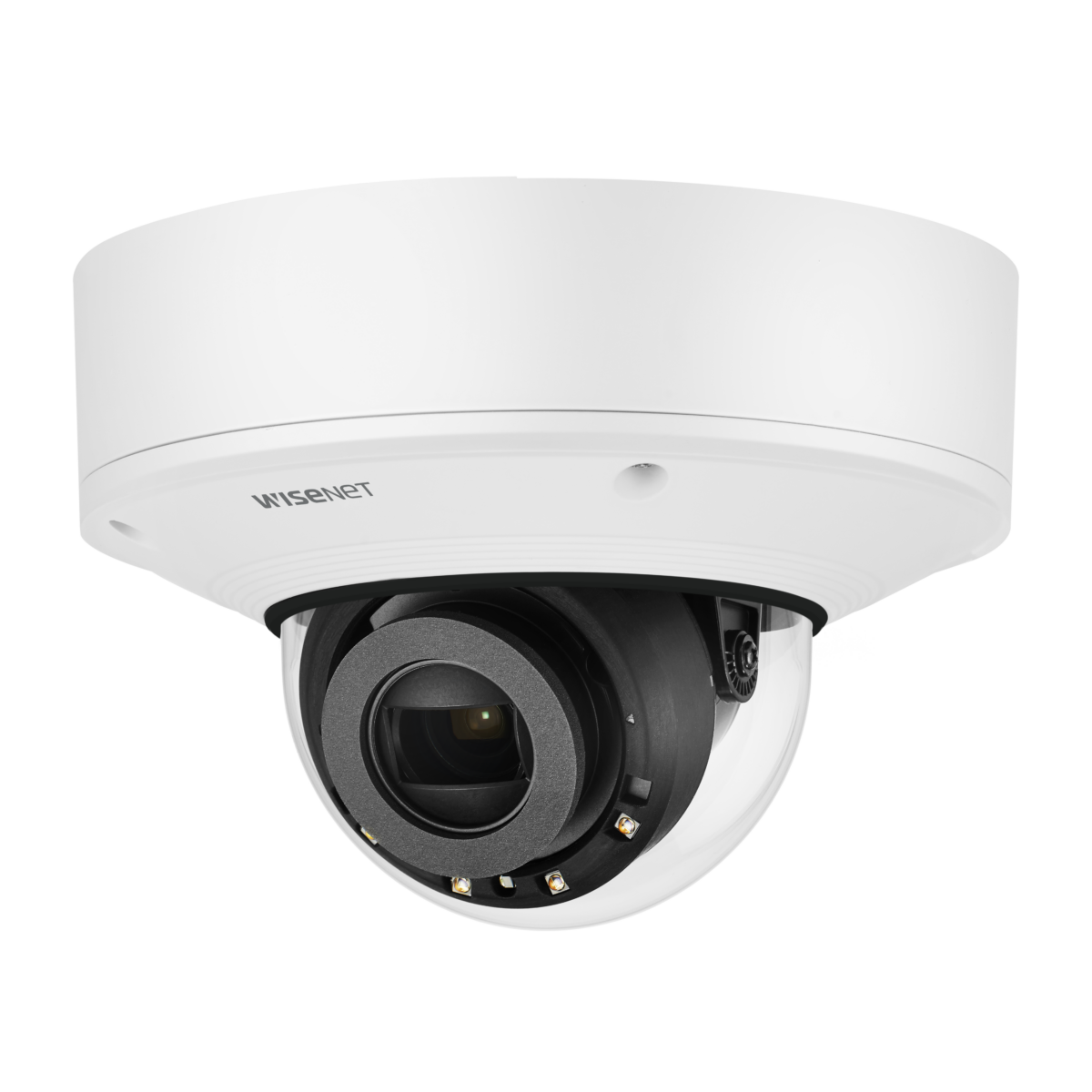

XNV-6081RE

2MP IR PoE Extender Vandal Dome Camera

Key Features
• Max. 2MP resolution
• PoE Extender (Main cam, extension cam)
• PoE out :Max. 12.95W@80m
• 2.8~12mm(4.3x) motorized varifocal
• 0.015Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
• IR viewable length 50m
• Day & Night (ICR), WDR (150dB)
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• Business Intelligence(People counting, Queue management, Heatmap)
• DIS and shock detection with built-in gyro sensor
• Modular structure, PoE+ in/ PoE out
• IP66/IP67/IP6K9K, IK10+, NEMA4X
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Tổng quan

Allows two PoE cameras on a single cable run for cost and installation savings
Wisenet PoE extender cameras are designed to save integrators time and money when adding additional cameras to existing installations. For new installations, integrators can plan to run two PoE cameras per cable run, also saving on the number of ports and number switches required as well. For retrofit applications where an additional camera is needed, simply replace the old camera with a PoE extender camera, then install and connect a new PoE camera.

Thông số sản phẩm

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.015Lux(F1.4, 1./30sec)
BW: 0Lux(IR LED)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
Angular Field of View H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris, P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / -45°~85° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, rectangular zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear,
Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business Intelligence People counting, Queue management, Heatmap
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio playback
Audio In Selectable(mic in/line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max. output level: 1Vrms
IR Viewable Length 50m(164.04ft)
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP,
DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech,
Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -35°C
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66/IP67/IP6K9K, IK10+, NEMA4X
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption Max 25.5 W (Main CAM + Extension CAM)
Typical 10.2W (Main CAM)
* PoE Out: Max 12.95W at 80meters using CAT5/5E cable
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight Ø180x125mm(7.09x4.92"), 1.75kg(3.86 lb)
Compatible Conduit hole / Gangbox 3/4"
Hanging Mount (Dome) SBP-187HM
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 22.4m(73.49ft) / Tele: 155m(508.53ft)
Observe (63PPM/ 19PPF) Wide: 9.0m(29.53ft) / Tele: 62m(203.41ft)
Recognize (125PPM/ 38PPF) Wide: 4.5m(14.76ft) / Tele: 31m(101.71ft)
Identify (250PPM/ 76PPF) Wide: 2.2m(7.22ft) / Tele: 15m(49.21ft)
